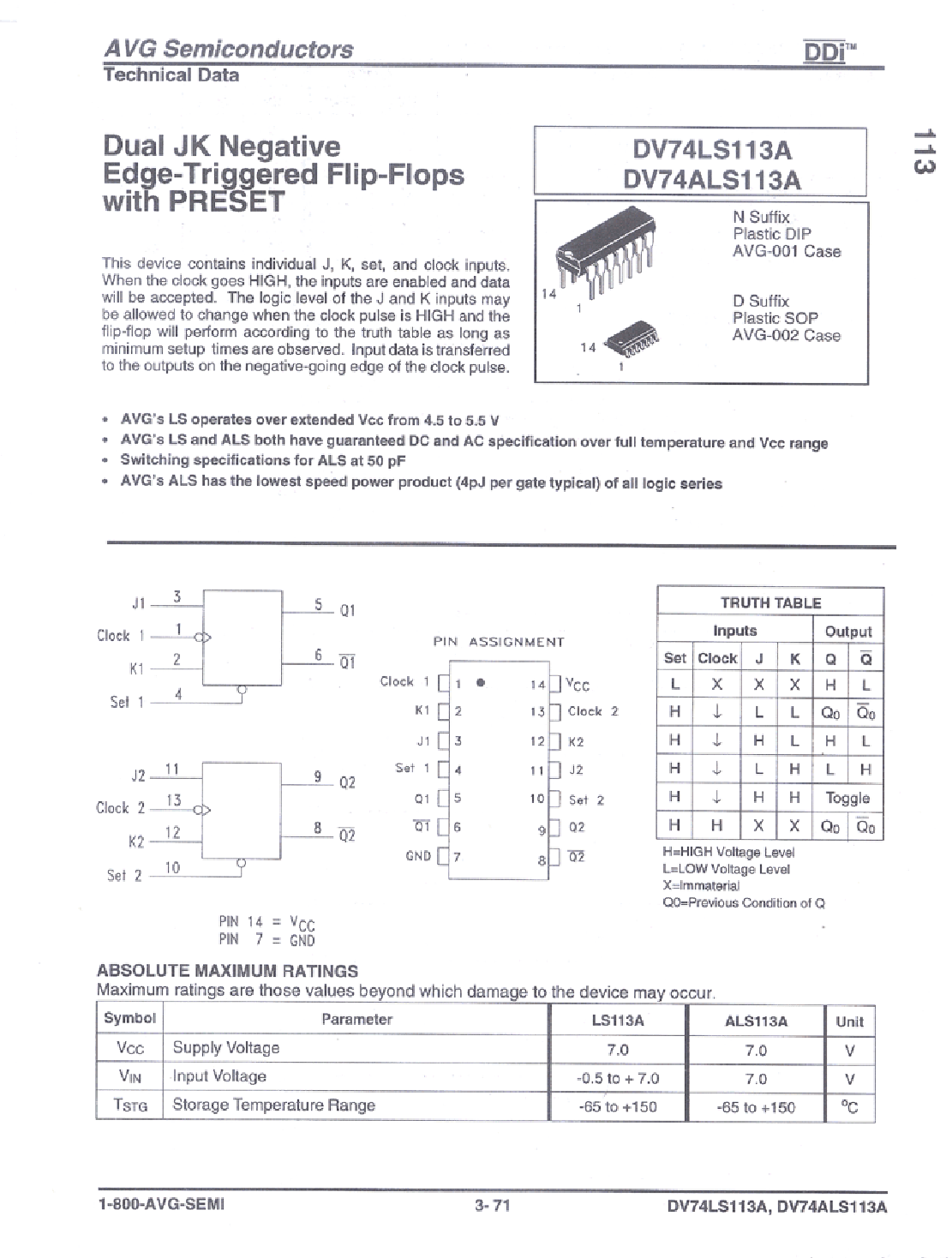

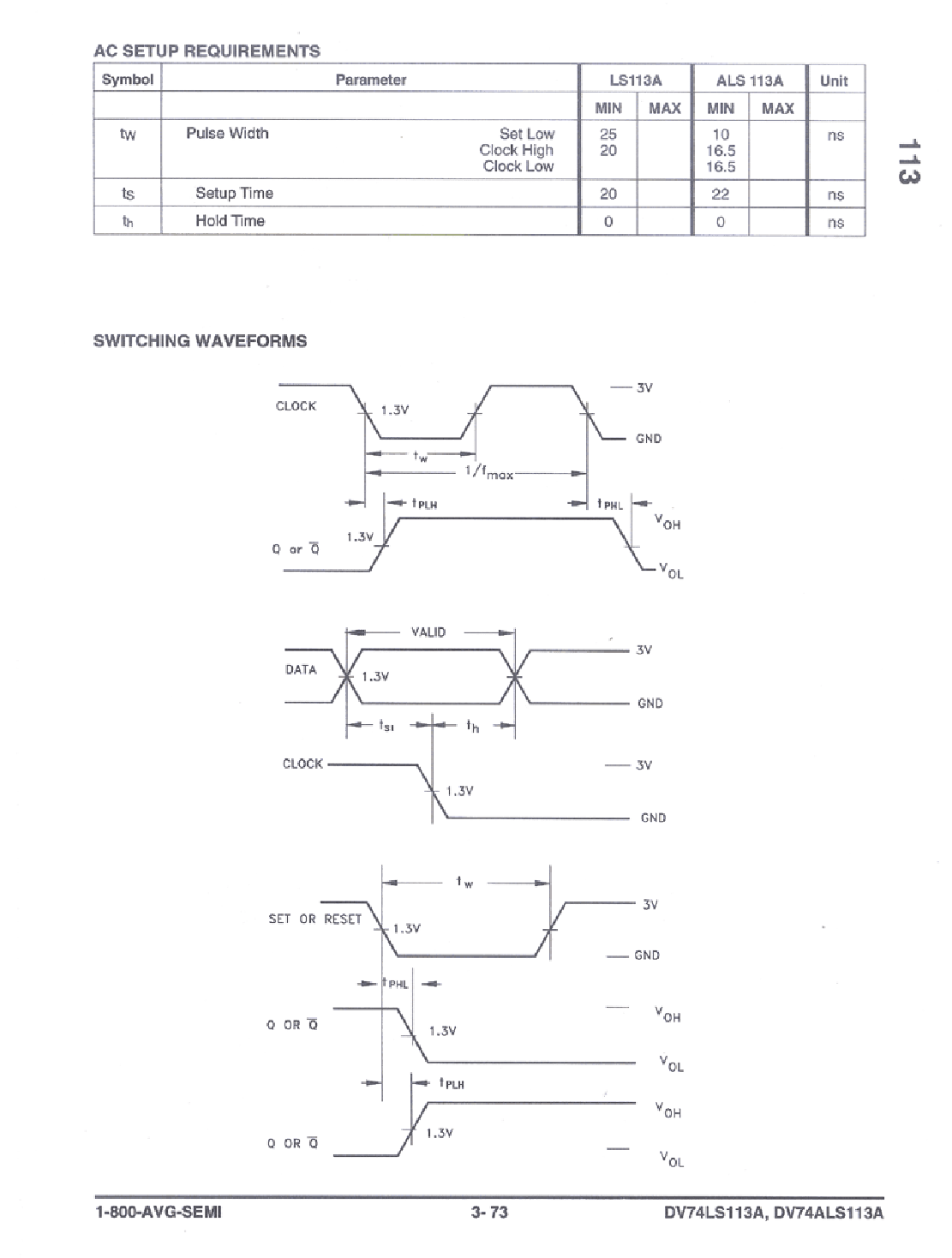

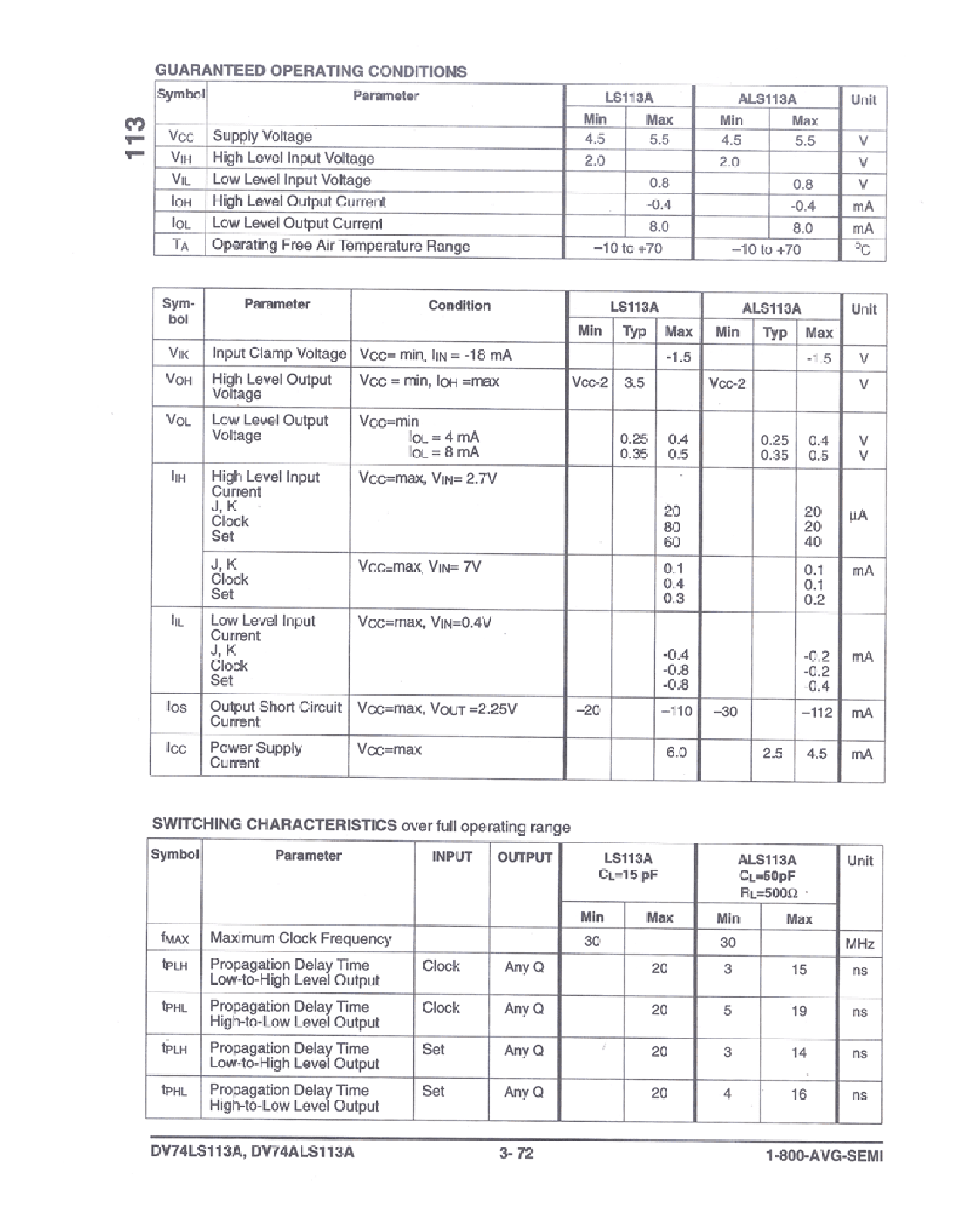

J-K Flip-Flop, ALS Series, 2-Func, Negative Edge Triggered, 2-Bit, Complementary Output, TTL, PDSO14, PLASTIC, SOP-14
| Parameter Name | Attribute value |
| Maker | AVG [AVG Semiconductors(HITEK)] |
| Parts packaging code | SOIC |
| package instruction | SOP, |
| Contacts | 14 |
| Reach Compliance Code | unknown |
| series | ALS |
| JESD-30 code | R-PDSO-G14 |
| length | 8.65 mm |
| Load capacitance (CL) | 50 pF |
| Logic integrated circuit type | J-K FLIP-FLOP |
| Number of digits | 2 |
| Number of functions | 2 |
| Number of terminals | 14 |
| Maximum operating temperature | 70 °C |
| Minimum operating temperature | -10 °C |
| Output polarity | COMPLEMENTARY |
| Package body material | PLASTIC/EPOXY |
| encapsulated code | SOP |
| Package shape | RECTANGULAR |
| Package form | SMALL OUTLINE |
| Maximum supply current (ICC) | 4.5 mA |
| propagation delay (tpd) | 19 ns |
| Certification status | Not Qualified |
| Maximum seat height | 1.75 mm |
| Maximum supply voltage (Vsup) | 5.5 V |
| Minimum supply voltage (Vsup) | 4.5 V |
| Nominal supply voltage (Vsup) | 5 V |
| surface mount | YES |
| technology | TTL |
| Temperature level | COMMERCIAL |
| Terminal form | GULL WING |
| Terminal pitch | 1.27 mm |
| Terminal location | DUAL |
| Trigger type | NEGATIVE EDGE |
| width | 3.9 mm |
| minfmax | 30 MHz |
| Base Number Matches | 1 |
| DV74ALS113AD | DV74ALS113AN | DV74LS113AD | |
|---|---|---|---|
| Description | J-K Flip-Flop, ALS Series, 2-Func, Negative Edge Triggered, 2-Bit, Complementary Output, TTL, PDSO14, PLASTIC, SOP-14 | J-K Flip-Flop, ALS Series, 2-Func, Negative Edge Triggered, 2-Bit, Complementary Output, TTL, PDIP14, PLASTIC, DIP-14 | J-K Flip-Flop, LS Series, 2-Func, Negative Edge Triggered, 2-Bit, Complementary Output, TTL, PDSO14, PLASTIC, SOP-14 |
| Maker | AVG [AVG Semiconductors(HITEK)] | AVG [AVG Semiconductors(HITEK)] | AVG [AVG Semiconductors(HITEK)] |
| Parts packaging code | SOIC | DIP | SOIC |
| package instruction | SOP, | DIP, | SOP, |
| Contacts | 14 | 14 | 14 |
| Reach Compliance Code | unknown | unknown | unknown |
| series | ALS | ALS | LS |
| JESD-30 code | R-PDSO-G14 | R-PDIP-T14 | R-PDSO-G14 |
| length | 8.65 mm | 18.86 mm | 8.65 mm |
| Load capacitance (CL) | 50 pF | 50 pF | 15 pF |
| Logic integrated circuit type | J-K FLIP-FLOP | J-K FLIP-FLOP | J-K FLIP-FLOP |
| Number of digits | 2 | 2 | 2 |
| Number of functions | 2 | 2 | 2 |
| Number of terminals | 14 | 14 | 14 |
| Maximum operating temperature | 70 °C | 70 °C | 70 °C |
| Minimum operating temperature | -10 °C | -10 °C | -10 °C |
| Output polarity | COMPLEMENTARY | COMPLEMENTARY | COMPLEMENTARY |
| Package body material | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY |
| encapsulated code | SOP | DIP | SOP |
| Package shape | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Package form | SMALL OUTLINE | IN-LINE | SMALL OUTLINE |
| Maximum supply current (ICC) | 4.5 mA | 4.5 mA | 6 mA |
| propagation delay (tpd) | 19 ns | 19 ns | 20 ns |
| Certification status | Not Qualified | Not Qualified | Not Qualified |
| Maximum seat height | 1.75 mm | 4.69 mm | 1.75 mm |
| Maximum supply voltage (Vsup) | 5.5 V | 5.5 V | 5.5 V |
| Minimum supply voltage (Vsup) | 4.5 V | 4.5 V | 4.5 V |
| Nominal supply voltage (Vsup) | 5 V | 5 V | 5 V |
| surface mount | YES | NO | YES |
| technology | TTL | TTL | TTL |
| Temperature level | COMMERCIAL | COMMERCIAL | COMMERCIAL |
| Terminal form | GULL WING | THROUGH-HOLE | GULL WING |
| Terminal pitch | 1.27 mm | 2.54 mm | 1.27 mm |
| Terminal location | DUAL | DUAL | DUAL |
| Trigger type | NEGATIVE EDGE | NEGATIVE EDGE | NEGATIVE EDGE |
| width | 3.9 mm | 7.62 mm | 3.9 mm |
| minfmax | 30 MHz | 30 MHz | 30 MHz |
| Base Number Matches | 1 | 1 | - |
