COACH
TM
9
Digital Camera Processor
Driving the Digital Lifestyle
ZR36470
Product Brief
Zoran Corporation
1390 Kifer Road
Sunnyvale, CA 94086-5305
Te l 408.523.6500
Fax 408.523.6501
www.zoran.com
Description

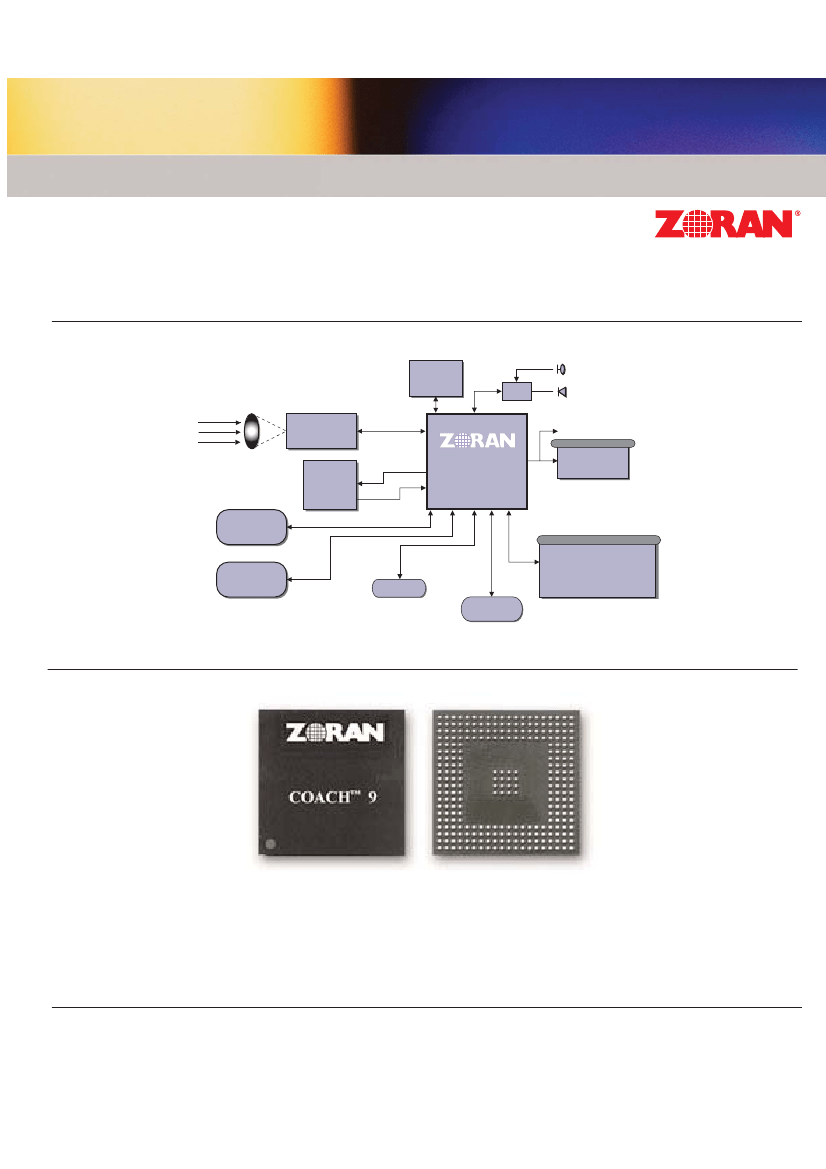

COACH 9 is an application specific digital signal processing IC,
which constitutes the heart of a digital camera for capturing still
images and video. It provides a complete, integrated, low power and
low cost solution for digital camera manufacturers. Coach 9
innovative features and integrations offer competitive performance
and picture quality for digital cameras. The COACH 9 family enables
platforms from entry-level to high end cameras including high
quality digital video camcorders.
COACH 9 Family
•
COACH 9m
(part # ZR36470BGCG) - Entry-mid range line,
12-bit color depth. Pin-to-pin compatible with COACH 7m and
COACH 8m
•
COACH 9p
(part # ZR36472BGCG) - Performance line,16-bit
color depth, embedded timing generator & HDMI interface
•
COACH 9s
(part # ZR36473BGCG) - Digital Still Capture line,
with JPEG/Motion JPEG only
•
COACH 9MCM
- Multichip package for space-saving boards for
ultra-slim cameras
*All products support up to 16M pixels of image resolution, are firmware compatible,
and share a majority of the system configuration allowing for easy migration
Feature List
• Up to 16M Pixels image capture resolution
• Click to click performance of 3 frames/sec at 7MP resolution
• 16-bit image processing for highest quality, includes multiple
Zoran proprietary (patent pending) technologies.
• Image enhancement and manipulation effects for better viewing
and printing quality
• Capable of WMV MPEG-4, video capture and playback of VGA
resolution at 30 frames/sec including audio and 20 frames/sec at
SVGA resolution
• File formats including ASF, DivX, AVI and MOV can be supported
• MPEG-4 encoding uses I, P and B frames for true video quality
• Digital Video Motion Stabilization technology (patent pending) to
compensate for unwanted camera movement during video capture
• Capable of several Audio codecs including: WMA; Dolby Digital
AAC; ADPCM; MPEG1
• On-chip HDMI transmitter for native HD display support
• Rich color on-screen display (OSD) with transparency levels
• Picture-in-Picture with blending support in hardware
• Direct output to TV monitor, on-chip encoder and video D/A
• Digital video interface to LCD. Includes on-chip programmable
controller for multiple LCD vendors
• 32-bit MIPS CPU provides ease of development and porting of
SW applications
• Direct interface to resident flash memory (NAND or NOR type)
and/or removable memory card support (CompactFlash (CF),
SmartMedia (SSFDC), Secure Digital (SD), MultiMediaCard
(MMC), High Speed MMC (HSMMC) xD, Memory Stick, Memory
Stick Pro (MS-Pro) and SDRAM storage
• Direct interface to ATA-6 (or subset) hard disks.
• 16-bits data DDR-SDRAM interface supporting sizes of 64Mbit,
128Mbit, 256Mbit, 512Mbit and 1Gbit
• On-chip High Speed USB 2.0 OTG interface
• CCIR-601 input port for capturing from an external TV decoder.
• Generic serial port for interfacing with peripheral HW units
Firmware Highlights
• Embedded host control (HCE) software architecture enables
customer creation of DSC applications with minimal effort
• Backward compatibility with previous COACH software API set
• Open firmware architecture for easy customer modification
• All standard camera operation modes
• Image playback allows up to 16x digital zoom, accelerated
playback and image rotation
• Advanced GUI support including rich OSD, bitmaps, picture in
picture and more
• Resizable, multicolor fonts
• Optional audio annotation of pictures
• Playback and recording of sound in AVI clips
• Sound effects, including shutter effects
• Dictaphone feature
• Variety of protocols for USB interface supported including:
- PC Video Capture mode, for capturing real time video (MJPEG
compressed) to PC
- WIA, Twain, and Twain 2 protocol for direct retrieving of images
and live video
- Bulk-Only Mass Storage, for representing camera as a PC
drive. No drivers required for most operating systems
- PTP
- Pictbridge, for direct printing to all printers supporting Pictbridge
interface
04/06IN
ZR36470/2/3
