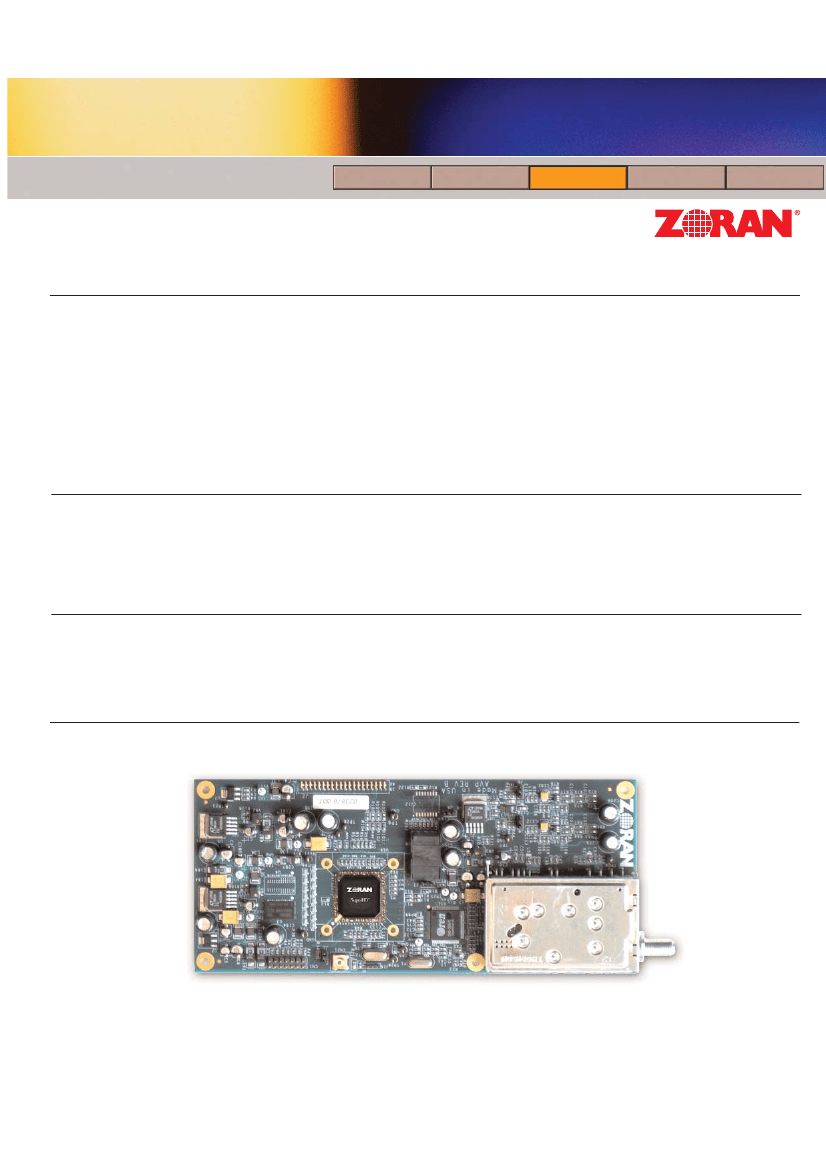

Description
Zoran's SupraHD-640 ATSC reference design is a complete
hardware and software solution for building a low-cost ATSC DTV
Module that upgrades an existing NTSC Television to be ATSC
compliant. The reference design consists of a hardware module ready
for manufacturing and a TV application with complete
middleware software stack, including closed-caption support. The
hardware module accepts all the ATSC formats (480i, 480p, 720p,
1080i) and outputs 480i to a NTSC TV.
The SupraHD-640 DTV System IC is highly integrated, consisting of
an MPEG-2 HD decoder, high-performance CPU, power graphics
engine and video scaler. It also supports a variety of system
interfaces, such as an infrared receiver, flash memory and DDR
SDRAM interfaces. The decoded ATSC video stream can be output in
component (YPbPr), composite (CVBS), and S-video (Y/C) formats.
Audio can be output via an SPDIF interface or in analog format (L/R)
using the chip's integrated audio DAC. Designed to use the minimum
external components, the SupraHD-640 requires only memory, ATSC
demodulator, ATSC tuner, and a small number of passive
components to build a complete ATSC DTV Module.
Key Hardware Features
• SupraHD-640 DTV System IC
• NOR Flash Memory: 4MByte
• DDR SDRAM: 32MByte
• ATSC Tuner
• Zoran 8VSB Demodulator
•
•
•
•
Video In: ATSC
Video Out: YPbPr
Audio Out: L/R Channels
IR Remote, I2C, RS-232, and EJTAG interfaces
System Software Features
• ATSC DTV application software
• PSIP Parsing for channel map
• Digital Closed-Captioning (EIA-608)
• Transport, Video Decode (single MP@HL), Audio Decode
(AC-3, MPEG Layer 1/2/3), Graphics, and Display drivers
• Peripheral drivers for Tuner and Demodulator
• Thread-X royalty-free operating system
Zoran’s ATSC DTV Module
05/06 - IN
ZR839640
SupraHD
®
640
ATSC Converter Module
Reference Design
Driving the Digital Lifestyle
Product Brief

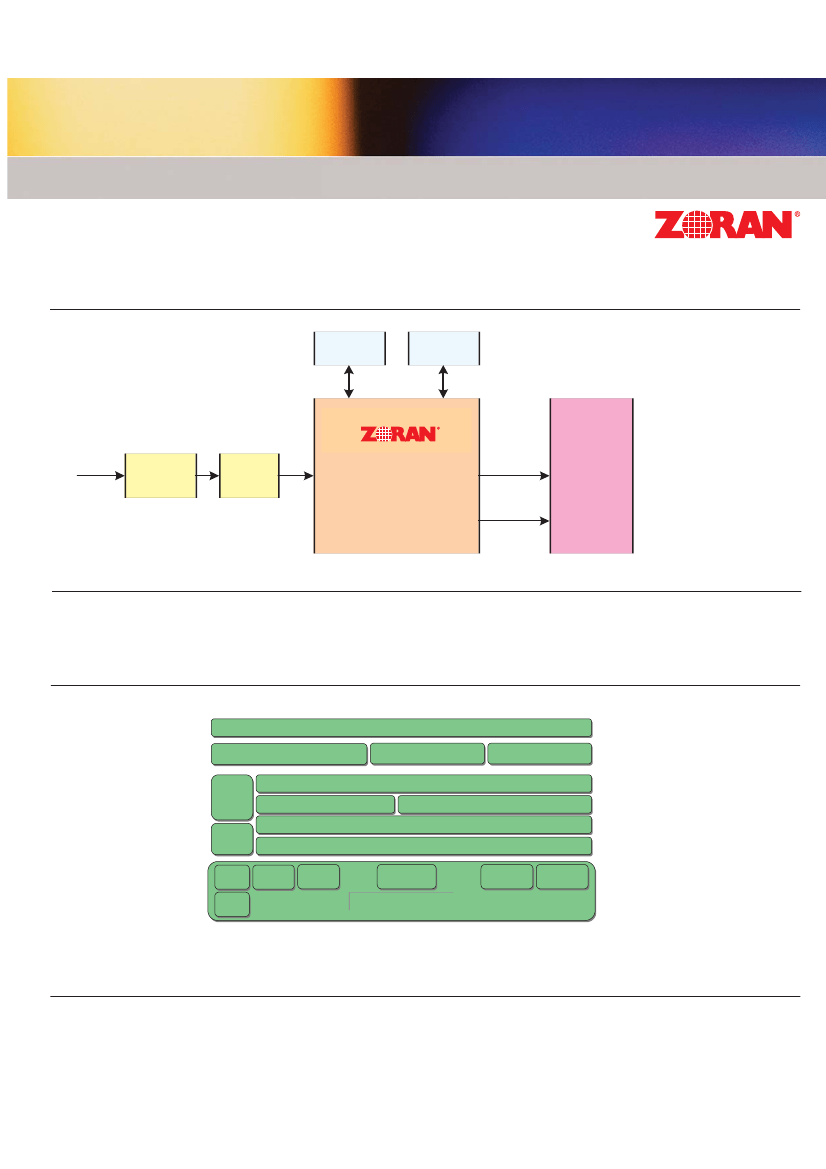

System Block Diagram
SDRAM
Flash
ATSC
ATSC
Tuner
8VSB
Demod
Demod
TS
SupraHD-640
DTV System IC
YPbPr
NTSC TV
L/R
Package Contents
• DTV hardware reference board
• Power adapter, remote control, and necessary cables
• Pre-loaded ATSC software on flash memory
• Complete documentation for reference design, software, and IC on
a CD-ROM
System Architecture
TV OSD
TV OSD
PSIP Parsing
PSIP Parsing
Fonts & Engine
Fonts & Engine
SupraHD Software & APIs
SupraHD Software & APIs
OSAL
OSAL
Graphics Engine
Graphics Engine
Graphics Composition
Graphics Composition
Digital Closed Caption EIA -608
Digital Closed Caption EIA -608
Thread-X
Thread-X
Board Support Package (Low Level drivers for hardware components )
Board Support Package (Low Level drivers for hardware components )
ATSC
ATSC
Tuner
Tuner
ATSC
ATSC
Demodulator
Demodulator
V-Chip
V-Chip
NOR
NOR
Flash
Flash
DDR
DDR
SDRAM
SDRAM
SupraHD-640
SupraHD-640
YPbPr
YPbPr
Analog Out
Analog Out
Audio Out
Audio Out
Hardware Platform
Hardware Platform
Export Classification Control Number (ECCN): 5A992 Product Order Code: ZR839640-ATSC-ATVX
