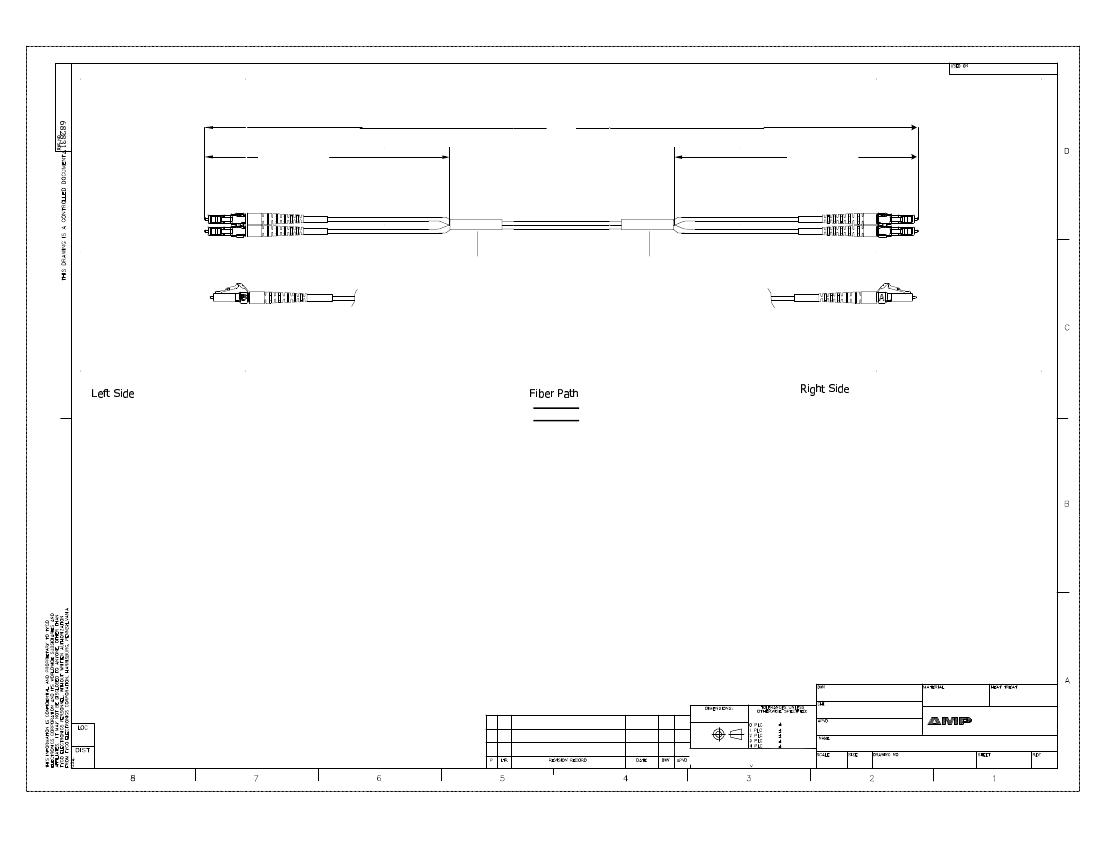

L
0.25m Max
0.25m Max
Label 1
Label 2
$ #
!
"
Connector(s): LC-Duplex
Mode: MM
Housing Color: Beige
Geom. Spec: N/A
Notes:
2 Label 2 will not be present on any cable assembly less than 5 meters long.
3 Includes dust caps (not shown on print).
4 OM3 assemblies tested at 850nm, all other multimode tested at 1300nm
A
B
-
-
-
-
B
A
Connector(s): LC-Duplex
Mode: MM
Housing Color: Beige
Geom. Spec: N/A
Cable Assy Configurator
meters
!
"
-
-
Tyco Electronics, Inc.
Harrisburg, PA 17105-3608
Jeff Shipe
-
-
-
-
-
Jeff Shipe
CE
F1
Rev Per EC#
MINOR REVISION
11/2/2009
-
JS
FO C/A - 2 fiber, XG - 50/125, OFNR (Riser) jacket, LC-Duplex to
LC-Duplex
16
CAC Customer Layout Rev: D
Restricted To:
NTS
A2
C- 6828317
1 of 3
F1
LC-Duplex, Beige
Part #
0-6828317-1
0-6828317-2
0-6828317-3
0-6828317-4
0-6828317-5
0-6828317-6
0-6828317-7
0-6828317-8
0-6828317-9
1-6828317-0
1-6828317-1
1-6828317-2
1-6828317-3
1-6828317-4
1-6828317-5
1-6828317-6
1-6828317-7
1-6828317-8
1-6828317-9
2-6828317-0
2-6828317-1
2-6828317-2
2-6828317-3
2-6828317-4
2-6828317-5
2-6828317-6
2-6828317-7
2-6828317-8
2-6828317-9
3-6828317-0
3-6828317-1
3-6828317-2
3-6828317-3
3-6828317-4
3-6828317-5
3-6828317-6
3-6828317-7
3-6828317-8
3-6828317-9
4-6828317-0
4-6828317-1
4-6828317-2
L (meters)
0.950 - 1.050
1.950 - 2.050
2.950 - 3.050
3.920 - 4.080
4.920 - 5.080
5.920 - 6.080
6.920 - 7.080
7.920 - 8.080
8.850 - 9.150
9.850 - 10.150
10.850 - 11.150
11.850 - 12.150
12.850 - 13.150
13.850 - 14.150
14.850 - 15.150
15.840 - 16.160
16.830 - 17.170
17.820 - 18.180
18.810 - 19.190
19.800 - 20.200
20.790 - 21.210
21.780 - 22.220
22.770 - 23.230
23.760 - 24.240
24.750 - 25.250
25.740 - 26.260
26.730 - 27.270
27.720 - 28.280
28.710 - 29.290
29.700 - 30.300
30.690 - 31.310
31.680 - 32.320
32.670 - 33.330
33.660 - 34.340
34.650 - 35.350
35.640 - 36.360
36.630 - 37.370
37.620 - 38.380
38.610 - 39.390
39.600 - 40.400
54.450 - 55.550
108.900 - 111.100
L (feet)
3.11 - 3.44
6.39 - 6.72
9.67 - 10.00
12.86 - 13.38
16.14 - 16.66
19.42 - 19.94
22.70 - 23.22
25.98 - 26.50
29.03 - 30.01
32.31 - 33.30
35.59 - 36.58
38.87 - 39.86
42.15 - 43.14
45.43 - 46.42
48.72 - 49.70
51.96 - 53.01
55.21 - 56.33
58.46 - 59.64
61.71 - 62.95
64.96 - 66.27
68.20 - 69.58
71.45 - 72.90
74.70 - 76.21
77.95 - 79.52
81.20 - 82.84
84.44 - 86.15
87.69 - 89.46
90.94 - 92.78
94.19 - 96.09
97.44 - 99.40
100.68 - 102.72
103.93 - 106.03
107.18 - 109.35
110.43 - 112.66
113.68 - 115.97
116.92 - 119.29
120.17 - 122.60
123.42 - 125.91
126.67 - 129.23
129.92 - 132.54
178.64 - 182.25
357.28 - 364.50
IL
(dB)
0.5
0.5
0.5
0.51
0.51
0.51
0.51
0.51
0.51
0.52
0.52
0.52
0.52
0.52
0.52
0.52
0.53
0.53
0.53
0.53
0.53
0.53
0.53
0.54
0.54
0.54
0.54
0.54
0.54
0.55
0.55
0.55
0.55
0.55
0.55
0.55
0.56
0.56
0.56
0.56
0.58
0.67
RL
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
(dB)
IL
LC-Duplex, Beige
Qty
(dB)
0.5
0.5
0.5
0.51
0.51
0.51
0.51
0.51
0.51
0.52
0.52
0.52
0.52
0.52
0.52
0.52
0.53
0.53
0.53
0.53
0.53
0.53
0.53
0.54
0.54
0.54
0.54
0.54
0.54
0.55
0.55
0.55
0.55
0.55
0.55
0.55
0.56
0.56
0.56
0.56
0.58
0.67
RL
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
Cable Assy Configurator
meters
U of M
piece
piece
meter
piece
piece
piece
Description
Trace Label
Eyelet/Shrink tube assembly - White
2 Fiber, XG-50/125, 2.0mm, Twinzip, Aqua, OFNR (Riser)
LC Connector Assy, MM
LC Duplex clip, black
LC, SC, FC Straight Boot, Beige
Item
No.
6
5
4
3
2
1
(dB)
2
4
AR
4
2
4
-
-
Tyco Electronics, Inc.
Harrisburg, PA 17105-3608
Jeff Shipe
-
-
-
-
-
Jeff Shipe
CE
F1
Rev Per EC#
MINOR REVISION
11/2/2009
-
JS
FO C/A - 2 fiber, XG - 50/125, OFNR (Riser) jacket, LC-Duplex to
LC-Duplex
16
CAC Customer Layout Rev: D
Restricted To:
NTS
A2
C- 6828317
2 of 3
F1
LC-Duplex, Beige
Part #
4-6828317-3
4-6828317-4
4-6828317-6
4-6828317-7
4-6828317-8
4-6828317-9
5-6828317-0
8-6828317-0
8-6828317-1
L (meters)
5.420 - 5.580
6.420 - 6.580
45.540 - 46.460
1.474 - 1.574
2.083 - 2.183
48.510 - 49.490
49.500 - 50.500
7.540 - 7.700
60.351 - 61.570
L (feet)
17.78 - 18.30
21.06 - 21.58
149.40 - 152.42
4.83 - 5.16
6.83 - 7.16
159.15 - 162.36
162.40 - 165.68
24.73 - 25.26
198.00 - 202.00
IL
(dB)
0.51
0.51
0.57
0.5
0.5
0.57
0.58
0.51
0.59
RL
-
-
-
-
-
-
-
-
-
(dB)
IL
LC-Duplex, Beige
(dB)
0.51
0.51
0.57
0.5
0.5
0.57
0.58
0.51
0.59
RL
-
-
-
-
-
-
-
-
-
(dB)
Label 1
Per specification 107-1645-1
Trace # - Bar Code
XXXXXXXXXXXXXXX
Logo
Made in XXXX
X-XXXXXXX-X
Trace # - Human Readable
Part Number
Country of Origin
This label is used on all lengths on this drawing.
Label 2
Per specification 107-1645-1
Trace # - Bar Code
XXXXXXXXXXXXXXX
Logo
Made in XXXX
X-XXXXXXX-X
Trace # - Human Readable
Part Number
Country of Origin
This label is used on all lengths on this drawing.
Cable Assy Configurator
meters
-
-
Tyco Electronics, Inc.
Harrisburg, PA 17105-3608
Jeff Shipe
-
-
-
-
-
Jeff Shipe
CE
F1
Rev Per EC#
MINOR REVISION
11/2/2009
-
JS
FO C/A - 2 fiber, XG - 50/125, OFNR (Riser) jacket, LC-Duplex to
LC-Duplex
16
CAC Customer Layout Rev: D
Restricted To:
NTS
A2
C- 6828317
3 of 3
F1
