IRFu5505PBF datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Discrete semiconductor> The transistor> IRFu5505PBF

Preview

IRFu5505PBF: Description18 A, 55 V, 0.11 ohm, P-CHANNEL, Si, POWER, MOSFET, TO-251AA; CategoryDiscrete semiconductor The transistor; File Size1MB，10 Pages; ManufacturerInternational Rectifier （ Infineon ）; Websitehttp://www.irf.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

IRFu5505PBF Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	IRFu5505PBF	-	-	View	Buy Now

IRFu5505PBF Overview

18 A, 55 V, 0.11 ohm, P-CHANNEL, Si, POWER, MOSFET, TO-251AA

IRFu5505PBF Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	International Rectifier （ Infineon ）
Parts packaging code	TO-251AA
package instruction	HALOGEN AND LEAD FREE, PLASTIC, IPAK-3
Contacts	3
Reach Compliance Code	not_compliant
ECCN code	EAR99
Other features	AVALANCHE RATED, HIGH RELIABILITY, ULTRA-LOW RESISTANCE
Avalanche Energy Efficiency Rating (Eas)	150 mJ
Shell connection	DRAIN
Configuration	SINGLE WITH BUILT-IN DIODE
Minimum drain-source breakdown voltage	55 V
Maximum drain current (Abs) (ID)	18 A
Maximum drain current (ID)	18 A
Maximum drain-source on-resistance	0.11 Ω
FET technology	METAL-OXIDE SEMICONDUCTOR
JEDEC-95 code	TO-251AA
JESD-30 code	R-PSIP-T3
JESD-609 code	e3
Humidity sensitivity level	1
Number of components	1
Number of terminals	3
Operating mode	ENHANCEMENT MODE
Maximum operating temperature	150 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	260
Polarity/channel type	P-CHANNEL
Maximum power dissipation(Abs)	57 W
Maximum pulsed drain current (IDM)	64 A
Certification status	Not Qualified
surface mount	NO
Terminal surface	Matte Tin (Sn) - with Nickel (Ni) barrier
Terminal form	THROUGH-HOLE
Terminal location	SINGLE
Maximum time at peak reflow temperature	30
transistor applications	SWITCHING
Transistor component materials	SILICON
Base Number Matches	1

Preview

Download Datasheet

View All

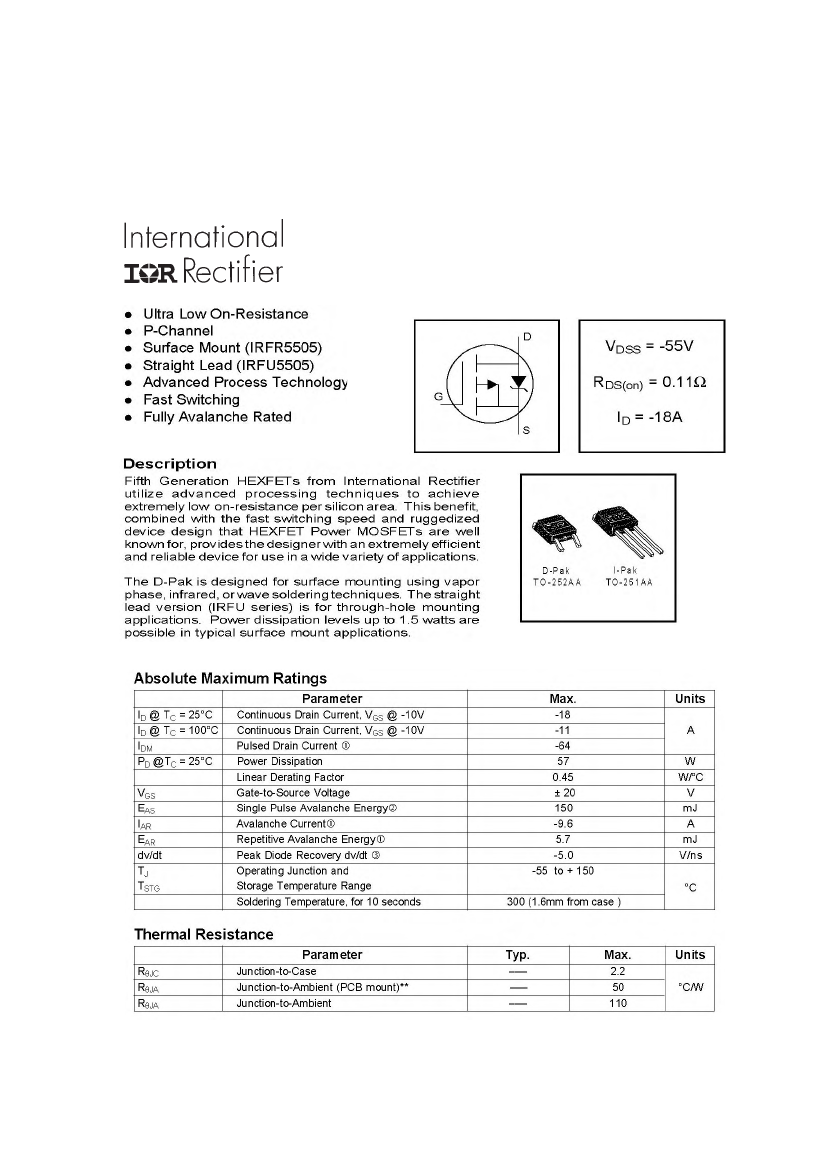

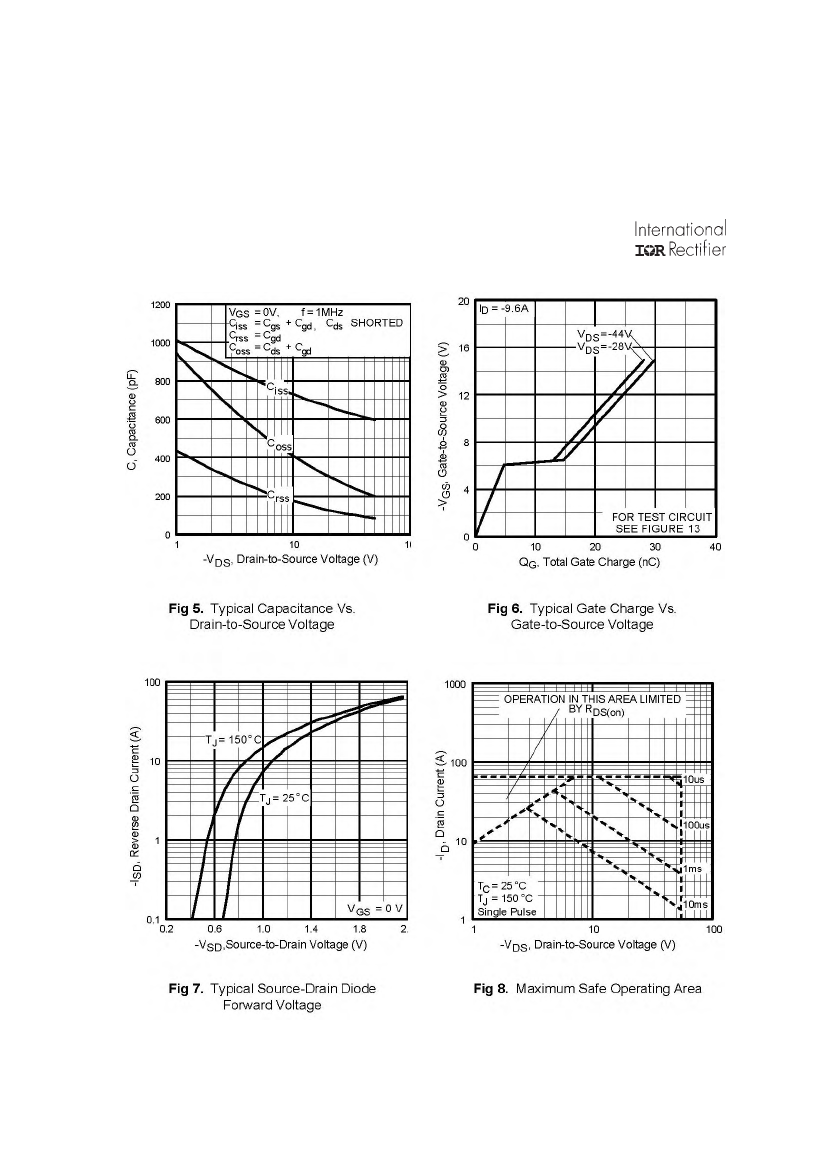

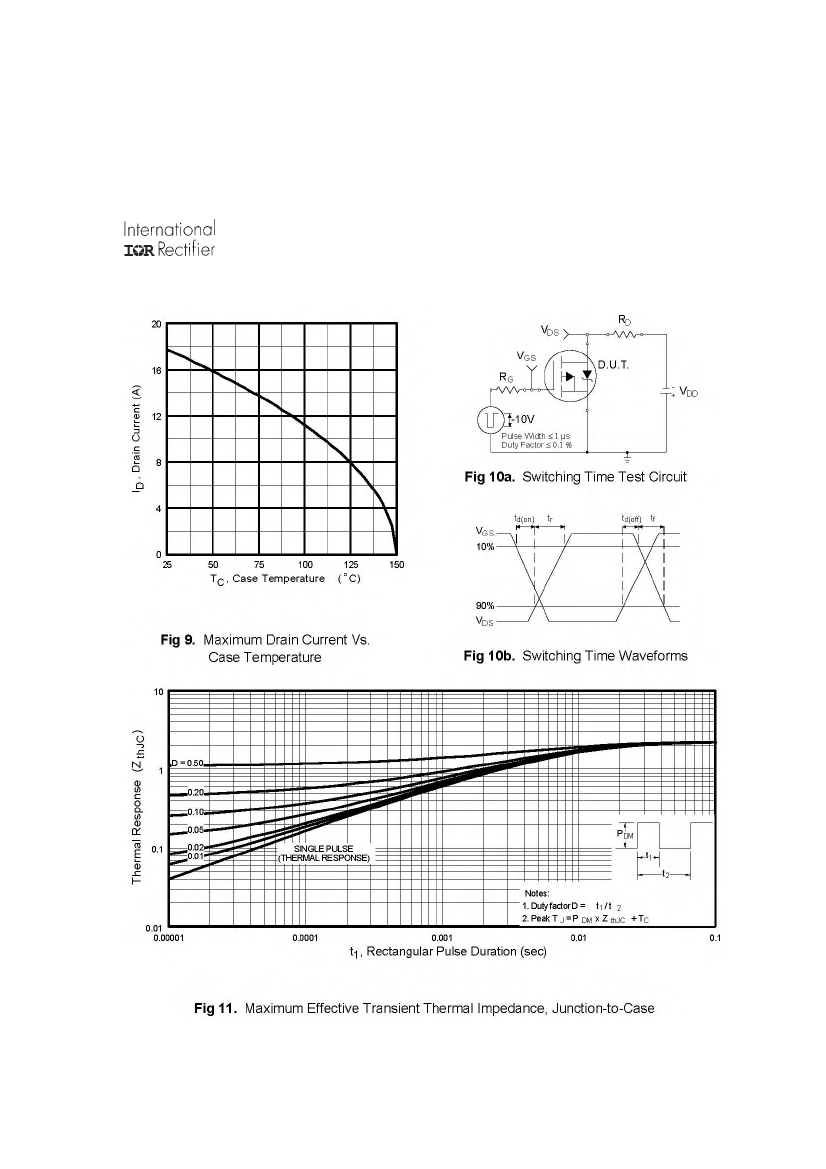

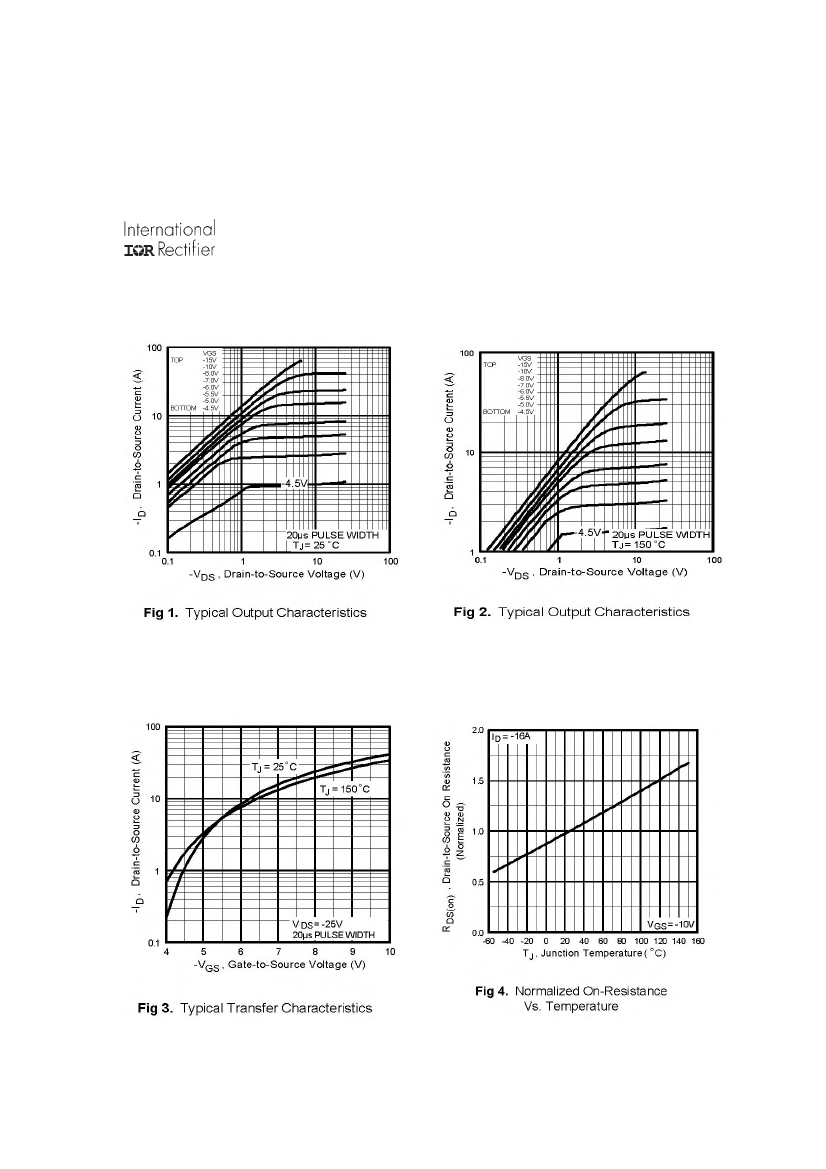

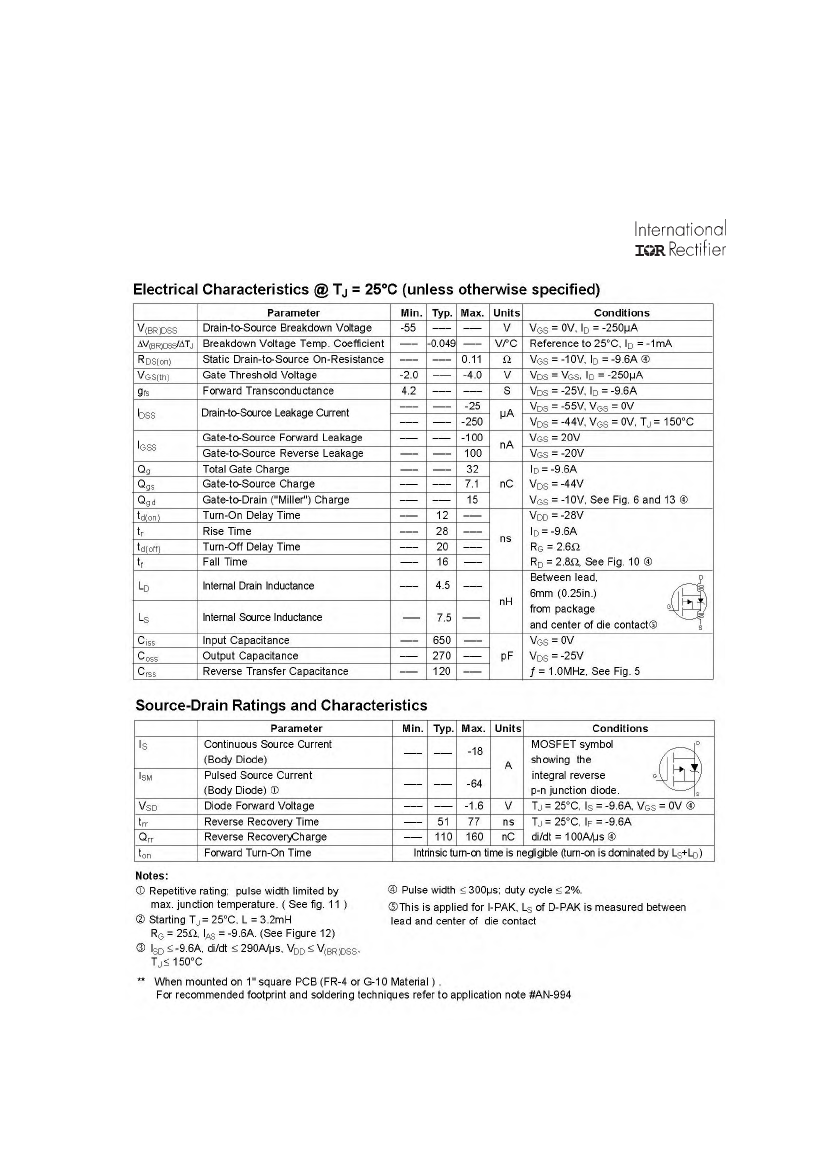

PD - 95077A

IRFR5505PbF

IRFU5505PbF

•

Lead-Free

www.irf.com

1

1/10/05

IRFu5505PBF Related Products

	IRFu5505PBF	IRFR5505PBF
Description	18 A, 55 V, 0.11 ohm, P-CHANNEL, Si, POWER, MOSFET, TO-251AA	18 A, 55 V, 0.11 ohm, P-CHANNEL, Si, POWER, MOSFET, TO-252AA
Is it lead-free?	Lead free	Lead free
Is it Rohs certified?	conform to	conform to
Maker	International Rectifier （ Infineon ）	International Rectifier （ Infineon ）
Parts packaging code	TO-251AA	TO-252AA
package instruction	HALOGEN AND LEAD FREE, PLASTIC, IPAK-3	HALOGEN AND LEAD FREE, PLASTIC, DPAK-2/3
Contacts	3	3
Reach Compliance Code	not_compliant	_compli
ECCN code	EAR99	EAR99
Other features	AVALANCHE RATED, HIGH RELIABILITY, ULTRA-LOW RESISTANCE	AVALANCHE RATED, HIGH RELIABILITY, ULTRA-LOW RESISTANCE
Avalanche Energy Efficiency Rating (Eas)	150 mJ	150 mJ
Shell connection	DRAIN	DRAIN
Configuration	SINGLE WITH BUILT-IN DIODE	SINGLE WITH BUILT-IN DIODE
Minimum drain-source breakdown voltage	55 V	55 V
Maximum drain current (Abs) (ID)	18 A	18 A
Maximum drain current (ID)	18 A	18 A
Maximum drain-source on-resistance	0.11 Ω	0.11 Ω
FET technology	METAL-OXIDE SEMICONDUCTOR	METAL-OXIDE SEMICONDUCTOR
JEDEC-95 code	TO-251AA	TO-252AA
JESD-30 code	R-PSIP-T3	R-PSSO-G2
JESD-609 code	e3	e3
Humidity sensitivity level	1	1
Number of components	1	1
Number of terminals	3	2
Operating mode	ENHANCEMENT MODE	ENHANCEMENT MODE
Maximum operating temperature	150 °C	150 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	260	260
Polarity/channel type	P-CHANNEL	P-CHANNEL
Maximum power dissipation(Abs)	57 W	57 W
Maximum pulsed drain current (IDM)	64 A	64 A
Certification status	Not Qualified	Not Qualified
surface mount	NO	YES
Terminal surface	Matte Tin (Sn) - with Nickel (Ni) barrier	Matte Tin (Sn) - with Nickel (Ni) barrie
Terminal form	THROUGH-HOLE	GULL WING
Terminal location	SINGLE	SINGLE
Maximum time at peak reflow temperature	30	30
transistor applications	SWITCHING	SWITCHING
Transistor component materials	SILICON	SILICON

Recommended Resources

Plastic heat sealing machine circuit

Lighting lamp power outage self-locking switch circuit

Photoelectric circuit breaker circuit diagram

AM modulator that suppresses carrier frequency

High definition animated clock and chord chip circuit

810 computer motherboard circuit diagram_28
