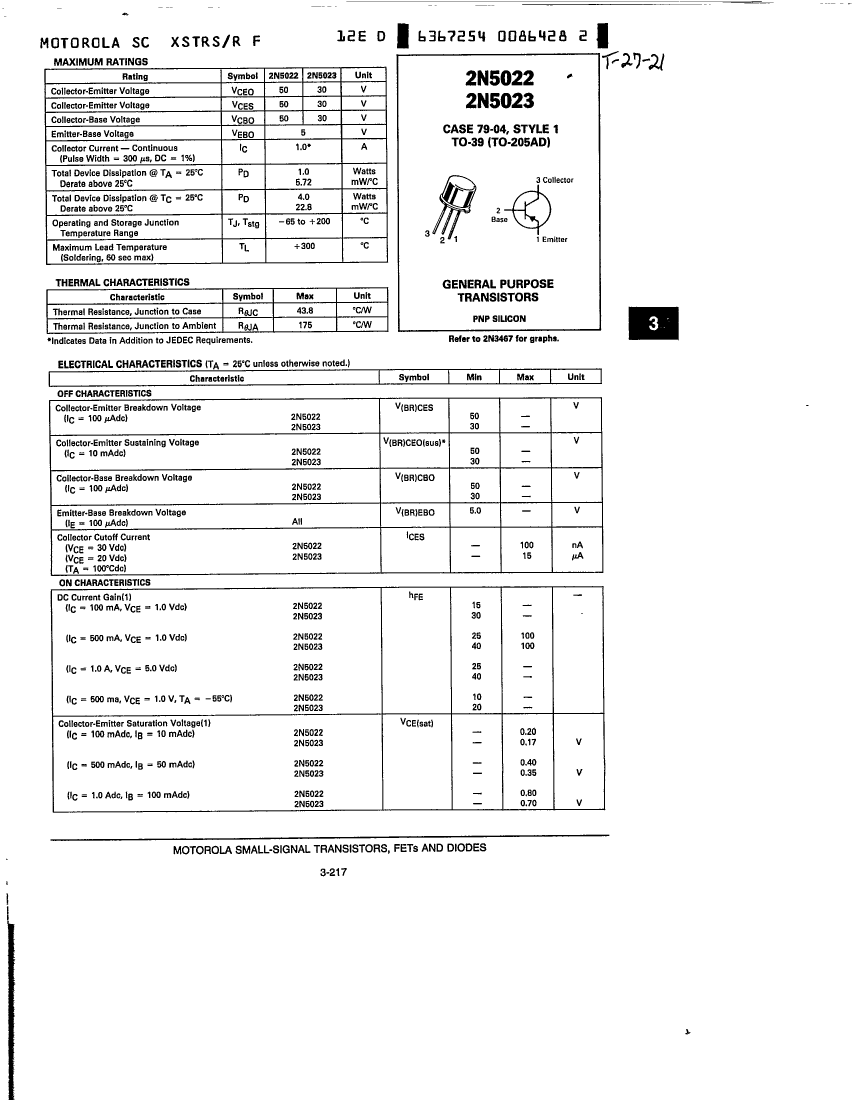

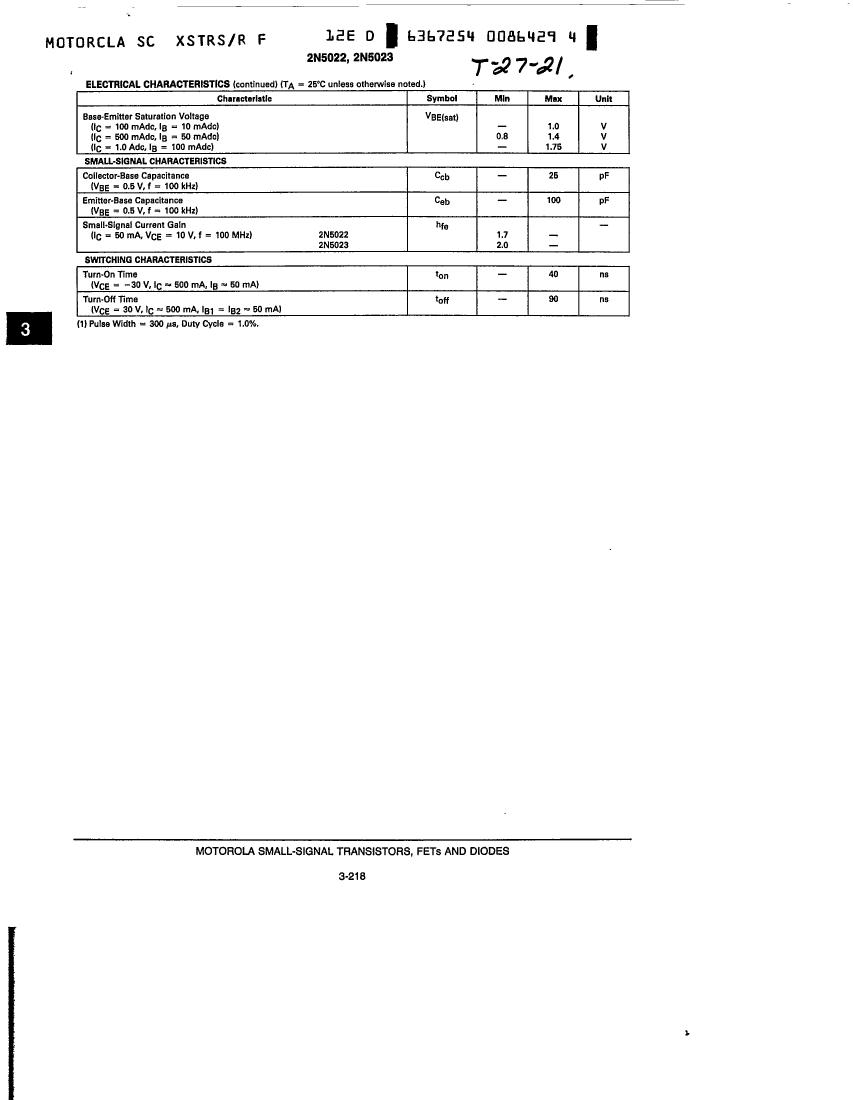

2N5023 datasheet, PDF - EEWORLD Datasheet

2N5023: DescriptionTRANSISTOR,BJT,PNP,3V V(BR)CEO,500MA I(C),TO-39; CategoryDiscrete semiconductor The transistor; File Size103KB，2 Pages; ManufacturerNXP; Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

2N5023 Overview

TRANSISTOR,BJT,PNP,3V V(BR)CEO,500MA I(C),TO-39

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	NXP
package instruction	,
Reach Compliance Code	unknown
Maximum collector current (IC)	0.5 A
Configuration	Single
Minimum DC current gain (hFE)	40
JESD-609 code	e0
Maximum operating temperature	175 °C
Polarity/channel type	PNP
Maximum power dissipation(Abs)	1 W
surface mount	NO
Terminal surface	Tin/Lead (Sn/Pb)
Nominal transition frequency (fT)	200 MHz
Base Number Matches	1

	2N5023	2N5022
Description	TRANSISTOR,BJT,PNP,3V V(BR)CEO,500MA I(C),TO-39	TRANSISTOR,BJT,PNP,50V V(BR)CEO,500MA I(C),TO-39
Is it Rohs certified?	incompatible	incompatible
Maker	NXP	NXP
Reach Compliance Code	unknown	unknown
Maximum collector current (IC)	0.5 A	0.5 A
Configuration	Single	Single
Minimum DC current gain (hFE)	40	25
JESD-609 code	e0	e0
Maximum operating temperature	175 °C	175 °C
Polarity/channel type	PNP	PNP
Maximum power dissipation(Abs)	1 W	1 W
surface mount	NO	NO
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Nominal transition frequency (fT)	200 MHz	170 MHz
Base Number Matches	1	1
