5962-3812802M2X: DescriptionIC 3-OUTPUT THREE TERM VOLTAGE REFERENCE, 10 V, CQCC20, CERAMIC, LCC-20, Voltage Reference; CategoryPower/power management The power supply circuit; File Size72KB，4 Pages; ManufacturerADI; Websitehttps://www.analog.com

Download Datasheet Parametric Compare View All

5962-3812802M2X Overview

IC 3-OUTPUT THREE TERM VOLTAGE REFERENCE, 10 V, CQCC20, CERAMIC, LCC-20, Voltage Reference

5962-3812802M2X Parametric

Parameter Name	Attribute value
Maker	ADI
Parts packaging code	QLCC
package instruction	QCCN,
Contacts	20
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	ADDITIONAL OUTPUT VOLTAGES OF 2.5V, 5V, 7.5V ALSO AVAILABLE
Analog Integrated Circuits - Other Types	THREE TERMINAL VOLTAGE REFERENCE
JESD-30 code	S-CQCC-N20
JESD-609 code	e0
length	8.89 mm
Number of functions	1
Output times	3
Number of terminals	20
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Maximum output voltage	10.03 V
Minimum output voltage	9.97 V
Nominal output voltage	10 V
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	QCCN
Package shape	SQUARE
Package form	CHIP CARRIER
Certification status	Not Qualified
Filter level	MIL-STD-883
Maximum seat height	2.54 mm
Maximum supply voltage (Vsup)	30 V
Minimum supply voltage (Vsup)	12.5 V
Nominal supply voltage (Vsup)	15 V
surface mount	YES
technology	BIPOLAR
Maximum voltage temperature coefficient	15 ppm/°C
Temperature level	MILITARY
Terminal surface	TIN LEAD
Terminal form	NO LEAD
Terminal pitch	1.27 mm
Terminal location	QUAD
Fine-tuning/adjustable output	NO
width	8.89 mm
Base Number Matches	1

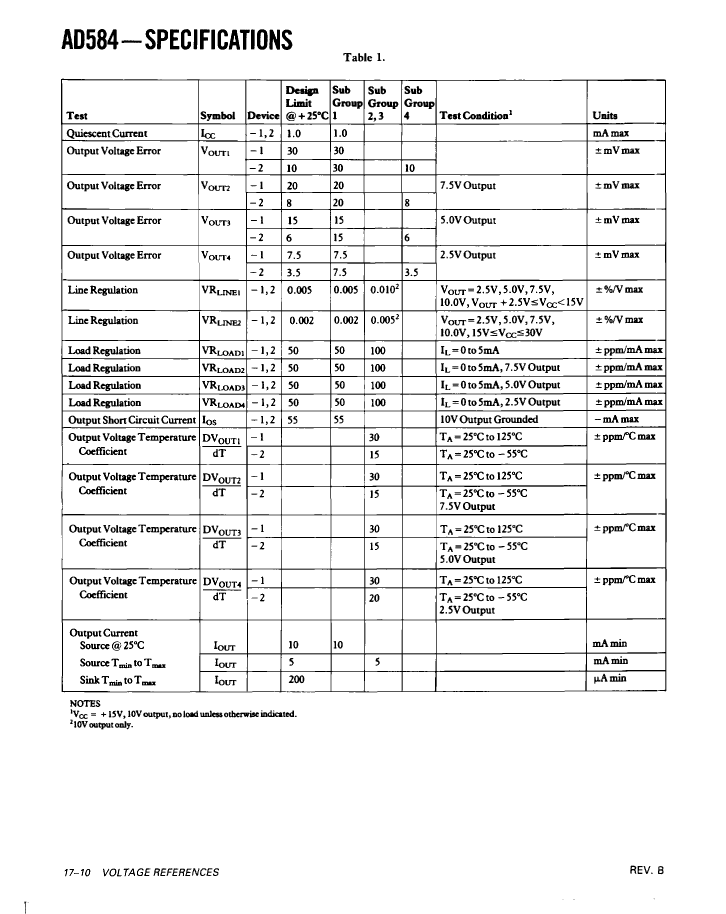

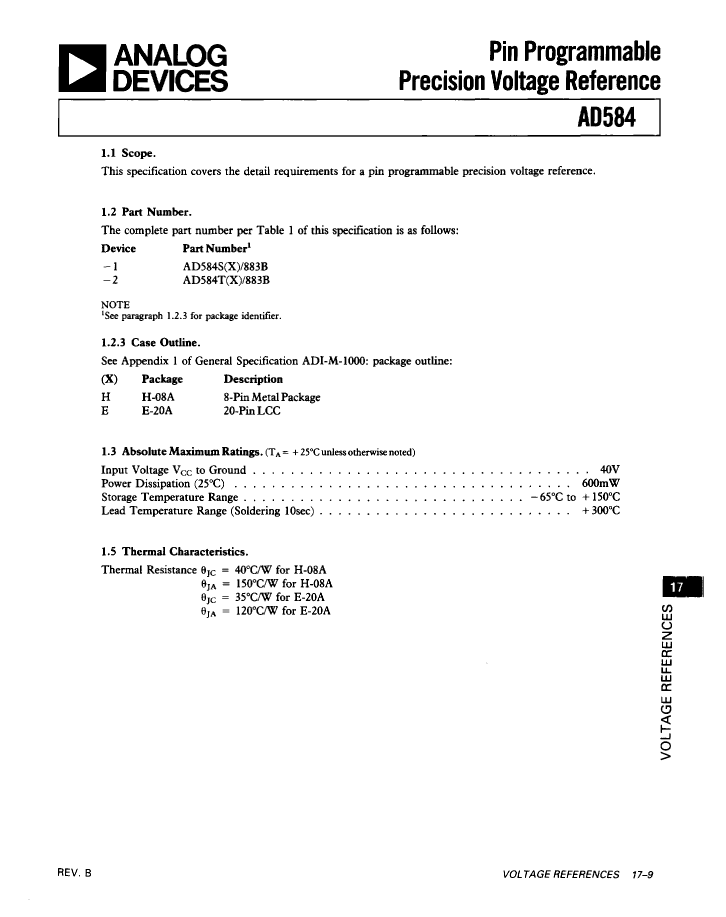

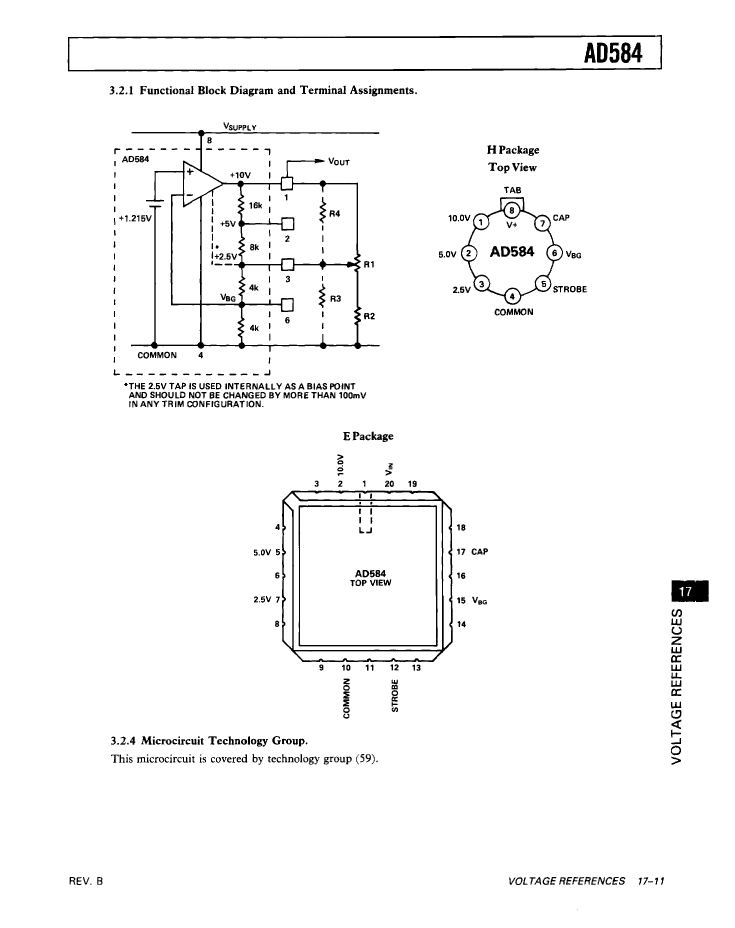

Preview

Download Datasheet

View All

5962-3812802M2X Related Products

	5962-3812802M2X	5962-3812801M2X	JM38510/12802BGA
Description	IC 3-OUTPUT THREE TERM VOLTAGE REFERENCE, 10 V, CQCC20, CERAMIC, LCC-20, Voltage Reference	IC 3-OUTPUT THREE TERM VOLTAGE REFERENCE, 10 V, CQCC20, CERAMIC, LCC-20, Voltage Reference	IC 3-OUTPUT THREE TERM VOLTAGE REFERENCE, 10 V, MBCY8, Voltage Reference
Maker	ADI	ADI	ADI
Reach Compliance Code	unknown	unknown	compliant
ECCN code	EAR99	EAR99	EAR99
Analog Integrated Circuits - Other Types	THREE TERMINAL VOLTAGE REFERENCE	THREE TERMINAL VOLTAGE REFERENCE	THREE TERMINAL VOLTAGE REFERENCE
JESD-30 code	S-CQCC-N20	S-CQCC-N20	O-MBCY-W8
JESD-609 code	e0	e0	e0
Number of functions	1	1	1
Output times	3	3	3
Number of terminals	20	20	8
Maximum operating temperature	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C
Maximum output voltage	10.03 V	10.03 V	10.03 V
Minimum output voltage	9.97 V	9.97 V	9.97 V
Nominal output voltage	10 V	10 V	10 V
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	METAL
Package shape	SQUARE	SQUARE	ROUND
Package form	CHIP CARRIER	CHIP CARRIER	CYLINDRICAL
Certification status	Not Qualified	Not Qualified	Not Qualified
Maximum supply voltage (Vsup)	30 V	30 V	30 V
Minimum supply voltage (Vsup)	12.5 V	12.5 V	12.5 V
surface mount	YES	YES	NO
technology	BIPOLAR	BIPOLAR	BIPOLAR
Maximum voltage temperature coefficient	15 ppm/°C	30 ppm/°C	15 ppm/°C
Temperature level	MILITARY	MILITARY	MILITARY
Terminal surface	TIN LEAD	TIN LEAD	TIN LEAD
Terminal form	NO LEAD	NO LEAD	WIRE
Terminal location	QUAD	QUAD	BOTTOM
Fine-tuning/adjustable output	NO	NO	NO
Parts packaging code	QLCC	QLCC	-
package instruction	QCCN,	QCCN,	-
Contacts	20	20	-
Other features	ADDITIONAL OUTPUT VOLTAGES OF 2.5V, 5V, 7.5V ALSO AVAILABLE	ADDITIONAL OUTPUT VOLTAGES OF 2.5V, 5V, 7.5V ALSO AVAILABLE	-
length	8.89 mm	8.89 mm	-
encapsulated code	QCCN	QCCN	-
Filter level	MIL-STD-883	MIL-STD-883	-
Maximum seat height	2.54 mm	2.54 mm	-
Nominal supply voltage (Vsup)	15 V	15 V	-
Terminal pitch	1.27 mm	1.27 mm	-
width	8.89 mm	8.89 mm	-
Base Number Matches	1	1	-
