501-6427E datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 501-6427E

501-6427E: DescriptionBoard Connector, 64 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Latch, Blue Insulator, Receptacle; CategoryThe connector The connector; File Size34KB，1 Pages; ManufacturerThomas & Betts Corporation; Websitehttp://www.tnb.com/

Download Datasheet Parametric View All

501-6427E Overview

Board Connector, 64 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Latch, Blue Insulator, Receptacle

501-6427E Parametric

Parameter Name	Attribute value
Maker	Thomas & Betts Corporation
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	EJECTOR, LATCHED, LOW PROFILE
body length	3.5 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	GOLD
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1000VAC V
Filter function	NO
IEC compliance	NO
Insulation resistance	1000000000 Ω
Insulator color	BLUE
insulator material	GLASS FILLED THERMOPLASTIC
MIL compliance	NO
Manufacturer's serial number	501
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Mixed contacts	NO
Installation option 1	LATCH
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Plating thickness	30u inch
polarization key	MIL TYP & CENTER
Rated current (signal)	1 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.102 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	64
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

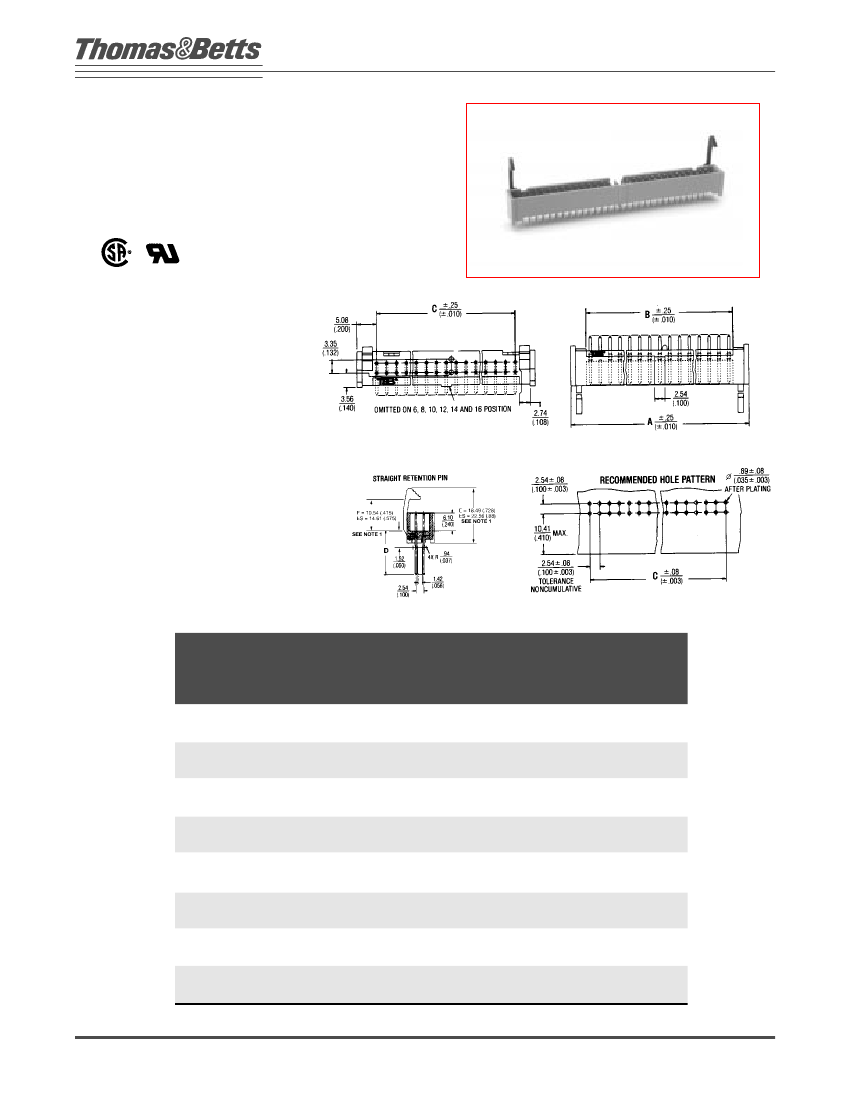

IDC Systems

Headers

LOW PROFILE HEADERS

WITH VERTICAL

RETAINER/EJECTOR

LATCHES, STRAIGHT PINS

.100" x .100" CENTERS

LR92984

E60980

HYSICAL

ROPERTIES

NSULATION

ATERIAL

Glass filled thermoplastic

rated UL 94V-0

OLOR

Blue

ONTACT

ATERIAL

Phosphor bronze with 30µ

inches min. gold over 50µ inches min. nickel plating

LECTRICAL

ROPERTIES

URRENT

ATING

1 Amp

NSULATION

ESISTANCE

>1 x 10

Ohms @ 500 VDC

IELECTRIC

TRENGTH

>1000 VRMS @ sea level

NVIRONMENTAL

ROPERTIES

EMPERATURE

ATING

-55˚C TO 125°C

ATING

ONNECTOR

EMALE

OCKETS

See pages 9-12

CCESSORIES

OLARIZING

See page 44

Ordering Information

CATALOG NUMBERS

DIMENSION “D” IN MM (INCHES)

2.59 (.102)

4.19 (.165)

FOR 1.57 (.062)

FOR 3.18 (.125)

P.C. BOARDS

501-0627XX

501-1027XX

501-1227XX

501-1427XX

501-1627XX

501-2027XX

501-2427XX

501-2627XX

501-3027XX

501-3427XX

501-3627XX

501-4027XX

501-4427XX

501-5037XX

501-6027XX

501-6427XX

501-0637XX

501-1037XX

501-1237XX

501-1437XX

501-1637XX

501-2037XX

501-2437XX

501-2637XX

501-3037XX

501-3437XX

501-3637XX

501-4037XX

501-4437XX

501-5037XX

501-6037XX

501-6437XX

DIMENSIONS IN MM (INCHES)

NO.

POS.

15.24 (.600)

20.32 (.800)

22.86 (.900)

25.40 (1.000)

27.94 (1.100)

33.02 (1.300)

38.10 (1.500)

40.64 (1.600)

45.72 (1.800)

50.80 (2.000)

53.34 (2.100)

58.42 (2.300)

63.50 (2.500)

71.12 (2.800)

83.82 (3.300)

88.90 (3.500)

7.11 (.280)

12.19 (.480)

14.73 (.580)

17.27 (.680)

19.81 (.780)

24.89 (.980)

29.97 (1.180)

32.51 (1.280)

37.59 (1.480)

42.67 (1.680)

45.21 (1.780)

50.29 (1.980)

55.37 (2.180)

62.99 (2.480)

75.69 (2.980)

80.77 (3.180)

5.08 (.200)

10.16 (.400)

12.70 (.500)

15.24 (.600)

17.78 (.700)

22.86 (.900)

27.94 (1.100)

30.48 (1.200)

35.56 (1.400)

40.64 (1.600)

43.18 (1.700)

48.26 (1.900)

53.34 (2.100)

60.96 (2.400)

73.66 (2.900)

78.74 (3.100)

1. For long ejectors, add suffix ES (-XXXXES). For short ejectors, add suffix E (-XXXXE)

2. Add “R” to part number for PCB retention feature.

Thomas & Betts Electronics/OEM Division Tel: 901-252-5000 Fax: 901-252-1312

Dimensions shown are for reference only. Dimensions are in millimeters (inches).
