Pomona
®
Model 5962 & 5962A
20 & 24 Lead QSOP Test Clip
0.025” Lead Pitch

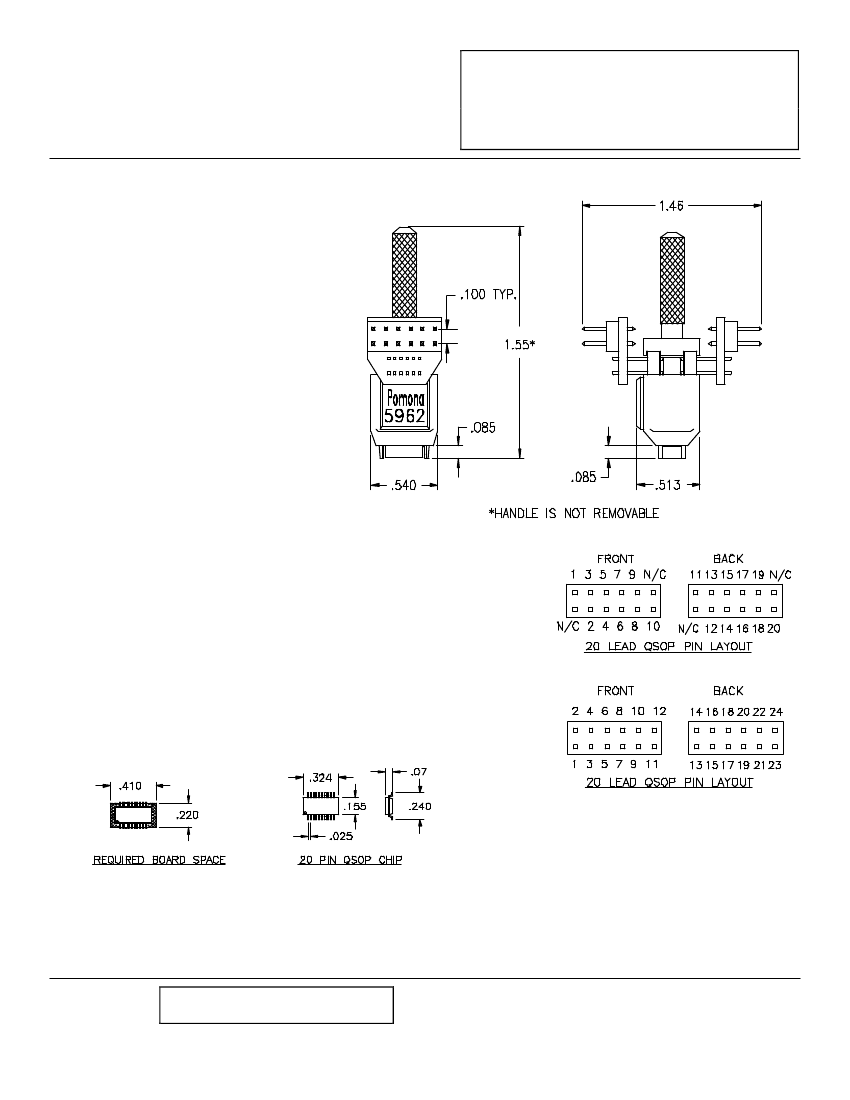

These new test clips provide the user with an
easy means to connect any instrument to the
leads of fine pitch plastic QSOP chips.
•
•
•
Interfaces with high density QSOP surface
mounted chip leads.
Fits both 20 and 24 pin QSOP chips.
Holding feature insures positive retention
on the chip in either vertical or horizontal
position.
Gold plated connector pins and contacts
assure noise free and low resistance
connections.
Fits on chips with as little as .040"
between chips end-to-end.
•
•
Pomona's QSOP test clips are perfect for system design, field service testing
and failure analysis.
The holding mechanism holds the clip on the device by gripping the chip body
at the ends of the chip. Each contact is individually cantilevered to assure
positive contact.
Other clips are available in many sizes to
fit the most popular SSOP chips now in
use.
All dimensions are in inches. Tolerances (except noted): .xx = ±.02” (,51 mm), .xxx = ± .005” (,127 mm).
All specifications are to the latest revisions. Specifications are subject to change without notice.
Registered trademarks are the property of their respective companies. Made in USA
6/9/99
SY/EH/LS
Sales: 800-490-2361 Fax: 888-403-3360
Technical Assistance: 800-241-2060
PomonaACCESS
90421
(800) 444-6785 or (425) 446-6010
More drawings available at www.pomonaelectronics.com
Page 1 of 2
C:\Laura Goldberg\FlukeDataSheet\d5962_62A_1_01.doc
Pomona
®
Model 5962 & 5962A
20 & 24 Lead QSOP Test Clip
0.025” Lead Pitch

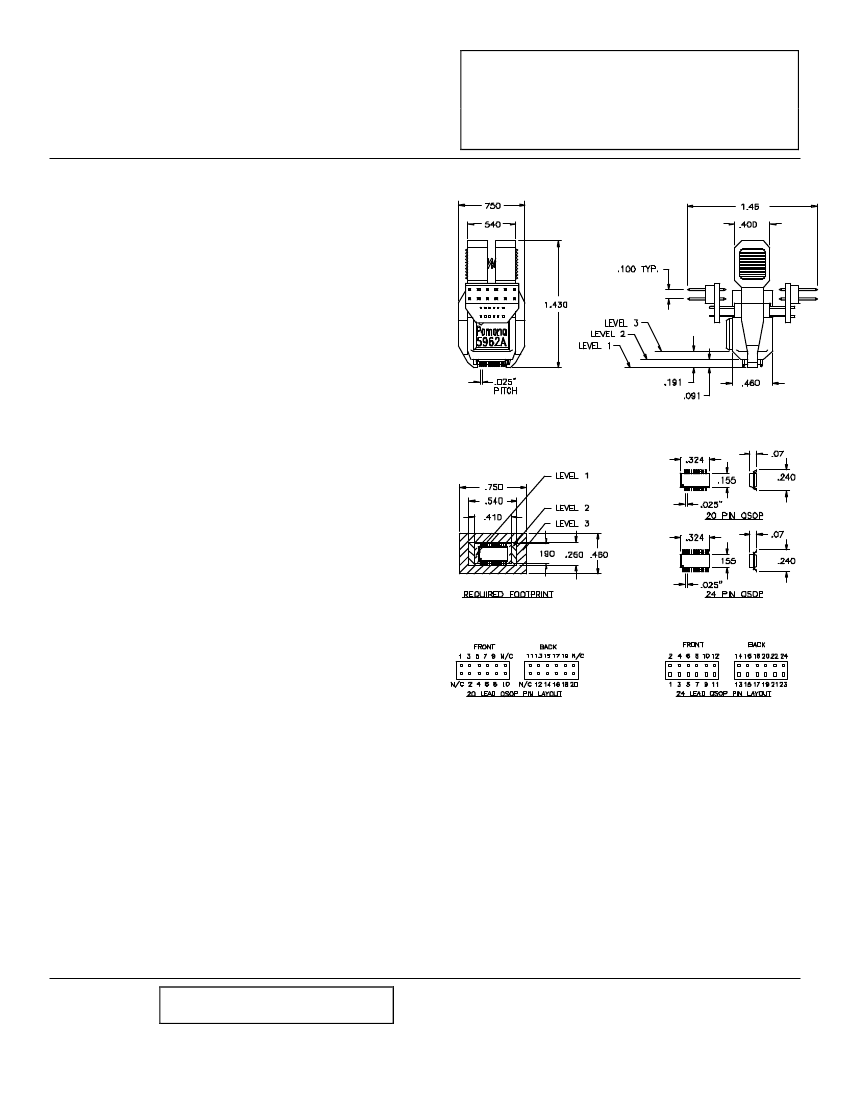

These new test clips provide the user with an
easy means to connect instrumentation to the
fine pitch plastic QSOP chip leads.
The 5962A version offers greater security with
spring loaded locking fingers.
•
•
Interfaces with high density SSOP surface mount
chip leads.
Spring loaded locking fingers insures
positive retention on the chip in either
vertical or horizontal position.
Pin number 1 indicator on the side of the
Gold plated, Beryllium Copper contacts
assure solid and secure connections to chip leads.
•
•
•
Gold plated phosphor-bronze connector pins
provide noise free, low resistance connections
Pomona’s QSOP test clips are perfect for
system design, field service testing, and
failure analysis.
Other clips are also available in many sizes to fit
many of the mot popular SSOP and QSOP chips
now in use.
All dimensions are in inches. Tolerances (except noted): .xx = ±.02” (,51 mm), .xxx = ± .005” (,127 mm).
All specifications are to the latest revisions. Specifications are subject to change without notice.
Registered trademarks are the property of their respective companies. Made in USA
6/9/99
SY/EH/LS
Sales: 800-490-2361 Fax: 888-403-3360
Technical Assistance: 800-241-2060
PomonaACCESS
90421
(800) 444-6785 or (425) 446-6010
More drawings available at www.pomonaelectronics.com
Page 2 of 2
C:\Laura Goldberg\FlukeDataSheet\d5962_62A_1_01.doc
