53949-0701 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 53949-0701

53949-0701: DescriptionBoard Stacking Connector, 70 Contact(s), 2 Row(s), Male, Straight, 0.02 inch Pitch, Surface Mount Terminal, Locking Mech, Black Insulator, Plug,; CategoryThe connector The connector; File Size150KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric Compare View All

53949-0701 Overview

Board Stacking Connector, 70 Contact(s), 2 Row(s), Male, Straight, 0.02 inch Pitch, Surface Mount Terminal, Locking Mech, Black Insulator, Plug,

53949-0701 Parametric

Parameter Name	Attribute value
Maker	Molex
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	SLIMSTACK, SHROUDED
Board mount options	SOLDER HOLDING FLANGE
body width	0.115 inch
subject depth	0.058 inch
body length	0.797 inch
Body/casing type	PLUG
Connector type	BOARD STACKING CONNECTOR
Contact to complete cooperation	GOLD (10) OVER NICKEL (59)
Contact completed and terminated	GOLD (16) OVER NICKEL (59)
Contact point gender	MALE
Contact material	BRASS
contact mode	RECTANGULAR
Contact resistance	40 mΩ
DIN compliance	NO
Dielectric withstand voltage	500VAC V
Durability	30 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	.695 N
Insulation resistance	100000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED LIQUID CRYSTAL POLYMER
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	53949
Plug contact pitch	0.02 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	LOCKING MECH
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	3.6068 mm
Plating thickness	10u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	0.5 A
Guideline	UL
reliability	COMMERCIAL
Terminal length
Terminal pitch	0.5 mm
Termination type	SURFACE MOUNT
Total number of contacts	70
UL Flammability Code	94V-0
Evacuation force-minimum value	.0556 N
Base Number Matches	1

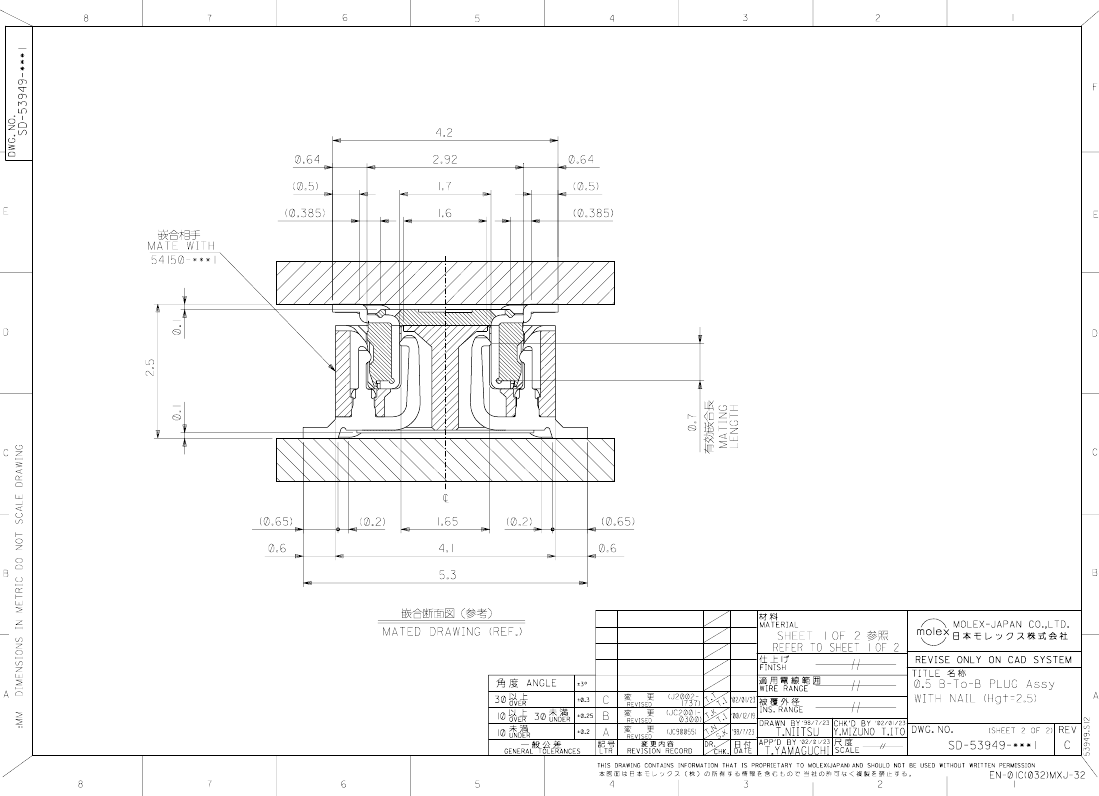

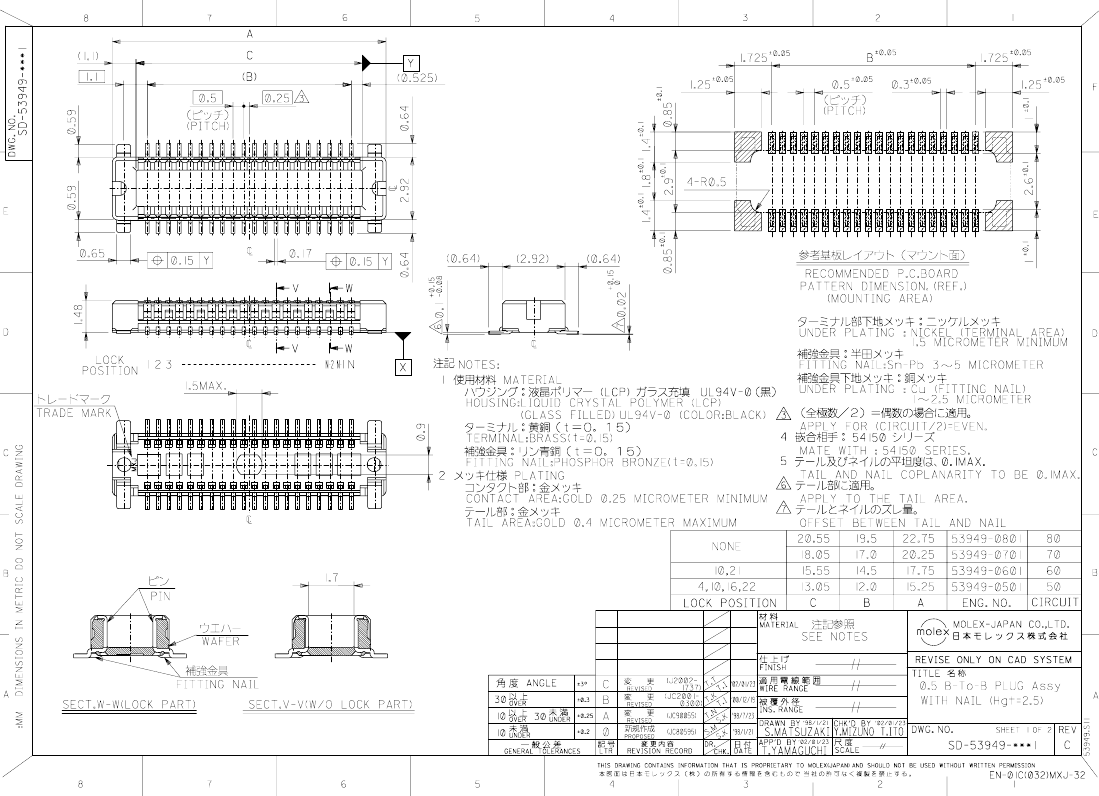

Preview

Download Datasheet

View All

53949-0701 Related Products

	53949-0701	53949-0501	53949-0601	53949-0801
Description	Board Stacking Connector, 70 Contact(s), 2 Row(s), Male, Straight, 0.02 inch Pitch, Surface Mount Terminal, Locking Mech, Black Insulator, Plug,	Board Stacking Connector, 50 Contact(s), 2 Row(s), Male, Straight, 0.02 inch Pitch, Surface Mount Terminal, Locking Mech, Black Insulator, Plug,	Board Stacking Connector, 60 Contact(s), 2 Row(s), Male, Straight, 0.02 inch Pitch, Surface Mount Terminal, Locking Mech, Black Insulator, Plug,	Board Stacking Connector, 80 Contact(s), 2 Row(s), Male, Straight, 0.02 inch Pitch, Surface Mount Terminal, Black Insulator, Plug,
Maker	Molex	Molex	Molex	Molex
Reach Compliance Code	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99
Other features	SLIMSTACK, SHROUDED	SLIMSTACK, SHROUDED	SLIMSTACK, SHROUDED	SLIMSTACK, SHROUDED
Board mount options	SOLDER HOLDING FLANGE	SOLDER HOLDING FLANGE	SOLDER HOLDING FLANGE	SOLDER HOLDING FLANGE
body width	0.115 inch	0.115 inch	0.115 inch	0.115 inch
subject depth	0.058 inch	0.058 inch	0.058 inch	0.058 inch
body length	0.797 inch	0.6 inch	0.699 inch	0.896 inch
Body/casing type	PLUG	PLUG	PLUG	PLUG
Connector type	BOARD STACKING CONNECTOR	BOARD STACKING CONNECTOR	BOARD STACKING CONNECTOR	BOARD STACKING CONNECTOR
Contact to complete cooperation	GOLD (10) OVER NICKEL (59)	GOLD (10) OVER NICKEL (59)	GOLD (10) OVER NICKEL (59)	GOLD (10) OVER NICKEL (59)
Contact completed and terminated	GOLD (16) OVER NICKEL (59)	GOLD (16) OVER NICKEL (59)	GOLD (16) OVER NICKEL (59)	GOLD (16) OVER NICKEL (59)
Contact point gender	MALE	MALE	MALE	MALE
Contact material	BRASS	BRASS	BRASS	BRASS
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact resistance	40 mΩ	40 mΩ	40 mΩ	40 mΩ
DIN compliance	NO	NO	NO	NO
Dielectric withstand voltage	500VAC V	500VAC V	500VAC V	500VAC V
Durability	30 Cycles	30 Cycles	30 Cycles	30 Cycles
Filter function	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO
Insulation resistance	100000000 Ω	100000000 Ω	100000000 Ω	100000000 Ω
Insulator color	BLACK	BLACK	BLACK	BLACK
insulator material	GLASS FILLED LIQUID CRYSTAL POLYMER	GLASS FILLED LIQUID CRYSTAL POLYMER	GLASS FILLED LIQUID CRYSTAL POLYMER	GLASS FILLED LIQUID CRYSTAL POLYMER
JESD-609 code	e4	e4	e4	e4
MIL compliance	NO	NO	NO	NO
Manufacturer's serial number	53949	53949	53949	53949
Plug contact pitch	0.02 inch	0.02 inch	0.02 inch	0.02 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO	NO	NO	NO
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	ONE	ONE
PCB row number	2	2	2	2
Number of rows loaded	2	2	2	2
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
PCB contact row spacing	3.6068 mm	3.6068 mm	3.6068 mm	3.6068 mm
Plating thickness	10u inch	10u inch	10u inch	10u inch
polarization key	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING
Rated current (signal)	0.5 A	0.5 A	0.5 A	0.5 A
Guideline	UL	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal pitch	0.5 mm	0.5 mm	0.5 mm	0.5 mm
Termination type	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Total number of contacts	70	50	60	80
UL Flammability Code	94V-0	94V-0	94V-0	94V-0
Base Number Matches	1	1	1	1
maximum insertion force	.695 N	.973 N	-	.6116 N
Installation option 1	LOCKING MECH	LOCKING MECH	LOCKING MECH	-
Evacuation force-minimum value	.0556 N	.1112 N	-	.0556 N
