8086-0-00-34-00-00-33-0 Overview

PCB Terminal, PFOA, PFOS, ROHS AND REACH COMPLIANT

8086-0-00-34-00-00-33-0 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Mill-Max
package instruction	PFOA, PFOS, ROHS AND REACH COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
terminal gender	MALE
Terminal and terminal strip types	PCB TERMINAL
Base Number Matches	1

Preview

Download Datasheet

View All

PR

E

CI

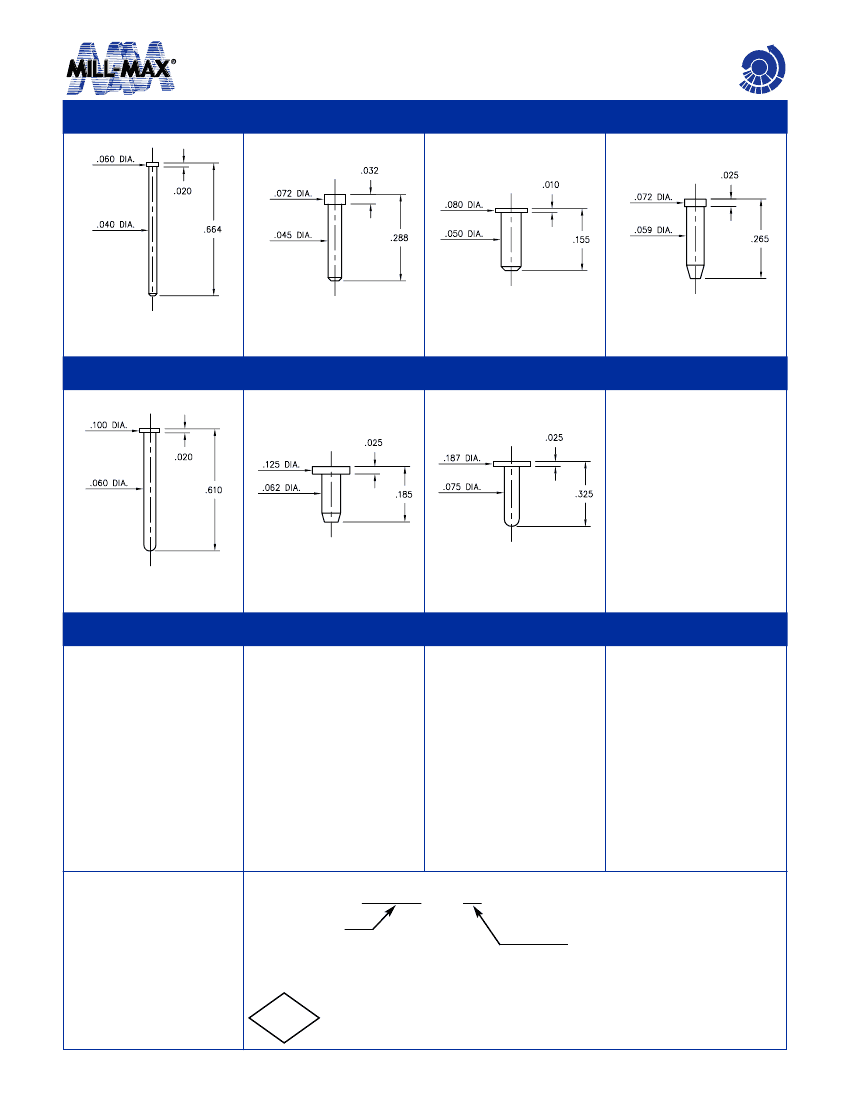

PRINTED CIRCUIT PINS

Nail Head Type

M

ON

S

I

CHI

A

PINS

NE

D

1179

9872

2381

9265

1179-0-00-XX-00-00-33-0

Solder mount in .044 mounting hole

9872-0-00-XX-00-00-33-0

Solder mount in .049 mounting hole

2381-0-00-XX-00-00-33-0

Solder mount in .054 mounting hole

9265-0-00-XX-00-00-38-0

Solder mount in .063 mounting hole

6142

9022

8086

6142-0-00-XX-00-00-33-0

Solder mount in .064 mounting hole

9022-0-00-XX-00-00-33-0

Solder mount in .066 mounting hole

8086-0-00-XX-00-00-33-0

Solder mount in .079 mounting hole

SPECIFICATIONS

PIN MATERIAL:

Brass Alloy 360, 1/2 Hard

(Except where noted)

DIMENSION IN INCHES

TOLERANCES ON:

LENGTHS:

±.005

DIAMETERS: ±.002

ANGLES:

± 2°

ORDER CODE: XXXX - X - 00 - XX - 00 - 00 - 3X - 0

BASIC PART #

SPECIFY PIN FINISH:

01

200μ" TIN/LEAD OVER NICKEL

80

200μ" TIN OVER NICKEL

15

10μ" GOLD OVER NICKEL

21

20μ" GOLD OVER NICKEL

34

50μ" GOLD OVER NICKEL

2002/95/EC

RoHS

w w w. m i l l - m a x . c o m

174

516-922-6000
