8947-0-15-80-10-02-10-0: DescriptionPCB Terminal; CategoryThe connector terminals; File Size108KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com

Download Datasheet Parametric Compare View All

8947-0-15-80-10-02-10-0 Overview

PCB Terminal

8947-0-15-80-10-02-10-0 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Mill-Max
Reach Compliance Code	compliant
ECCN code	EAR99
Manufacturer's serial number	8947
terminal gender	FEMALE
Terminal and terminal strip types	PCB TERMINAL
Base Number Matches	1

Preview

Download Datasheet

View All

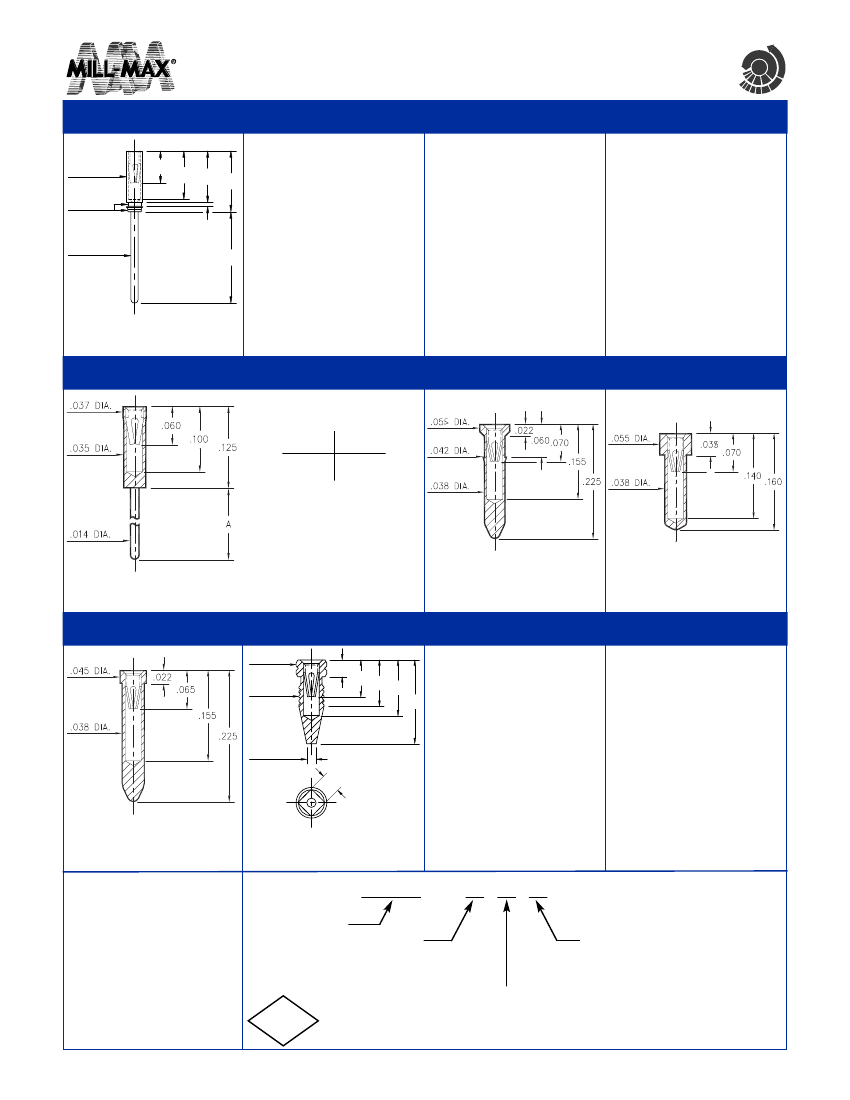

PIN RECEPTACLES

for .008” - .013” diameter pins (#04 contact)

and .012” - .017” diameter pins (#10 contact)

(see specific contact range on page 216)

CHI

PINS

8210

.026 DIA.

.053

.080 .085

.100

.022 DIA.

.006

.012 DIA.

.150

8210-0-15-15-04-27-04-0

Press-fit in .024/.027 stepped hole

0464

Basic Part

Number

Length

9225

0529

0464-0

0464-1

.125

.250

0464-X-15-XX-10-XX-04-0

Solder mount in .016 min.

mounting hole

9225-0-15-XX-10-XX-10-0

Press-fit in .039 mounting hole

0529-0-15-XX-10-XX-10-0

.040 min. mounting hole

8947

4993

.055 DIA.

.030

.066

.045 DIA.

.084

.100

.155

.017 DIA.

.035

8947-0-15-XX-10-XX-10-0

Solder mount in .040 min.

mounting hole

4993-0-15-15-10-27-10-0

Compliant press-fit in .041 - .044 Dia.

mounting hole

SPECIFICATIONS

SHELL MATERIAL:

Brass Alloy 360, 1/2 Hard

CONTACT MATERIAL:

Beryllium Copper Alloy 172, HT

DIMENSION IN INCHES

TOLERANCES ON:

LENGTHS:

±.005

DIAMETERS: ±.002

ANGLES:

± 2°

ORDER CODE: XXXX - X - XX - XX - XX - XX - XX - 0

BASIC PART #

SPECIFY SHELL FINISH:

SPECIFY CONTACT FINISH:

200μ” TIN/LEAD OVER NICKEL

100μ” TIN/LEAD OVER NICKEL



200μ” TIN OVER NICKEL (RoHS)



100μ” TIN OVER NICKEL (RoHS)



10μ” GOLD OVER NICKEL (RoHS)



30μ” GOLD OVER NICKEL (RoHS)

SELECT CONTACT

#04 or #10

CONTACT (DATA ON PAGE 216)

RoHS

2002/95/EC

(CONTACTS #04 & #10 NOT INTERCHANGEABLE)

w w w. m i l l - m a x . c o m

127



516-922-6000

8947-0-15-80-10-02-10-0 Related Products
