54776-505-42LF

Description
Board Stacking Connector, 42 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Wire Wrap Terminal, Black Insulator
CategoryThe connector    The connector
File Size141KB,2 Pages
ManufacturerAmphenol
Websitehttp://www.amphenol.com/
Environmental Compliance
Download Datasheet Parametric View All

54776-505-42LF Overview

Board Stacking Connector, 42 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Wire Wrap Terminal, Black Insulator

54776-505-42LF Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerAmphenol
Reach Compliance Codecompli
ECCN codeEAR99
body width0.19 inch
subject depth0.591 inch
body length4.2 inch
Connector typeBOARD STACKING CONNECTOR
Contact point genderMALE
Contact materialPHOSPHOR BRONZE
contact modeRECTANGULAR
Contact styleSQ PIN-SKT
Insulator colorBLACK
insulator materialTHERMOPLASTIC
Plug contact pitch0.1 inch
Match contact row spacing0.1 inch
Installation methodSTRAIGHT
Installation typeBOARD
Number of connectorsONE
PCB row number2
Number of rows loaded2
PCB contact patternRECTANGULAR
PCB contact row spacing2.54 mm
Plating thickness15u inch
GuidelineUL
reliabilityCOMMERCIAL
Terminal length0.484 inch
Terminal pitch2.54 mm
Termination typeWIRE WRAP
Total number of contacts42

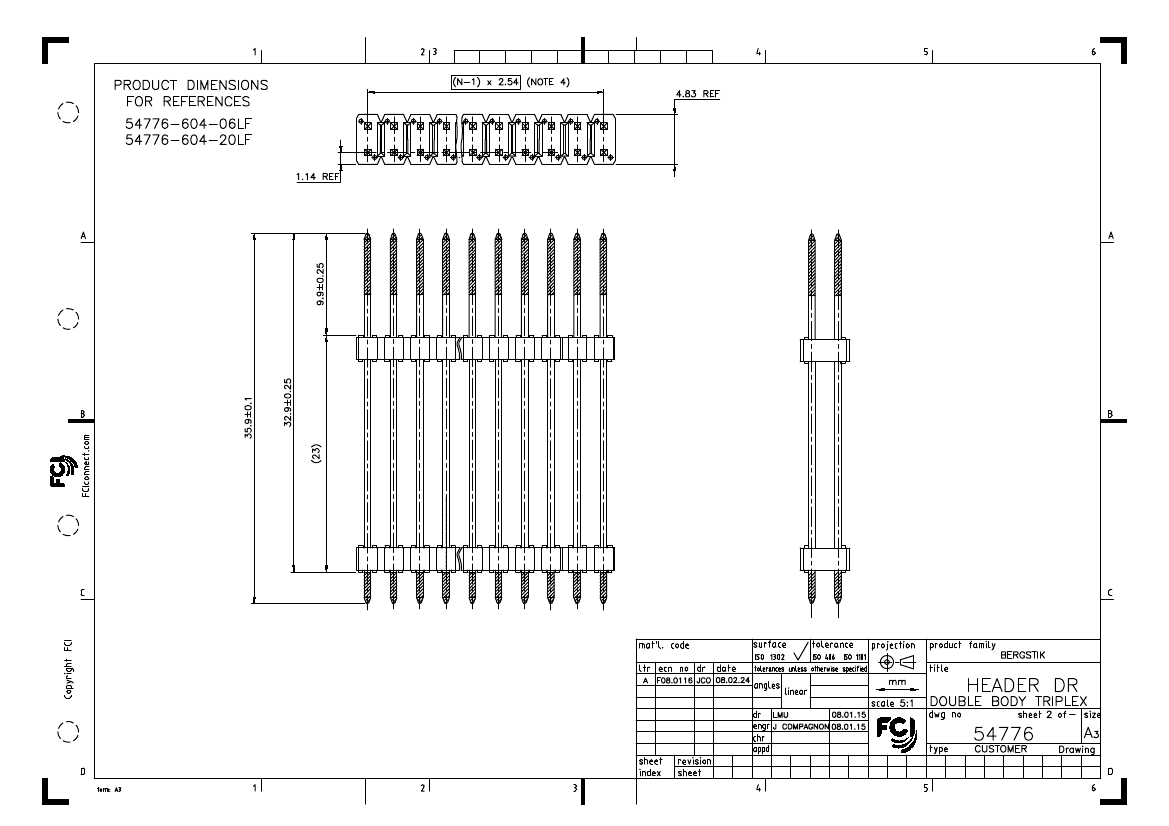

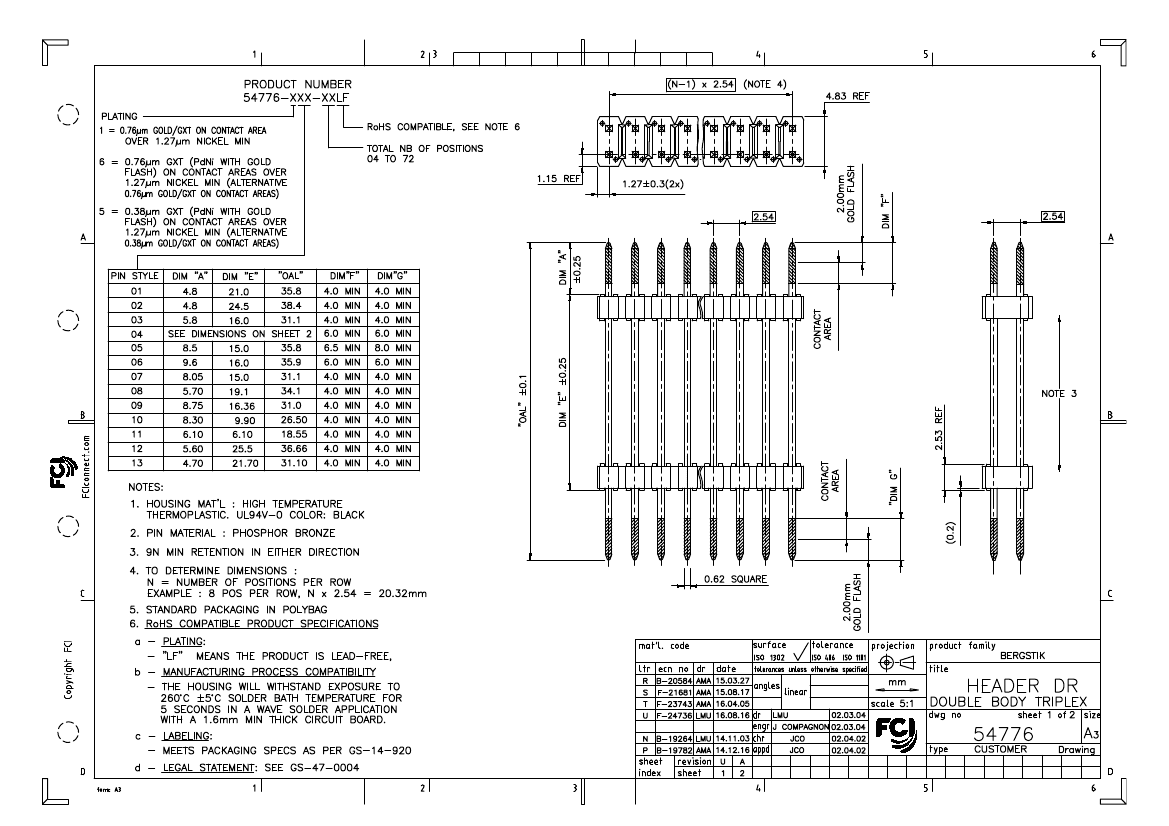

PDS: Rev :U
STATUS:Released
Printed: Aug 17, 2016
