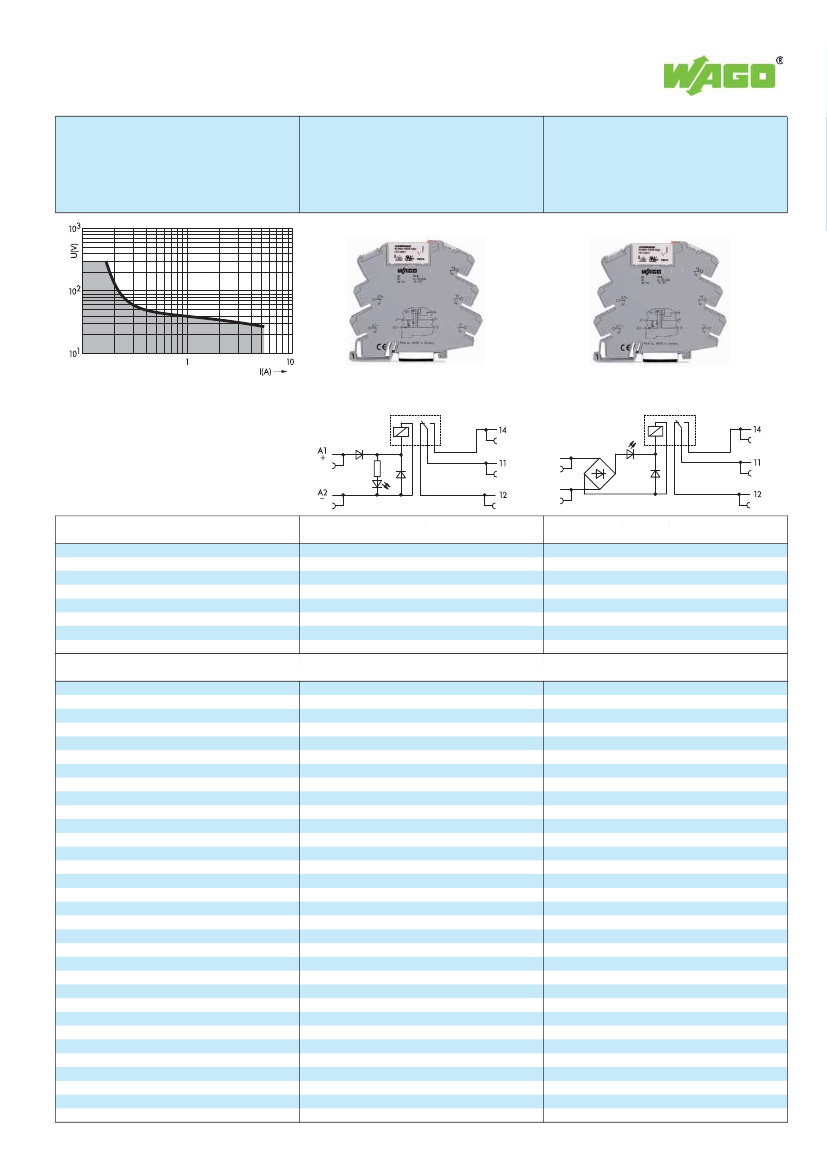

Relay with 1 changeover contact (1u)
(gold contacts)
for normal switching power
Nominal input voltage
V
N
24 V, 110 V, 220 V DC
Relay with 1 changeover contact (1u)
(gold contacts)
for normal switching power
Nominal input voltage
V
N
24 V, 115 V, 230 V AC/DC
1
<______
81 mm/3.18 in
______>
857-314
857-364
____________
<_________
94 mm/3.68 in
_________>
____________
<_________
94 mm/3.68 in
_________>
DC load limit curve
* In order to prevent the gold layer from being damaged,
these values shall not be exceeded. Higher switching
power leads to evaporation of the gold layer.
In case of damaged gold layer, the values in parens apply.
A1
A2
Description
JUMPFLEX
®
relay socket with miniature switching
relay, for DIN 35 rail
V
N
24 V DC
110 V DC
220 V DC
I
N
10 mA
3.5 mA
3.2 mA
Item No.
857-314
857-317
857-318
Pack.
Unit
1
1
1
<______
81 mm/3.18 in
______>
V
N
24 V AC/DC
115 V AC/DC
230 V AC/DC
I
N
8.5 mA
4 mA
3.5 mA
Item No.
857-364
857-367
857-368
Pack.
Unit
1
1
1
Technical Data
Contact material
Input voltage range
Max. switching voltage
Max. continuous current (terminal blocks in a row)
Max. Switching power (resistive)
Recommended minimum load
Max. switching rate with / without load
Operating power
Pull-in/drop-out/bounce time typ.
Nominal operating mode
Dielectric strength contact-coil
Surge capacity open contact
Nominal voltage acc. to VDE 0110 Part 1/4.97,
IEC 60664-1
Mechanical life
Mechanical life at max. load (resistance)
Ambient operating temperature (V
N
)
Storage temperature
Dimensions (mm) W x H x L
Wire connection
Cross sections
Stripped lengths
Approvals
Accessories see pages 68 ... 71
AgNi + 5 μ Au
V
N
-15 % ... +20 %
30 V* DC / (250 V AC/DC)
50 mA* /
(6 A )
(1250 VA AC; DC see load limit curve)
≥ 1 V / 1 mA / 1 mW
6 min
-1
/ 20 s
-1
< 300 mW / < 700 mW
5 ms / 6 ms / 5 ms
continuous duty
4 kV
eff
1 kV
eff
250 V / 4 kV / 3
5 x 10
6
switching operations
5 x 10
4
switching operations
-25 °C ... +60 °C
-40 °C ... +70 °C
6 x 81 x 94
Height from upper-edge of DIN 35 rail
CAGE CLAMP
®
S
0.34 mm² ... 2.5 mm² / AWG 22 ... 14
9 ... 10 mm / 0.37 in
VDE 0110 / EN 60664; VDE 0435 / EN 61810-1;
r
(857-314:
g)
Accessories see pages 68 ... 71
AgNi + 5 μ Au
V
N
-15 % ... +20 % (857-364/857-367)
V
N
-15 % ... +10 % (857-368)
30 V* DC / (250 V AC/DC)
50 mA* / (6 A )
(1250 VA AC; DC see load limit curve)
≥ 1 V / 1 mA / 1 mW
6 min
-1
/ 20 s
-1
< 300 mVA / < 800 mVA
5 ms / 6 ms / 5 ms
continuous duty
4 kV
eff
1 kV
eff
250 V / 4 kV / 3
5 x 10
6
switching operations
5 x 10
4
switching operations
-25 °C ... +60 °C
-40 °C ... +70 °C
6 x 81 x 94
Height from upper-edge of DIN 35 rail
CAGE CLAMP
®
S
0.34 mm² ... 2.5 mm² / AWG 22 ... 14
9 ... 10 mm / 0.37 in
VDE 0110 / EN 60664; VDE 0435 / EN 61810-1;
r
(857-368:
g)
8
