84069012C: DescriptionControl/Command Signal Generator, 8MHz, CMOS, CQCC20; CategoryThe embedded processor and controller Microcontrollers and processors; File Size229KB，7 Pages; ManufacturerHarris; Websitehttp://www.harris.com/

Download Datasheet Parametric Compare View All

84069012C Overview

Control/Command Signal Generator, 8MHz, CMOS, CQCC20

84069012C Parametric

Parameter Name	Attribute value
Maker	Harris
package instruction	,
Reach Compliance Code	unknown
ECCN code	3A001.A.2.C
Bus compatibility	80188; 80186; 8089; 80C88; 8088; 80C86; 8086
maximum clock frequency	8 MHz
JESD-30 code	S-CQCC-N20
Number of terminals	20
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED
Package shape	SQUARE
Package form	CHIP CARRIER
Certification status	Not Qualified
Maximum slew rate	8 mA
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	MILITARY
Terminal form	NO LEAD
Terminal location	QUAD
uPs/uCs/peripheral integrated circuit type	SYSTEM INTERFACE LOGIC, CONTROL AND COMMAND SIGNAL GENERATOR
Base Number Matches	1

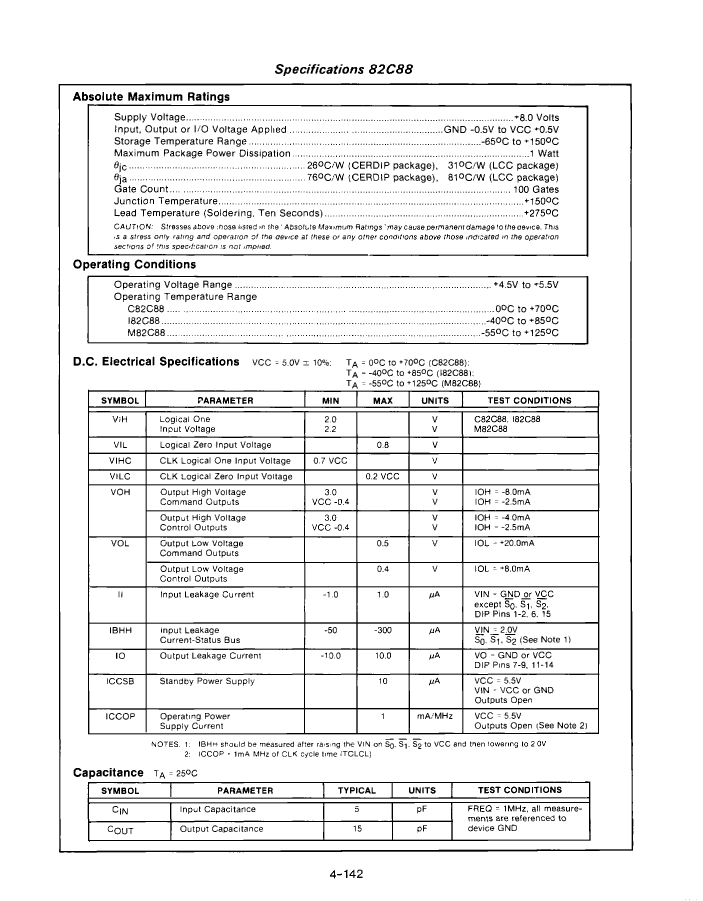

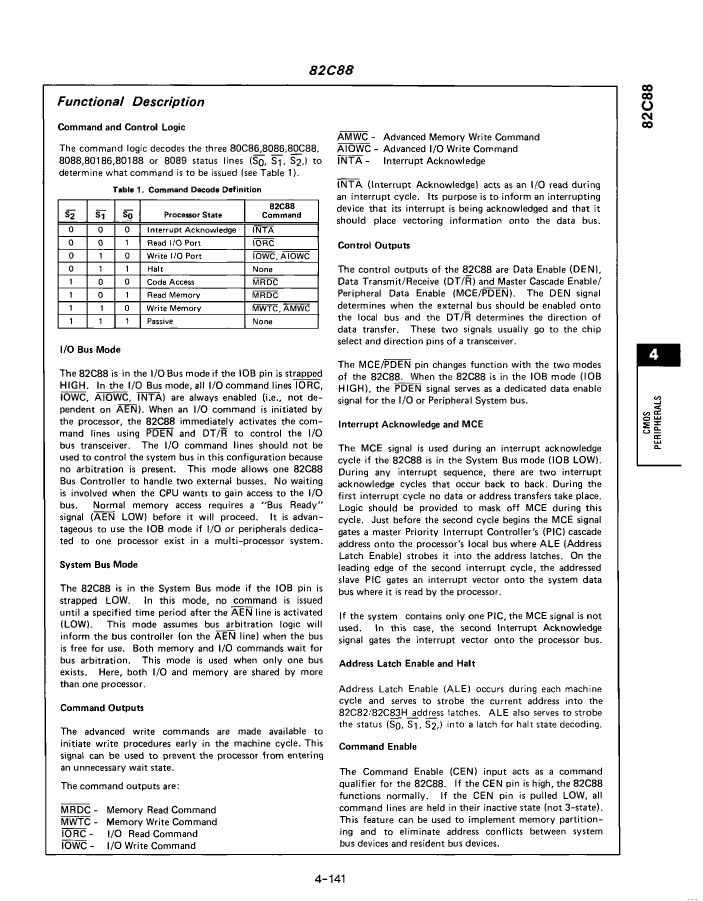

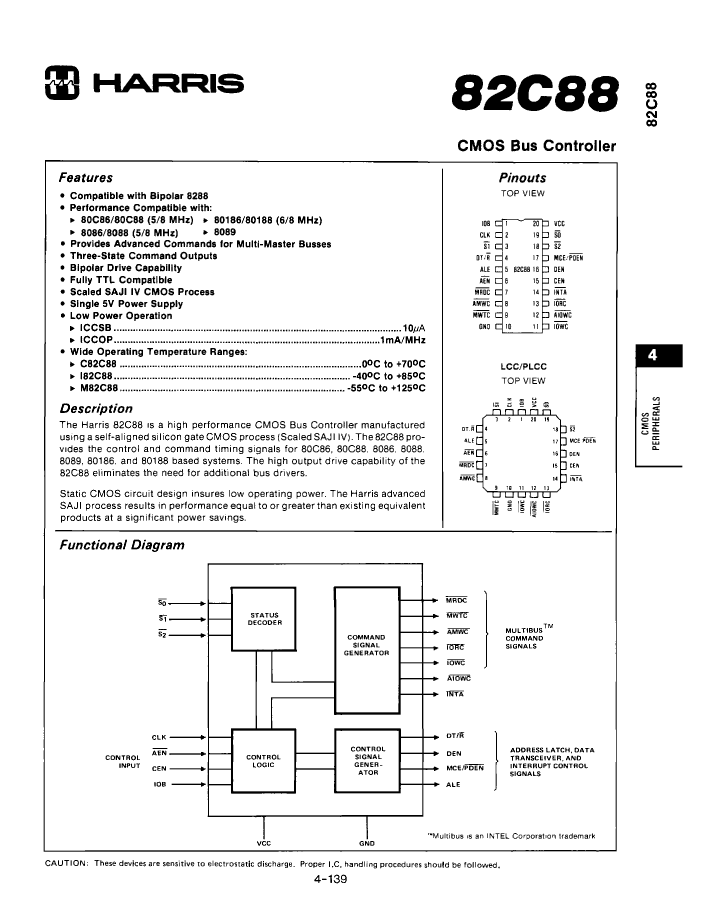

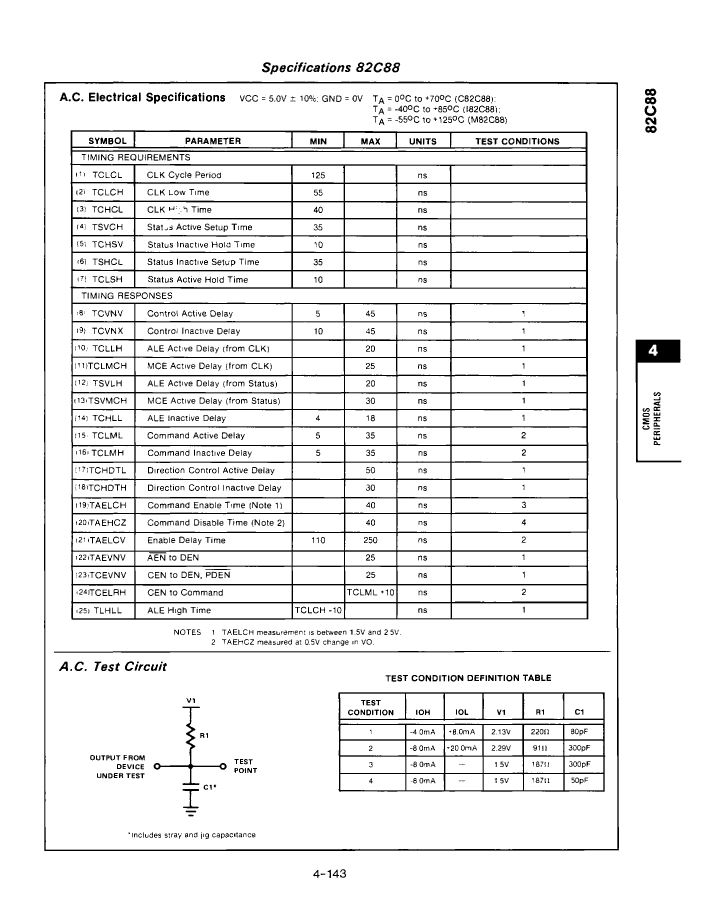

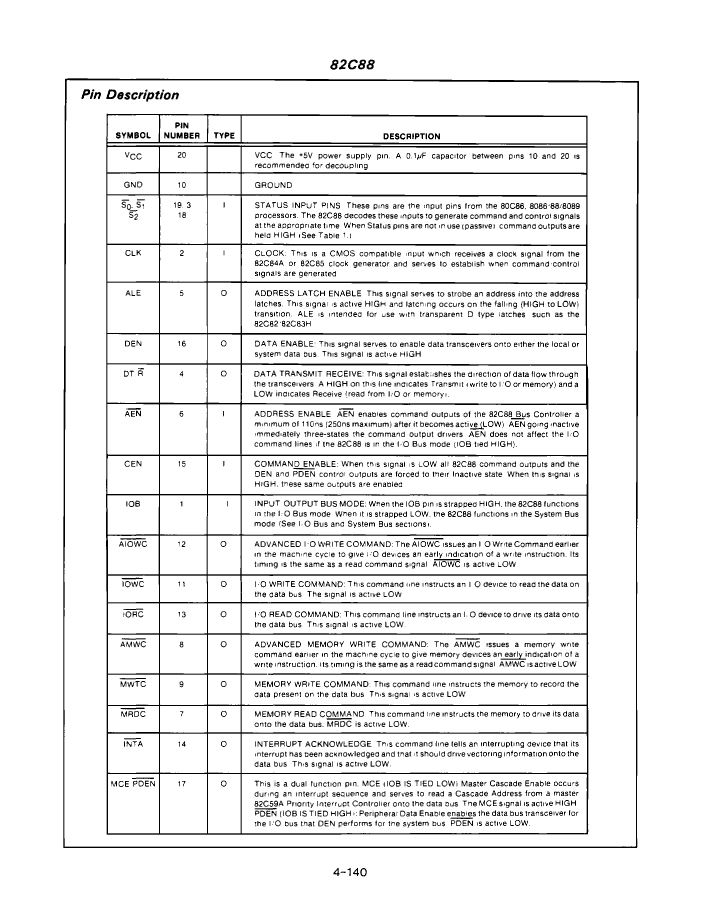

Preview

Download Datasheet

View All

84069012C Related Products

	84069012C	84069012X	CR82C88	IR82C88
Description	Control/Command Signal Generator, 8MHz, CMOS, CQCC20	Control/Command Signal Generator, 8MHz, CMOS, CQCC20, CERAMIC, LCC-20	Control/Command Signal Generator, 8MHz, CMOS, CQCC20	Control/Command Signal Generator, 8MHz, CMOS, CQCC20
Maker	Harris	Harris	Harris	Harris
Reach Compliance Code	unknown	unknown	unknown	unknown
Bus compatibility	80188; 80186; 8089; 80C88; 8088; 80C86; 8086	80188; 80186; 8089; 80C88; 8088; 80C86; 8086	80188; 80186; 8089; 80C88; 8088; 80C86; 8086	80188; 80186; 8089; 80C88; 8088; 80C86; 8086
maximum clock frequency	8 MHz	8 MHz	8 MHz	8 MHz
JESD-30 code	S-CQCC-N20	S-CQCC-N20	S-CQCC-N20	S-CQCC-N20
Number of terminals	20	20	20	20
Maximum operating temperature	125 °C	125 °C	70 °C	85 °C
Minimum operating temperature	-55 °C	-55 °C	-	-40 °C
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
Package shape	SQUARE	SQUARE	SQUARE	SQUARE
Package form	CHIP CARRIER	CHIP CARRIER	CHIP CARRIER	CHIP CARRIER
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum supply voltage	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage	5 V	5 V	5 V	5 V
surface mount	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS
Temperature level	MILITARY	MILITARY	COMMERCIAL	INDUSTRIAL
Terminal form	NO LEAD	NO LEAD	NO LEAD	NO LEAD
Terminal location	QUAD	QUAD	QUAD	QUAD
uPs/uCs/peripheral integrated circuit type	SYSTEM INTERFACE LOGIC, CONTROL AND COMMAND SIGNAL GENERATOR	SYSTEM INTERFACE LOGIC, CONTROL AND COMMAND SIGNAL GENERATOR	SYSTEM INTERFACE LOGIC, CONTROL AND COMMAND SIGNAL GENERATOR	SYSTEM INTERFACE LOGIC, CONTROL AND COMMAND SIGNAL GENERATOR
Maximum slew rate	8 mA	-	8 mA	8 mA
Base Number Matches	1	1	1	-
