Features
•
•
•
•
•
•
•
•
•
•
•
•
80C51 Core Architecture
256 Bytes of On-chip RAM
1K Bytes of On-chip ERAM
32K Bytes of On-chip Flash Memory
– Data Retention: 10 Years at 85°C
Read/Write Cycle: 10K
2K Bytes of On-chip Flash for Bootloader
2K Bytes of On-chip EEPROM
Read/Write Cycle: 100K
14-sources 4-level Interrupts
Three 16-bit Timers/Counters
Full Duplex UART Compatible 80C51
Maximum Crystal Frequency 40 MHz
– In X2 Mode, 20 MHz (CPU Core, 40 MHz)
Five Ports: 32 + 2 Digital I/O Lines
Five-channel 16-bit PCA with:
– PWM (8-bit)
– High-speed Output
– Timer and Edge Capture
Double Data Pointer
21-bit WatchDog Timer (7 Programmable Bits)
A 10-bit Resolution Analog to Digital Converter (ADC) with 8 Multiplexed Inputs
Full CAN Controller:
– Fully Compliant with CAN Rev2.0A and 2.0B
– Optimized Structure for Communication Management (Via SFR)
– 15 Independent Message Objects:
– Each Message Object Programmable on Transmission or Reception
– Individual Tag and Mask Filters up to 29-bit Identifier/Channel
– 8-byte Cyclic Data Register (FIFO)/Message Object
– 16-bit Status and Control Register/Message Object
– 16-bit Time-Stamping Register/Message Object
– CAN Specification 2.0 Part A or 2.0 Part B Programmable for Each Message
Object
– Access to Message Object Control and Data Registers Via SFR
– Programmable Reception Buffer Length Up To 15 Message Objects
– Priority Management of Reception of Hits on Several Message Objects at the
Same Time (Basic CAN Feature)
– Priority Management for Transmission
– Message Object Overrun Interrupt
– Supports:
– Time Triggered Communication
– Autobaud and Listening Mode
– Programmable Automatic Reply Mode
– 1-Mbit/s Maximum Transfer Rate at 8 MHz
(1)
Crystal Frequency in X2 Mode
– Readable Error Counters
– Programmable Link to On-chip Timer for Time Stamping and Network
Synchronization
– Independent Baud Rate Prescaler
– Data, Remote, Error and Overload Frame Handling
On-chip Emulation Logic (Enhanced Hook System)
Power Saving Modes:
– Idle Mode
– Power-down Mode
Enhanced 8-bit
MCU with CAN
Controller and
Flash Memory
•
•
•
•
T89C51CC01
•
•
1.
At BRP = 1 sampling point will be fixed.
Rev. 4129E–8051–03/02
1
•
Power Supply: 5V ± 10% (or 3V
(1)
± 10%)
•
Temperature Range: Industrial (-40° to +85°C)
•
Packages: VQFP44, PLCC44, CA-BGA64
Description
The T89C51CC01 is the first member of the CANary
TM
family of 8-bit microcontrollers
dedicated to CAN network applications.
In X2 mode a maximum external clock rate of 20 MHz reaches a 300 ns cycle time.
Besides the full CAN controller T89C51CC01 provides 32K Bytes of Flash memory
including In-System-Programming (ISP), 2K Bytes Boot Flash Memory, 2K Bytes
EEPROM and 1.2-Kbyte RAM.
Primary attention is paid to the reduction of the electro-magnetic emission of
T89C51CC01.
Block Diagram
RxDC
T2EX
RxD
TxD
Vcc
Vss
PCA
ECI
T2
TxDC
XTAL1
XTAL2
ALE
PSEN
CPU
EA
RD
WR
Timer 0
Timer 1
INT
Ctrl
Parallel I/O Ports and Ext. Bus Watch
Dog
Port 0 Port 1 Port 2 Port 3 Port 4
Emul
Unit
10 bit
ADC
UART
RAM
256x8
C51
CORE
Flash Boot
EE
32kx loader PROM
8
2kx8 2kx8
ERAM
1kx8
PCA
Timer2
CAN
CONTROLLER
IB-bus
P1(1)
RESET
INT0
Notes:
1. 8 analog Inputs/8 Digital I/O
2. 2-Bit I/O Port
1.
Ask for availability
2
T89C51CC01
4129E–8051–03/02
INT1
P4(2)
P2
T0
T1
P0
P3
T89C51CC01
Pin Configuration
P1.3/AN3/CEX0
P1.2/AN2/ECI
P1.1/AN1/T2EX
P1.0/AN 0/T2
VAREF
VAGND
RESET
VSS
VCC
XTAL1
XTAL2
P1.4/AN4/CEX1
P1.5/AN5/CEX2
P1.6/AN6/CEX3
P1.7/AN7/CEX4
EA
P3.0/RxD
P3.1/TxD
P3.2/INT0
P3.3/INT1
P3.4/T0
P3.5/T1
7
8
9
10
11
12
13
14
15
16
17
6
5
4
3
2
1
44
43
42
41
40
39
38
37
36
35
34
33
32
31
30
29
PLCC44
ALE
PSEN
P0.7/AD7
P0.6/AD6
P0.5/AD5
P0.4/AD4
P0.3/AD3
P0.2/AD2
P0.1/AD1
P0.0/AD0
P2.0/A8
44 43 42 41 40 39 38 37 36 35 34
P1.3/AN3/CEX0
P1.2/AN2/ECI
P1.1/AN1/T2EX
P1.0/AN 0/T2
VAREF
VAGND
RESET
VSS
VCC
XTAL1
XTAL2
P3.6/WR
P3.7/RD
P4.0/ TxDC
P4.1/RxDC
P2.7/A15
P2.6/A14
P2.5/A13
P2.4/A12
P2.3/A11
P2.2/A10
P2.1/A9
18
19
20
21
22
23
24
25
26
27
28
P1.4/AN4/CEX1
P1.5/AN5/CEX2
P1.6/AN6/CEX3
P1.7/AN7/CEX4
EA
P3.0/RxD
P3.1/TxD
P3.2/INT0
P3.3/INT1
P3.4/T0
P3.5/T1
1
2
3
4
5
6
7
8
9
10
11
33
32
31
30
29
28
27
26
25
24
23
VQFP44
ALE
PSEN
P0.7/AD7
P0.6/AD6
P0.5/AD5
P0.4 /AD4
P0.3 /AD3
P0.2 /AD2
P0.1 /AD1
P0.0 /AD0
P2.0/A8
12 13 14 15 16 17 18 19 20 21 22
P3.6/WR
P3.7/RD
P4.0/TxDC
P4.1/RxDC
P2.7/A15
P2.6/A14
P2.5/A13
P2.4/A12
P2.3/A11
P2.2/A10
P2.1/A9
3
4129E–8051–03/02

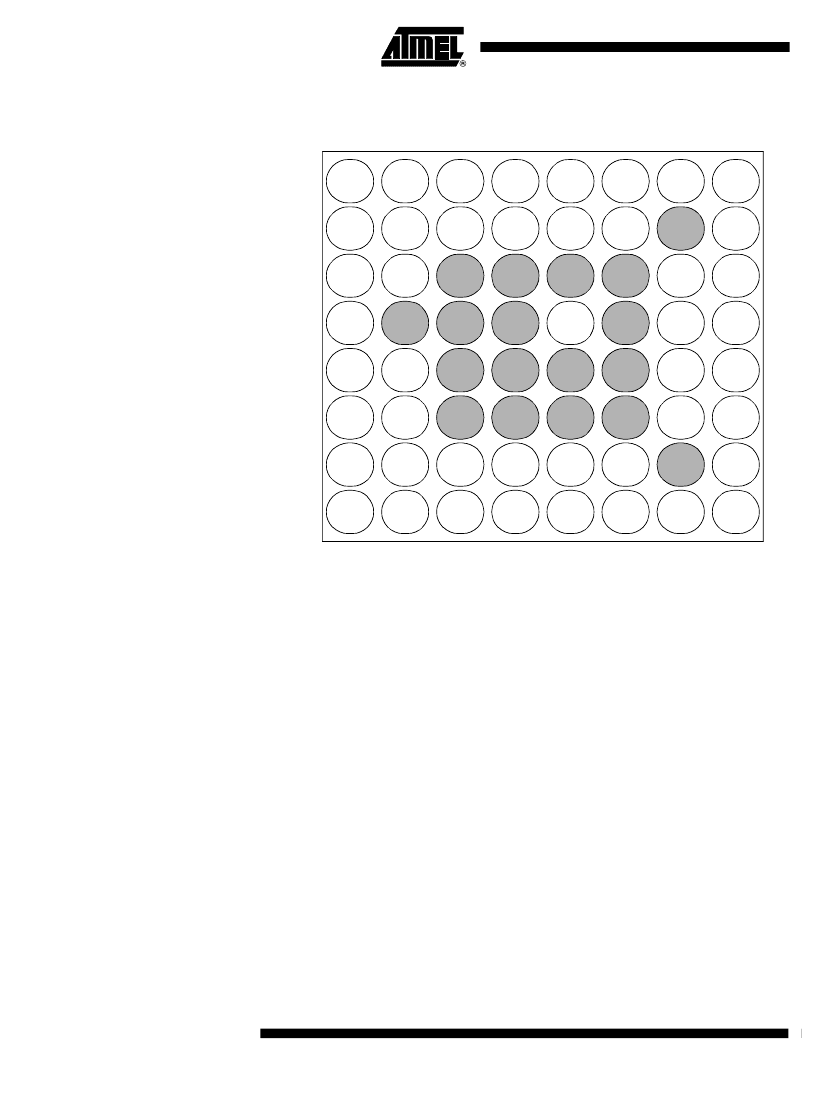

CA-BGA64 Top View
1
A
B
C
D
E
F
G
H
P1.4/AN4
2
P1.2/AN2
3
P1.0/AN0
4
VAGND
5
VSS
6
VSS
7
XTAL1
8
XTAL2
P1.5/AN5
P1.3/AN3
P1.1/AN1
VAREF
VDD
VDD
NC
ALE
P1.7/AN7
P1.6/AN6
NC
NC
NC
NC
PSEN
P0.7
EA
NC
NC
NC
RESET
NC
P0.6
P0.5
P3.0
P3.1
NC
NC
NC
NC
P0.2
P0.4
P3.2
P3.3
NC
NC
NC
NC
P0.1
P0.3
P3.4
P3.5
P4.0
P4.1
P2.4
P2.2
NC
P0.0
P3.6
P3.7
P2.7
P2.6
P2.5
P2.3
P2.1
P2.0
4
T89C51CC01
4129E–8051–03/02
T89C51CC01
Table 1.
Pin Description
Pin Name
VSS
VCC
VAREF
VAGND
P0.0:7
I/O
Type
GND
Description
Circuit ground
Supply Voltage
Reference Voltage for ADC
Reference Ground for ADC
Port 0:
Is an 8-bit open drain bi-directional I/O port. Port 0 pins that have 1’s written to them float, and in this state can be used as
high-impedance inputs. Port 0 is also the multiplexed low-order address and data bus during accesses to external Program
and Data Memory. In this application it uses strong internal pull-ups when emitting 1’s.
Port 0 also outputs the code Bytes during program validation. External pull-ups are required during program verification.
Port 1:
Is an 8-bit bi-directional I/O port with internal pull-ups. Port 1 pins can be used for digital input/output or as analog inputs for
the Analog Digital Converter (ADC). Port 1 pins that have 1’s written to them are pulled high by the internal pull-up transistors
and can be used as inputs in this state. As inputs, Port 1 pins that are being pulled low externally will be the source of current
(I
IL
, see section "Electrical Characteristic") because of the internal pull-ups. Port 1 pins are assigned to be used as analog
inputs via the ADCCF register (in this case the internal pull-ups are disconnected).
As a secondary digital function, port 1 contains the Timer 2 external trigger and clock input; the PCA external clock input and
the PCA module I/O.
P1.0/AN0/T2
Analog input channel 0,
External clock input for Timer/counter2.
P1.1/AN1/T2EX
Analog input channel 1,
Trigger input for Timer/counter2.
P1.2/AN2/ECI
Analog input channel 2,
PCA external clock input.
P1.3/AN3/CEX0
Analog input channel 3,
PCA module 0 Entry of input/PWM output.
P1.4/AN4/CEX1
Analog input channel 4,
PCA module 1 Entry of input/PWM output.
P1.5/AN5/CEX2
Analog input channel 5,
PCA module 2 Entry of input/PWM output.
P1.6/AN6/CEX3
Analog input channel 6,
PCA module 3 Entry of input/PWM output.
P1.7/AN7/CEX4
Analog input channel 7,
PCA module 4 Entry ot input/PWM output.
Port 1 receives the low-order address byte during EPROM programming and program verification.
It can drive CMOS inputs without external pull-ups.
P2.0:7
I/O
Port 2:
Is an 8-bit bi-directional I/O port with internal pull-ups. Port 2 pins that have 1’s written to them are pulled high by the internal
pull-ups and can be used as inputs in this state. As inputs, Port 2 pins that are being pulled low externally will be a source of
current (I
IL
, see section "Electrical Characteristic") because of the internal pull-ups. Port 2 emits the high-order address byte
during accesses to the external Program Memory and during accesses to external Data Memory that uses 16-bit addresses
(MOVX @DPTR). In this application, it uses strong internal pull-ups when emitting 1’s. During accesses to external Data
Memory that use 8 bit addresses (MOVX @Ri), Port 2 transmits the contents of the P2 special function register.
It also receives high-order addresses and control signals during program validation.
It can drive CMOS inputs without external pull-ups.
P1.0:7
I/O
5
4129E–8051–03/02
