53100C datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power management> transformer> 53100C

53100C: DescriptionCurrent Sense Transformer, 10A, 1:100, ROHS COMPLIANT; CategoryPower management transformer; File Size453KB，2 Pages; ManufacturerC&D; Environmental Compliance

Download Datasheet Parametric Compare View All

53100C Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	53100C	-	-	View	Buy Now

53100C Overview

Current Sense Transformer, 10A, 1:100, ROHS COMPLIANT

53100C Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	C&D
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	LENGTH & HEIGHT DIM INCLUDE TERMINAL ALSO
high	5.4 mm
JESD-609 code	e3
length	8.3 mm
Load Resistance	100 Ω
Manufacturer's serial number	5300
Installation features	SURFACE MOUNT
Maximum operating frequency	500 kHz
Minimum operating frequency	50 kHz
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
method of packing	TAPE & REEL
Peak primary current	10 A
physical size	L8.3XB7.2XH5.4 (mm)
primary type	WOUND PRIMARY
secondary inductance	2000 µH
surface mount	YES
Terminal surface	Tin (Sn)
Transformer type	CURRENT SENSE TRANSFORMER
Turns ratio (Np:Ns)	1:100
width	7.2 mm
Base Number Matches	1

Preview

Download Datasheet

View All

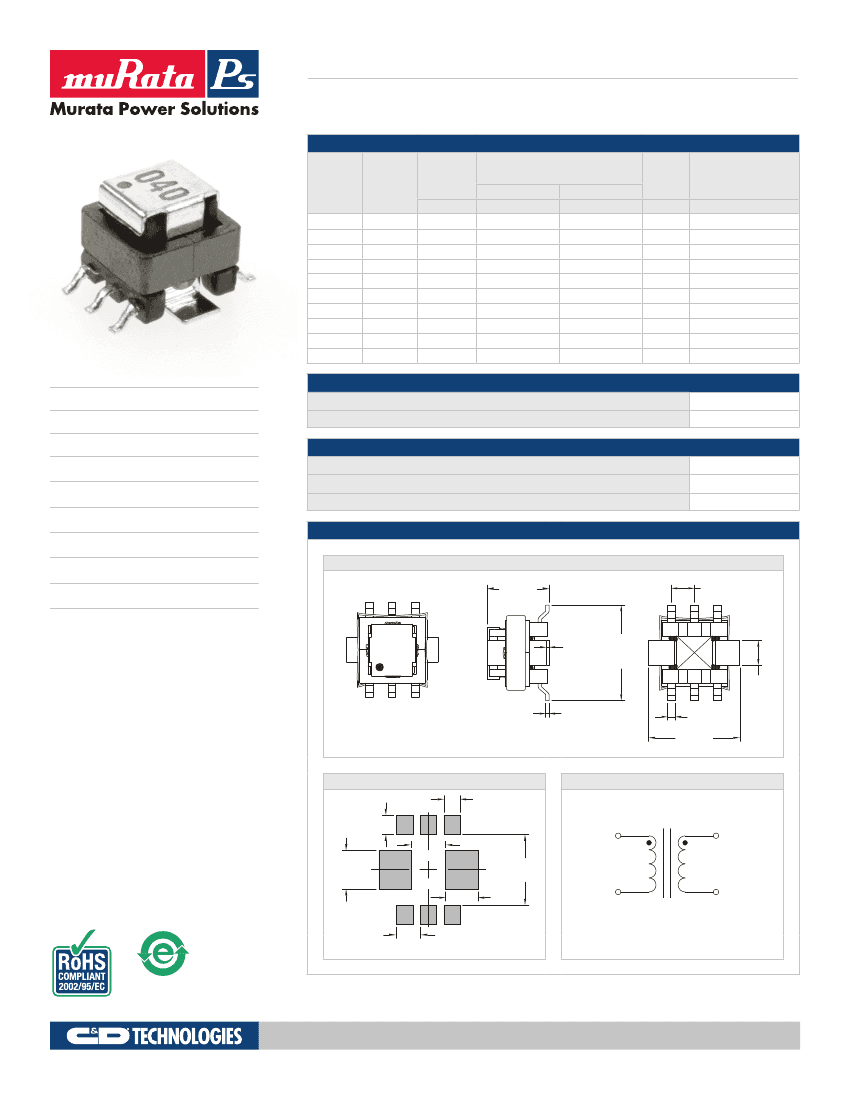

5300 Series

10A Current Sensing Transformers

SELECTION GUIDE

Order

Code

53020C

53030C

53040C

53050C

53060C

53070C

53100C

53125C

53150C

53200C

Min.

Secondary

Turns Ratio

Inductance

1:20

0.08

1:30

0.18

1:40

0.32

1:50

0.50

1:60

0.72

1:70

0.98

1:100

2.00

1:125

3.00

1:150

4.50

1:200

8.00

Max. DC Resistance

Primary (8-7)

mΩ

7.0

Secondary (1-3)

Ω

0.55

0.85

1.10

1.75

2.20

4.50

5.60

7.50

17.50

34.00

Isolation Terminating Resistance

Voltage

to produce 1V

OUT

/1A

rms

500

Ω

100

125

150

200

FEATURES

compliant

RoHS

Primary current rating 10A

to 200 turn variants

Primary to secondary isolation 500Vrms

50kHz-500kHz frequency range

Surface mount

Industry-standard footprint

V-0 package materials

UL94

J-STD-020C reflow

ABSOLUTE MAXIMUM RATINGS

Operating free air temperature range

Storage temperature range

-40°C to 125°C

-40°C to 155°C

SOLDERING INFORMATION

Peak reflow solder temperature

Pin finish

Moisture sensitivity level

250˚C

Tin

PACKAGE SPECIFICATIONS

Mechanical Dimensions

5.4

(0.213)

Max.

1.85±0.15

(0.073±0.006)

PRODUCT OVERVIEW

The 5300 series of current sense

transformers are designed to monitor AC

currents. The transformers can be used

for high frequency current sensing in

applications such as switched-mode power

supplies, motor control, and electronic

lighting ballasts.

150

8.3

0.2±0.1

(0.008±0.004) (0.327)

Max.

2.0±0.1 (0.079±0.004)

Weight = 0.34g Typ.

Unless otherwise stated, all dimensions in mm (inches) ±0.25 (0.010).

* True dimension before tin dipping.

0.2±0.1*

(0.008±0.004)

0.5±0.1

(0.020±0.004)

7.2 (0.283)

Max.

Recommended Footprint Details

1.27 (0.050)

1.52 (0.060)

2.69 (0.106)

3.05

(0.120)

5.59

(0.220)

2.54 (0.1)

Schematic

Primary

Secondary

1.85 (0.073)

Unless otherwise stated, all dimensions in mm (inches) ±0.25 (0.010).

For full details go to

www.murata-ps.com/rohs

Specifications typical at T

= 25°C

1 Flash tested for 1 second.

2 For further information, please visit www.murata-ps.com/rohs

www.murata-ps.com

Formerly C&D Technologies Power Electronics Division

Technical enquiries

email: mk@murata-ps.com, tel:

+44 (0)1908 615232

KMP_5300C_A01

Page 1 of 2

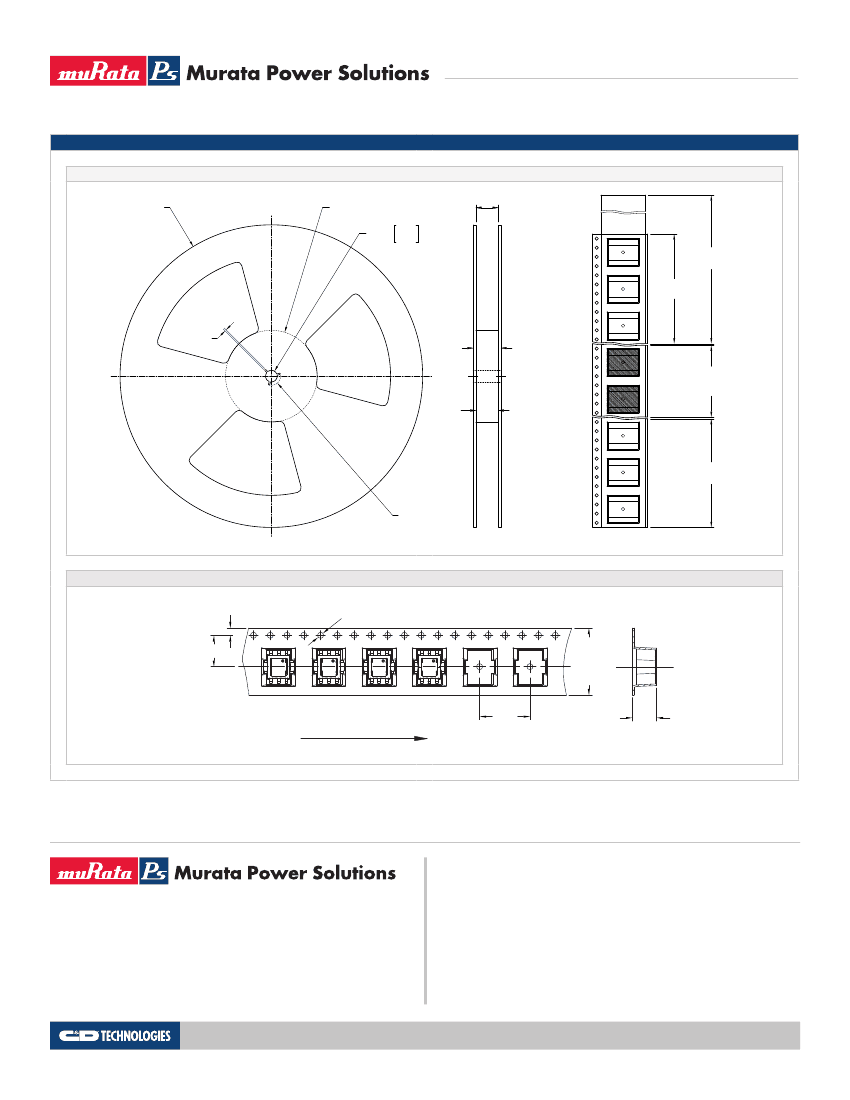

53100C Related Products

	53100C	53050C	53200C	53020C	53125C	53070C	53030C	53060C	53040C	53150C
Description	Current Sense Transformer, 10A, 1:100, ROHS COMPLIANT	Current Sense Transformer, 10A, 1:50, ROHS COMPLIANT	Current Sense Transformer, 10A, 1:200, ROHS COMPLIANT	Current Sense Transformer, 10A, 1:20, ROHS COMPLIANT	Current Sense Transformer, 10A, 1:125, ROHS COMPLIANT	Current Sense Transformer, 10A, 1:70, ROHS COMPLIANT	Current Sense Transformer, 10A, 1:30, ROHS COMPLIANT	Current Sense Transformer, 10A, 1:60, ROHS COMPLIANT	Current Sense Transformer, 10A, 1:40, ROHS COMPLIANT	Current Sense Transformer, 10A, 1:150, ROHS COMPLIANT
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Maker	C&D	C&D	C&D	C&D	C&D	C&D	C&D	C&D	C&D	C&D
package instruction	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	LENGTH & HEIGHT DIM INCLUDE TERMINAL ALSO	LENGTH & HEIGHT DIM INCLUDE TERMINAL ALSO	LENGTH & HEIGHT DIM INCLUDE TERMINAL ALSO	LENGTH & HEIGHT DIM INCLUDE TERMINAL ALSO	LENGTH & HEIGHT DIM INCLUDE TERMINAL ALSO	LENGTH & HEIGHT DIM INCLUDE TERMINAL ALSO	LENGTH & HEIGHT DIM INCLUDE TERMINAL ALSO	LENGTH & HEIGHT DIM INCLUDE TERMINAL ALSO	LENGTH & HEIGHT DIM INCLUDE TERMINAL ALSO	LENGTH & HEIGHT DIM INCLUDE TERMINAL ALSO
high	5.4 mm	5.4 mm	5.4 mm	5.4 mm	5.4 mm	5.4 mm	5.4 mm	5.4 mm	5.4 mm	5.4 mm
JESD-609 code	e3	e3	e3	e3	e3	e3	e3	e3	e3	e3
length	8.3 mm	8.3 mm	8.3 mm	8.3 mm	8.3 mm	8.3 mm	8.3 mm	8.3 mm	8.3 mm	8.3 mm
Load Resistance	100 Ω	50 Ω	200 Ω	20 Ω	125 Ω	70 Ω	30 Ω	60 Ω	40 Ω	150 Ω
Manufacturer's serial number	5300	5300	5300	5300	5300	5300	5300	5300	5300	5300
Installation features	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Maximum operating frequency	500 kHz	500 kHz	500 kHz	500 kHz	500 kHz	500 kHz	500 kHz	500 kHz	500 kHz	500 kHz
Minimum operating frequency	50 kHz	50 kHz	50 kHz	50 kHz	50 kHz	50 kHz	50 kHz	50 kHz	50 kHz	50 kHz
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
method of packing	TAPE & REEL	TAPE & REEL	TAPE & REEL	TAPE & REEL	TAPE & REEL	TAPE & REEL	TAPE & REEL	TAPE & REEL	TAPE & REEL	TAPE & REEL
Peak primary current	10 A	10 A	10 A	10 A	10 A	10 A	10 A	10 A	10 A	10 A
physical size	L8.3XB7.2XH5.4 (mm)	L8.3XB7.2XH5.4 (mm)	L8.3XB7.2XH5.4 (mm)	8.3mm X 7.2mm X 5.4mm	L8.3XB7.2XH5.4 (mm)	L8.3XB7.2XH5.4 (mm)	L8.3XB7.2XH5.4 (mm)	L8.3XB7.2XH5.4 (mm)	L8.3XB7.2XH5.4 (mm)	L8.3XB7.2XH5.4 (mm)
primary type	WOUND PRIMARY	WOUND PRIMARY	WOUND PRIMARY	WOUND PRIMARY	WOUND PRIMARY	WOUND PRIMARY	WOUND PRIMARY	WOUND PRIMARY	WOUND PRIMARY	WOUND PRIMARY
secondary inductance	2000 µH	500 µH	8000 µH	80 µH	3000 µH	980 µH	180 µH	720 µH	320 µH	4500 µH
surface mount	YES	YES	YES	YES	YES	YES	YES	YES	YES	YES
Terminal surface	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)
Transformer type	CURRENT SENSE TRANSFORMER	CURRENT SENSE TRANSFORMER	CURRENT SENSE TRANSFORMER	CURRENT SENSE TRANSFORMER	CURRENT SENSE TRANSFORMER	CURRENT SENSE TRANSFORMER	CURRENT SENSE TRANSFORMER	CURRENT SENSE TRANSFORMER	CURRENT SENSE TRANSFORMER	CURRENT SENSE TRANSFORMER
Turns ratio (Np:Ns)	1:100	1:50	1:200	1:20	1:125	1:70	1:30	1:60	1:40	1:150
width	7.2 mm	7.2 mm	7.2 mm	7.2 mm	7.2 mm	7.2 mm	7.2 mm	7.2 mm	7.2 mm	7.2 mm
Base Number Matches	1	1	1	1	1	1	1	1	1	1
