B84113-C-K30: Description250 V, 50/60 HZ, SINGLE PHASE EMI FILTER; CategoryAnalog mixed-signal IC filter; File Size117KB，7 Pages; ManufacturerEPCOS (TDK); Related ProductsFound4parts with similar functions to B84113-C-K30

Download Datasheet Parametric View All

B84113-C-K30 Overview

250 V, 50/60 HZ, SINGLE PHASE EMI FILTER

B84113-C-K30 Parametric

Parameter Name	Attribute value
Maker	EPCOS (TDK)
Reach Compliance Code	unknow
Certification	UL; CSA; VDE
filter type	SINGLE PHASE EMI FILTER
high	38 mm
high potential	2700 V
Maximum leakage current	0.5 mA
length	63.5 mm
Installation type	PANEL MOUNT
working frequency	50/60Hz Hz
physical size	L63.5XB50.8XH38.0 (mm)/L2.5XB2.0XH1.496 (inch)
Rated current	3 A
Rated voltage	250 V
width	50.8 mm

Preview

Download Datasheet

View All

2-Line Filters

SIFI-C Series

SIFI-C for very high insertion loss

Rated voltage 250 V~, 50/60 Hz

Rated current 3 A to 10 A

Construction

Two-line filter

Metal case

Polyurethane potting (UL 94 V-0)

B84113

Features

Compact design

Low leakage current

All relevant approvals

Cost-optimized construction

Also for assembly on top-hat rails

Applications

Switch-mode power supplies in

– industrial electronics

– telecommunications

– data systems

– medical engineering

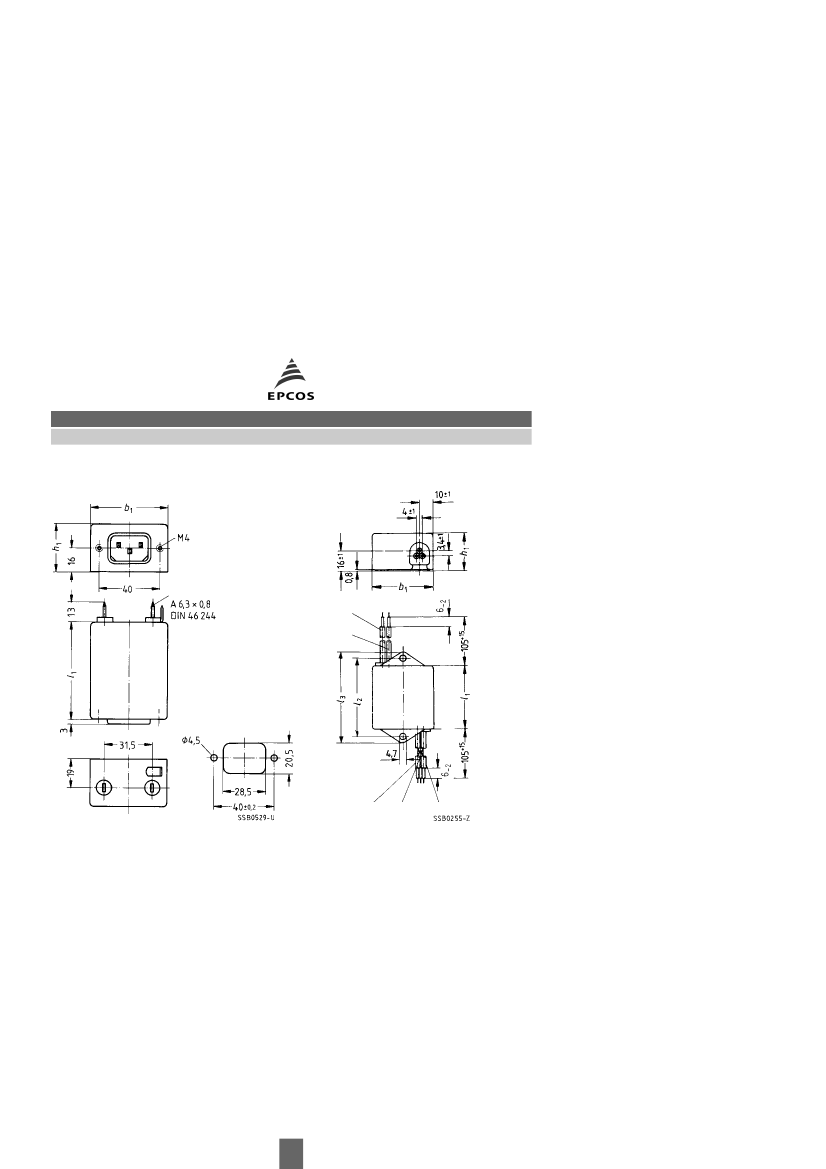

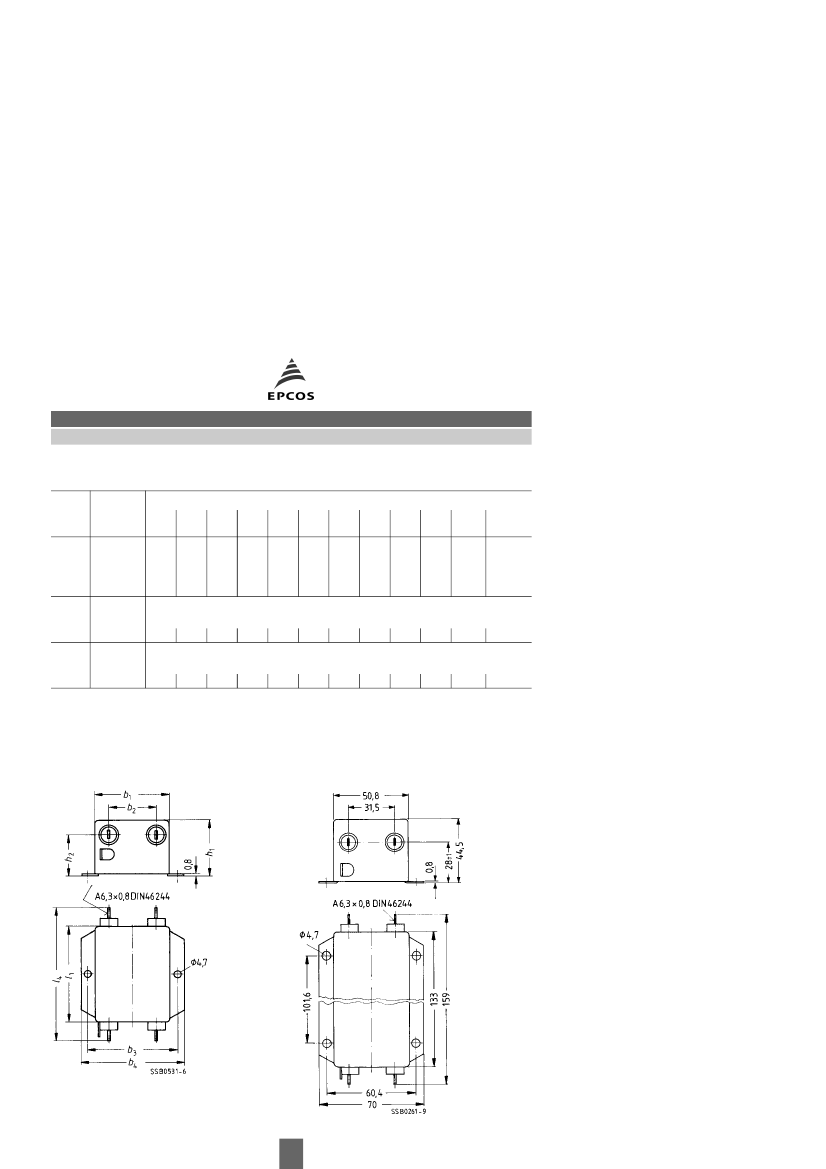

Case styles and terminal styles

Case style A

Case style B

Case style K

Case style L

Marking

Marking on component:

Manufacturer’s logo, ordering code,

rated voltage, rated current,

date code

Minimum marking on packaging:

Manufacturer’s logo, ordering code

Tab connectors on face ends, lateral mounting tabs.

Particularly suitable for mounting on a shielding wall.

Tab connectors on face ends, mounting tabs on face ends.

IEC connector as per IEC 60320 C 14 on line side,

tab connectors on load side, mounting holes with metric thread.

Litz wires on face ends

154

03/01
