62HS45-H0-040CT datasheet, PDF

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> 62HS45-H0-040CT

62HS45-H0-040CT: DescriptionSINGLE, 2 CHANNELS, ROTARY OPTICAL POSITION ENCODER, ROHS COMPLIANT PACKAGE; CategoryLED optoelectronic/LED photoelectric; File Size318KB，2 Pages; ManufacturerGrayhill; Websitehttp://www.grayhill.com; Environmental Compliance

Download Datasheet Parametric View All

62HS45-H0-040CT Overview

SINGLE, 2 CHANNELS, ROTARY OPTICAL POSITION ENCODER, ROHS COMPLIANT PACKAGE

62HS45-H0-040CT Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Grayhill
package instruction	ROHS COMPLIANT PACKAGE
Reach Compliance Code	compliant
Configuration	SINGLE, 2 CHANNELS
JESD-609 code	e3
Number of functions	1
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	ROTARY POSITION ENCODER
Terminal surface	TIN
Base Number Matches	1

Preview

Download Datasheet

View All

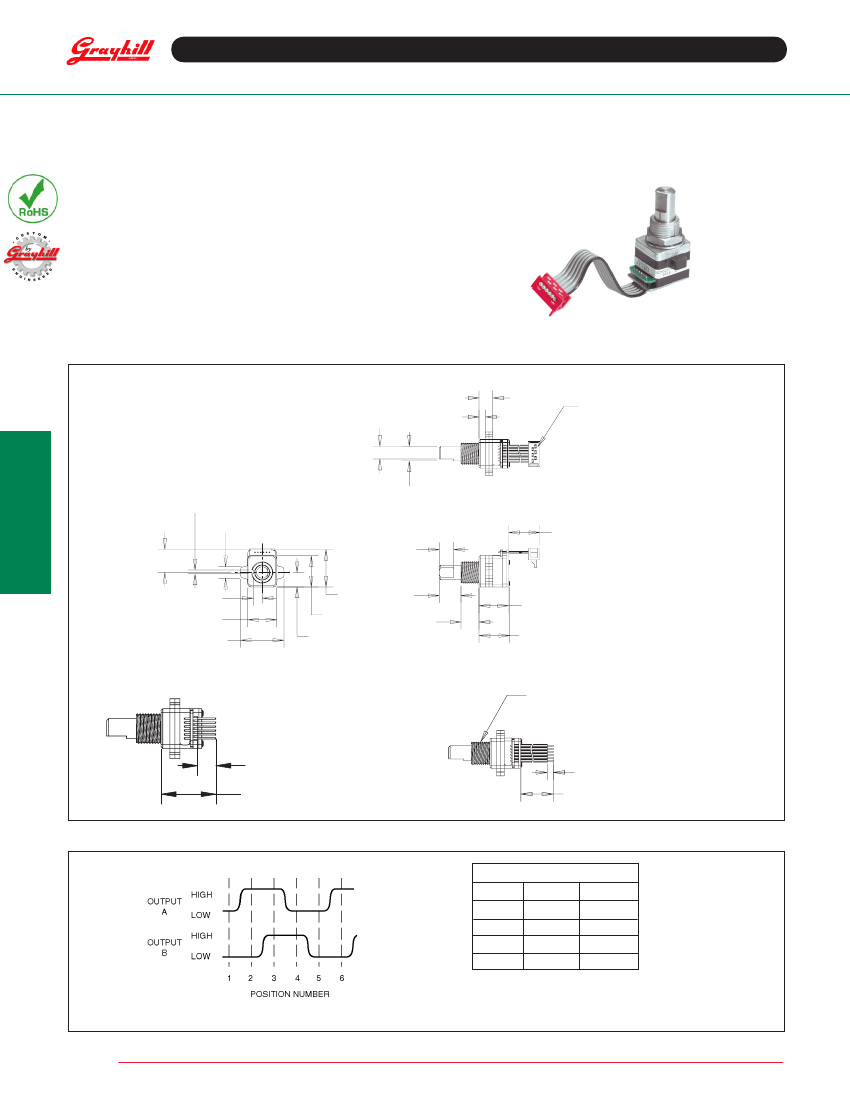

Optical Encoders

SERIES 62HS

High Torque

FEATURES

• High Rotational Torque Provides

Positive Tactile Feedback

• Optically Coupled for More than a

Million Cycles

• Optional Integral Pushbutton

• Compatible with CMOS, TTL and

HCMOS Logic

• Available in 8,12 and 16 Detent

Positions

• Choice of Cable Length and Ter-

minations

APPLICATIONS

• Avionics

DIMENSIONS

In inches (and millimeters)

Cable Version

.219 ±.002

[ 5,56 ±0,05 ]

.110

[ 2,79 ]

.236

[ 5,99 ]

Unless otherwise specified, standard toler-

ance is ±.010 (0,25).

CONNECTOR IS AMP

P/N 215083-6

OR EQUIVALENT

Optical and Mechanical

Encoders

Encoder

.066 ±.002

[ 1,68 ±0,05 ]

.400

.200

[ 10,15 ]

[ 5,08 ]

.250 ±.002

[ 6,34 ±0,05 ]

4.000 ±.200

4.000±5,08

.250

[ 6,35 ]

.650

[ 16,5 ]

.540

[ 13,72 ]

.250

[ 6,35 ]

.152 ±.002

[ 3,86 ±0,05 ]

.500

[ 12,7 ]

.750

[ 19,05 ]

.375

[ 9,53 ]

.312

[ 7,92 ]

.511

[ 12,98 ]

.530 ±.015

[ 13,46 ±0,38 ]

Pin Version

Stripped Version

3/8-32 UNEF-2A THREAD

THREADS TO BE WITHIN

.030 (0, 76) OF SHOULDER

.230

[ 5,84 ]

.690 .015

[ 17,53 0,38 ]

.100

[ 2,54]

4.000 ±.200

4.000±5,08

WAVEFORM AND TRUTH TABLE

Clockwise Rotation

Position Output A Output B

•

Indicates logic high; blank indicates

logic low. Code repeats every 4

positions.

Grayhill, Inc. • 561 Hillgrove Avenue • LaGrange, Illinois 60525-5997 • USA • Phone: 708-354-1040 • Fax: 708-354-2820 • www.grayhill.com
