3D3225M-75 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> 3D3225M-75

3D3225M-75: DescriptionMONOLITHIC 5-TAP FIXED DELAY LINE; Categorylogic logic; File Size126KB，4 Pages; ManufacturerData Delay Devices; Environmental Compliance

Download Datasheet Parametric View All

3D3225M-75 Overview

MONOLITHIC 5-TAP FIXED DELAY LINE

3D3225M-75 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Parts packaging code	DIP
package instruction	DIP-8
Contacts	8
Reach Compliance Code	compli
series	3D
Input frequency maximum value (fmax)	166.7 MHz
JESD-30 code	R-PDIP-T8
length	9.65 mm
Logic integrated circuit type	SILICON DELAY LINE
Number of functions	1
Number of taps/steps	5
Number of terminals	8
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Output polarity	TRUE
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
programmable delay line	YES
Certification status	Not Qualified
Maximum seat height	4.58 mm
Maximum supply voltage (Vsup)	3.6 V
Minimum supply voltage (Vsup)	3 V
Nominal supply voltage (Vsup)	3.3 V
surface mount	NO
technology	CMOS
Temperature level	INDUSTRIAL
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Total delay nominal (td)	3 ns
width	7.62 mm
Base Number Matches	1

Preview

Download Datasheet

View All

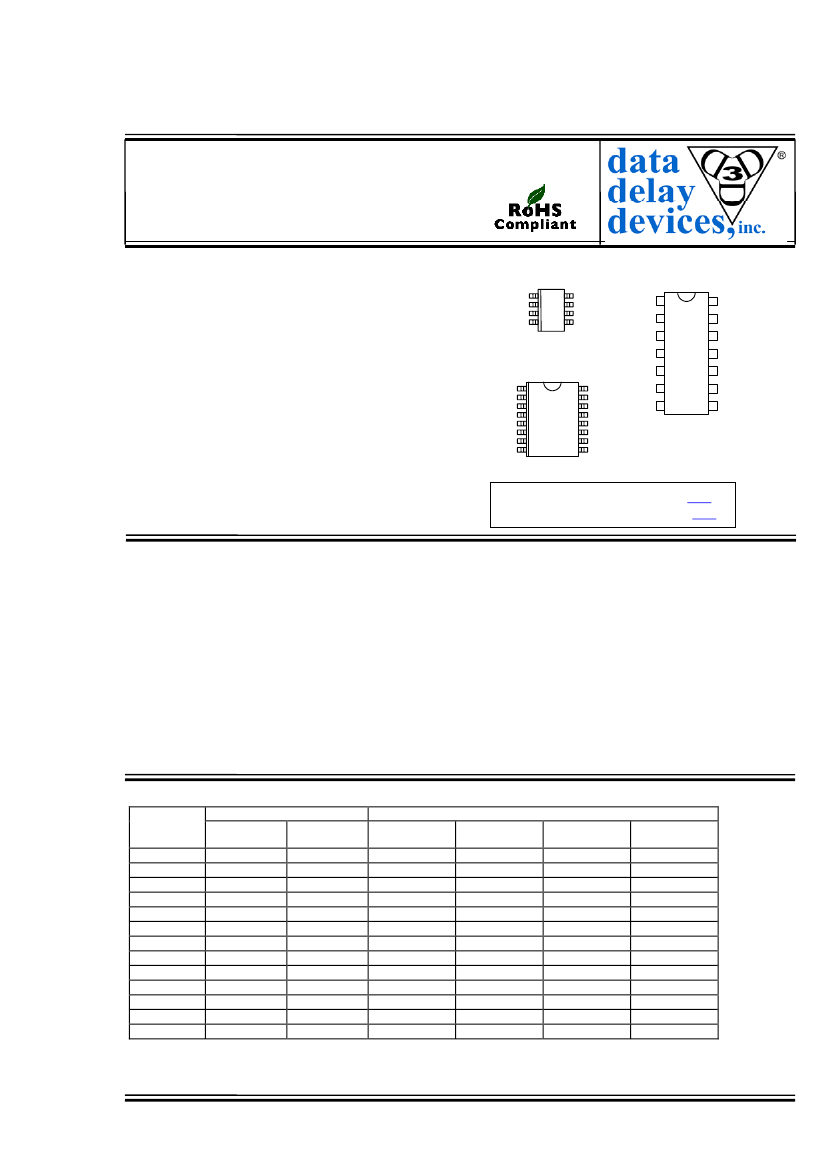

3D3225

MONOLITHIC 5-TAP

FIXED DELAY LINE

(SERIES 3D3225)

FEATURES

•

All-silicon, low-power CMOS technology

TTL/CMOS compatible inputs and outputs

Vapor phase, IR and wave solderable

Auto-insertable (DIP pkg.)

Low ground bounce noise

Leading- and trailing-edge accuracy

Delay range:

0.75ns through 3500ns

Delay tolerance:

2% or 0.5ns

Temperature stability:

±2%

typical (-40C to 85C)

Vdd stability:

±1%

typical (3.0V-3.6V)

Minimum input pulse width:

30% of total delay

8-pin Gull-Wing available as drop-in

replacement for hybrid delay lines

GND

PACKAGES

VDD

GND

VDD

3D3225Z-xx SOIC-8

3D3225M-xx DIP-8

3D3225H-xx Gull-Wing

GND

VDD

3D3225-xx

3D3225G-xx

3D3225K-xx

3D3225S-xx SOL-16

DIP-14

Gull-Wing

Unused pins

removed

For mechanical dimensions, click

here

For package marking details, click

here

FUNCTIONAL DESCRIPTION

The 3D3225 5-Tap Delay Line product family consists of fixed-delay

CMOS integrated circuits. Each package contains a single delay line,

tapped and buffered at 5 points spaced uniformly in time. Tap-to-tap

(incremental) delay values can range from 0.75ns through 700ns. The

input is reproduced at the outputs without inversion, shifted in time as

per the user-specified dash number. The 3D3225 is TTL- and CMOS-

compatible, capable of driving ten 74LS-type loads, and features both

rising- and falling-edge accuracy.

PIN DESCRIPTIONS

VDD

GND

Delay Line Input

Tap 1 Output (20%)

Tap 2 Output (40%)

Tap 3 Output (60%)

Tap 4 Output (80%)

Tap 5 Output (100%)

+3.3 Volts

Ground

The all-CMOS 3D3225 integrated circuit has been designed as a reliable, economic alternative to hybrid

TTL fixed delay lines. It is offered in a standard 8-pin auto-insertable DIP and space saving surface mount

8-pin SOIC and 16-pin SOL packages.

TABLE 1: PART NUMBER SPECIFICATIONS

DASH

NUMBER

-.75

-1

-1.5

-2

-2.5

-4

-5

-10

-20

-50

-100

-200

-700

TOLERANCES

TOTAL

TAP-TAP

DELAY (ns)

3.0

0.5*

0.75

0.4

4.0

0.5*

1.0

0.5

6.0

0.5*

1.5

0.7

8.0

0.5*

2.0

0.8

10.0

0.5*

2.5

1.0

16.0

0.7*

4.0

1.3

25.0

1.0

5.0

1.5

50.0

1.0

10.0

2.0

100.0

2.0

20.0

4.0

250.0

5.0

50.0

500.0

100

1000

200

3500

700

140

Rec’d Max

Frequency

41.7 MHz

37.0 MHz

31.2 MHz

25.0 MHz

22.2 MHz

8.33 MHz

13.3 MHz

6.67 MHz

3.33 MHz

1.33 MHz

0.67 MHz

0.33 MHz

0.10 MHz

INPUT RESTRICTIONS

Absolute Max

Rec’d Min

Frequency

Pulse Width

166.7 MHz

12.0 ns

166.7 MHz

13.5 ns

166.7 MHz

16.0 ns

166.7 MHz

20.0 ns

125.0 MHz

22.5 ns

133.3 MHz

30.0 ns

66.7 MHz

37.5 ns

33.3 MHz

75.0 ns

16.7 MHz

150 ns

6.67 MHz

375 ns

3.33 MHz

750 ns

1.67 MHz

1500 ns

0.48 MHz

5250 ns

Absolute Min

Pulse Width

3.00 ns

4.00 ns

6.00 ns

7.50 ns

15.0 ns

30.0 ns

75.0 ns

150 ns

300 ns

1050 ns

2005

Data Delay Devices

* Total delay referenced to Tap1 output; Input-to-Tap1 = 7.5ns

1.0ns

NOTE: Any dash number between .75 and 700 not shown is also available as standard.

Doc #05003

5/8/2006

DATA DELAY DEVICES, INC.

3 Mt. Prospect Ave. Clifton, NJ 07013
