BAS7005 datasheet, PDF - EEWORLD Datasheet

BAS7005: DescriptionSILICON, MIXER DIODE; Categorysemiconductor Discrete semiconductor; File Size443KB，2 Pages; ManufacturerComchip Technology; Websitehttp://www.comchiptech.com/

Download Datasheet Compare View All

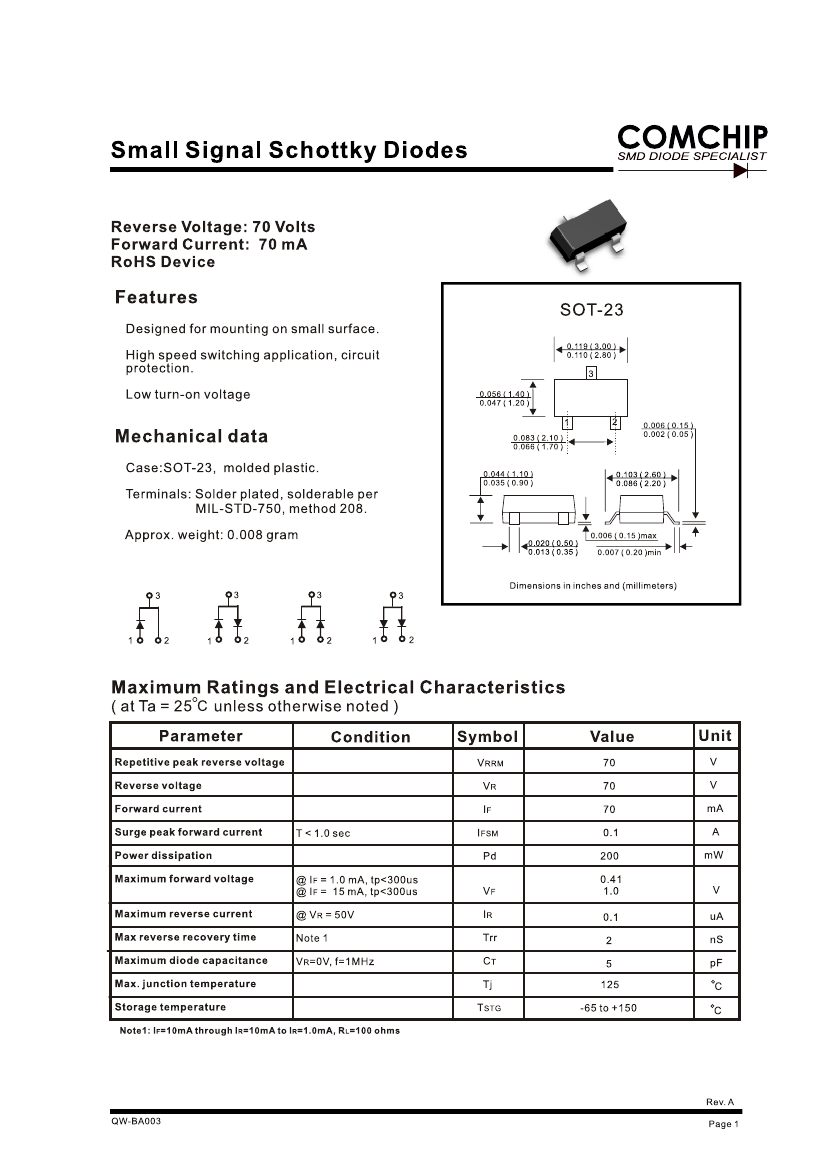

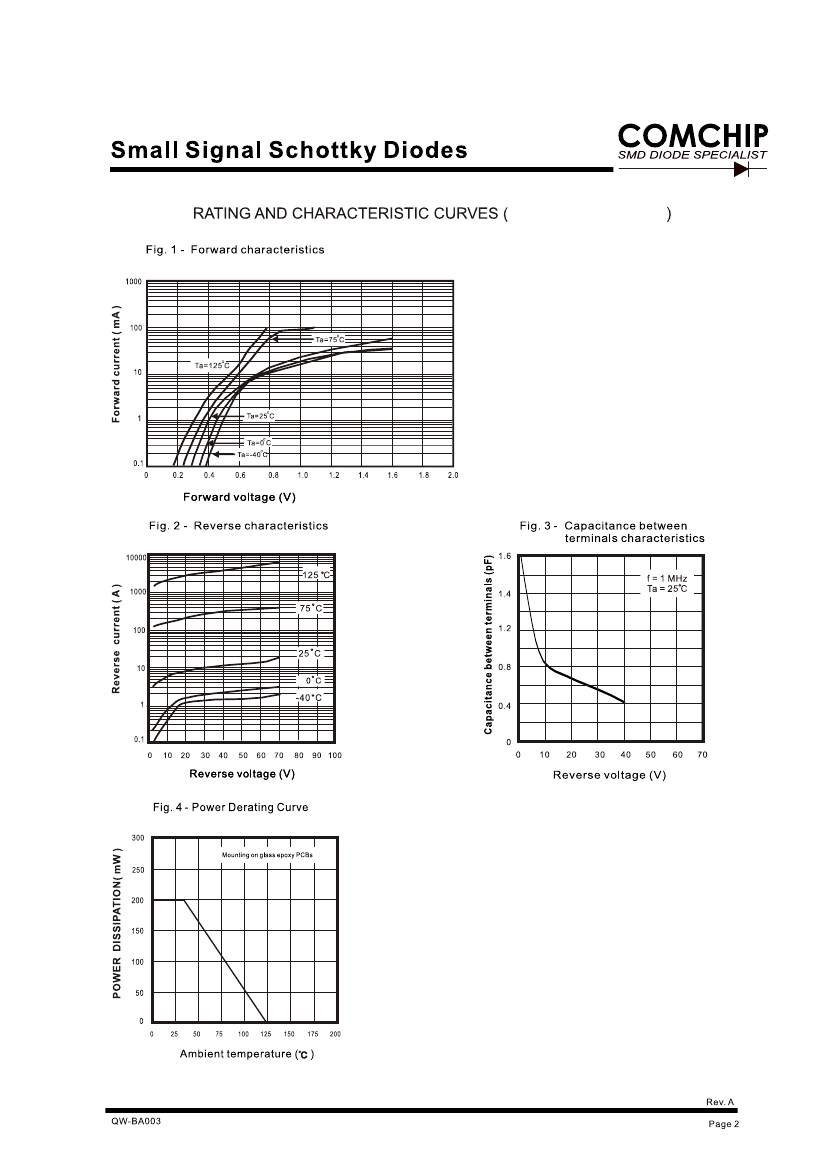

BAS7005 Overview

SILICON, MIXER DIODE

BAS70/-04/-05/-06-G

BAS70-G

BAS70-04-G

BAS70-05-G

BAS70-06-G

	BAS7005	BAS70	BAS7006	BAS7004	BAS7006-g	BAS7005-g	BAS7004-g
Description	SILICON, MIXER DIODE	0.2 A, 70 V, SILICON, SIGNAL DIODE	SIGNAL DIODE	SILICON, MIXER DIODE	0.2 A, 70 V, SILICON, SIGNAL DIODE	0.2 A, 70 V, SILICON, SIGNAL DIODE	0.2 A, 70 V, SILICON, SIGNAL DIODE
Number of terminals	-	3	-	-	3	3	3
Number of components	-	1	-	-	1	1	1
Processing package description	-	Plastic, SOT-23, 3 PIN	-	-	Plastic, SOT-23, 3 PIN	Plastic, SOT-23, 3 PIN	Plastic, SOT-23, 3 PIN
state	-	DISCONTINUED	-	-	DISCONTINUED	DISCONTINUED	DISCONTINUED
packaging shape	-	Rectangle	-	-	Rectangle	Rectangle	Rectangle
Package Size	-	SMALL OUTLINE	-	-	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
surface mount	-	Yes	-	-	Yes	Yes	Yes
Terminal form	-	GULL WING	-	-	GULL WING	GULL WING	GULL WING
terminal coating	-	tin lead	-	-	tin lead	tin lead	tin lead
Terminal location	-	pair	-	-	pair	pair	pair
Packaging Materials	-	Plastic/Epoxy	-	-	Plastic/Epoxy	Plastic/Epoxy	Plastic/Epoxy
Craftsmanship	-	SCHOTTKY	-	-	SCHOTTKY	SCHOTTKY	SCHOTTKY
structure	-	single	-	-	single	single	single
Diode component materials	-	silicon	-	-	silicon	silicon	silicon
Maximum power consumption limit	-	0.2000 W	-	-	0.2000 W	0.2000 W	0.2000 W
Diode type	-	Signal diode	-	-	Signal diode	Signal diode	Signal diode
Maximum reverse recovery time	-	0.0050 us	-	-	0.0050 us	0.0050 us	0.0050 us
Maximum repetitive peak reverse voltage	-	70 V	-	-	70 V	70 V	70 V
Maximum average forward current	-	0.2000 A	-	-	0.2000 A	0.2000 A	0.2000 A
