2.0x1.25mm SMD CHIP LED LAMP
APTC2012MGC
MEGA GREEN
Features
!
2.0mmx1.25mm SMT LED,0.75mm THICKNESS.
!
LOW
Description
The Mega Green source color devices are made
with DH InGaAlP on GaAs substrate Light
Emitting Diode.
POWER CONSUMPTION.
VIEWING ANGLE.
COLORS AND LENS TYPES AVAILABLE.
: 2000PCS / REEL.
!
WIDE
!
IDEAL FOR BACKLIGHT AND INDICATOR.
!
VARIOUS
!
PACKAGE
Package Dimensions
Notes:
1. All dimensions are in millimeters (inches).
2. Tolerance is
±0.1(0.004")
unless otherwise noted.
3. Specifications are subject to change without notice.
SPEC NO: DSAD0959
APPROVED : J. Lu
REV NO: V.1
CHECKED :Allen Liu
DATE:MAR/22/2003
DRAWN:S.J.HOU
PAGE: 1 OF 4
Selection Guide
Par t No .
Dic e
L en s Ty p e
Iv (m c d )
@ 20 m A
Min .
APTC2012MGC
MEGA GREEN (InGaAIP)
WATER CLEAR
18
Ty p .
70
V i ew i n g
An g l e
2θ1/2
12 0 °
Note:
1.
θ1/2
is the angle from optical centerline where the luminous intensity is 1/2 the optical centerline value.
Electrical / Optical Characteristics at T
)
=25°C
°
Sy m b o l
λ
peak
λ
D
∆λ
1/2
C
V
F
I
R
Par am et er
Peak Wavelength
Dominate Wavelength
Spectral Line Half-width
Capacitance
Forward Voltage
Reverse Current
D ev i c e
Mega Green
Mega Green
Mega Green
Mega Green
Mega Green
Mega Green
Ty p .
574
568
26
20
2.1
2.5
10
Max .
Un it s
nm
nm
nm
pF
V
uA
Tes t Co n d it io n s
I
F
=20mA
I
F
=20mA
I
F
=20mA
V
F
=0V;f=1MHz
I
F
=20mA
V
R
= 5V
Absolute Maximum Ratings at T
)
=25°C
°
Par am et er
Power dissipation
DC Forward Current
Peak Forward Current [1]
Reverse Voltage
Operating/Storage Temperature
Note:
1. 1/10 Duty Cycle, 0.1ms Pulse Width.
Meg a Gr een
105
30
150
5
-40
°
C To +85
°C
Un it s
mW
mA
mA
V
SPEC NO: DSAD0959
APPROVED : J. Lu
REV NO: V.1
CHECKED :Allen Liu
DATE:MAR/22/2003
DRAWN:S.J.HOU
PAGE: 2 OF 4

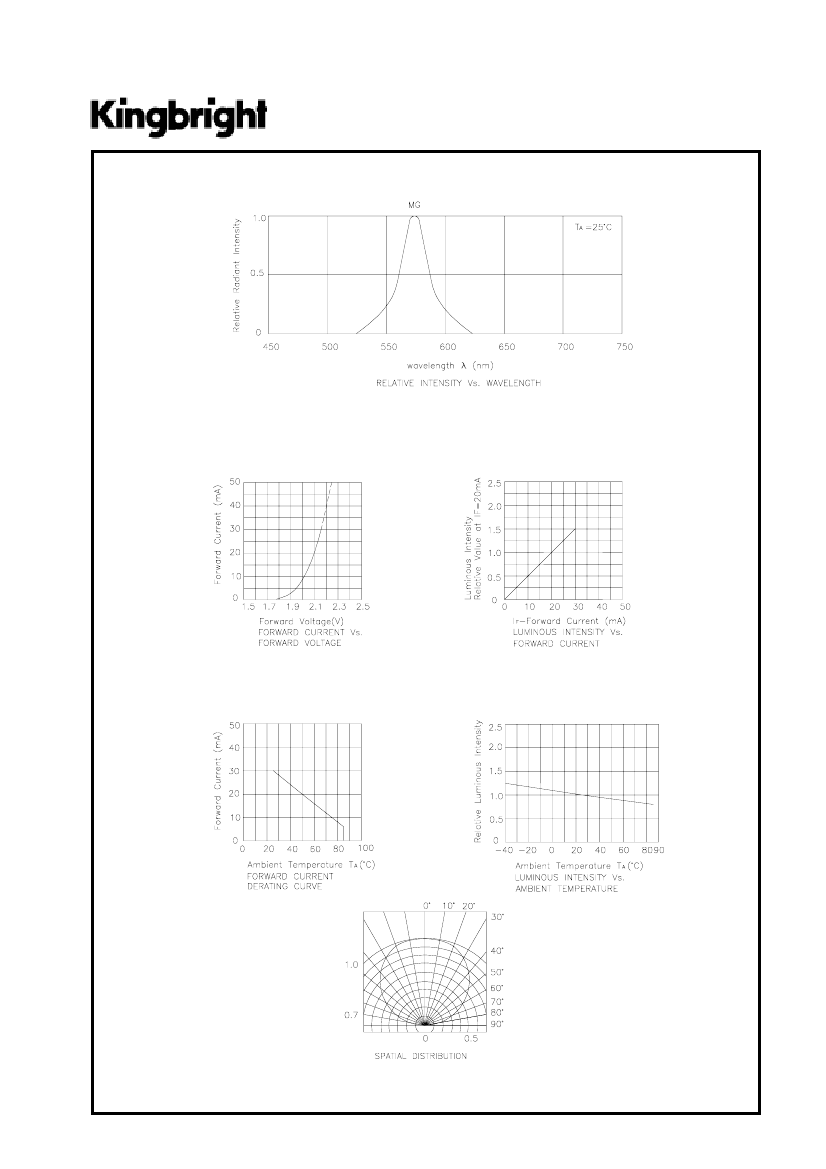

Mega Green
APTC2012MGC
SPEC NO: DSAD0959
APPROVED : J. Lu
REV NO: V.1
CHECKED :Allen Liu
DATE:MAR/22/2003
DRAWN:S.J.HOU
PAGE: 3 OF 4
APTC2012MGC

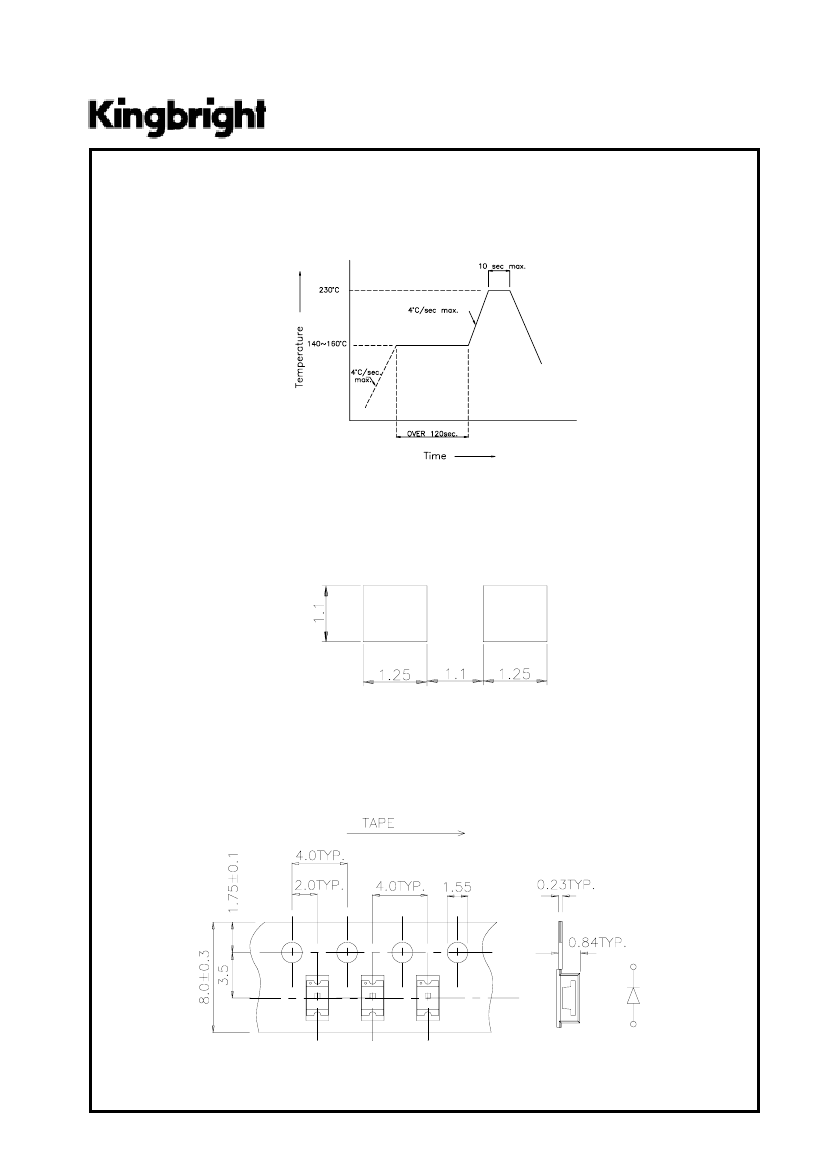

SMT Reflow Soldering Instructions
Number of reflow process shall be less than 2 times and cooling
process to normal temperature is required between first and
second soldering process.
Recommended Soldering Pattern
(Units : mm)
Tape Specifications
(Units : mm)
SPEC NO: DSAD0959
APPROVED : J. Lu
REV NO: V.1
CHECKED :Allen Liu
DATE:MAR/22/2003
DRAWN:S.J.HOU
PAGE: 4 OF 4
