SBR05U20LP
0.5A SBR
®
Surface Mount Super Barrier Rectifier
Features
NEW PRODUCT
•
•
•
•
•
•
•
Ultra Low Forward Voltage Drop
Superior Reverse Avalanche Capability
Patented Super Barrier Rectifier Technology
Soft, Fast Switching Capability
150ºC Operating Junction Temperature
Lead Free Finish, RoHS Compliant (Note 1)
“Green” Molding Compound (No Br, Sb)
Mechanical Data
•
•
•
•
•
•
•
•
Case: DFN1006-2
Case Material: Molded Plastic, “Green” Molding
compound. UL Flammability Classification Rating
94V-0
Moisture Sensitivity: Level 1 per J-STD-020C
Terminal Connections: Cathode Dot
Terminals: Finish - NiPdAu annealed over
Copper leadframe. Solderable per MIL-STD-202,
Method 208
Marking Information: See Page 3
Ordering Information: See Page 3
Weight: 0.001 grams
Maximum Ratings
@ T
A
= 25ºC unless otherwise specified
Single phase, half wave, 60Hz, resistive or inductive load.
For capacitive load, derate current by 20%.
Characteristic
Peak Repetitive Reverse Voltage
Working Peak Reverse Voltage
DC Blocking Voltage
RMS Reverse Voltage

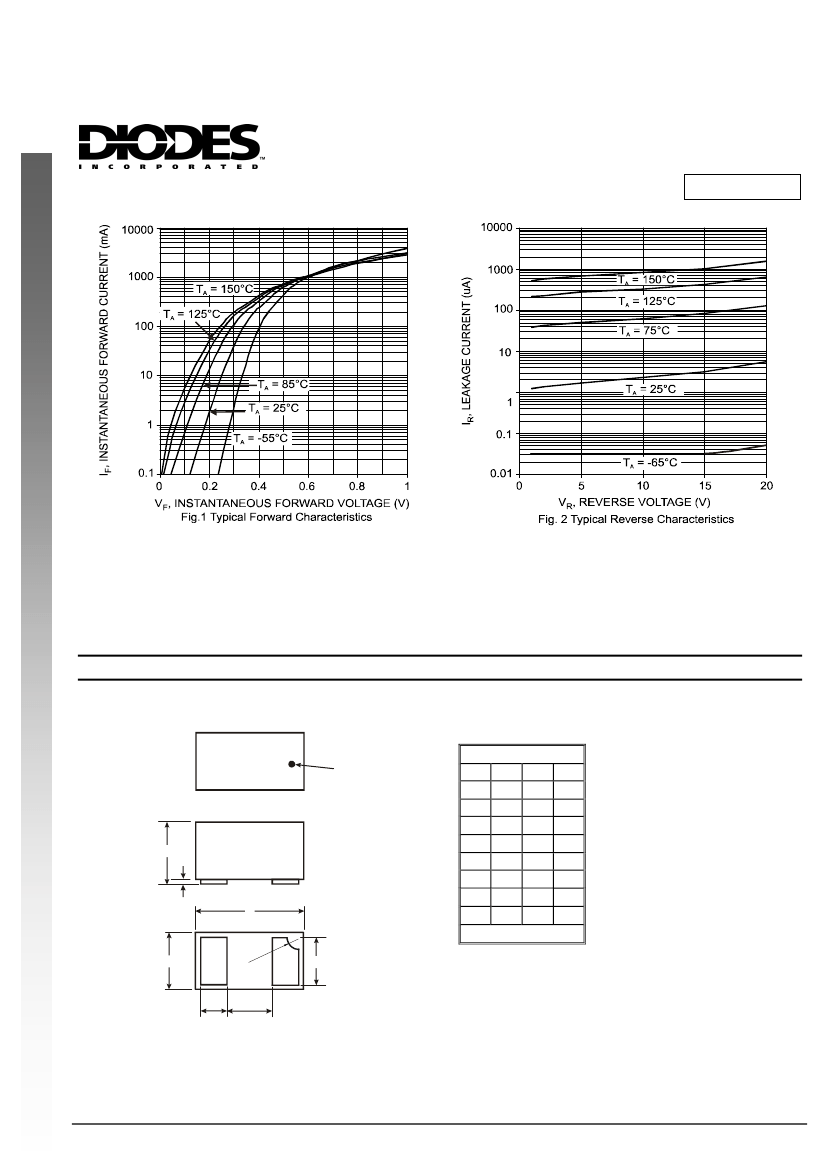

Average Rectified Output Current (See Figure 1)
Non-Repetitive Peak Forward Surge Current 8.3ms
Single Half Sine-Wave Superimposed on Rated Load
Operating and Storage Temperature Range
Symbol
V
RRM
V
RWM
V
RM
V
R(RMS)
I
O
I
FSM
T
J
, T
STG
Value
20
14
500
5
-65 to +150
Unit
V
V
mA
A
ºC
Electrical Characteristics
@ T
A
= 25ºC unless otherwise specified
Characteristic
Reverse Breakdown Voltage (Note 2)
Symbol
V
(BR)R
Min
20
Typ
-
0.34
0.25
0.39
0.31
0.47
0.43
6
1.5
Max
-
0.38
0.28
0.43
0.34
0.50
0.46
50
5
Unit
V
Test Condition
I
R
= 50 µA
I
F
= 0.1A, T
J
= 25ºC
I
F
= 0.1A, T
J
= 150ºC
I
F
= 0.2A,T
J
= 25ºC
I
F
= 0.2A, T
J
= 150ºC
I
F
= 0.5A,T
J
= 25ºC
I
F
= 0.5A,T
J
= 150ºC
V
R
= 20V, T
J
= 25 ºC
V
R
= 20V, T
J
= 150 ºC
Forward Voltage Drop
V
F
-
V
Leakage Current (Note 2)
Notes:
I
R
-
µA
mA
1. RoHS revision 13.2.2003. High temperature solder exemption applied, see
EU Directive Annex Note 7.
2. Short duration pulse test used to minimize self-heating effect.
__________
SBR is a registered trademark of Diodes Incorporated.
SBR05U20LP Rev. 2 - 2
1 of 3
www.diodes.com
April 2007
© Diodes Incorporated
SBR05U20LP

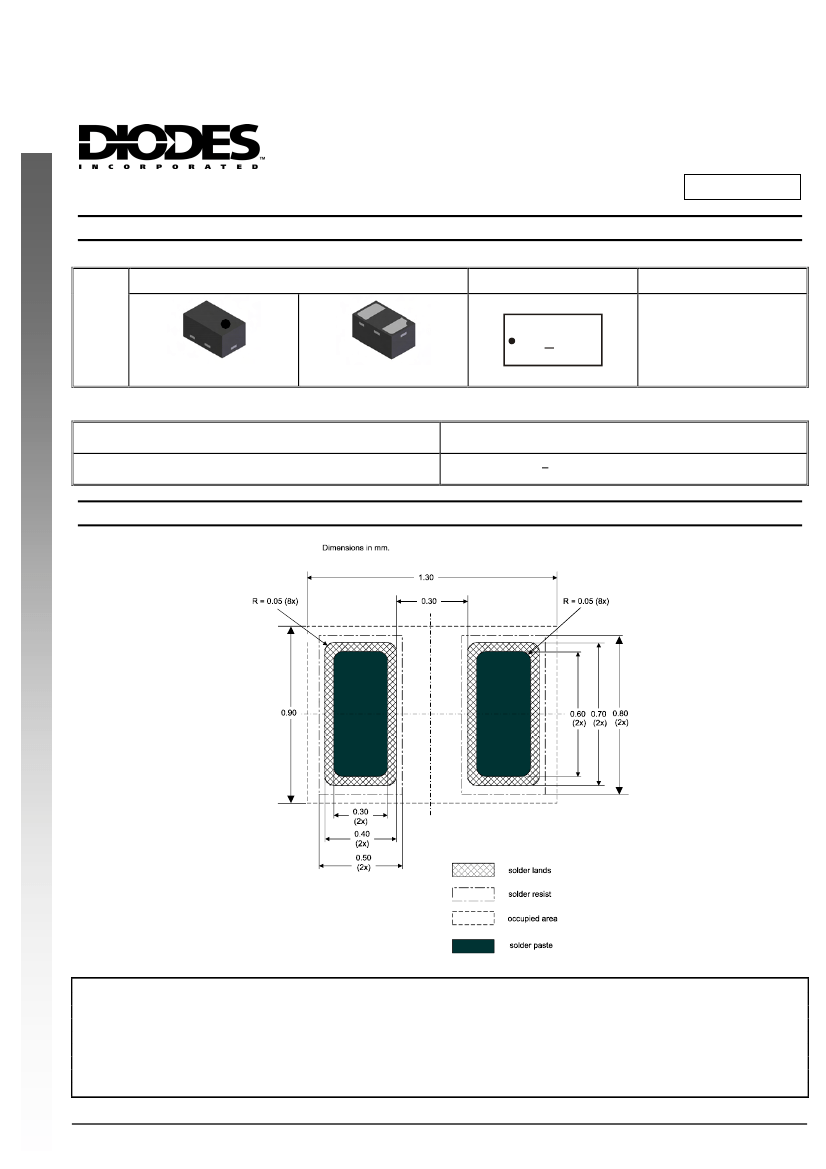

Marking, Polarity, Weight & Ordering Information
Case Style
NEW PRODUCT
SBR05U20LP
(DFN1006-2)
Marking
Weight
52
Top View
Back View
0.001g (approx.)
Ordering Information
SBR05U20LP-7
3000/Tape & Reel
Date Code
52 = Product Type Marking Code
Dot Denotes Cathode Side
Suggested Pad Layout
