35SCGJQ060

Description
35 A, 60 V, SILICON, RECTIFIER DIODE
CategoryDiscrete semiconductor    diode
File Size90KB,4 Pages
ManufacturerInternational Rectifier ( Infineon )
Websitehttp://www.irf.com/
Download Datasheet Parametric Compare View All

35SCGJQ060 Overview

35 A, 60 V, SILICON, RECTIFIER DIODE

35SCGJQ060 Parametric

Parameter NameAttribute value
Is it lead-free?Contains lead
MakerInternational Rectifier ( Infineon )
Parts packaging codeTO-247
package instructionR-MSSO-G3
Contacts3
Reach Compliance Codeunknown
ECCN codeEAR99
Other featuresHIGH RELIABILITY
applicationEFFICIENCY
ConfigurationCOMMON CATHODE, 2 ELEMENTS
Diode component materialsSILICON
Diode typeRECTIFIER DIODE
JESD-30 codeR-MSSO-G3
JESD-609 codee0
Maximum non-repetitive peak forward current400 A
Number of components2
Phase1
Number of terminals3
Maximum operating temperature150 °C
Minimum operating temperature-55 °C
Maximum output current35 A
Package body materialMETAL
Package shapeRECTANGULAR
Package formSMALL OUTLINE
Peak Reflow Temperature (Celsius)NOT SPECIFIED
Certification statusNot Qualified
Maximum repetitive peak reverse voltage60 V
surface mountYES
technologySCHOTTKY
Terminal surfaceTIN LEAD
Terminal formGULL WING
Terminal locationSINGLE
Maximum time at peak reflow temperatureNOT SPECIFIED
Base Number Matches1
PD-97257A
SCHOTTKY RECTIFIER
HIGH EFFICIENCY SERIES
35SCGJQ060
35 Amp, 60V
Major Ratings and Characteristics
Characteristics
I
F(AV)
V
RRM
(Per Leg)
I
FSM
@ tp = 8.3ms half-sine
(Per Leg)
V
F
@ 17.5Apk, T
J
=125°C
(Per Leg)
T
J
, T
stg
Operating & storage
Limits
35
60
400
0.61
-55 to 150
Units
A
V
A
V
°C
Description/Features
The 35SCGJQ060 center tap Schottky rectifier has been
expressly designed to meet the rigorous requirements of
HiRel environments. It is packaged in the hermetic isolated
D3 PAK package. The device's forward voltage drop and
reverse leakage current are optimized for the lowest
power loss and the highest circuit efficiency for typical
high frequency switching power supplies and resonent
power converters. Full MIL-PRF-19500 quality
conformance testing is available on source control
drawings to TX, TXV and S quality levels.
Hermetically Sealed
Center Tap
Low Forward Voltage Drop
High Frequency Operation
Guard Ring for Enhanced Ruggedness and Long Term
Reliability
• Lightweight
CASE STYLE
1
2
3
1
2
3
ANODE COMMON ANODE
CATHODE

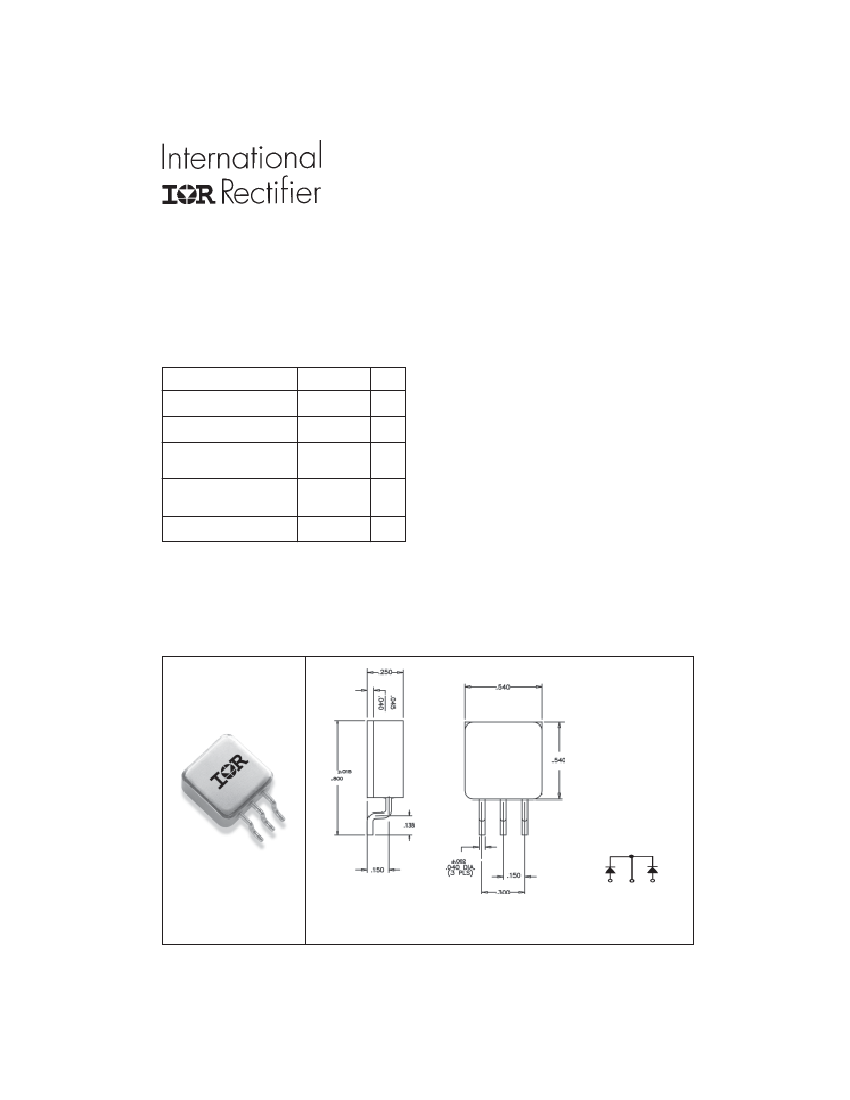

Case Outline and Dimensions - D3 PAK
www.irf.com
1
10/02/13

35SCGJQ060 Related Products

35SCGJQ060
Description 35 A, 60 V, SILICON, RECTIFIER DIODE
Is it lead-free? Contains lead
Maker International Rectifier ( Infineon )
Parts packaging code TO-247
package instruction R-MSSO-G3
Contacts 3
Reach Compliance Code unknown
ECCN code EAR99
Other features HIGH RELIABILITY
application EFFICIENCY
Configuration COMMON CATHODE, 2 ELEMENTS
Diode component materials SILICON
Diode type RECTIFIER DIODE
JESD-30 code R-MSSO-G3
JESD-609 code e0
Maximum non-repetitive peak forward current 400 A
Number of components 2
Phase 1
Number of terminals 3
Maximum operating temperature 150 °C
Minimum operating temperature -55 °C
Maximum output current 35 A
Package body material METAL
Package shape RECTANGULAR
Package form SMALL OUTLINE
Peak Reflow Temperature (Celsius) NOT SPECIFIED
Certification status Not Qualified
Maximum repetitive peak reverse voltage 60 V
surface mount YES
technology SCHOTTKY
Terminal surface TIN LEAD
Terminal form GULL WING
Terminal location SINGLE
Maximum time at peak reflow temperature NOT SPECIFIED
Base Number Matches 1
