51RIA80M datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> Trigger device> 51RIA80M

51RIA80M: DescriptionSilicon Controlled Rectifier, 80A I(T)RMS, 50000mA I(T), 800V V(DRM), 800V V(RRM), 1 Element, TO-208AC; CategoryAnalog mixed-signal IC Trigger device; File Size165KB，8 Pages; ManufacturerInternational Rectifier （ Infineon ）; Websitehttp://www.irf.com/

Download Datasheet Parametric Compare View All

51RIA80M Overview

Silicon Controlled Rectifier, 80A I(T)RMS, 50000mA I(T), 800V V(DRM), 800V V(RRM), 1 Element, TO-208AC

51RIA80M Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	International Rectifier （ Infineon ）
package instruction	POST/STUD MOUNT, O-MUPM-H3
Reach Compliance Code	unknown
Configuration	SINGLE
Critical rise rate of minimum off-state voltage	500 V/us
Maximum DC gate trigger current	100 mA
Maximum DC gate trigger voltage	2.5 V
JEDEC-95 code	TO-208AC
JESD-30 code	O-MUPM-H3
Humidity sensitivity level	1
On-state non-repetitive peak current	1300 A
Number of components	1
Number of terminals	3
Maximum on-state current	50000 A
Maximum operating temperature	125 °C
Minimum operating temperature	-65 °C
Package body material	METAL
Package shape	ROUND
Package form	POST/STUD MOUNT
Peak Reflow Temperature (Celsius)	225
Certification status	Not Qualified
Maximum rms on-state current	80 A
Off-state repetitive peak voltage	800 V
Repeated peak reverse voltage	800 V
surface mount	NO
Terminal form	HIGH CURRENT CABLE
Terminal location	UPPER
Maximum time at peak reflow temperature	NOT SPECIFIED
Trigger device type	SCR
Base Number Matches	1

Preview

Download Datasheet

View All

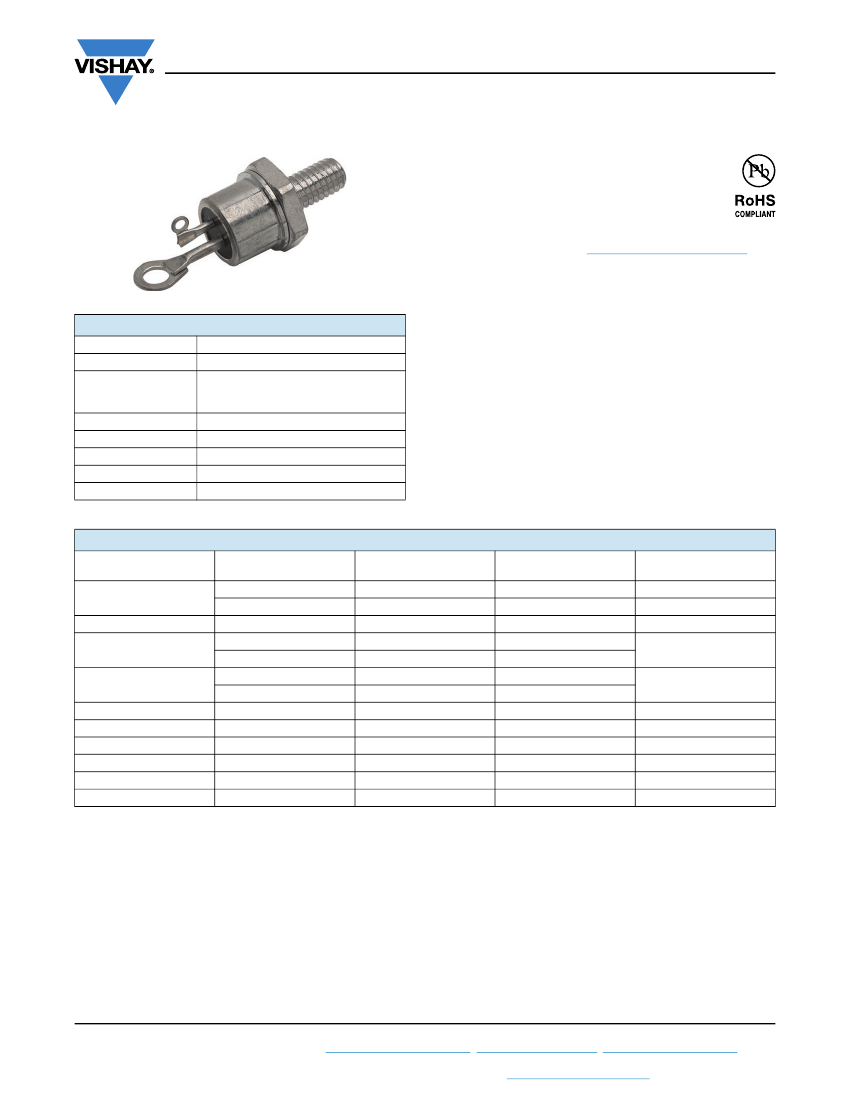

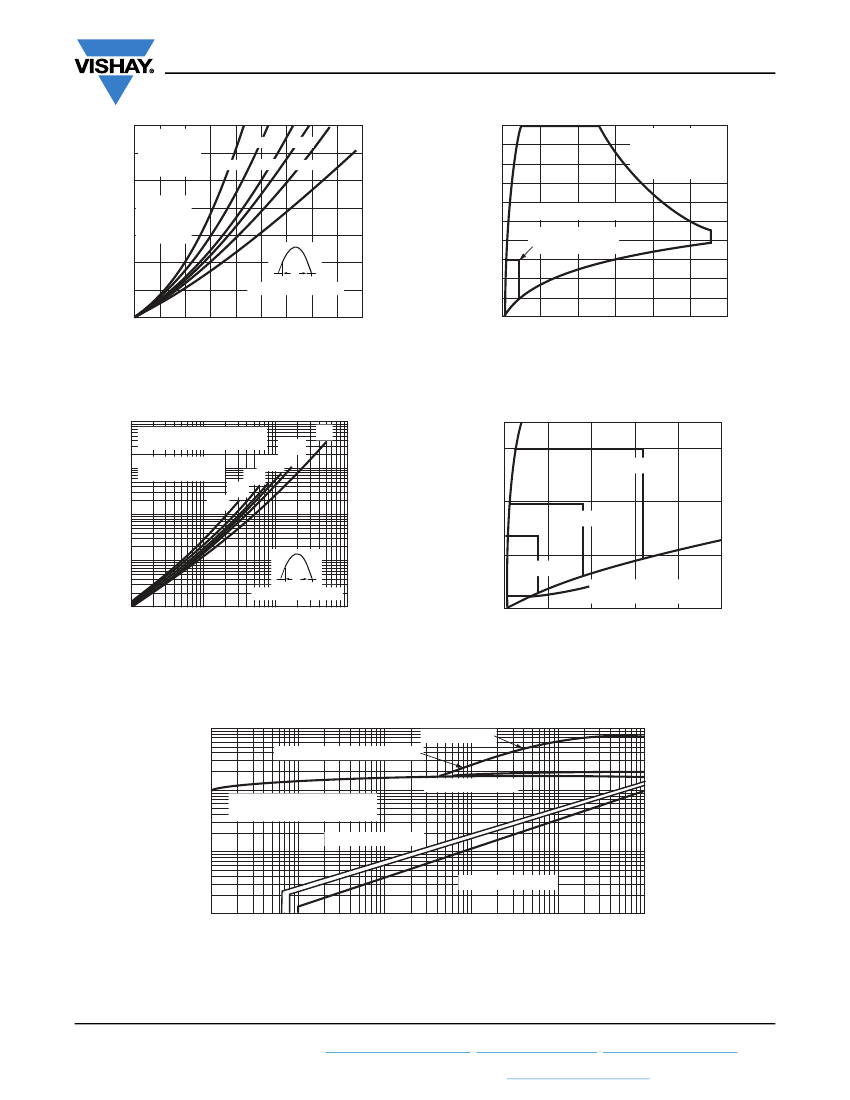

VS-2N681, VS-2N5205 Series

www.vishay.com

Vishay Semiconductors

Phase Control Thyristor RMS SCRs, 25 A, 35 A

FEATURES

• General purpose stud mounted

• Broad forward and reverse voltage range -

through 1200 V

• Material categorization: for definitions of

compliance please see

www.vishay.com/doc?99912



TO-48 (TO-208AA)

PRIMARY CHARACTERISTICS

T(AV)

T(RMS)

DRM

RRM

Package

Circuit configuration

16 A, 22 A

25 A, 35 A

25 V, 50 V, 100 V, 150 V, 200 V, 250 V,

300 V, 400 V, 500 V, 600 V, 700 V, 800 V,

1000 V 1200 V

2.3 V

60 mA

-40 °C to +125 °C

TO-48 (TO-208AA)

Single SCR

MAJOR RATINGS AND CHARACTERISTICS

PARAMETER

T(AV)

T(RMS)

TSM

dV/dt

dI/dt

DRM

RRM

Note

(1)

JEDEC

registered value

Range

50 Hz

60 Hz

50 Hz

60 Hz

TEST CONDITIONS

VALUES

2N681-92

(1)

-65 to +65

145

150

75 to 100

25 to 800

-65 to +125

(1)

VALUES

2N5205-07

(1)

-40 to +40

285

300

(1)

410

375

100

(1)

100

600 to 1200

-40 to +125

(1)

UNITS

°C

V/μs

A/μs

°C

103

Revision: 21-Sep-17

Document Number: 93706

For technical questions within your region:

DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com

THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT

ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT

www.vishay.com/doc?91000

51RIA80M Related Products

	51RIA80M	51RIA100	51RIA10M	51RIA120	51RIA20M	51RIA40M	51RIA60M
Description	Silicon Controlled Rectifier, 80A I(T)RMS, 50000mA I(T), 800V V(DRM), 800V V(RRM), 1 Element, TO-208AC	Silicon Controlled Rectifier, 80A I(T)RMS, 50000mA I(T), 1000V V(DRM), 1000V V(RRM), 1 Element, TO-208AC	Silicon Controlled Rectifier, 80A I(T)RMS, 50000mA I(T), 100V V(DRM), 100V V(RRM), 1 Element, TO-208AC	Silicon Controlled Rectifier, 80A I(T)RMS, 50000mA I(T), 1200V V(DRM), 1200V V(RRM), 1 Element, TO-208AC	Silicon Controlled Rectifier, 80A I(T)RMS, 50000mA I(T), 200V V(DRM), 200V V(RRM), 1 Element, TO-208AC	Silicon Controlled Rectifier, 80A I(T)RMS, 50000mA I(T), 400V V(DRM), 400V V(RRM), 1 Element, TO-208AC	Silicon Controlled Rectifier, 80A I(T)RMS, 50000mA I(T), 600V V(DRM), 600V V(RRM), 1 Element, TO-208AC
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	International Rectifier （ Infineon ）	International Rectifier （ Infineon ）	International Rectifier （ Infineon ）	International Rectifier （ Infineon ）	International Rectifier （ Infineon ）	International Rectifier （ Infineon ）	International Rectifier （ Infineon ）
package instruction	POST/STUD MOUNT, O-MUPM-H3	POST/STUD MOUNT, O-MUPM-H3	POST/STUD MOUNT, O-MUPM-H3	POST/STUD MOUNT, O-MUPM-H3	POST/STUD MOUNT, O-MUPM-H3	POST/STUD MOUNT, O-MUPM-H3	POST/STUD MOUNT, O-MUPM-H3
Reach Compliance Code	unknown	compliant	unknown	compliant	unknown	unknown	unknown
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Critical rise rate of minimum off-state voltage	500 V/us	500 V/us	500 V/us	500 V/us	500 V/us	500 V/us	500 V/us
Maximum DC gate trigger current	100 mA	100 mA	100 mA	100 mA	100 mA	100 mA	100 mA
Maximum DC gate trigger voltage	2.5 V	2.5 V	2.5 V	2.5 V	2.5 V	2.5 V	2.5 V
JEDEC-95 code	TO-208AC	TO-208AC	TO-208AC	TO-208AC	TO-208AC	TO-208AC	TO-208AC
JESD-30 code	O-MUPM-H3	O-MUPM-H3	O-MUPM-H3	O-MUPM-H3	O-MUPM-H3	O-MUPM-H3	O-MUPM-H3
On-state non-repetitive peak current	1300 A	1300 A	1300 A	1300 A	1300 A	1300 A	1300 A
Number of components	1	1	1	1	1	1	1
Number of terminals	3	3	3	3	3	3	3
Maximum on-state current	50000 A	50000 A	50000 A	50000 A	50000 A	50000 A	50000 A
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-65 °C	-65 °C	-65 °C	-65 °C	-65 °C	-65 °C	-65 °C
Package body material	METAL	METAL	METAL	METAL	METAL	METAL	METAL
Package shape	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND
Package form	POST/STUD MOUNT	POST/STUD MOUNT	POST/STUD MOUNT	POST/STUD MOUNT	POST/STUD MOUNT	POST/STUD MOUNT	POST/STUD MOUNT
Peak Reflow Temperature (Celsius)	225	NOT SPECIFIED	225	NOT SPECIFIED	225	225	225
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum rms on-state current	80 A	80 A	80 A	80 A	80 A	80 A	80 A
Off-state repetitive peak voltage	800 V	1000 V	100 V	1200 V	200 V	400 V	600 V
Repeated peak reverse voltage	800 V	1000 V	100 V	1200 V	200 V	400 V	600 V
surface mount	NO	NO	NO	NO	NO	NO	NO
Terminal form	HIGH CURRENT CABLE	HIGH CURRENT CABLE	HIGH CURRENT CABLE	HIGH CURRENT CABLE	HIGH CURRENT CABLE	HIGH CURRENT CABLE	HIGH CURRENT CABLE
Terminal location	UPPER	UPPER	UPPER	UPPER	UPPER	UPPER	UPPER
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Trigger device type	SCR	SCR	SCR	SCR	SCR	SCR	SCR
Base Number Matches	1	1	1	1	1	1	1
Humidity sensitivity level	1	-	1	-	1	1	1
