The 7000 Universal Range of audio and Video Connectors employs many innovative
features unique
to the Deltron series. They are suitable for use in both commercial and industrial
electronic
applications, where reliability, simple operation and the elimination of RF and mechanical
interference is necessary. Common uses included mixing desks, tape recorders, video
recorders, DAT recorders and test instructions.
A
B
Features
-completely interchangeable with all leading manufactures of XLRs.
-can be mounted from either the front or rear face
-HOUSING: a rugged diecasting offering fullRF protection, with small industrial standard flange.
-INSERT: thermoplastic with high mechanical, thermal and electrical properties, excellent
chemical resistance and dimensional stability.
-CONTACTS: precision machined in brass with generous solder buckets to accept a wide range
of cable sizes.
-SHELL TO GROUND TERMINAL: silver platedstraight through connection.
Specification
Contact Base
Contacts
tarnish
26
28.6
24.1
23.5
30.1
3.5
24
2 POS
24
31
23.5
24
B
Mechanical Properties
Housing
Dimensions
C
Zinc high pressure diecast
Satin nickel or black chrome
Valox DR48 UL 94V-0
Brass, 3 microns silver, anti-
Finish, or 0.5 microns gold
Spring Steel, Nickel plate
3 microns silver plate
50 V a.c.
1000 V r.m.s.
103 MΩ
500 MΩ
10 mΩ max
3 pin - 15 amp
4 pin - 10
5 pin - 7.5 amp
3 pin - 7.5 amp
4 pin - 5
5 pin - 3 amp
3 pin 2.5 mm□ / 14 AWG
4 pin 1.5 mm□ / 16 AWG
5 pin 1.0 mm□ / 18 AWG
25/070/04
-25°C to +70°C
4 days
TITLE
Earth Tag
Electrical
Rated Voltage
Test Voltage
Insulation Resistance
After damp heat
Contact Resistance
Current Rating at 40 deg C
Current Rating at 70 deg C
Terminal wire sizes
C
19
2
D
2.8
D
Deltron Part No
3-way
4-way
5way
Tel No. +44(0)1724 273200 Website www.dem-uk.com
E
Silver Contacts
Nickel
Black
717-0300
719.0300
717-0400
719-0400
717-0500
719-0500
Gold Contacts
Nickel
Black
723-0300
725-0300
723-0400
725-0400
723-0500
725-0500
UNLESS OTHERWISE SPECIFIED:
DIMENSIONS ARE IN MILLIMETRES
LINEAR TOLERANCE:
NO DECIMAL PLACES 0.5mm
1 DECIMAL PLACE 0.25mm
2 DECIMAL PLACES 0.125mm
ANGULAR TOLERANCE: 1
Climatic
Climatic category
Temperature Range
Damp heat, steady state
FINISH
PROFESSIONAL
QUALITY
CHASSIS PLUG
IF IN DOUBT ASK
DO NOT SCALE DRAWING
DEBURR AND BREAK
SHARP EDGES
E
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF
ALPHA 3 MANUFACTURING.
ANY REPRODUCTION IN PART OR AS A WHOLE WITHOUT THE WRITTEN PERMISSION OF
ALPHA 3 MANUFACTURING
IS PROHIBITED.
DEM Manufacturing, Deltron Emcon House
Hargreaves Way, Sawcliffe Ind. Park,
Scunthorpe, North Lincolnshire, DN15 8RF, UK
DRAWN BY
APPROVED BY
THIRD ANGLE PROJECTION
SPB
WC
SHEET 1 OF 1
SCALE 1:1
DRAWING NO.

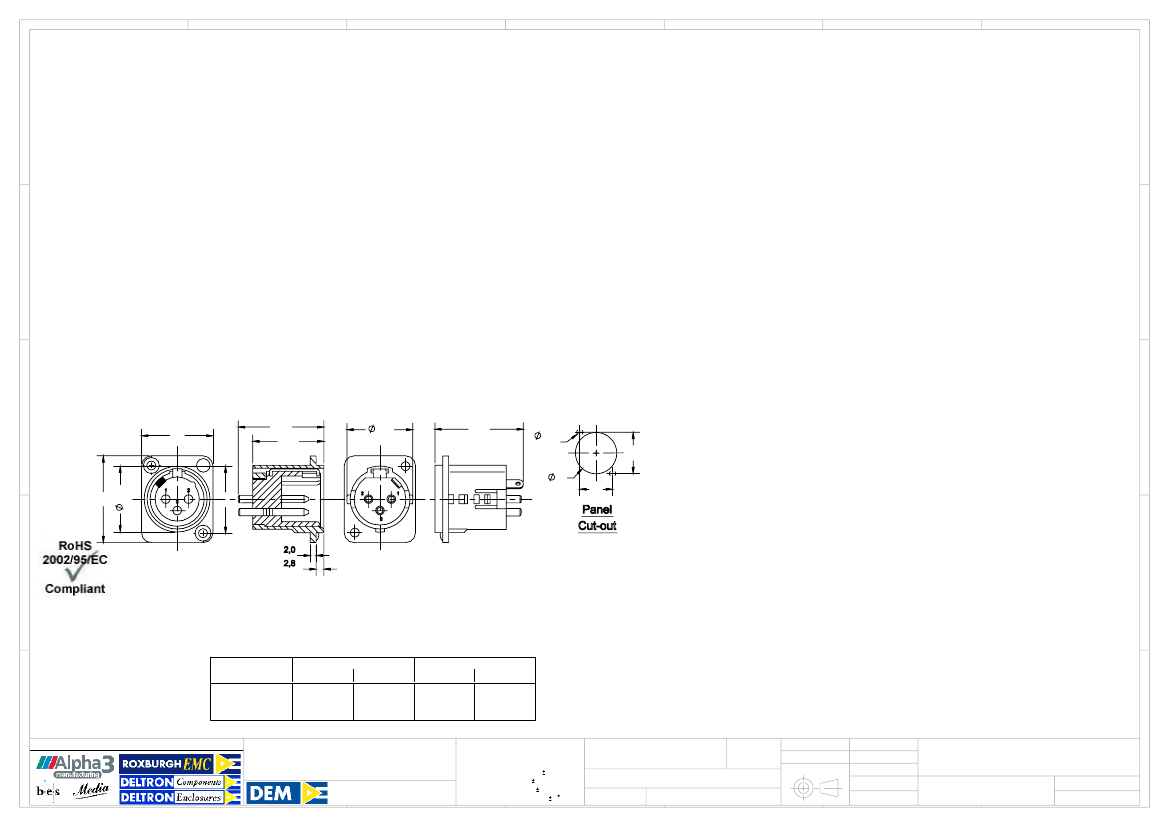

GENERAL SPECIFICATION
MULTIPOLE CONNECTOR
CHASSIS PLUG
ISSUE
MATERIAL
N/A
A4
717-719-723-725
