ACDA03-41PBWA/A-F01 datasheet, PDF

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> ACDA03-41PBWA/A-F01

ACDA03-41PBWA/A-F01: DescriptionSURFACE MOUNT DISPLAY; CategoryLED optoelectronic/LED photoelectric; File Size202KB，5 Pages; ManufacturerKingbright; Websitehttp://www.us.kingbright.com; Environmental Compliance

Download Datasheet Parametric View All

ACDA03-41PBWA/A-F01 Overview

SURFACE MOUNT DISPLAY

ACDA03-41PBWA/A-F01 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Kingbright
package instruction	ROHS COMPLIANT PACKAGE-20
Reach Compliance Code	compli
ECCN code	EAR99
Other features	IC COMPATIBLE
color	BLUE
Configuration	COMMON ANODE, 2 DIGITS WITH DECIMAL POINT
Display height	7.62 mm
Maximum forward current	0.03 A
Number of functions	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY

Preview

Download Datasheet

View All

SURFACE MOUNT DISPLAY

PRELIMINARY SPEC

ATTENTION

OBSERVE PRECAUTIONS

FOR HANDLING

ELECTROSTATIC

DISCHARGE

SENSITIVE

DEVICES

Part Number: ACDA03-41PBWA/A-F01

Blue

Features

0.3 INCH DIGIT HEIGHT.

LOW CURRENT OPERATION.

EXCELLENT CHARACTER APPEARANCE.

I.C. COMPATIBLE.

MECHANICALLY RUGGED.

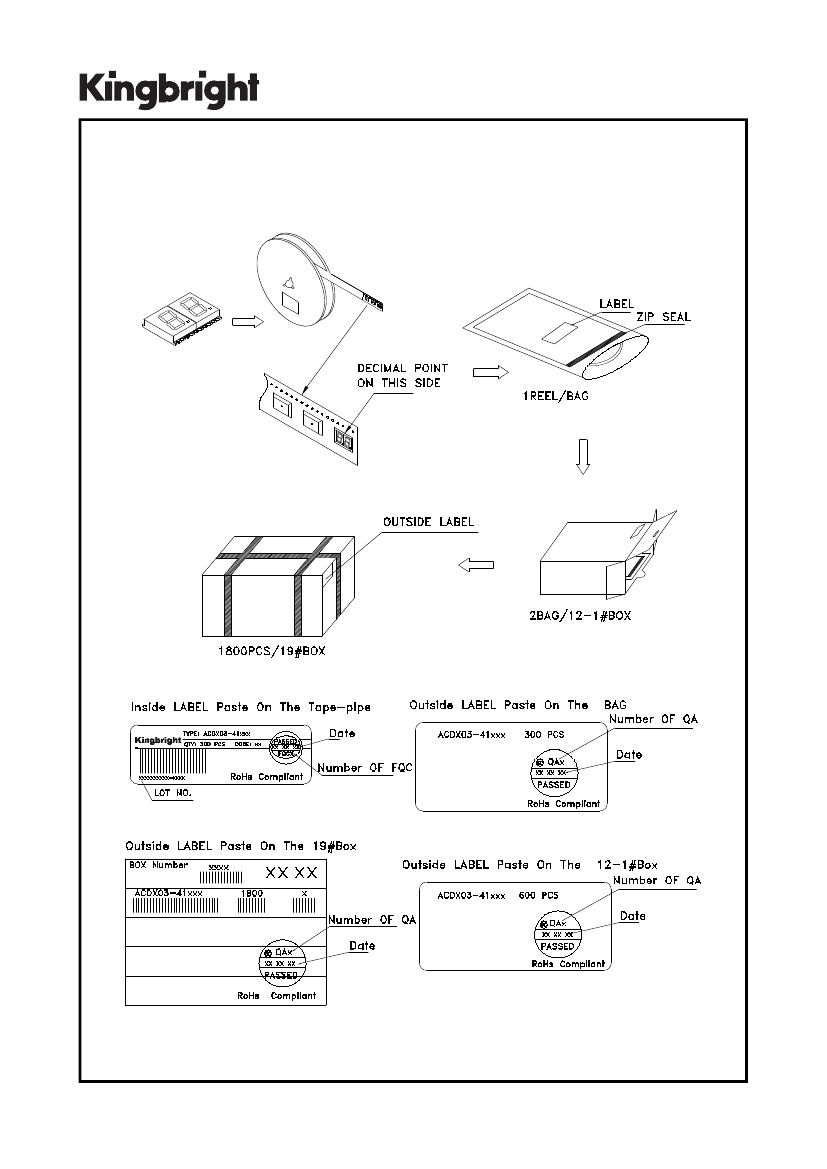

PACKAGE :300PCS / REEL.

GRAY FACE, WHITE SEGMENT.

MOISTURE SENSITIVITY LEVEL : LEVEL 4.

RoHS COMPLIANT.

Description

The Blue source color devices are made with InGaN

on SiC Light Emitting Diode.

Static electricity and surge damage the LEDS.

It is recommended to use a wrist band or anti-electrostatic

glove when handling the LEDs.

All devices, equipment and machinery must be electrically

grounded.

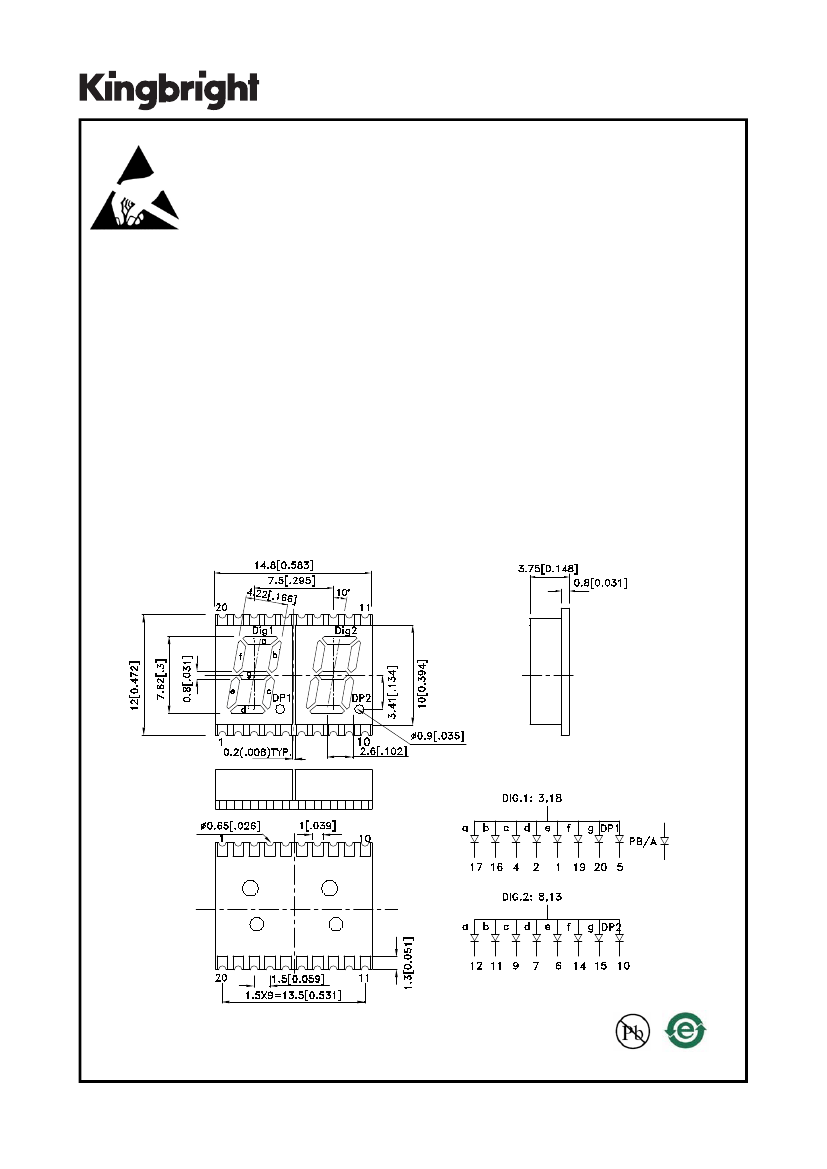

Package Dimensions& Internal Circuit Diagram

Notes:

1. All dimensions are in millimeters (inches), Tolerance is ±0.25(0.01")unless otherwise noted.

2. Specifications are subject to change without notice.

3.The gap between the reflector and PCB shall not exceed 0.25mm.

SPEC NO: DSAG0220

APPROVED: WYNEC

REV NO: V.7

CHECKED: Joe Lee

DATE: JUN/14/2007

DRAWN: Y.H.CHEN

PAGE: 1 OF 5

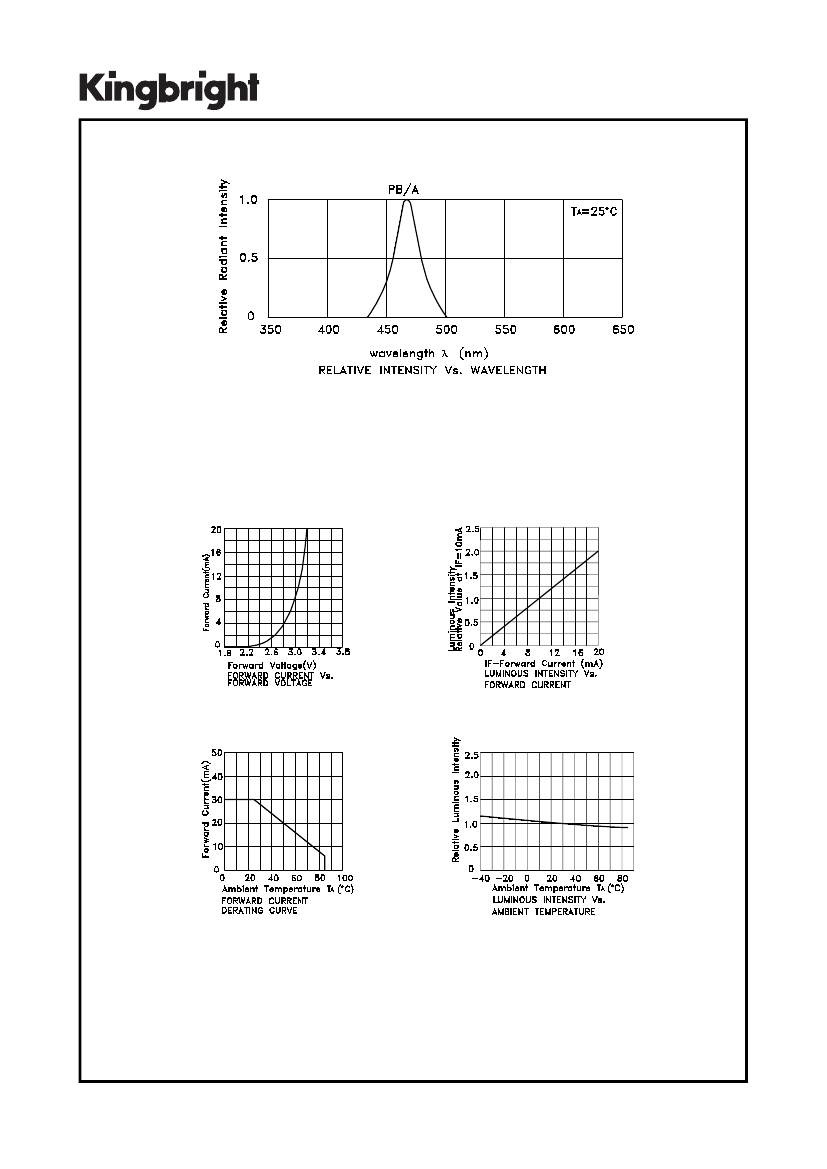

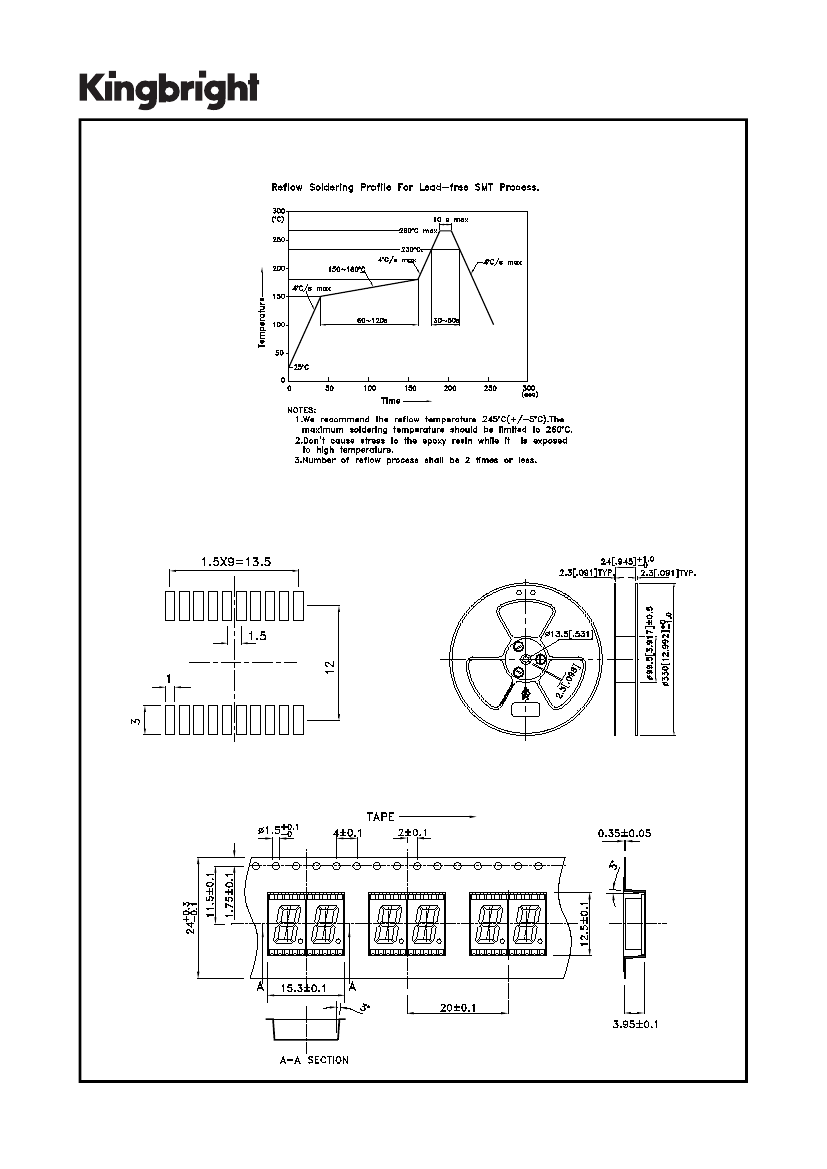

ERP: 1352000346
