The 7000 Universal Range of Audio and Video Connectors employs many innovative features
unique to the Deltron series. They are suitable for use in both commercial and industrial
electronics applications, where reliability, simple operation and the elimination of RF and
mechanical interference is necessary. Common uses include mixing desks, tape recorders,
video recorders, DAT recorders and test instrumentation.
-Completely interchangeable with all leading manufacturers of XLRs.
-HOUSING: a rugged diecasting offering full RF protection, with a small industrial
standard flange.
-INSERT:
thermoplastic with high mechanical, thermal and electrical properties excellent
chemical resistance, and dimensional stability.
-CONTACTS:
precision machined in brass with generous solder buckets to accept a wide
range of cable sizes.
-LATCHING:
a unique design with minimum press action offering the widest latching area for
positive locking ad straight through grounding.
-
a short press action and compact design means minimum protraction from the front panel.
Dimensions
A
B
C
26
19
31.6
24.1
23.5
3.4
3.5
2 Pos
24
19
24
Electrical
Rated Voltage
Test Voltage
Insulation Resistance
After damp heat
Contact Resistance
Current Rating at 40 deg C
Current Rating at 70 deg C
Terminal wire sizes
Climatic
Climatic category
Temperature Range
Damp heat, steady state
Panel
Cut-out
2
2.8
D
23.5
50 V a.c.
1000 V r.m.s.
103 MΩ
500 MΩ
10 mΩ max
3 pin - 15 amp
4 pin - 10
5 pin - 7.5 amp
3 pin - 7.5 amp
4 pin - 5
5 pin - 3 amp
3 pin 2.5 mm□ / 14 AWG
4 pin 1.5 mm□ / 16 AWG
5 pin 1.0 mm□ / 18 AWG
25/070/04
-25°C to +70°C
4 days
C
31
24
D
E
Tel No. +44(0)1724 273200 Website www.dem-uk.com
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF
ALPHA 3 MANUFACTURING.
ANY REPRODUCTION IN PART OR AS A WHOLE WITHOUT THE WRITTEN PERMISSION OF
ALPHA 3 MANUFACTURING
IS PROHIBITED.
DEM Manufacturing, Deltron Emcon House
Hargreaves Way, Sawcliffe Ind. Park,
Scunthorpe, North Lincolnshire, DN15 8RF, UK
E
UNLESS OTHERWISE SPECIFIED:
DIMENSIONS ARE IN MILLIMETRES
LINEAR TOLERANCE:
NO DECIMAL PLACES 0.5mm
1 DECIMAL PLACE 0.25mm
2 DECIMAL PLACES 0.125mm
ANGULAR TOLERANCE: 1
FINISH
-
UNIVERSAL
CHASSIS SOCKETS
IF IN DOUBT ASK
DO NOT SCALE DRAWING
DEBURR AND BREAK
SHARP EDGES
DRAWN BY
APPROVED BY
THIRD ANGLE PROJECTION
SPB
WC
SHEET 1 OF 1
SCALE 1:1
TITLE
DRAWING NO.

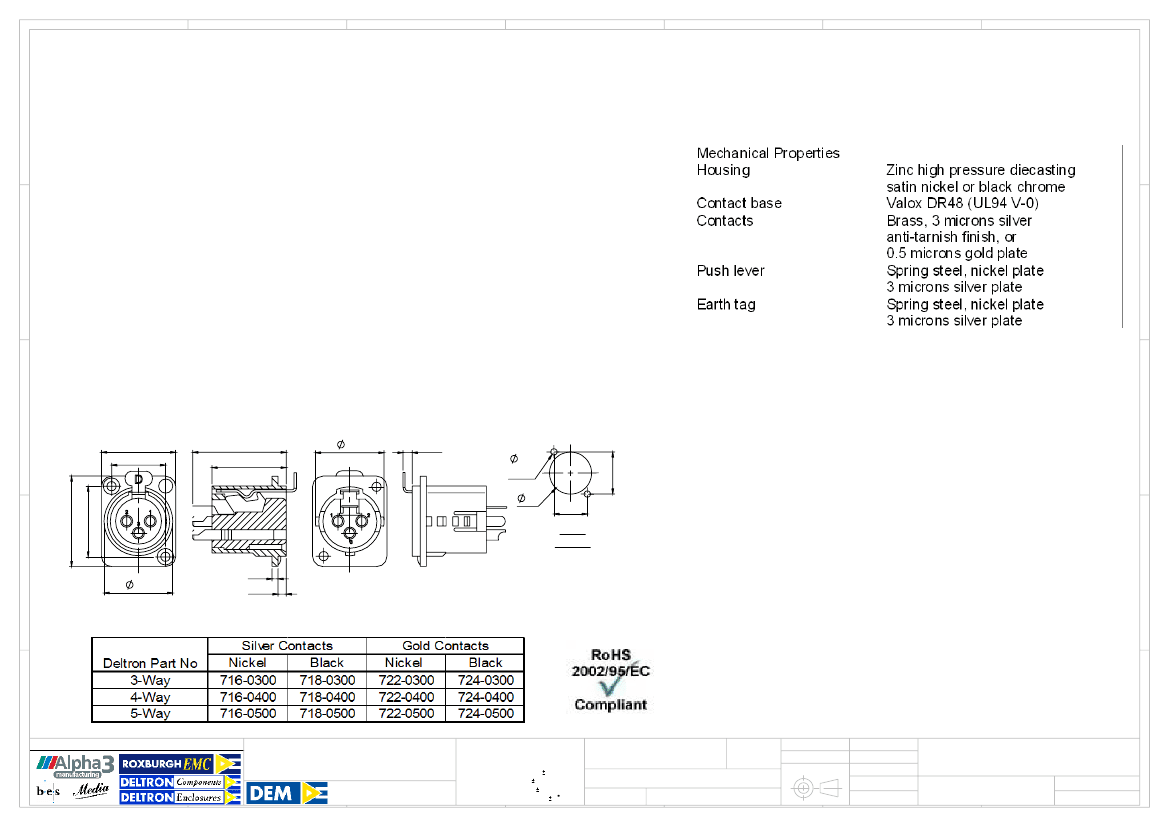

GENERAL SPECIFICATION
MULTIPOLE CONNECTOR
CHASSIS SOCKETS
ISSUE
MATERIAL
SEE NOTE
A4
716-718-722-724
Release
12
