SURFACE MOUNT DISPLAY
ATTENTION
OBSERVE PRECAUTIONS
FOR HANDLING
ELECTROSTATIC
DISCHARGE
SENSITIVE
DEVICES
P/N: ACSA02-41PBWA/A-F01
BLUE
PRELIMINARY SPEC
Features
0.2INCH DIGIT HEIGHT.
LOW CURRENT OPERATION.
EXCELLENT CHARACTER APPEARANCE.
I.C. COMPATIBLE
MECHANICALLY RUGGED.
GRAY FACE,WHITE SEGMENT.

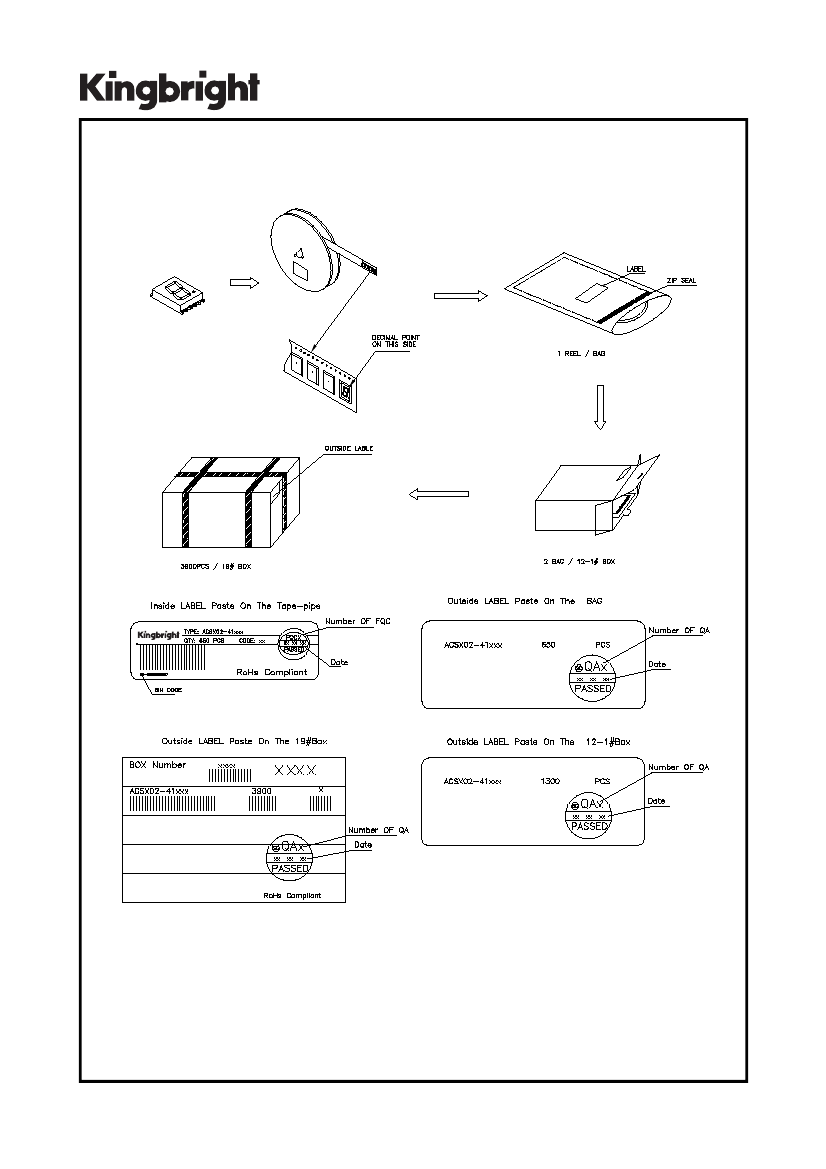

PACKAGE : 650PCS / REEL.

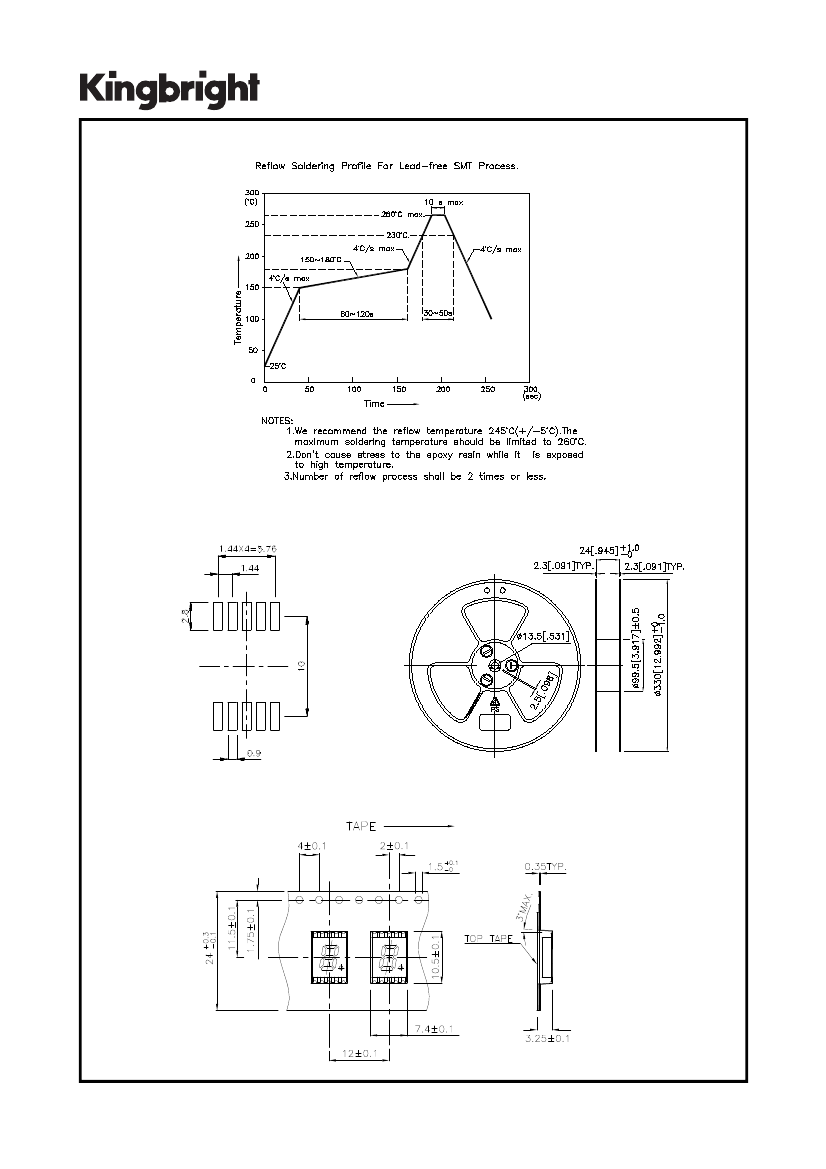

MOISTURE SENSITIVITY LEVEL : LEVEL 4.
RoHS COMPLIANT.
Description
The Blue source color devices are made with InGaN on SiC
Light Emitting Diode.
Static electricity and surge damage the LEDS.
It is recommended to use a wrist band or anti-electrostatic
glove when handling the LEDs.
All devices, equipment and machinery must be electrically
grounded.

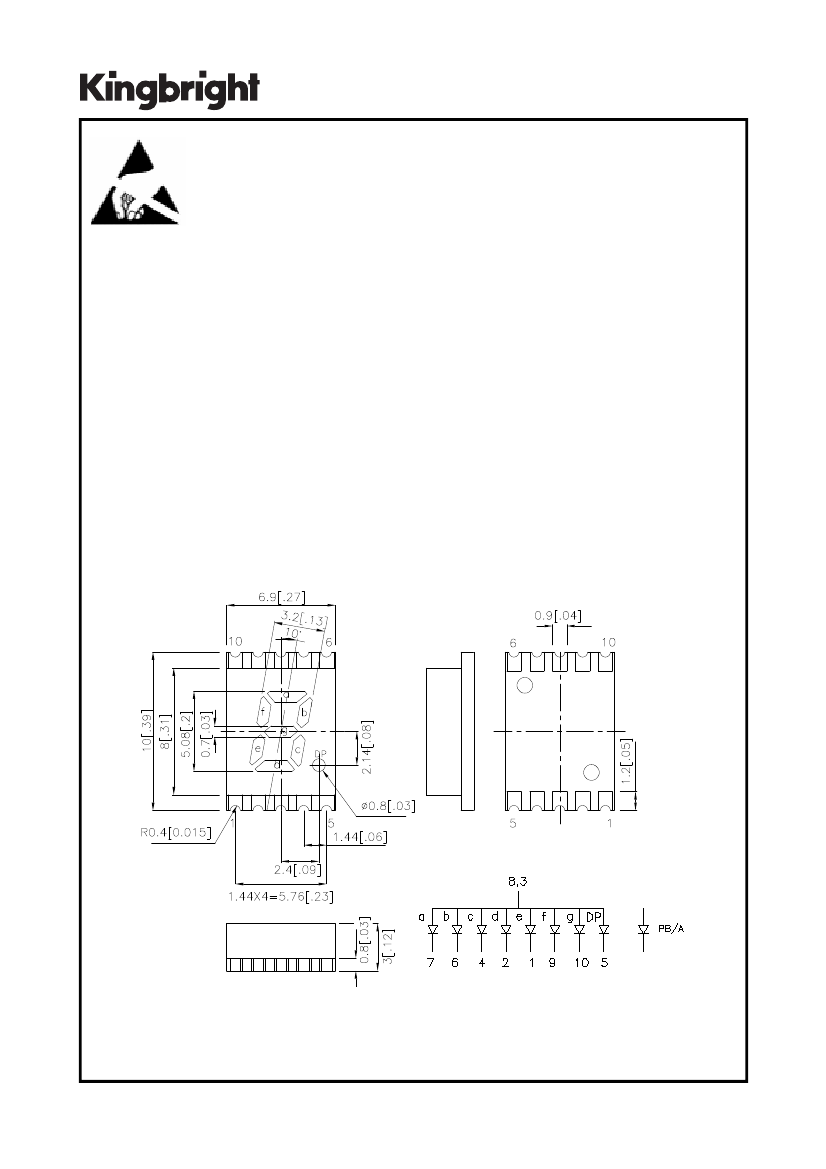

Package Dimensions & Internal Circuit Diagram
Notes:
1. All dimensions are in millimeters (inches), Tolerance is
±0.25(0.01")unless
otherwise noted.
2. Specifications are subject to change without notice.
3.The gap between the reflector and PCB shall not exceed 0.25mm.
SPEC NO: DSAG0260
APPROVED: J. Lu
REV NO: V.2
CHECKED: Joe Lee
DATE: MAR/22/2006
DRAWN: W.J.ZHU
PAGE: 1 OF 5
ERP: 1351000416
Selection Guide
Part No.
Dice
Lens Type
Iv (ucd) [1]
@ 10mA
Min.
ACSA02-41PBWA/A-F01
BLUE (InGaN)
WHITE DIFFUSED
1200
Typ.
5000
Common Anode, Rt.
Hand Decimal.
Description
Note:
1. Luminous Intensity / Luminous Flux: +/-15%.

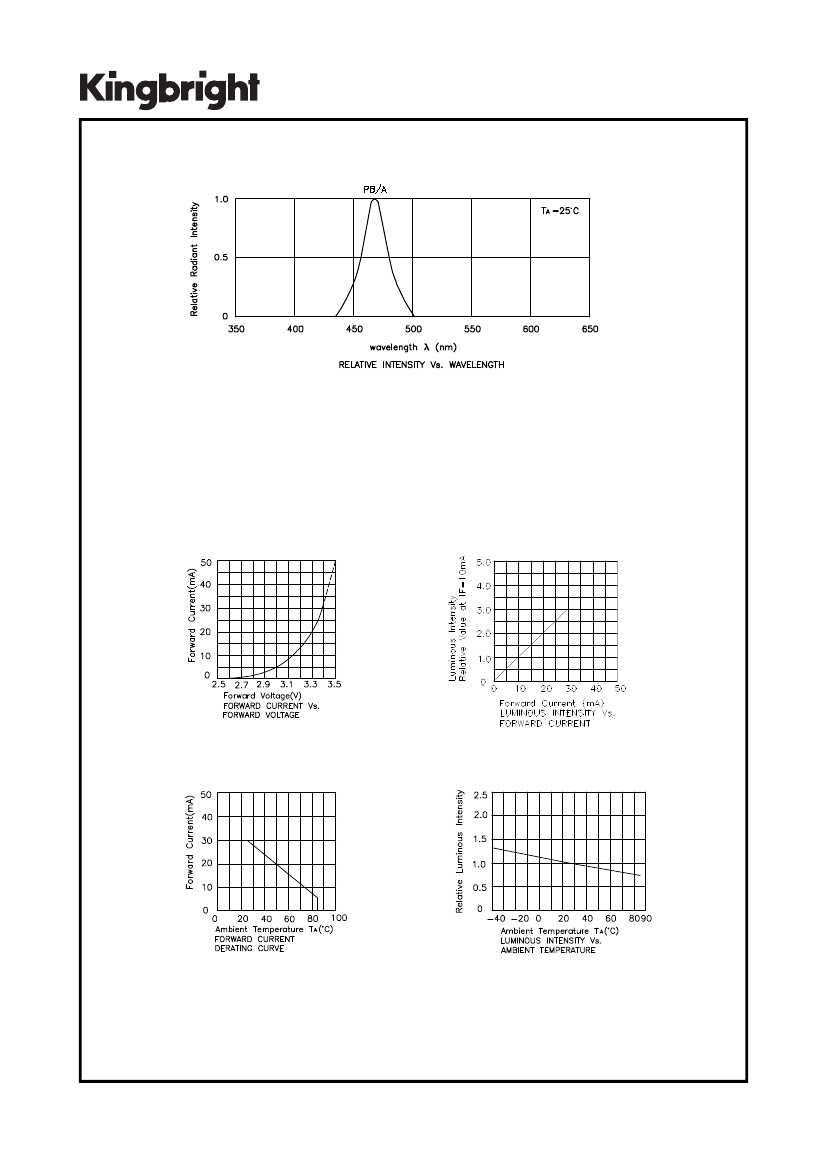

Electrical / Optical Characteristics at T
A
=25°C
Symbol
λpeak
λD
[1]
∆λ1/2
C
V
F
[2]
I
R
Parameter
Peak Wavelength
Dominant Wavelength
Spectral Line Half-width
Capacitance
Forward Voltage
Reverse Current
Blue
Blue
Blue
Blue
Blue
Blue
Device
Typ.
468
470
21
100
3.3
3.8
10
Max.
Units
nm
nm
nm
pF
V
uA
Test Conditions
I
F
=20mA
I
F
=20mA
I
F
=20mA
V
F
=0V;f=1MHz
I
F
=20mA
V
R
= 5V
Notes:
1. Wavelength: +/-1nm.
2. Forward Voltage: +/-0.1V.
Absolute Maximum Ratings at T
A
=25°C
Parameter
Power dissipation
DC Forward Current
Peak Forward Current [1]
Reverse Voltage
Operating/Storage Temperature
Note:
1. 1/10 Duty Cycle, 0.1ms Pulse Width.
Blue
114
30
100
5
-40°C To +85°C
Units
mW
mA
mA
V
SPEC NO: DSAG0260
APPROVED: J. Lu
REV NO: V.2
CHECKED: Joe Lee
DATE: MAR/22/2006
DRAWN: W.J.ZHU
PAGE: 2 OF 5
ERP: 1351000416
