74LVX125M_NL datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> 74LVX125M_NL

74LVX125M_NL: DescriptionBus Driver, LV/LV-A/LVX/H Series, 4-Func, 1-Bit, True Output, CMOS, PDSO14, 0.150 INCH, LEAD FREE, MS-012AB, SOIC-14; Categorylogic logic; File Size297KB，8 Pages; ManufacturerFairchild; Websitehttp://www.fairchildsemi.com/

Download Datasheet Parametric Compare View All

74LVX125M_NL Overview

Bus Driver, LV/LV-A/LVX/H Series, 4-Func, 1-Bit, True Output, CMOS, PDSO14, 0.150 INCH, LEAD FREE, MS-012AB, SOIC-14

74LVX125M_NL Parametric

Parameter Name	Attribute value
Maker	Fairchild
Parts packaging code	SOIC
package instruction	SOP,
Contacts	14
Reach Compliance Code	unknown
series	LV/LV-A/LVX/H
JESD-30 code	R-PDSO-G14
JESD-609 code	e3
length	8.625 mm
Logic integrated circuit type	BUS DRIVER
Number of digits	1
Number of functions	4
Number of ports	2
Number of terminals	14
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Output characteristics	3-STATE
Output polarity	TRUE
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
propagation delay (tpd)	17 ns
Certification status	Not Qualified
Maximum seat height	1.75 mm
Maximum supply voltage (Vsup)	3.6 V
Minimum supply voltage (Vsup)	2 V
Nominal supply voltage (Vsup)	2.7 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	MATTE TIN
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
width	3.9 mm
Base Number Matches	1

Preview

Download Datasheet

View All

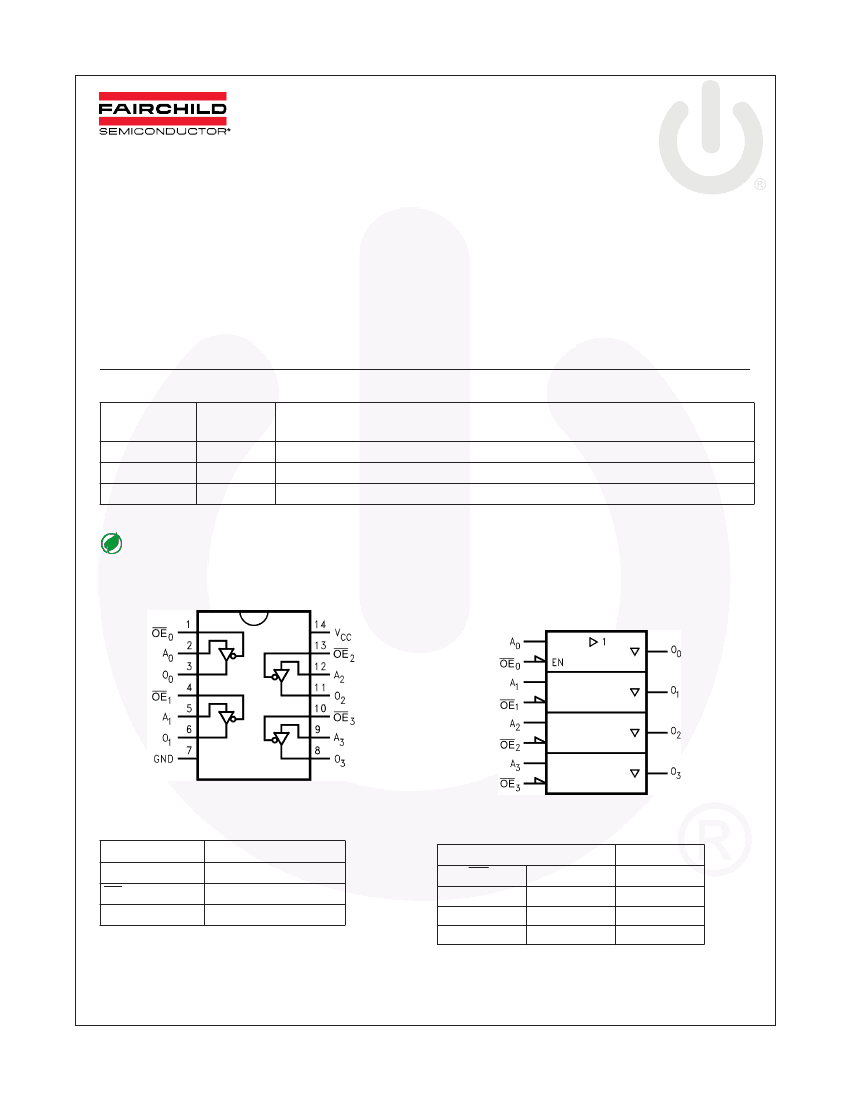

74LVX125 — Low Voltage Quad Buffer with 3-STATE Outputs

February 2008

74LVX125

Low Voltage Quad Buffer with 3-STATE Outputs

Features

■

Input voltage level translation from 5V to 3V

■

Ideal for low power/low noise 3.3V applications

■

Guaranteed simultaneous switching noise level and

General Description

The LVX125 contains four independent non-inverting

buffers with 3-STATE outputs. The inputs tolerate volt-

ages up to 7V allowing the interface of 5V systems to 3V

systems.

dynamic threshold performance

Ordering Information

Order

Number

74LVX125M

74LVX125SJ

74LVX125MTC

Package

Number

M14A

M14D

MTC14

Package Description

14-Lead Small Outline Integrated Circuit (SOIC), JEDEC MS-012, 0.150" Narrow

14-Lead Small Outline Package (SOP), EIAJ TYPE II, 5.3mm Wide

14-Lead Thin Shrink Small Outline Package (TSSOP), JEDEC MO-153, 4.4mm Wide

Device also available in Tape and Reel. Specify by appending suffix letter “X” to the ordering number.

All packages are lead free per JEDEC: J-STD-020B standard.

Connection Diagram

Logic Symbol

IEEE/IEC

Pin Description

Pin Names

Truth Table

Description

Inputs

Output Enable Inputs

Outputs

Output

HIGH Voltage Level

LOW Voltage Level

High Impedance

Immaterial

74LVX125 Rev. 1.4.0

www.fairchildsemi.com

74LVX125M_NL Related Products

	74LVX125M_NL	74LVX125MX_NL
Description	Bus Driver, LV/LV-A/LVX/H Series, 4-Func, 1-Bit, True Output, CMOS, PDSO14, 0.150 INCH, LEAD FREE, MS-012AB, SOIC-14	Bus Driver, LV/LV-A/LVX/H Series, 4-Func, 1-Bit, True Output, CMOS, PDSO14, 0.150 INCH, LEAD FREE, MS-012AB, SOIC-14
Maker	Fairchild	Fairchild
Parts packaging code	SOIC	SOIC
package instruction	SOP,	SOP,
Contacts	14	14
Reach Compliance Code	unknown	unknown
series	LV/LV-A/LVX/H	LV/LV-A/LVX/H
JESD-30 code	R-PDSO-G14	R-PDSO-G14
JESD-609 code	e3	e3
length	8.625 mm	8.625 mm
Logic integrated circuit type	BUS DRIVER	BUS DRIVER
Number of digits	1	1
Number of functions	4	4
Number of ports	2	2
Number of terminals	14	14
Maximum operating temperature	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C
Output characteristics	3-STATE	3-STATE
Output polarity	TRUE	TRUE
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	SOP
Package shape	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE
propagation delay (tpd)	17 ns	17 ns
Certification status	Not Qualified	Not Qualified
Maximum seat height	1.75 mm	1.75 mm
Maximum supply voltage (Vsup)	3.6 V	3.6 V
Minimum supply voltage (Vsup)	2 V	2 V
Nominal supply voltage (Vsup)	2.7 V	2.7 V
surface mount	YES	YES
technology	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL
Terminal surface	MATTE TIN	MATTE TIN
Terminal form	GULL WING	GULL WING
Terminal pitch	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL
width	3.9 mm	3.9 mm
Base Number Matches	1	1
