51FXW-RSM1-G-S-TB(LF)(SN): DescriptionCard Edge Connector, 51 Contact(s), 1 Row(s), Female, Right Angle, Surface Mount Terminal, ROHS COMPLIANT; CategoryThe connector The connector; File Size118KB，2 Pages; ManufacturerJST; Environmental Compliance

Download Datasheet Parametric Compare View All

51FXW-RSM1-G-S-TB(LF)(SN) Overview

Card Edge Connector, 51 Contact(s), 1 Row(s), Female, Right Angle, Surface Mount Terminal, ROHS COMPLIANT

51FXW-RSM1-G-S-TB(LF)(SN) Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	JST
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknown
Other features	LOW PROFILE
Connector type	FFC/FPC CONNECTOR
Contact to complete cooperation	GOLD OVER NICKEL
Contact completed and terminated	GOLD OVER NICKEL
Contact point gender	FEMALE
Contact material	COPPER ALLOY
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	1
Options	GENERAL PURPOSE
Terminal pitch	0.3 mm
Termination type	SURFACE MOUNT
Total number of contacts	51
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

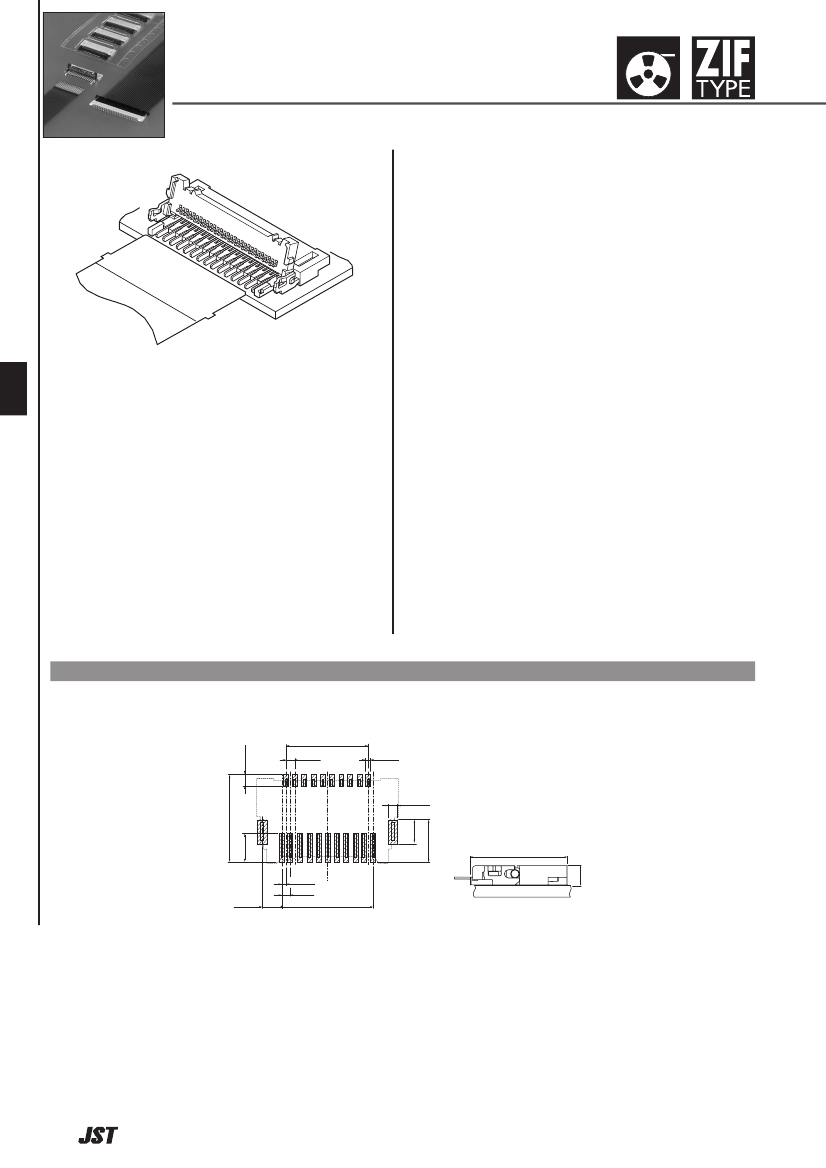

0.3mmピッチ

FXW

CONNECTOR

0.3mm pitch/Connectors for FPC

Emboss Tape

Specifications –––––––––––––––––––

• Current rating: 0.2A AC, DC

• Voltage rating: 50V AC, DC

• Temperature range: -25˚C to +85˚C

(including temperature rise in applying

electrical current)

• Contact resistance: Initial value/100m

Ω

max.

After environmental testing/60m

Ω

max.

(variation from initial value)

• Withstanding voltage: 200V AC/minute

• Applicable FPC: Conductor pitch/0.3mm

<0.6mm pitch staggered>

Conductor width/0.3mm

Mating part thickness/0.12±0.03mm

* Compliant with RoHS.

* Refer to "General Instruction and Notice when using

Terminals and Connectors" at the end of this catalog.

* Contact JST for details.

This low-profile FPC connector with a

mounting height of 1.0mm for normal type

has a Double ZIF Flip-lock slider structure.

• Low-profile (1.0mm height) &

adoption of Double ZIF structure

• One-touch sliding operation of Molded Cover

• Heat resisting design suitable for surface

mounting

• FPC with protrusions

Standards ––––––––––––––––––––––

0

Recognized E60389

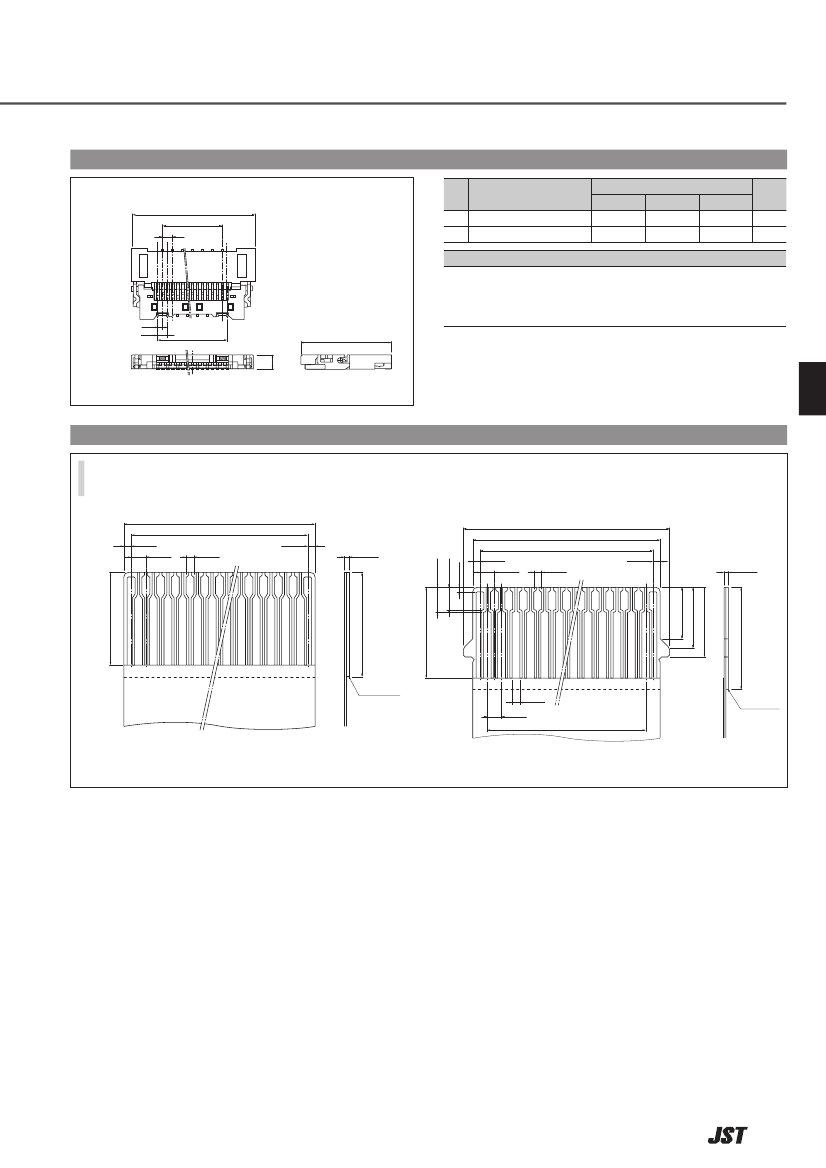

PC board layout (viewed from component side) and Assembly layout

A

±0.03

0.8

±0.05

0.6

±0.03

0.3

±0.03

0.5

±0.05

5.8

±0.05

1.55

±0.05

1.9

2.79

±0.05

（5.3）

1.0

0.3

±0.03

0.6

±0.03

1.3

±0.03

B

±0.03

Note: 1. Tolerances are non-cumulative:

±

0.03mm for all centers.

2. The dimensions above should serve as a guideline. Contact JST for details.

184

51FXW-RSM1-G-S-TB(LF)(SN) Related Products

	51FXW-RSM1-G-S-TB(LF)(SN)	17FXW-RSM1-G-S-TB(LF)(SN)	27FXW-RSM1-G-S-TB(LF)(SN)	31FXW-RSM1-G-S-TB(LF)(SN)	35FXW-RSM1-G-S-TB(LF)(SN)	41FXW-RSM1-G-S-TB(LF)(SN)	59FXW-RSM1-G-S-TB(LF)(SN)
Description	Card Edge Connector, 51 Contact(s), 1 Row(s), Female, Right Angle, Surface Mount Terminal, ROHS COMPLIANT	Card Edge Connector, 17 Contact(s), 1 Row(s), Female, Right Angle, Surface Mount Terminal, ROHS COMPLIANT	Card Edge Connector, 27 Contact(s), 1 Row(s), Female, Right Angle, Surface Mount Terminal, ROHS COMPLIANT	Card Edge Connector, 31 Contact(s), 1 Row(s), Female, Right Angle, Surface Mount Terminal, ROHS COMPLIANT	Card Edge Connector, 35 Contact(s), 1 Row(s), Female, Right Angle, Surface Mount Terminal, ROHS COMPLIANT	Card Edge Connector, 41 Contact(s), 1 Row(s), Female, Right Angle, Surface Mount Terminal, ROHS COMPLIANT	Card Edge Connector, 59 Contact(s), 1 Row(s), Female, Right Angle, Surface Mount Terminal, ROHS COMPLIANT
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to
package instruction	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT
Reach Compliance Code	unknown	unknow	unknow	unknow	unknow	unknown	unknown
Other features	LOW PROFILE	LOW PROFILE	LOW PROFILE	LOW PROFILE	LOW PROFILE	LOW PROFILE	LOW PROFILE
Connector type	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR
Contact to complete cooperation	GOLD OVER NICKEL	GOLD OVER NICKEL	GOLD OVER NICKEL	GOLD OVER NICKEL	GOLD OVER NICKEL	GOLD OVER NICKEL	GOLD OVER NICKEL
Contact completed and terminated	GOLD OVER NICKEL	GOLD OVER NICKEL	GOLD OVER NICKEL	Gold (Au) - with Nickel (Ni) barrie	Gold (Au) - with Nickel (Ni) barrie	Gold (Au) - with Nickel (Ni) barrier	GOLD OVER NICKEL
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
Contact material	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY
DIN compliance	NO	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO
JESD-609 code	e4	e4	e4	e4	e4	e4	e4
MIL compliance	NO	NO	NO	NO	NO	NO	NO
Mixed contacts	NO	NO	NO	NO	NO	NO	NO
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	1	1	1	1	1	1	1
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	0.3 mm	0.3 mm	0.3 mm	0.3 mm	0.3 mm	0.3 mm	0.3 mm
Termination type	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Total number of contacts	51	17	27	31	35	41	59
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
Base Number Matches	1	1	1	1	1	1	1
