480 WATT
REMOTE POWER SUPPLY
TYPICAL RATINGS:
Input voltage:
Input current:
Output:
Operating Limits:
Weight:
UL file, listing:
RoHS compliant:
See below
6.0A in-rush (surpressed) and nominal
12v DC, 8 x 5.0ADC
-40°C
to +50°C
90% relative humidity
9.4 lbs.
E256806, cURus (UL recognized component), damp location
yes
CATALOG NUMBER:
SERIES
INPUT VOLTAGE
OUTPUT
500-12DC-DIM
500-12DC-DIM-220
500-12DC-DIM-277
120vAC dimmable
240vAC dimmable
277vAC dimmable
12vDC, 8 x 60wDC
12vDC, 8 x 60wDC
12vDC, 8 x 60wDC
422 West Sixth St., Tustin, CA 92780
Tel: (714) 508-0729 Fax: (714) 508-0920
www.permlight.com
Revised: 4/2007
http://www.permlight.com/cutsheets/500-12DC.pdf
480 WATT
500-12DC Series
•
8 independent 60 Watt output channels, total 480 Watts
•
Dimmable 120v, 240v and 277v Input Versions
•
Output Overload and Short Circuit Protection
•
Input supression for in-rush current
•
Compact aluminum housing with integral junction box
POWER, LOADING AND MOUNTING:
The 500-12DC series is designed specifically to provide
constant 12VDC voltage for safe and long-term operation of Permlight modules. The case is not water-
proof, therefore a water-proof container should be used if exposed to the elements. The 500-12DC is
designed for exterior applications with primary side connections made within the integral junction box,
eliminating the need for a separate junction box. The 500-12DC complies with UL Class 2 require-
ments that limit any power circuit (channel) to 5.0A maximum. The specification “cut sheet” for each
Permlight module specifies the maximum number of modules which can be used with a specific
Permlight power supply. The 500-12DC can be mounted inside of self-contained letters, race ways or
coves using the mounting holes on the chasis
DIMMING AND CONTROLS:
The 500-12DC series are line voltage dimmable, consult Permlight
website for list of approved 3-wire, electronic low-voltage dimmers. The 500-12DC series is capable of
instant on/off operation which means it is compatible with photocell and motion sensors.
WARRANTY:
5 years, see Permlight website for conditions. Warranty is applicable only if power
supply is properly loaded with less than or equal to the maximum specified amount of Permlight ap-
proved modules or cove/linear products. Consult Permlight website, specification cut sheets or instal-
lation instructions for additional information.

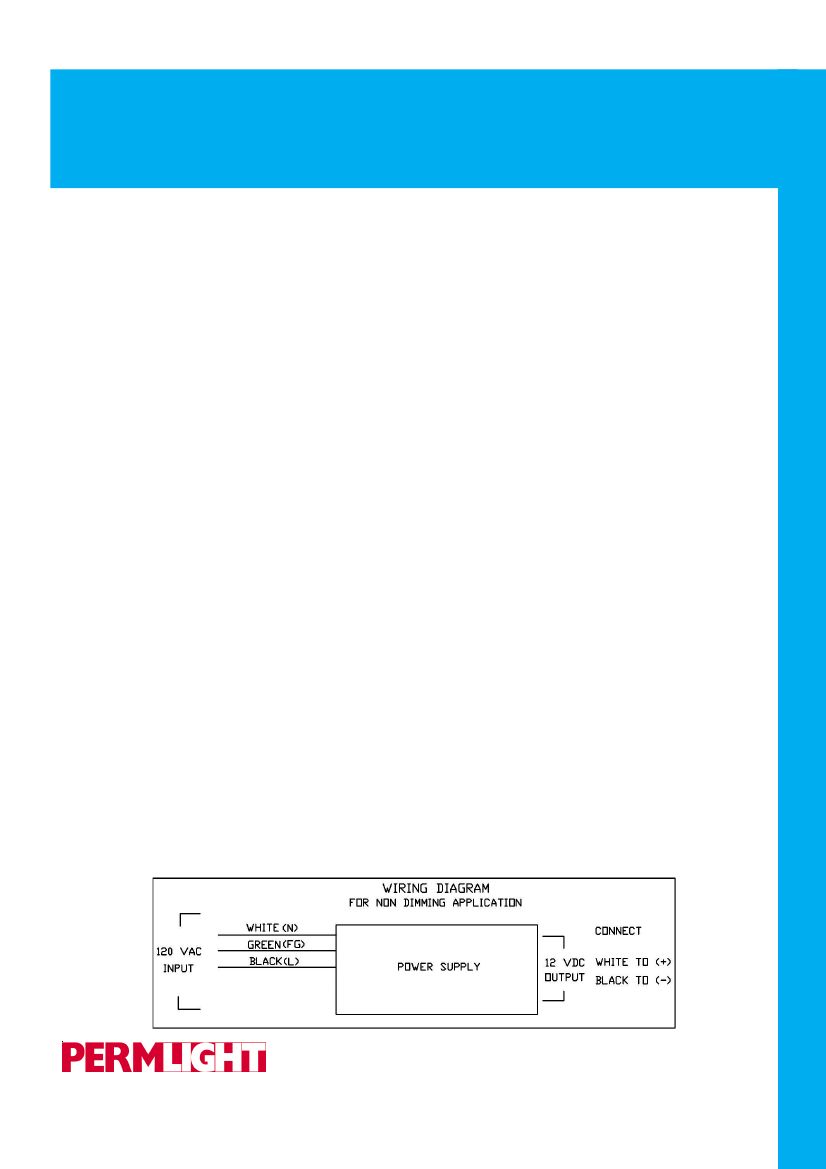

WIRING DIAGRAM:
422 West Sixth St., Tustin, CA 92780
Tel: (714) 508-0729 Fax: (714) 508-0920
www.permlight.com
Revised: 4/2007
http://www.permlight.com/cutsheets/500-12DC.pdf
REMOTE POWER SUPPLY
•
Listed under Sign Accessories Manual (SAM)
