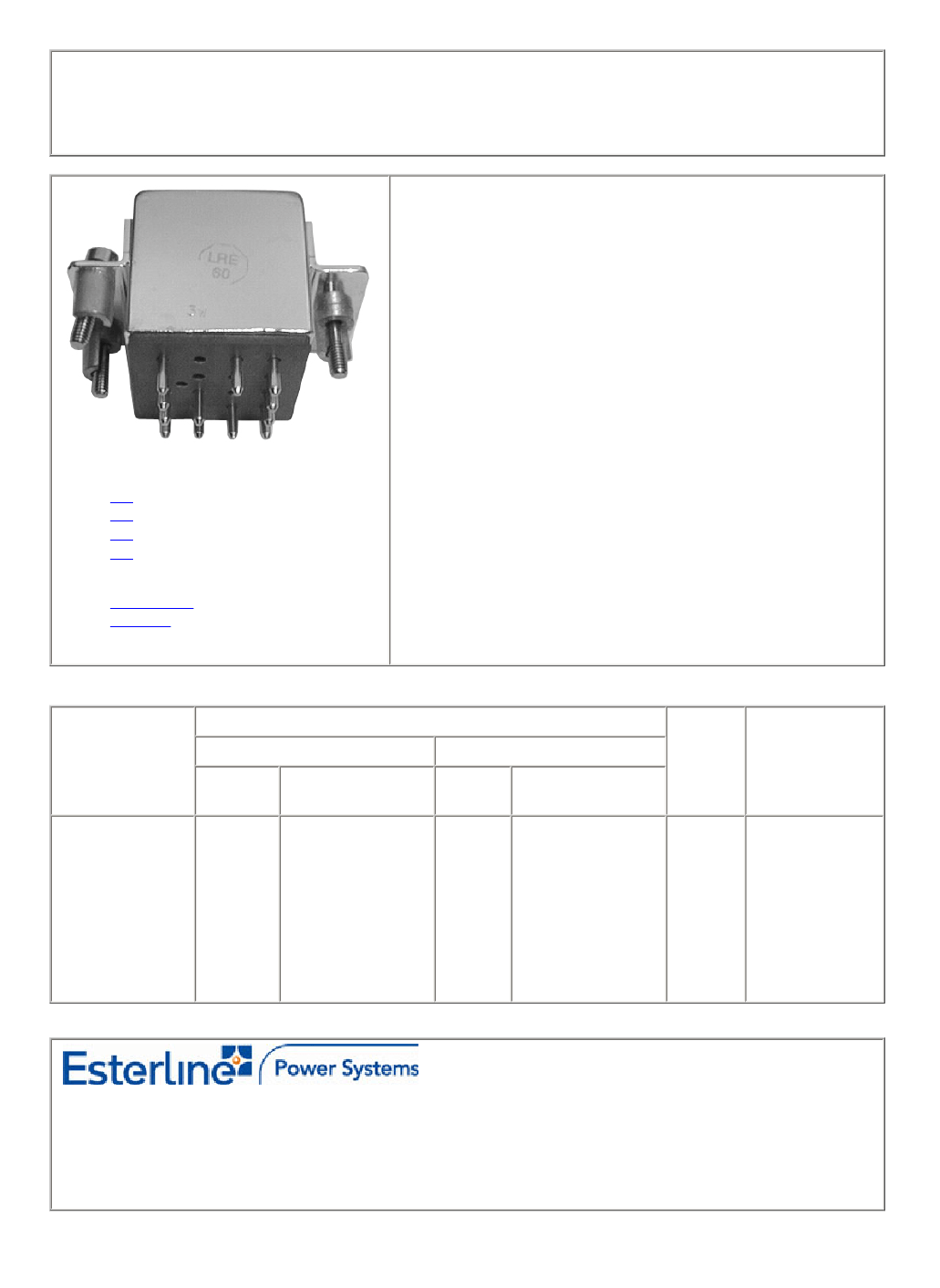

SERIES F470S1
ENGINEERING DATA SHEET
RAILWAY RELAY
1 PDT-DB-DM+2PDT, 3 AMP / 72VDC
Polarized, non latching, hermetically sealed relay
1 PDT-DB-DM + 2PDT
Contact arrangement
Coil supply
Direct current
PRINCIPLE TECHNICAL CHARACTERISTICS
Contact rating (1 PDT-DB-
DM)
Contact rating (2 PDT)
Weight
Dimensions of can without
hardware
Balanced-force design.
APPLICATION NOTES:
001
003
004
007
APPLICABLE SOCKET:
SF400CE40E
SF400-1F
72 Vdc / 3 Amps
72 Vdc / 1 Amp
< 80 grams
26mm x 25.7mm x 26mm max
Tin plated, hermetically sealed metal can.
Non-overlapping contact arrangement, see note 5 page 4.
CONTACT ELECTRICAL CHARACTERISTICS
Nominal contact
voltage (Vdc)
Contact rating in Amps
Simple break
resistive
load
72 V
5
≤
U
≤
90 V
15
≤
U
≤
35 V
35
<
U
≤
90 V
90
<
U
≤
140 V
1
1 to 20mA
-
-
inductive
load (L/R=30ms)
0.6
-
10 mA to 1.50
Amps
10 mA to 0.50
Amps
10 mA to 0.35
Amps
Double break
resistive
load
3
-
-
-
-
inductive
load (L/R=30ms)
1.2
-
10 mA to 2.50
Amps
10 mA to 1.00
Amps
10 mA to 0.70
Amps
High
level
Low level
High
level
High
level
High
level
1,000,000 cycles
2,000,000 cycles
2,000,000 cycles
2,000,000 cycles
2,000,000
cycles
Level
Minimum
operating
cycles
Life expectancy for DC loads other than 72Vdc: See application note n°003 and n°004
AMERICAS
6900 Orangethorpe Ave.
P.O. Box 5032
Buena Park, CA 90622
.
.
Tel: (01) 714-736-7599
Fax: (01) 714-670-1145
EUROPE
2 Rue Goethe
57430 Sarralbe
France
.
.
Tel: (33) 3 87 97 31 01
Fax: (33) 3 87 97 96 86
ASIA
Units 602-603 6/F Lakeside 1
No.8 Science Park West Avenue
Phase Two, Hong Kong Science Park
Pak Shek Kok, Tai Po, N.T.
Hong Kong
Tel: (852) 2 191 3830
Fax: (852) 2 389 5803
Featuring
LEACH
©
power and control solutions
www.esterline.com
Data sheets are for initial product selection and comparison. Contact Esterline Power Systems prior to choosing a component.
Date of issue: 4/06
- 17 -
Page 1 of 4
COIL CHARACTERISTICS (Vdc)
CODE
Nominal operating voltage
Maximum operating voltage at +85°C
Minimum operating voltage at +70°C, coil previously
energized at 1.15 Un or at 85° coil previously energized at
Un
Hold voltage at +85°C
Drop-out voltage at -40°C
Coil resistance in Ohms ±10% at +25°C
Maximum back EMF (Volts) (with P suffix)
C
6
7.5
4.2
H
9
B
12
J
18
A
24
D
36
45
SERIES F470S1
E
48
60
W
72
90
V
110
138
11.3 15
6.3
8.4
22.5 33
12.6 18.5 25.2 33.6 50.4 77
2.6
0.3
18
-15
3.2
4.2
6.3
0.9
7.5
1.5
12.5 17.5 22.5 35
1.8
2
3.6
5.5
0.45 0.6
38
-15
70
-15
155 290 550 955 2650 5000
-42
-42
-65
-65
-100 -140
GENERAL CHARACTERISTICS
Operating temperature
Dielectric strength at sea level
All terminals to ground
Contact to contact, isolated terminals
Initial insulation resistance at 500 Vdc
Sinusoidal vibration
Shock
1500 Vrms / 50 Hz
1500 Vrms / 50 Hz
>100 M
Ω
20 G / 30 to 3000 Hz
100 G / 6 ms
30 G / 18 ms
10 µs
15 ms max
15 ms max
1 ms max
15 mΩ max
20 mΩ max
-40°C to +85°C
Maximum contact opening time under vibration and shock
Operate time at nominal voltage
Release time
Bounce time
Contact resistance at 5 Amps (simple break)
Contact resistance at 5 Amps (double break)
Date of issue: 4/06
- 18 -
Page 2 of 4

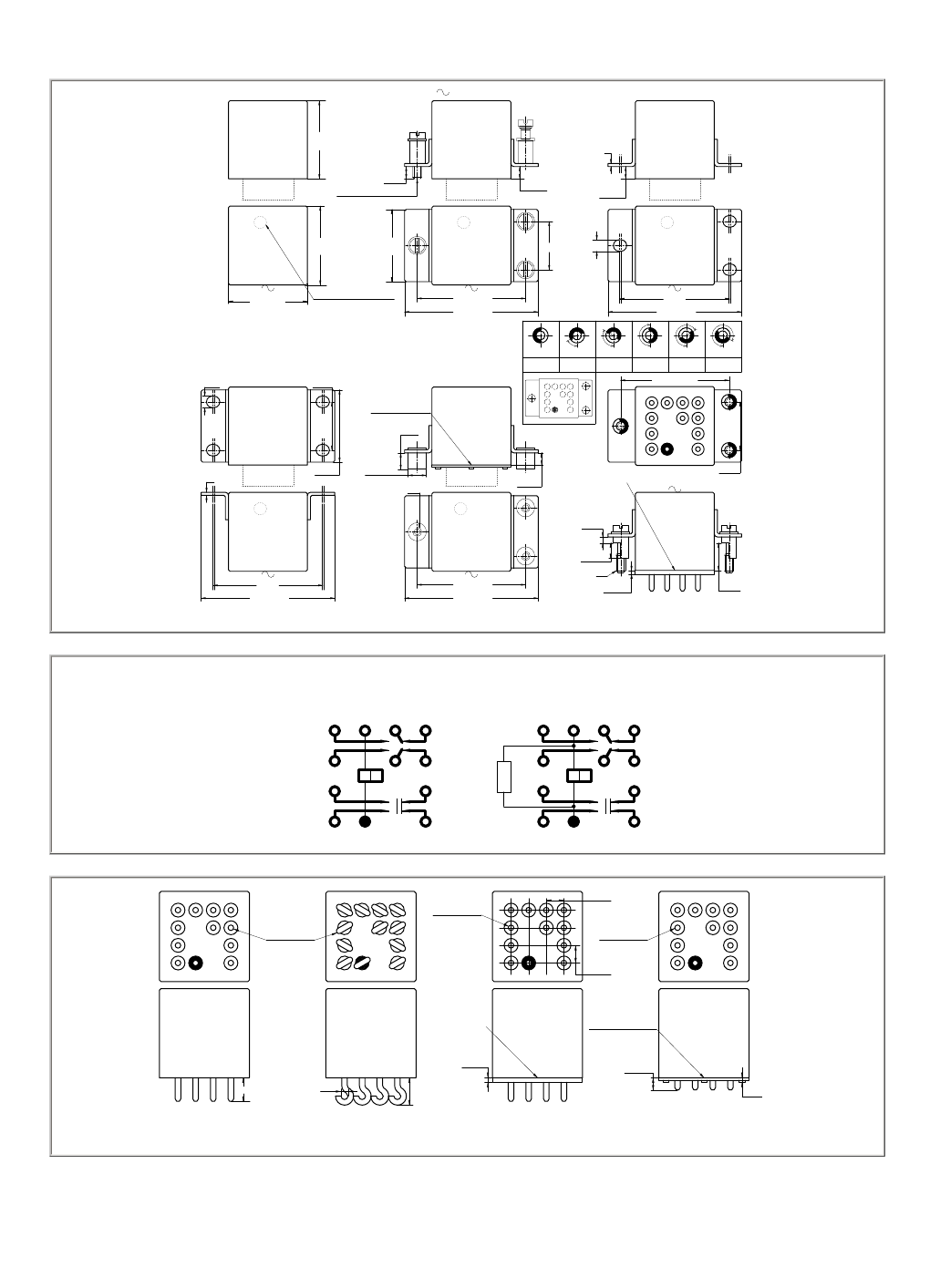

MOUNTING STYLES
Marking face
SERIES F470S1
A
25.7
MAX
B : ISO M3
C : UNC
4
ñ0.5
1
D
M3
or 4.40 UNC 2 B
4
ñ0.15
4
ñ0.15
26
MAX
23.8
MAX
15.9
3.8
Contrasting bead
26 MAX
35.7
ñ0.15
44 MAX
35.5
36.7
44 MAX
K MOUNTING MAY BE USED WITH 1 OR 8
TERMINAL STYLE; IT INCLUDES THE DELIVERY
OF 10124 ISOLATION SPACER PAD
0°
60°
120°
180°
240°
ñ0.15
300°
Code U Code V Code W Code X Code Y Code Z
35.7
3.8
15.9
Isolation pad
10124
5.4
Cl‚3
J
K
Cl‚1
Cl‚2
1
23.8
MAX
Ø6
ñ0.1
M3
4
ñ0.15
15.9
Silicone gasket
GOLD PLATED PINS
shore
A 15-30
2
ñ0.1
H
+0
5
-0.08
M3
35.5
36.7
44 MAX
ñ0.15
ñ0.1
35.7
Dimensions in mm
Tolerances unless otherwise specified ±0.25mm
1.3
ñ0.1
9
44 MAX
SCHEMATIC DIAGRAM
BOTTOM VIEW, DE-ENERGIZED COIL
P OPTION
CE : EXPORTED SPIKES
SUPPRESSOR DEVICE
D
C
B
A
1
-X2
2
3
D
C
E
C
B
A
1
-X2
2
3
+
+
+X1
+X1
TERMINAL TYPES
5.08
Ø1.57
Ø1.57
-0.03
+0.05
ñ0.03
+0.05
Ø1.57
-0.03
5.08
1
2
Silicone
gasket shore
A 15-30
1.3
ñ0.1
4
Isolation pad
10124
+0.5
8
3.6
+0
6.9
ñ0.2
Ø2
7.9
MAX
1.27
TIN PLATED PINS
SOLDER HOOKS
GOLD PLATED PINS
SHORT TIN PLATED PINS
Date of issue: 4/06
- 19 -
Page 3 of 4
NUMBERING SYSTEM
SERIES F470S1
F470S1 B
4
A
P AND/OR XXX
Basic series designation__________________________|
|
|
|
|
|
1-Mounting Styles (A,B,C,D,J,K,H)_____________________|
|
|
|
|
2-Terminal Types(1,2,4,8)_________________________________|
|
|
|
3-Coil Voltage (C,H,B,J,A,D,E,W,V)____________________________|
|
|
4-Coil Suppression (P)_____________________________________________|
|
5-Coding keys for H mounting style___________________________________________|
NOTES
1.
2.
3.
4.
5.
Relays with B, D mounting styles and terminal type 4 are compatible with socket SF400CE40E.
Relays with H mounting style are compatible with socket SF400-1F.
Isolation spacer pads for PCB mounting available on request.
For other mounting styles or terminal types or coding, please contact factory.
Non overlapping arrangement insures that if one of the NO or NC contacts is accidentally welded, none of
the other contacts can be transfered to another state.
6.
For "H" mount relays with coil suppression, customer should specify the code.
Double break-double make contacts A and B do not appear in this chart, they are typically high level.
CODING CHART FOR H MOUNTING WITHOUT COIL SUPPRESSION (5)
Type of contact operation
pole
C
D
C
D
C
D
X
X
X
X
low level
high level
X
X
24 volts
UZX
Nominal load voltage
48 volts
VZX
72 volts
WZX
110 volts
XZX
36 volts
YZX
UZY
VZY
WZY
XZY
YZY
UZZ
VZZ
WZZ
XZZ
YZZ
TYPICAL CHARACTERISTICS
q
q
Coil resistance temperature change: See application note n°001
Coil L/R ratio for all types of DC coils is = 11 ms
- 20 -
Page 4 of 4
Date of issue: 4/06
Application notes
N°001

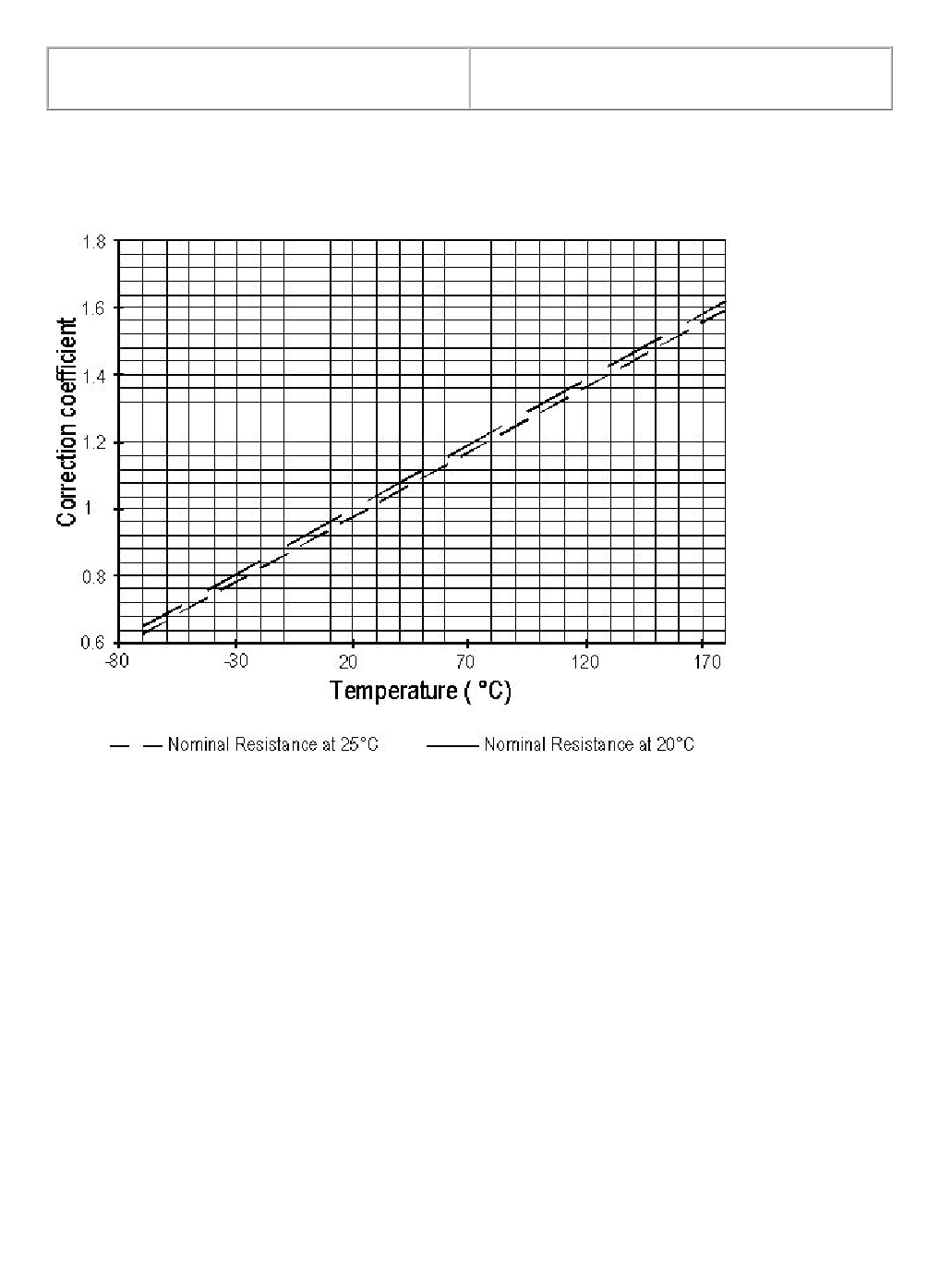

CORRECTION DUE TO COIL COPPER WIRE RESISTANCE
CHANGE IN TEMPERATURE
Example: Coil resistance at 25°C: 935 ohms. What is it at 125°C?
Correction coefficient on diagram is: 1.39 at 125°C. R becomes: 935x1.39=1299 Ohms
Correction also applies to operating voltages
Date of issue: 6/00
-1-
Page 1 of 1
