9157 I/O Connector
GENERAL DESCRIPTION

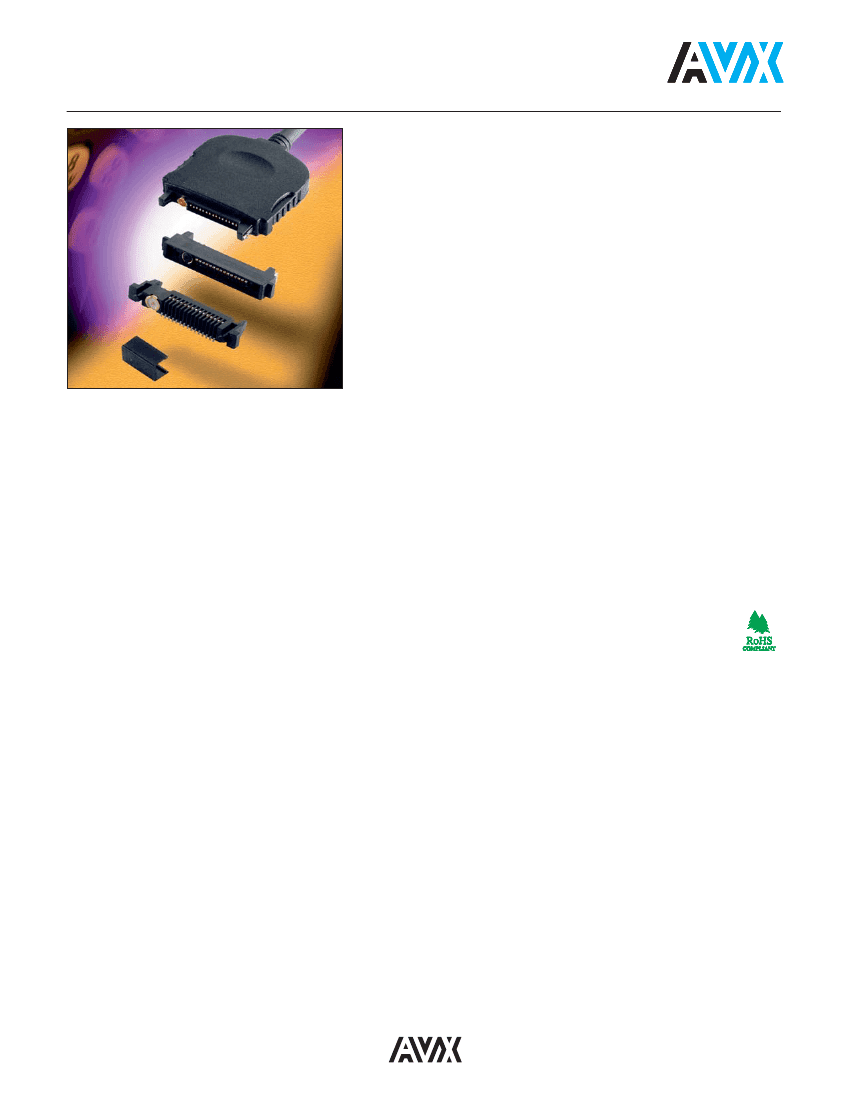

The 9157 series was specifically designed for portable equipment.
AVX now offers this two-part system as a standard product. The fixed SMT
socket is designed to be housed within the confined dimensional constraints
of the portable device.
The plug/cover connector has sprung contacts and is designed for termina-
tion to accessory equipment. The connector is designed to house fifteen
signal contacts on a 1mm pitch rated at 1.5A. There is the option to include a
switching RF coax.
A cradle SMT plug connector for docking applications is also available as
standard and has the option of including a SMT RF coax.
Whatever your requirements, the 9157 series can also be customized to suit
your application.
APPLICATIONS
Suitable applications include:
• Mobile Phones
• PDA
• Medical
• Docking/Charging for any
portable device
KEY FEATURES AND BENEFITS
• Patented 20º angled face on the socket gives self-cleaning face when
mated with plug.
• Metal Latching area integral to socket which saves PCB real estate.
• Integral to socket is a mechanical 50Ω switching coax for SMT
termination.
• Single sprung plug contact design gives ten thousand mating cycles
and cleaning/wiping action.
• Customer has option to terminate own RF coax using AVX custom tool-
ing: 06-9157-7116-01-000.
• SMT plug has unique location pyramids that give positive alignment to
portable device, and assist blind mating.
• RoHS Compliant.
33

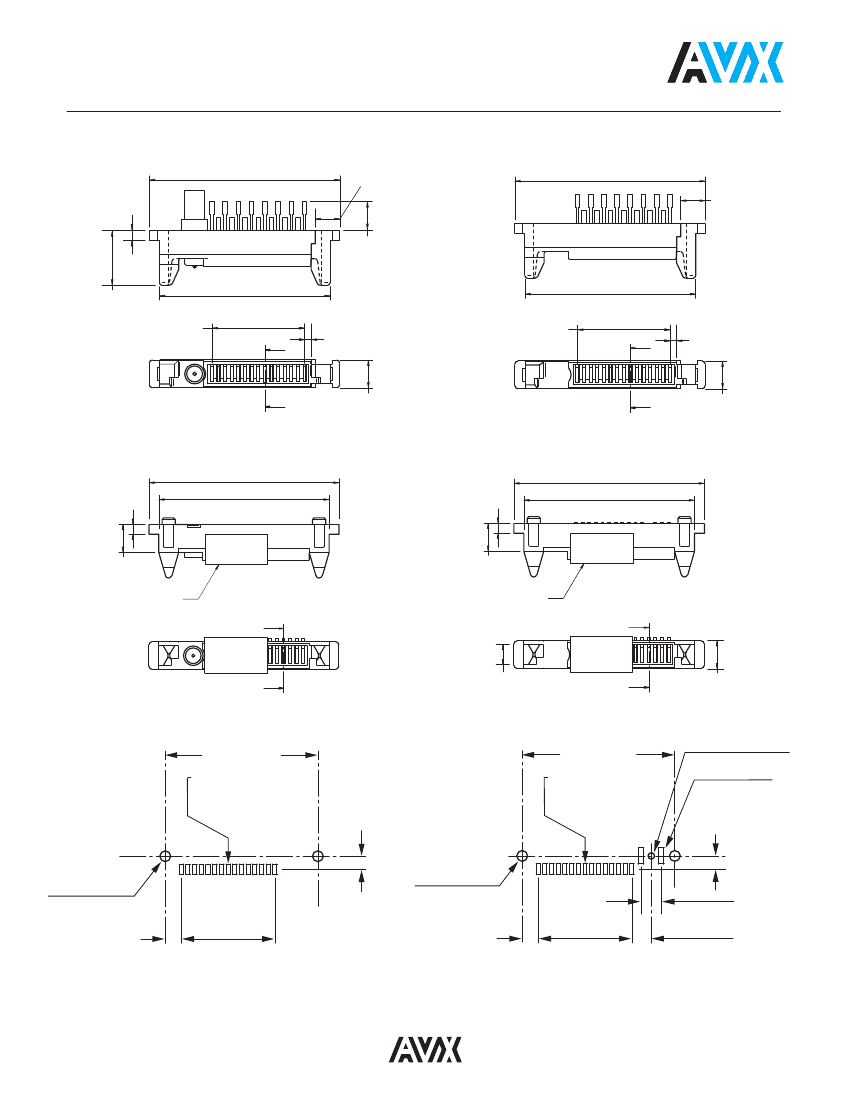

9157 I/O Connector
Plug Wire with Coax
28.80 (1.134)
1.50
(0.059)
3.72
(0.146)
Plug Wire without Coax
28.80 (1.134)
3.72
(0.146)
5.50
(0.217)
MAX
8.30
(0.327)
14 PITCHES
@ 1.00 = 14.00
(0.039 = 0.551)
25.80 (1.016)
25.80 (1.016)
1.00 (0.039)
B
14 PITCHES
@ 1.00 = 14.00
(0.039 = 0.551)
B
1.00 (0.039)
B
4.20
(0.165)
B
4.20
(0.165)
SMT Plug with Coax
28.80 (1.134)
1.50
(0.059)
25.80 (1.016)
SMT Plug without Coax
28.80 (1.134)
1.50
(0.059)
25.80 (1.016)
4.25
(0.167)
SMT CAP SHOWN ON
2 VIEWS ONLY
B
4.25
(0.167)
SMT CAP SHOWN ON
2 VIEWS ONLY
B
B
3.00
(0.118)
B
4.15
(0.163)
22.80 (0.898)
15 PADS @ 0.60 x 1.50
15 PADS @ (0.024 x 0.094)
22.80 (0.898)
15 PADS @ 0.60 x 1.50
15 PADS @ (0.024 x 0.094)
Ø 1.20 (0.047) PAD
0.9 x 2.50 PAD
2 POSNS
1.97
(0.059)
1.97
(0.059)
2 THRU HOLES
Ø 2.00 (0.079)
2.40 (0.094)
14 PITCHES @ 1.00 = 14.00
(0.039 = 0.551)
2 THRU HOLES
Ø 2.00 (0.079)
3.32
(0.131)
2.65
(0.104)
14 PITCHES @ 1.00 = 14.00
(0.039 = 0.551)
SUGGESTED PCB LAYOUT
2.40 (0.094)
SUGGESTED PCB LAYOUT
34
