SUBMINIATURE SOLID STATE LAMP
PRELIMINARY SPEC
ATTENTION
OBSERVE PRECAUTIONS
FOR HANDLING
ELECTROSTATIC
DISCHARGE
SENSITIVE
DEVICES
Part Number: AM2520VGC/A03
Green
Features
SUBMINIA TURE PACKAGE.
WIDE VIEWING ANGLE.
GULL WING LEAD.
LONG LIFE - SOLID STATE RELIABILITY.
LOW PACKAGE PROFILE.
MOISTURE SENSITIVITY LEVEL : LEVEL 3.

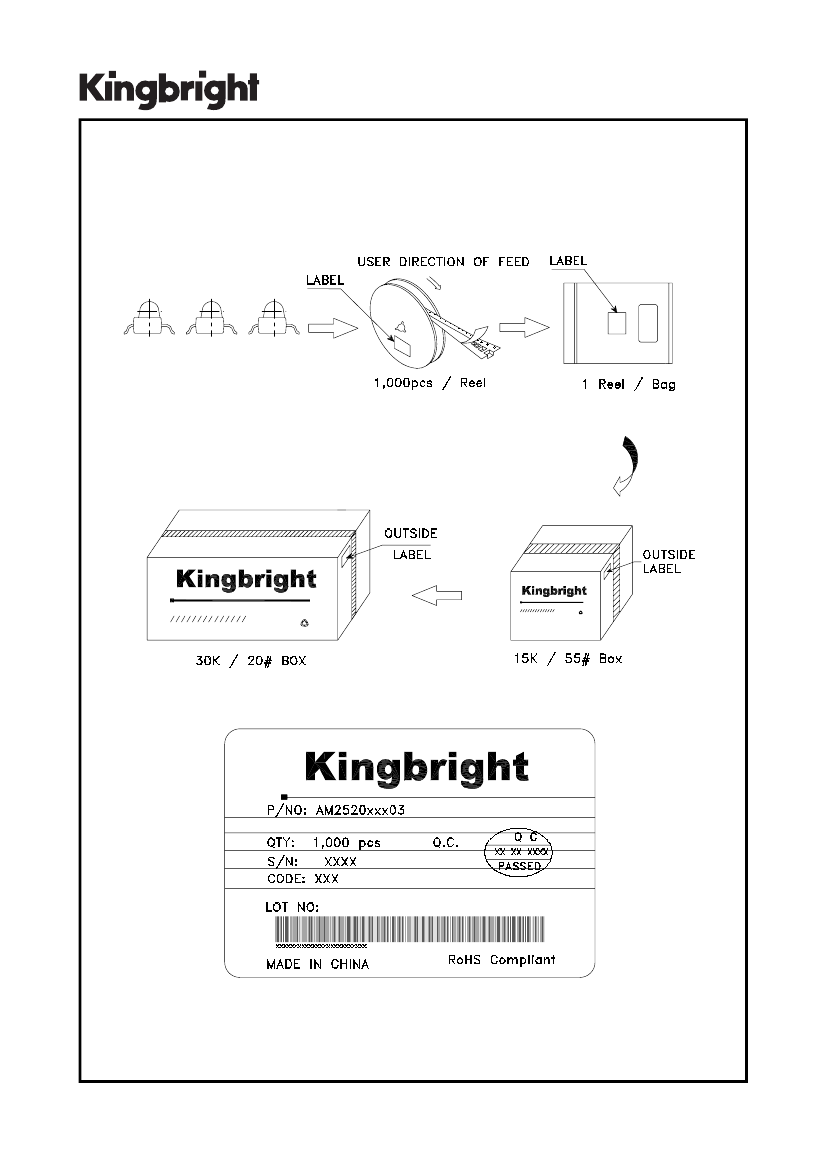

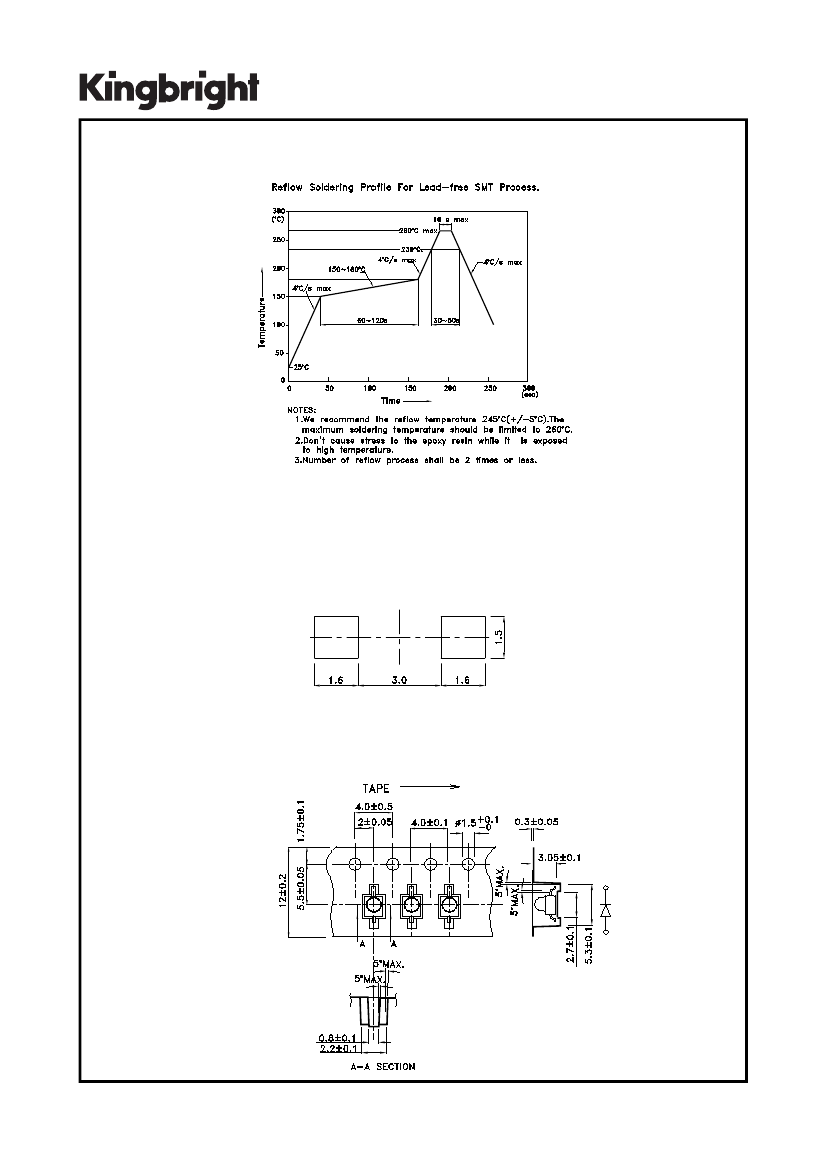

PACKAGE : 1000PCS / REEL.
RoHS COMPLIANT.
Description
The Green source color devices are made with InGaN on
G-SiC Light Emitting Diode.
Static electricity and surge damage the LEDS.
It is recommended to use a wrist band or
anti-electrostatic glove when handling the LEDs.
All devices, equipment and machinery must be electrically
grounded.

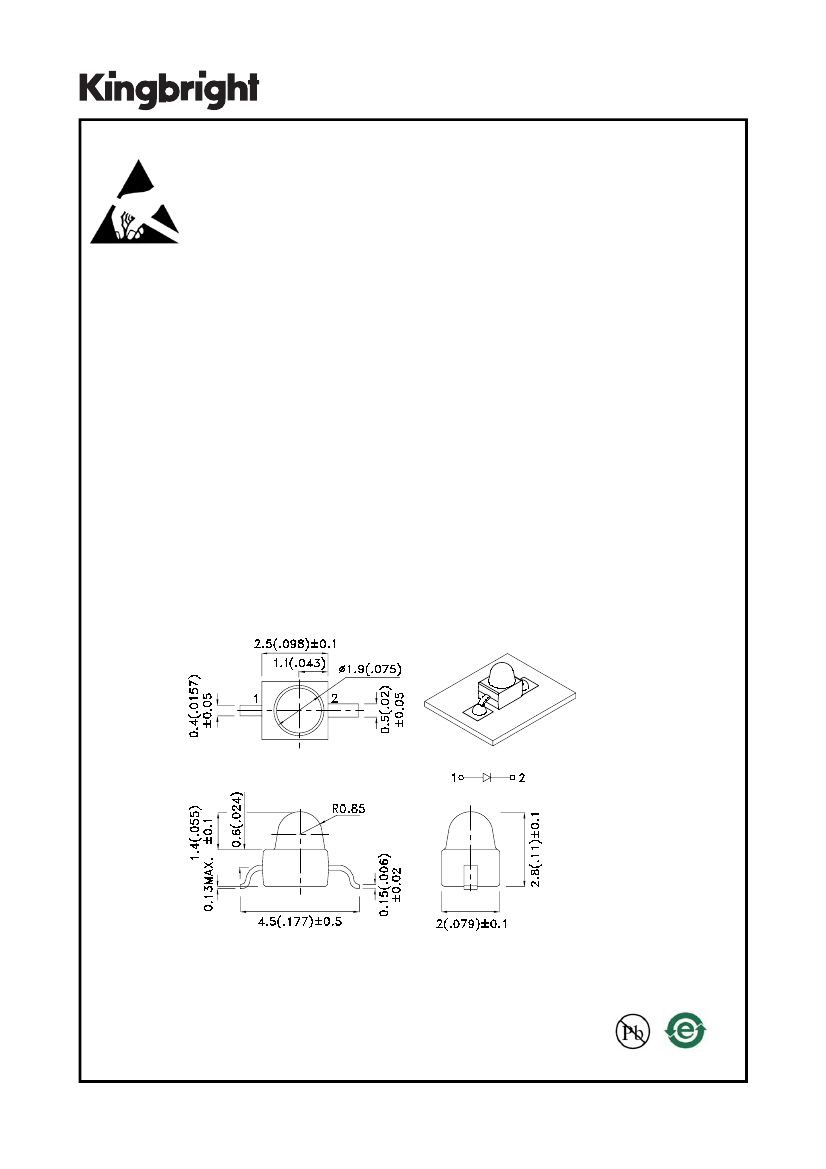

Package Dimensions
Notes:
1. All dimensions are in millimeters (inches).
2. Tolerance is ±0.25(0.01") unless otherwise noted.
3. Lead spacing is measured where the leads emerge from the package.
4. Specifications are subject to change without notice.
5. The device has a single mounting surface. The device must be mounted according to the specifications.
SPEC NO: DSAH3715
APPROVED: WYNEC
REV NO: V.1
CHECKED: Allen Liu
DATE: APR/26/2007
DRAWN: Y.L.LI
PAGE: 1 OF 5
ERP: 1202001491
Selection Guide
Part No.
Dice
Lens Type
Iv (mcd) [2]
@ 20mA
Min.
AM2520VGC/A03
Green (InGaN)
WATER CLEAR
380
Typ.
800
Viewing
Angle [1]
2θ1/2
20
°
Notes:
1.
θ1/2
is the angle from optical centerline where the luminous intensity is 1/2 the optical centerline value.
2. Luminous intensity/ luminous Flux: +/-15%.

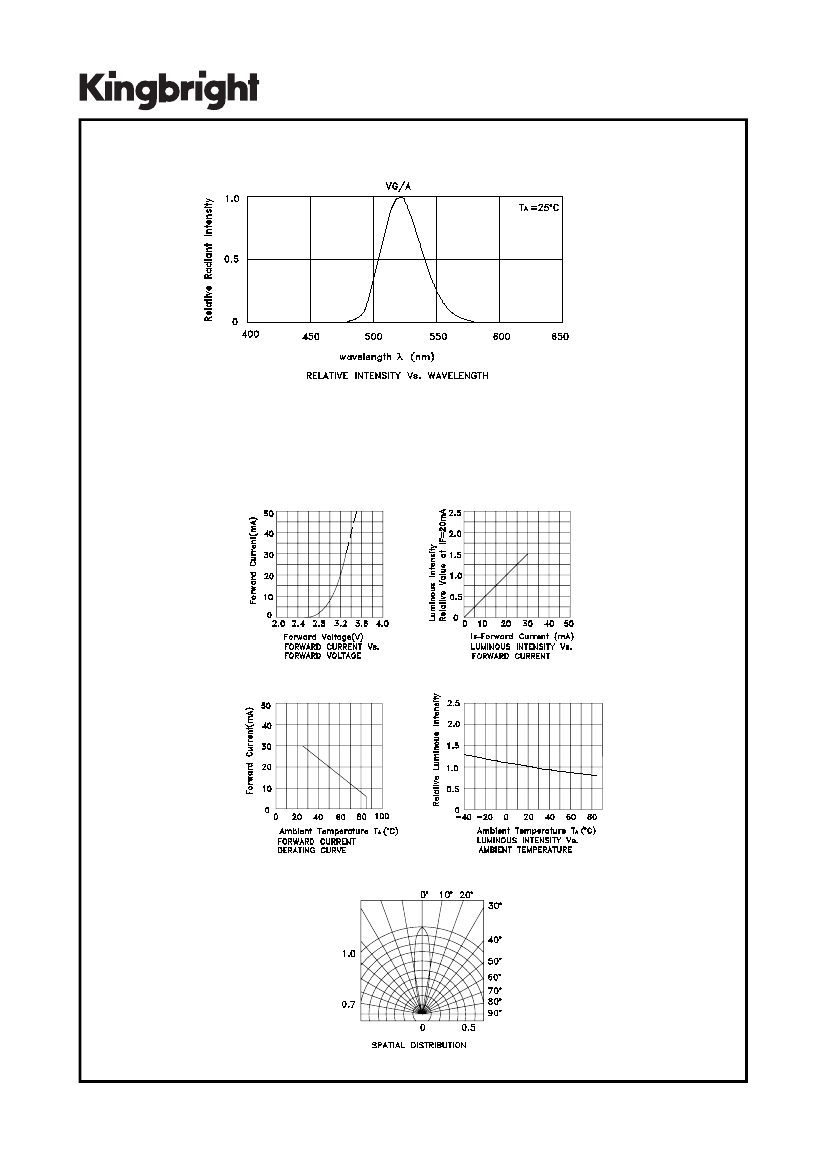

Electrical / Optical Characteristics at TA=25°C
Symbol
λpeak
λD
[1]
Δλ1/2
C
V
F
[2]
I
R
Parameter
Peak Wavelength
Dominant Wavelength
Spectral Line Half-width
Capacitance
Forward Voltage
Reverse Current
Device
Green
Green
Green
Green
Green
Green
Typ.
520
525
35
100
3.2
4
10
Max.
Units
nm
nm
nm
pF
V
uA
Test Conditions
I
F
=20mA
I
F
=20mA
I
F
=20mA
V
F
=0V;f=1MHz
I
F
=20mA
V
R
=5V
Notes:
1.Wavelength: +/-1nm.
2. Forward Voltage: +/-0.1V.
Absolute Maximum Ratings at TA=25°C
Parameter
Power dissipation
DC Forward Current
Peak Forward Current [1]
Reverse Voltage
Operating Temperature
Storage Temperature
Note:
1. 1/10 Duty Cycle, 0.1ms Pulse Width.
Green
120
30
100
5
-40°C To +85°C
-40°C To +85°C
Units
mW
mA
mA
V
SPEC NO: DSAH3715
APPROVED: WYNEC
REV NO: V.1
CHECKED: Allen Liu
DATE: APR/26/2007
DRAWN: Y.L.LI
PAGE: 2 OF 5
ERP: 1202001491
