4-Line Filters
for Converters and Power Electronics
Power line filters for three-phase systems
Rated voltage 440/250 V~, 50/60 Hz
Rated current 16 to 1600 A
Construction
■
Four-line filter
■
Metal case
■
Threaded bushes at end faces for
B84144
RF-tight installation
Features
■
■
■
■
■
Low leakage current
Easy to install
Degree of protection up to 180 A: IP 20
1)
Space-saving design
Design based on
EN 133200, UL 1283, CSA 22.2 No.8 1986
Applications
■
■
■
■
General-purpose application in power electronics
UPS
Wind farms
For machine tools, textile and packaging machines
Terminals
■
Safe-to-touch terminal blocks for filters up to 180 A
■
Busbars for filters 250 to 1600 A
Marking
Marking on component:
Manufacturer’s logo, ordering code,
rated voltage, rated current,
date code
Minimum marking on packaging:
Manufacturer’s logo, ordering code
1) In accordance with IEC 60529: 1989; EN 60529: 1991; DIN VDE 0470-1
274
04/02
4-Line Filters
for Converters and Power Electronics
Typical circuit diagram
LINE
L1
LOAD
L1’
B84144
L2
L2’
L3
L3’
N
PE
N’
PE
SSB1076-F
Technical data
Rated voltage
V
R
Rated current
I
R
Test voltage
V
P
440/250 V~, 50/60 Hz
Referred to 40
°
C ambient temperature
1770 V–, 2 s (line/line)
2700 V–, 2 s (lines/case), for 16 … 50 A
2550 V–, 2 s (lines/case), for 80 … 180 A
2121 V–, 2 s (lines/case), for 250 … 1600 A
1,5 ·
I
R
for 3 min per hour or
2,5 ·
I
R
für 30 s per hour
at 400 V~, 50 Hz
25/100/21 (– 25
°
C/+100
°
C/21 days damp heat test)
in accordance with EN 60068-1
Overload capability
Leakage current
I
leak
Climatic category
275
04/02
4-Line Filters
for Converters and Power Electronics

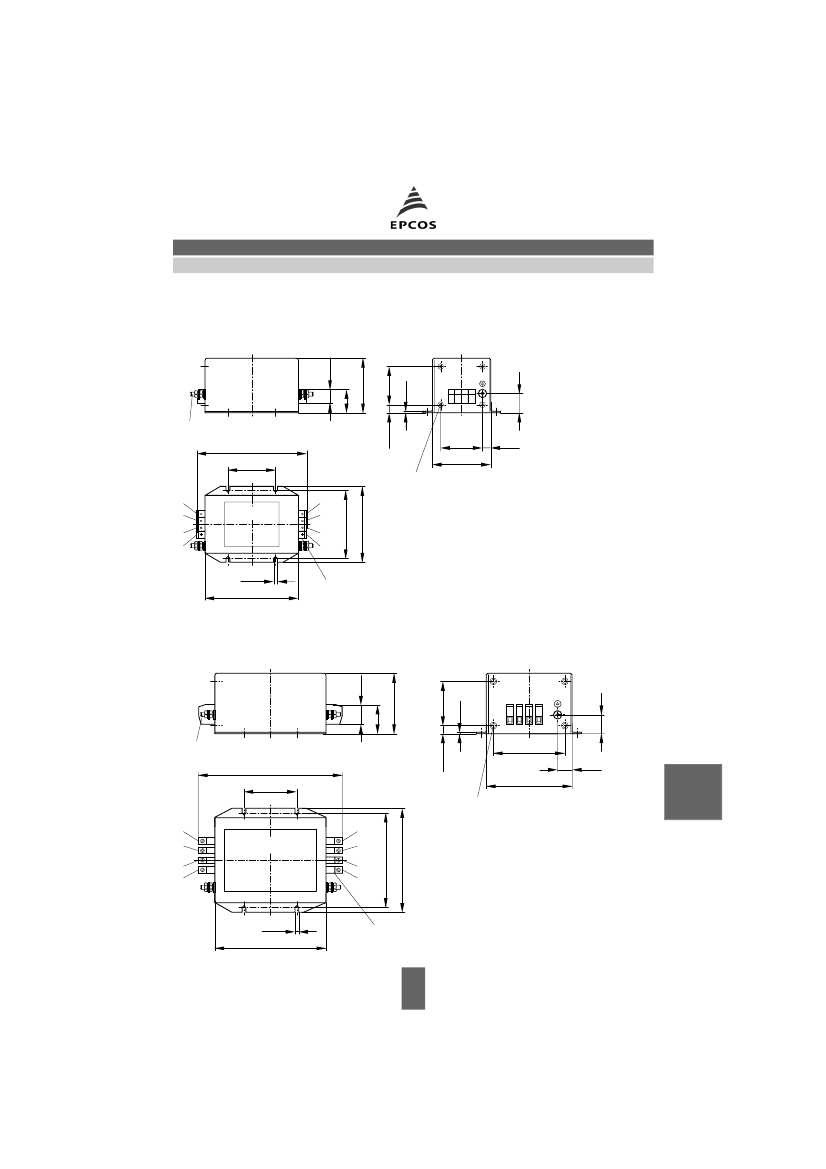

B84144-A80-R
48,5±0,5
B84144
141 max.
18±1
110±0,4
1,2±0,1
83±1
15±0,4
PE M10 x 35
300 max.
115±0,2
110±0,4
141 max.
4
x M6/6
/
mm tief
deep
×
M6 6 mm
L1
L1
N
LINE
LOAD
6,6±0,2
221 max.
N
155±0,3
Marking
Terminal blocks
25 mm
2
25 mm
2
Anschlussklemmen
SSB1079-5

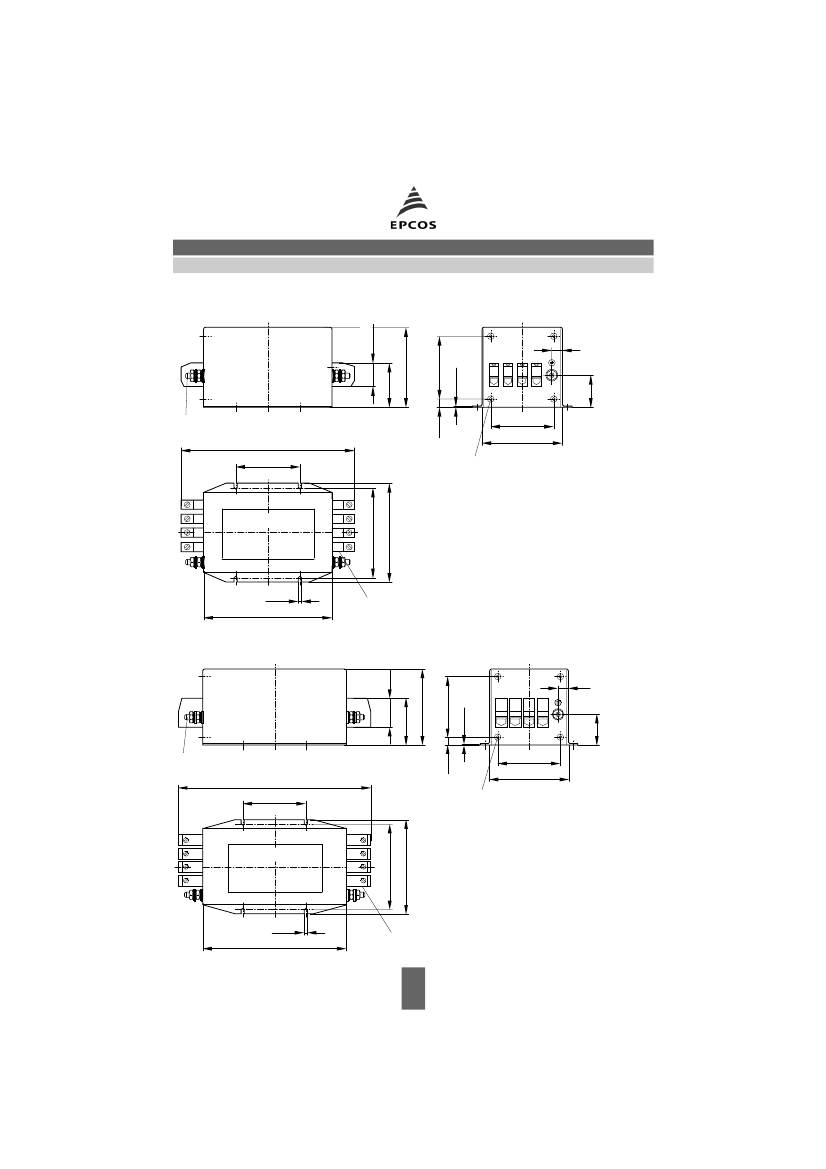

B84144-A120-R, B84144-A150-R
54±0,5
18±1
171 max.
L2
L3
L3
L2
141 max.
110±0,4
1,2±0,1
87±1
15±0,4
PE M10 x 35
348 max.
115±0,2
110±0,4
141 max.
4
x M6/6
/
mm tief
deep
×
M6 6 mm
N L3 L2 L1
N L3 L2 L1
LINE
LOAD
6,6±0,2
261 max.
Anschlussklemmen
Terminal blocks 50 mm
2
50 mm
2
155±0,3
Marking
171 max.
SSB1086-M
278
04/02
55±1
55±1
