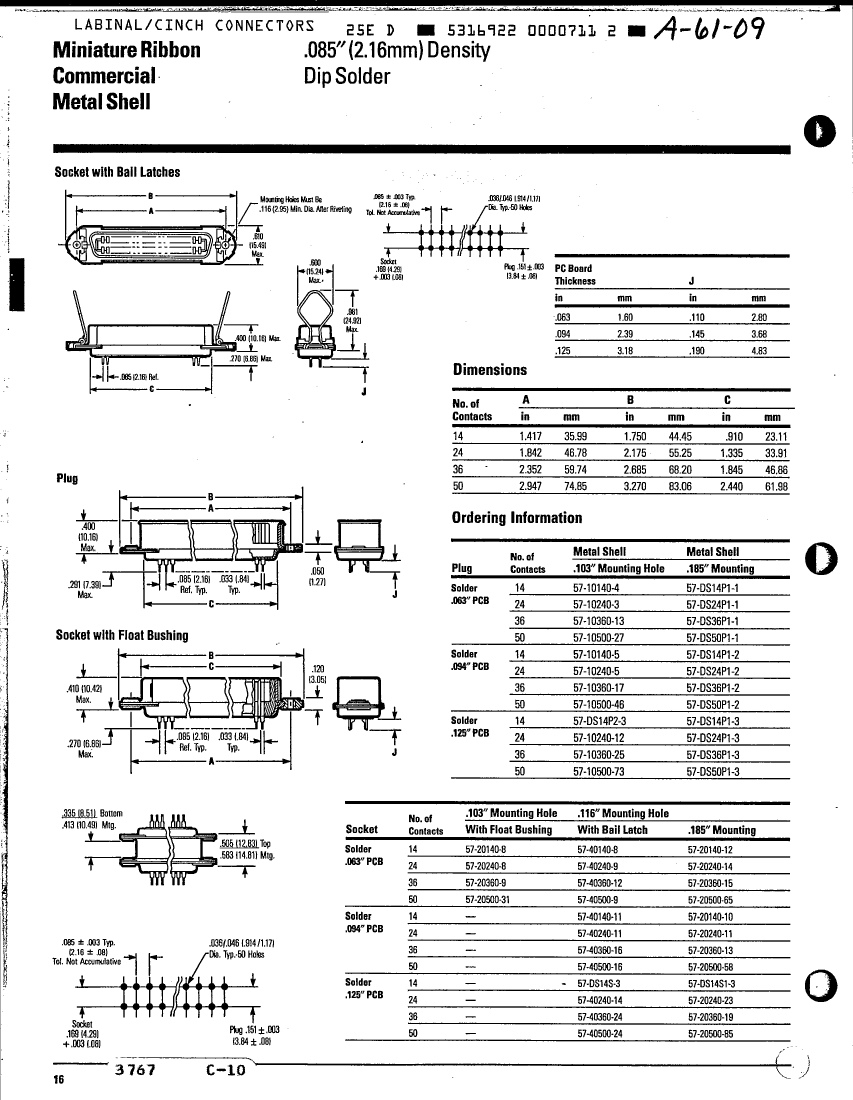

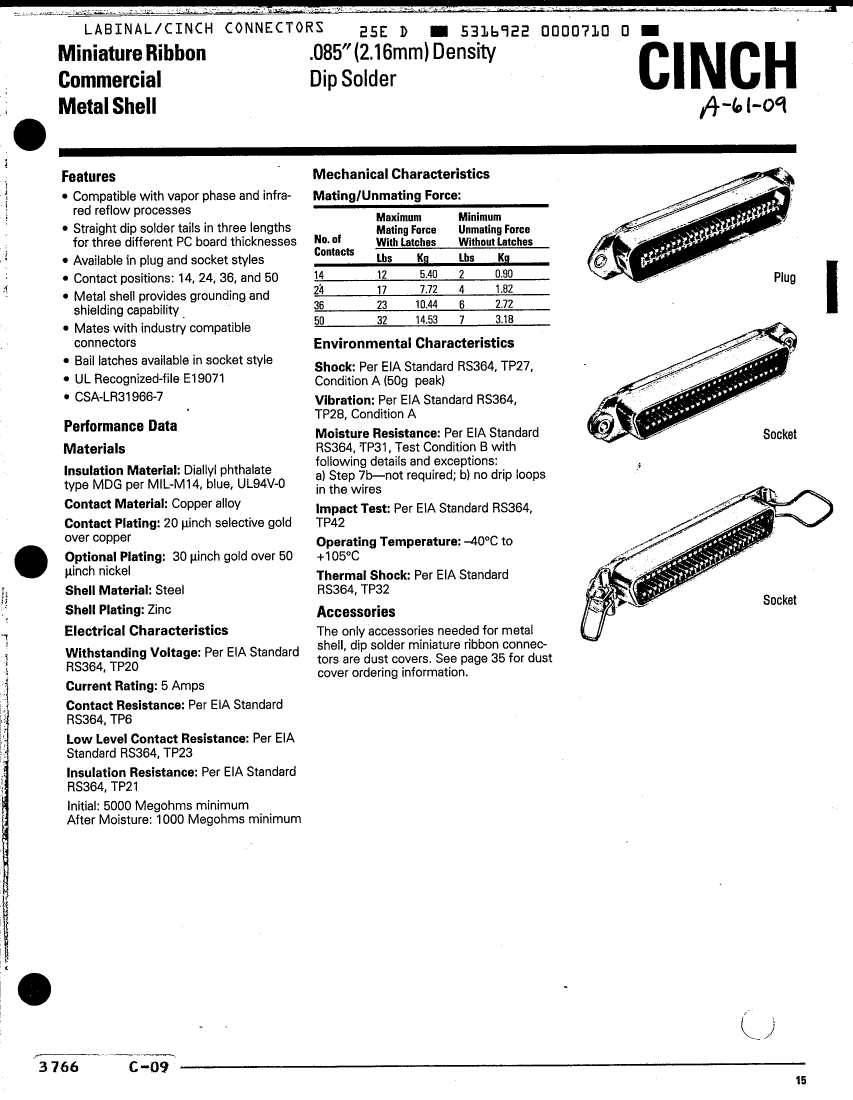

57-DS24P1-3: DescriptionD Type Connector, 24 Contact(s), Male, 0.085 inch Pitch, Solder Terminal, Hole .164-.189, Receptacle; CategoryThe connector The connector; File Size213KB，2 Pages; ManufacturerBel Fuse

Download Datasheet Parametric Compare View All

57-DS24P1-3 Overview

D Type Connector, 24 Contact(s), Male, 0.085 inch Pitch, Solder Terminal, Hole .164-.189, Receptacle

57-DS24P1-3 Parametric

Parameter Name	Attribute value
Maker	Bel Fuse
Reach Compliance Code	compliant
body length	2.175 inch
Body/casing type	RECEPTACLE
Contact to complete cooperation	AU ON CU
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact style	DUAL PRONG
maximum insertion force	3.1414 N
Insulation resistance	1000000000 Ω
Insulator color	BLUE
insulator material	DIALLYL PHTHALATE
Manufacturer's serial number	57
Plug contact pitch	0.085 inch
Installation option 1	HOLE .164-.189
Installation option 2	NON-THREADED
Installation method	STRAIGHT
Installation type	BOARD
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	3.8354 mm
Plating thickness	20u inch
Rated current (signal)	5 A
Guideline	UL, CSA
reliability	COMMERCIAL
Shell surface	ZINC
Shell material	STEEL
Terminal length	0.19 inch
Terminal pitch	2.159 mm
Termination type	SOLDER
Total number of contacts	24
Evacuation force-minimum value	.7506 N
Base Number Matches	1

Preview

Download Datasheet

View All

57-DS24P1-3 Related Products

	57-DS24P1-3	57-DS50P1-3	57-DS14S1-3	57-DS14P1-1	57-DS14P1-3	57-DS50P1-2
Description	D Type Connector, 24 Contact(s), Male, 0.085 inch Pitch, Solder Terminal, Hole .164-.189, Receptacle	D Type Connector, 50 Contact(s), Male, 0.085 inch Pitch, Solder Terminal, Hole .164-.189, Receptacle	D Type Connector, 14 Contact(s), Female, 0.085 inch Pitch, Solder Terminal, Hole .164-.189, Plug	D Type Connector, 14 Contact(s), Male, 0.085 inch Pitch, Solder Terminal, Hole .164-.189, Receptacle	D Type Connector, 14 Contact(s), Male, 0.085 inch Pitch, Solder Terminal, Hole .164-.189, Receptacle	D Type Connector, 50 Contact(s), Male, 0.085 inch Pitch, Solder Terminal, Hole .164-.189, Receptacle
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant
body length	2.175 inch	3.27 inch	1.75 inch	1.75 inch	1.75 inch	3.27 inch
Body/casing type	RECEPTACLE	RECEPTACLE	PLUG	RECEPTACLE	RECEPTACLE	RECEPTACLE
Contact to complete cooperation	AU ON CU	AU ON CU	AU ON CU	AU ON CU	AU ON CU	AU ON CU
Contact point gender	MALE	MALE	FEMALE	MALE	MALE	MALE
Contact material	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact style	DUAL PRONG	DUAL PRONG	DUAL PRONG	DUAL PRONG	DUAL PRONG	DUAL PRONG
maximum insertion force	3.1414 N	2.8356 N	3.8086 N	3.8086 N	3.8086 N	2.8356 N
Insulation resistance	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω
Insulator color	BLUE	BLUE	BLUE	BLUE	BLUE	BLUE
insulator material	DIALLYL PHTHALATE	DIALLYL PHTHALATE	DIALLYL PHTHALATE	DIALLYL PHTHALATE	DIALLYL PHTHALATE	DIALLYL PHTHALATE
Manufacturer's serial number	57	57	57	57	57	57
Plug contact pitch	0.085 inch	0.085 inch	0.085 inch	0.085 inch	0.085 inch	0.085 inch
Installation option 1	HOLE .164-.189	HOLE .164-.189	HOLE .164-.189	HOLE .164-.189	HOLE .164-.189	HOLE .164-.189
Installation option 2	NON-THREADED	NON-THREADED	NON-THREADED	NON-THREADED	NON-THREADED	NON-THREADED
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
PCB row number	2	2	2	2	2	2
Number of rows loaded	2	2	2	2	2	2
Maximum operating temperature	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
PCB contact row spacing	3.8354 mm	3.8354 mm	4.2926 mm	3.8354 mm	3.8354 mm	3.8354 mm
Plating thickness	20u inch	20u inch	20u inch	20u inch	20u inch	20u inch
Rated current (signal)	5 A	5 A	5 A	5 A	5 A	5 A
Guideline	UL, CSA	UL, CSA	UL, CSA	UL, CSA	UL, CSA	UL, CSA
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Shell surface	ZINC	ZINC	ZINC	ZINC	ZINC	ZINC
Shell material	STEEL	STEEL	STEEL	STEEL	STEEL	STEEL
Terminal length	0.19 inch	0.19 inch	0.19 inch	0.11 inch	0.19 inch	0.145 inch
Terminal pitch	2.159 mm	2.159 mm	2.159 mm	2.159 mm	2.159 mm	2.159 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	24	50	14	14	14	50
Evacuation force-minimum value	.7506 N	.6116 N	.6394 N	.6394 N	.6394 N	.6116 N
Maker	Bel Fuse	Bel Fuse	Bel Fuse	-	Bel Fuse	Bel Fuse
Base Number Matches	1	1	1	1	1	-
