7016X1/5: DescriptionLED SMT 1210 1.75/2.2V 20mA Red/Green; CategoryLED optoelectronic/LED photoelectric; File Size562KB，1 Pages; ManufacturerVisual Communications Company, LLC; Websitehttp://vcclite.com; Environmental Compliance

Download Datasheet Parametric Compare View All

7016X1/5 Overview

LED SMT 1210 1.75/2.2V 20mA Red/Green

7016X1/5 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Visual Communications Company, LLC
package instruction	SMT, 4 PIN
Reach Compliance Code	compliant
color	RED/GREEN
Configuration	SEPARATE, 2 ELEMENTS
Maximum forward current	0.03 A
Lens type	NONDIFFUSED
Nominal luminous intensity	12.5/14.5 mcd
Installation features	SURFACE MOUNT
Number of functions	1
Number of terminals	4
Maximum operating temperature	80 °C
Minimum operating temperature	-25 °C
Optoelectronic device types	DUAL COLOR LED
total height	1.3 mm
method of packing	TAPE AND REEL
peak wavelength	660/570 nm
shape	RECTANGULAR
size	2.3 mm
surface mount	YES
perspective	110 deg
Base Number Matches	1

Preview

Download Datasheet

View All

engineered to light up your design

www.vcclite.com

1.800.522.5546

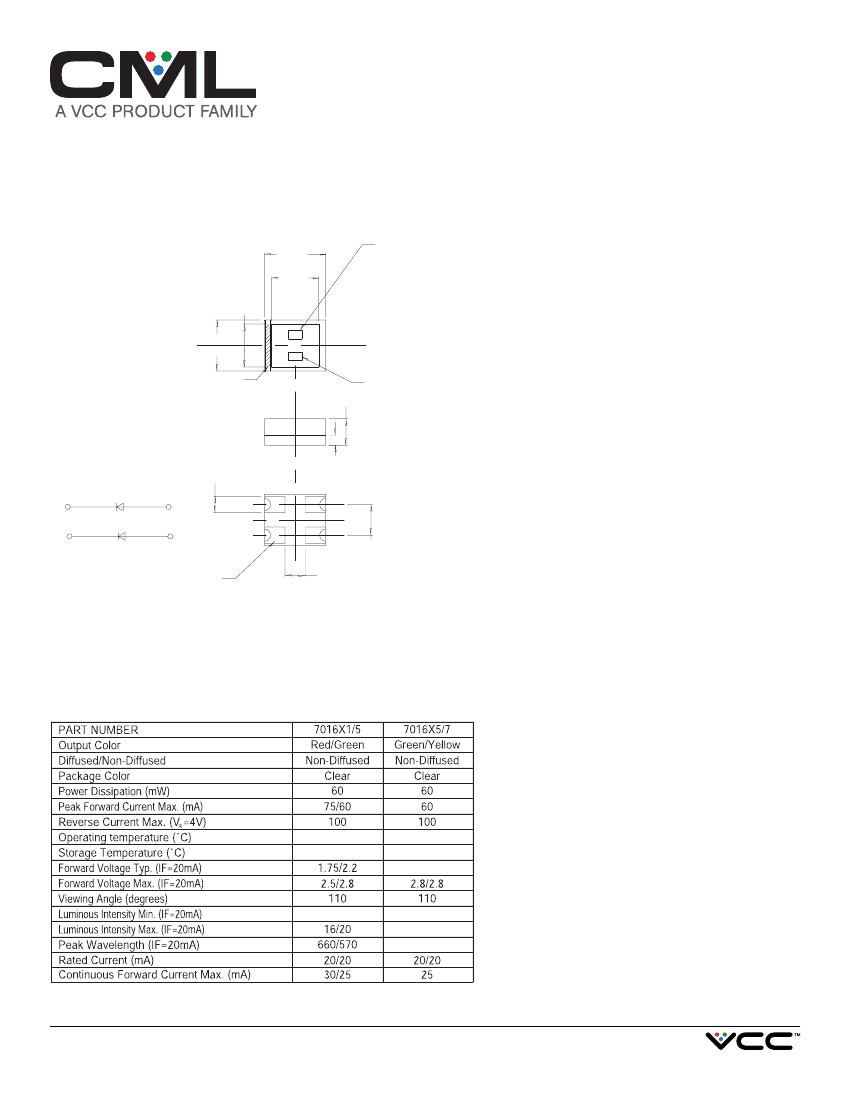

7016X Series Bicolor SMT LEDs

Description and Features

.118

(3.00)

.091

(2.30)

RED/YELLOW

Color Combinations:

• Red/Green

• Green/Yellow

Surface Mount Technology

• Tape and reel packaged for high-speed autoinsertion.

• Convection and vapor-phase reflow compatible.

• Compact form enables high density placement.

• Packaged 2500 per reel.

•

RoHS Compliant

Leading Edge LED Optoelectronic Performance

• Consistent high brightness.

Exceptional Reliability

• Stringent process controls assure quality.

• Extensive qualification testing to meet strictest

requirements.

• Designed to permit easy post-reflow solder joint

inspection.

• Refer to “Solder Pad Geometry

3.pdf”

.083

(2.1)

.098

(2.5)

CATHODE MARK

.051

(1.30)

GREEN

.032

(.80)

GREEN

1

3

2

4

1

.020

(.50)

2

4

.039

(1.00)

3

RED/YELLOW

TERMINAL

.059

(1.50)

All dimensions are in inches (mm)

For 7016X1/5: Terminals 3 & 4 are for red

LED.

For 7016X5/7: Terminals 3 & 4 are for

yellow

LED.

Electro-Optical Characteristics and Ratings

-30 to +85

-40 to +85

-30 to +85

-40 to +85

2.2/2.1

9.0/9.0

9.0/3.6

20/6.3

570/585

CML and Chicago Miniature Lamp are registered trademarks of Visual Communications Company, LLC.

7016X1/5 Related Products

	7016X1/5	7016X5/7
Description	LED SMT 1210 1.75/2.2V 20mA Red/Green	LED SMT 1210 2.2V 20mA Green/Yellow
Is it lead-free?	Lead free	Lead free
Is it Rohs certified?	conform to	conform to
Maker	Visual Communications Company, LLC	Visual Communications Company, LLC
package instruction	SMT, 4 PIN	SMT, 4 PIN
Reach Compliance Code	compliant	compliant
color	RED/GREEN	YELLOW/GREEN
Configuration	SEPARATE, 2 ELEMENTS	SEPARATE, 2 ELEMENTS
Maximum forward current	0.03 A	0.025 A
Lens type	NONDIFFUSED	NONDIFFUSED
Nominal luminous intensity	12.5/14.5 mcd	12.5/14.5 mcd
Installation features	SURFACE MOUNT	SURFACE MOUNT
Number of functions	1	1
Number of terminals	4	4
Maximum operating temperature	80 °C	80 °C
Minimum operating temperature	-25 °C	-25 °C
Optoelectronic device types	DUAL COLOR LED	DUAL COLOR LED
total height	1.3 mm	1.3 mm
method of packing	TAPE AND REEL	TAPE AND REEL
peak wavelength	660/570 nm	580/570 nm
shape	RECTANGULAR	RECTANGULAR
size	2.3 mm	2.3 mm
surface mount	YES	YES
perspective	110 deg	110 deg
Base Number Matches	1	1
