Cascadable Amplifier
5 to 1500 MHz
Features
•
HIGH GAIN - TWO STAGES: 20.0 dB (TYP.)
•
ULTRA LOW PHASE DEVIATION FROM
LINEARITY: <± 2.5
O
, 100-1500 MHz
•
LOW VSWR:<1.4:1 (TYP.)
A24/ SMA24
V3

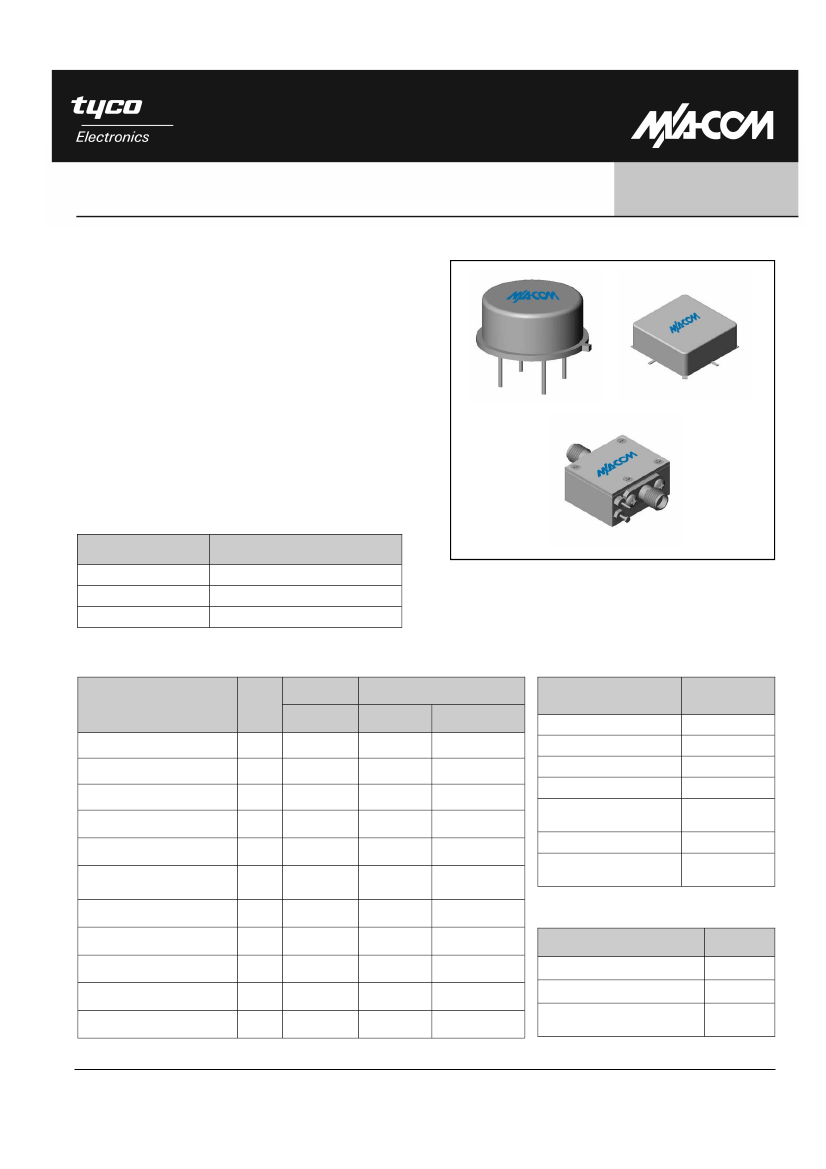

Product Image
Description
The A24 RF amplifier is a discrete hybrid design, which uses
thin film manufacturing processes for consistent performance
and high reliability.
This 2 stage bipolar transistor feedback amplifier design
displays impressive performance over a broadband frequency
range. An active DC biasing network insures temperature-
stable performance.
Both TO-8 and Surface Mount packages are hermetically
sealed, and MIL-STD-883 environmental screening is available
Ordering Information
Part Number
A24
SMA24
CA24
Package
TO-8
Surface Mount
SMA Connectorized
Electrical Specifications: Z
0
= 50Ω, V
CC
= +15 V
DC
Ω
Typical
Parameter
Frequency
Small Signal Gain (min)
Gain Flatness (max)
Reverse Isolation
Noise Figure (max)
Power Output
@ 1 dB comp. (min)
IP3
IP2
Second Order Harmonic IP
VSWR Input / Output (max)
DC Current @ 15 Volts (max)
mA
Absolute Maximum Ratings
Parameter
Storage Temperature
Case Temperature
DC Voltage
Continuous Input Power
Short Term Input power
(1 minute max.)
Guaranteed
0º to 50ºC
5-1500
19.0
±0.8
Units
25ºC
MHz
dB
dB
dB
dB
dBm
dBm
dBm
dBm
2-1700
20.0
±0.4
30
4.2
8.0
+20.5
+42
+47
1.4:1 / 1.4:1
34
2.0:1 / 2.0:1
38
2.0:1 / 2.0:1
40
5.3
7.0
5.8
6.5
Absolute
Maximum
-62ºC to +125ºC
+125ºC
+20 V
7 dBm
32 mW
0.5 W
+125ºC
-54º to +85ºC*
5-1500
18.0
±1.0
Peak Power (3 sec max.)
“S” Series Burn-In
Temperature (case)
Thermal Data: V
CC
= +15 V
DC
Parameter
Thermal Resistance θ
jc
Transistor Power Dissipation P
d
Junction Temperature Rise
Above Case T
jc
Rating
141ºC/W
0.185 W
+26ºC
* Over temperature performance limits for part number CA24, guaranteed from 0
o
C to +50
o
C only.
1
M/A-COM Inc. and its affiliates reserve the right to make changes to the
product(s) or information contained herein without notice. M/A-COM makes
no warranty, representation or guarantee regarding the suitability of its
products for any particular purpose, nor does M/A-COM assume any liability
whatsoever arising out of the use or application of any product(s) or
information.
•
North America
Tel: 800.366.2266 / Fax: 978.366.2266
•
Europe
Tel: 44.1908.574.200 / Fax: 44.1908.574.300
•
Asia/Pacific
Tel: 81.44.844.8296 / Fax: 81.44.844.8298
Visit www.macom.com for additional data sheets and product information.
Cascadable Amplifier
5 to 1500 MHz

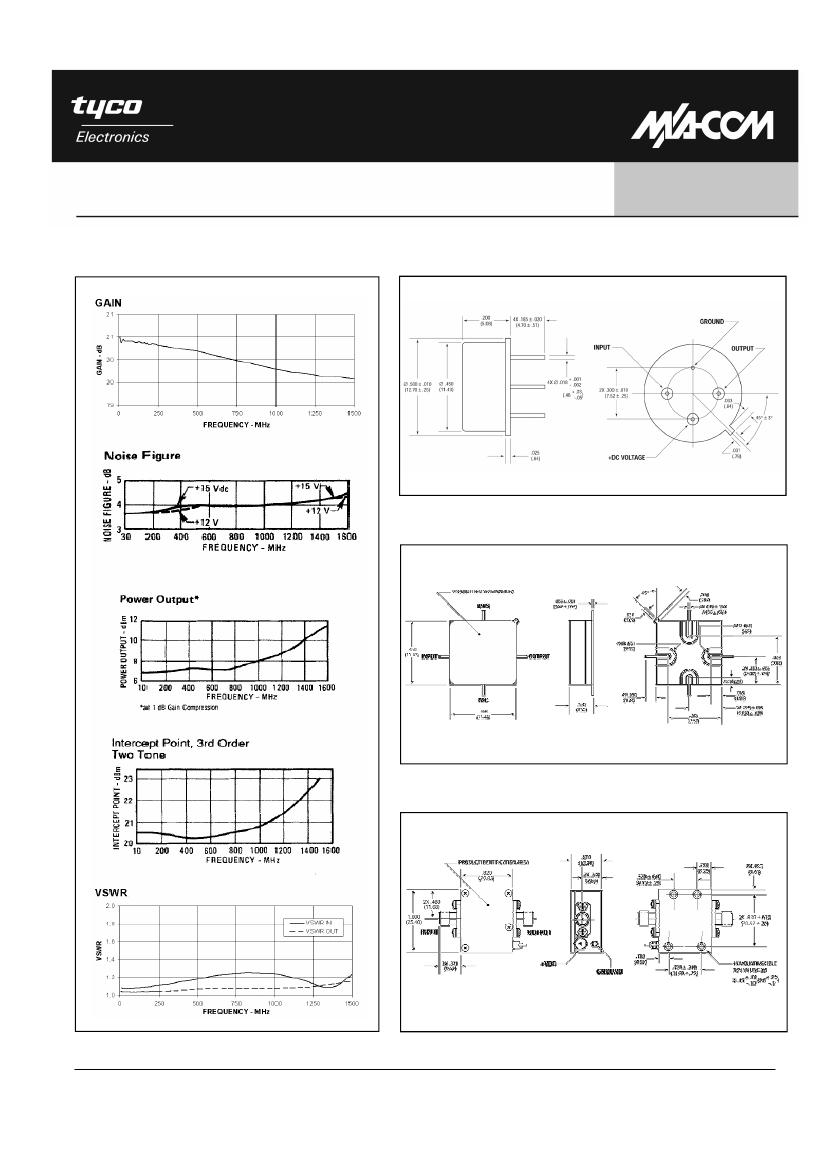

Typical Performance Curves at +25°C
Outline Drawing: TO-8
*
A24/ SMA24
V3
WEIGHT: 1 gram (0.04 oz.) max
Outline Drawing: Surface Mount
*
WEIGHT: 1 gram (0.04 oz.) max
Outline Drawing: SMA Connectorized
*
WEIGHT: 19 grams (0.67 oz.) max
∗
Dimensions are inches (millimeters) ±0.015 (0.38) unless otherwise specified.
2
M/A-COM Inc. and its affiliates reserve the right to make changes to the
product(s) or information contained herein without notice. M/A-COM makes
no warranty, representation or guarantee regarding the suitability of its
products for any particular purpose, nor does M/A-COM assume any liability
whatsoever arising out of the use or application of any product(s) or
information.
•
North America
Tel: 800.366.2266 / Fax: 978.366.2266
•
Europe
Tel: 44.1908.574.200 / Fax: 44.1908.574.300
•
Asia/Pacific
Tel: 81.44.844.8296 / Fax: 81.44.844.8298
Visit www.macom.com for additional data sheets and product information.
