Axial-Lead Capacitors
Standard
–
105 °C
B43697
Applications
I
Electronic ballasts
B43697
Features
I
I
I
I
Long useful life
High reliability
Small dimensions
Extensive field experience
in standard electronic ballast applications
Construction
I
I
I
I
Charge-discharge proof, polar
Aluminum case with insulating sleeve
Negative pole connected to case
Axial leads, welded to ensure perfect electrical contact
Taping and packing
I
Bulk
I
Pallet package
I
Capacitors with
d
×
l
≤
16
×
30 mm are also available taped on reel.
For details on taping and packing, refer to page 342.
324
10/02
B43697
Standard
–
105 °C
Specifications and characteristics in brief
Rated voltage
U
R
Surge voltage
U
S
Rated capacitance
C
R
Capacitance tolerance
Leakage current
I
L
(5 min, 20 °C)
Self-inductance
ESL
1)
450 VDC
495 VDC
10 … 47
µF
– 10/+ 30 %
Q
C
R
U
R 0,7
I
L
≤
0,3
µA ⋅
æ
-------
⋅
-------
ö
+
4
µA
è
µF
V
ø
Diameter
d
Length
l
25 mm
30 mm
39 mm
12 mm
—
21
—
420 VDC
> 11 500 h
> 17 500 h
> 58 000 h
—
> 200 000 h
14 mm
22
24
—
16 mm
26
29
33
18 mm
—
34
38
Approx.
ESL
(nH)
Useful life
105 °C;
U
R
;
I~
R
85 °C;
U
R
;
I~
max
85 °C;
U
R
;
I~
R
40 °C;
U
R
;1,85 ·
I~
R
40 °C;
U
R
; 2,3 ·
I~
R
450 VDC
> 4 000 h
> 9 000 h
> 20 000 h
> 200 000 h
—
Requirements:
∆
C/C
≤ ±
30 % of initial value
ESR
≤
3 times initial spec. limit
I
L
≤
initial specified limit
Failure
percentage:
≤
1 %
Failure rate:
≤
20 fit (≤ 20 · 10
–9
/h)
(for definiton “fit”,
refer to chapter
“Quality”
, page 62)
Post test requirements:
∆C/C
ESR
I
L
≤ ±
10 % of initial value
≤
1,3 % times initial spec. limit
≤
initial specified limit
Voltage endurance test
105 °C;
U
R
3 000 h
5 000 h
Vibration resistance
To IEC 60068-2-6, test Fc:
displacement amplitude 0,75 mm, frequency range 10 Hz to 55 Hz,
acceleration max. 10
g,
duration 3
×
2 h
To IEC 60068-1:
40/105/56 (– 40 °C/+ 105 °C/56 days damp heat test)
Similar to CECC 30301-801
IEC 60384-4
IEC climatic category
Detail specification
Sectional specification
1) If optimum circuit design is used, the values are lower by 30 %.
325
10/02
B43697
Standard
–
105 °C
Dimensional drawings
d
max
40
_
5
max
40
_
5
_
0,02
W
+0,04
max
+1,5
max
+4
1,3+0,1
KAL0680-9
Dimensions, weights and packing units
d
×
l
mm
12
×
30
14
×
30
16
×
30
18
×
30
18
×
39
d
max
×
l
max
mm
12,5
×
30,5
14,5
×
30,5
16,5
×
30,5
18,5
×
30,5
18,5
×
40
Wire
W
mm
0,8
0,8
0,8
1,0
1,0
Approx. weight
g
5,1
6,8
8,9
11,1
14,7
Packing units (pieces)
Bulk
600
400
350
300
250
Reel
450
350
250
—
—
Pallet
288
200
180
160
160
326
10/02
B43697
Standard
–
105 °C
Case dimensions and ordering codes
U
R
VDC
450
C
R
µF
10
15
22
33
47
Case dim.
d
×
l
mm
12
×
30
14
×
30
16
×
30
18
×
30
18
×
39
Ordering code
Bulk
B43697A5106Q000
B43697A5156Q000
B43697A5226Q000
B43697A5336Q000
B43697A5476Q000
Pallet package
B43697A5106Q007
B43697A5156Q007
B43697A5226Q007
B43697A5336Q007
B43697A5476Q007
Reel
B43697A5106Q009
B43697A5156Q009
B43697A5226Q009
Technical data
C
R
100 Hz
20
°C
µF
ESR
typ
100 Hz
20
°C
Ω
ESR
max
100 Hz
20
°C
Ω
11,0
7,6
5,2
3,5
2,6
ESR
max
100 Hz
−25 °C
Ω
300
170
120
95
70
ESR
max
10 kHz
20
°C
Ω
4,4
3,0
2,0
1,4
1,0
Z
max
100 kHz
20
°C
Ω
4,3
2,9
1,9
1,3
0,9
I~
max
10 kHz
40
°C
A
1,20
1,55
2,05
2,45
3,40
I~
max
10 kHz
85
°C
A
0,95
1,20
1,60
1,90
2,65
I~
R
10 kHz
105
°C
A
0,50
0,65
0,85
1,00
1,40
450 VDC
10
7,5
15
22
33
47
4,8
3,2
2,1
1,5
327
10/02
B43697
Standard
–
105 °C

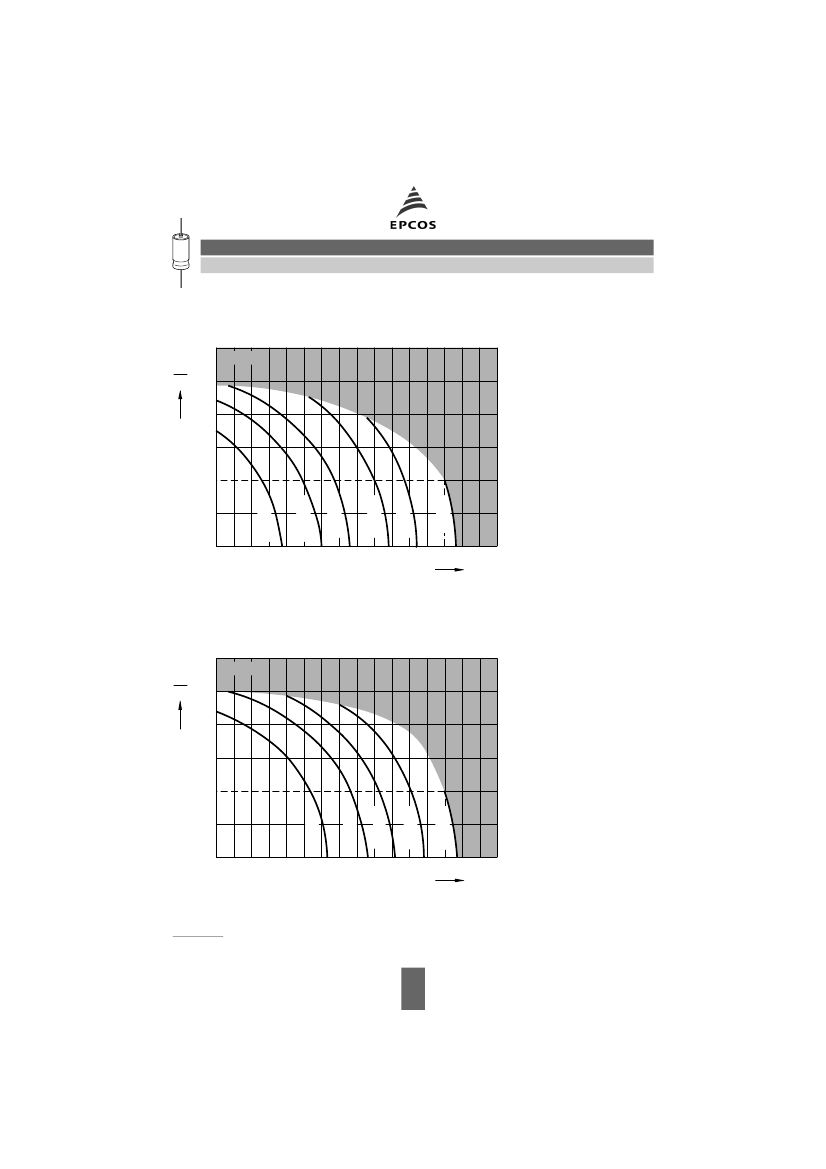

Useful life
depending on ambient temperature
T
A
under ripple current operating conditions at
U
R 1)
3,0
KAL0550-G
Ι
~
Ι
~
R
B43697
2,5
2,0
1,5
1,0
250 000 h
100 000 h
50 000 h
20 000 h
0,5
0
40
50
60
70
80
90
10 000 h
100
4 000 h
110 ˚C 120
T
A
Useful life
depending on ambient temperature
T
A
under ripple current operating conditions at
U
op 1)
U
op
= 420 V
3,0
KAL0551-P
Ι
~
Ι
~
R
B43697
2,5
2,0
1,5
1,0
250 000 h
100 000 h
50 000 h
25 000 h
90
100
0,5
0
40
50
60
70
80
11 000 h
110 ˚C 120
T
A
1) Refer to page 40 for an explanation on how to interpret the useful life graphs.
328
10/02
