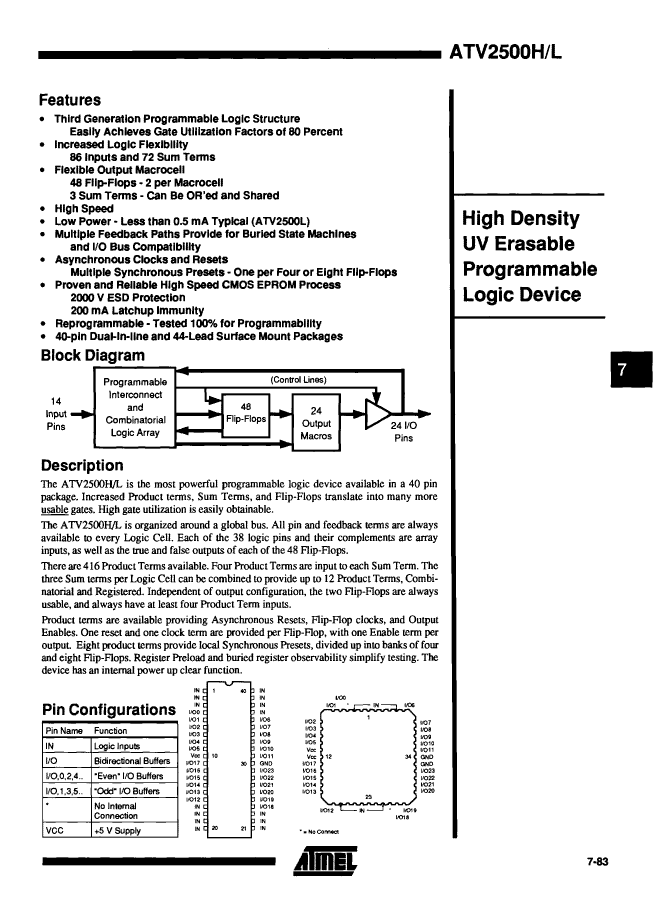

5962-9154501MY Overview

UV PLD, 30ns, CMOS, CQCC44

Parameter Name	Attribute value
Maker	e2v technologies
Reach Compliance Code	compliant
ECCN code	3A001.A.2.C
maximum clock frequency	33 MHz
JESD-30 code	S-CQCC-J44
Dedicated input times	14
Number of I/O lines	24
Number of terminals	44

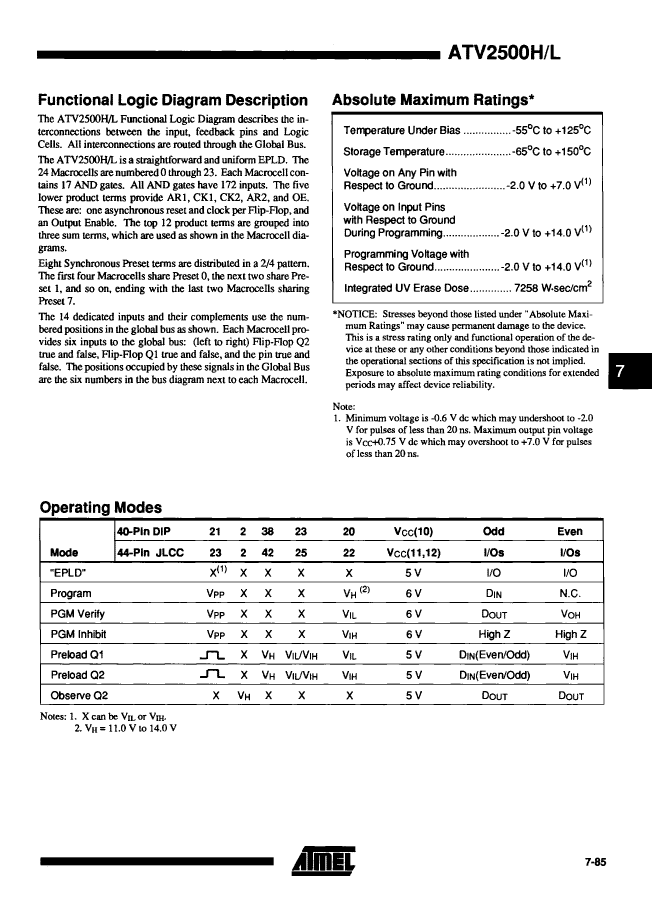

Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C

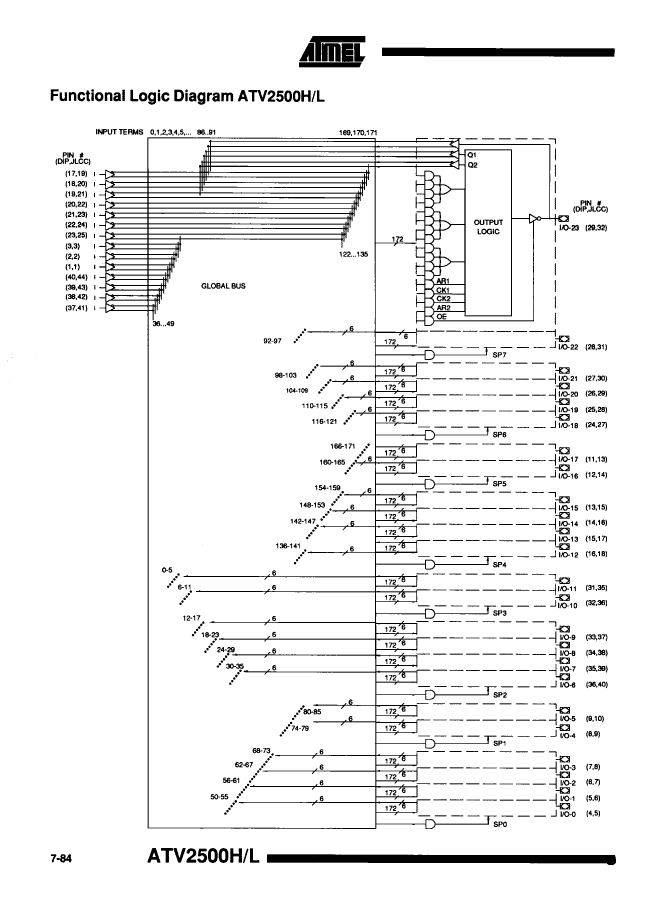

organize	14 DEDICATED INPUTS, 24 I/O

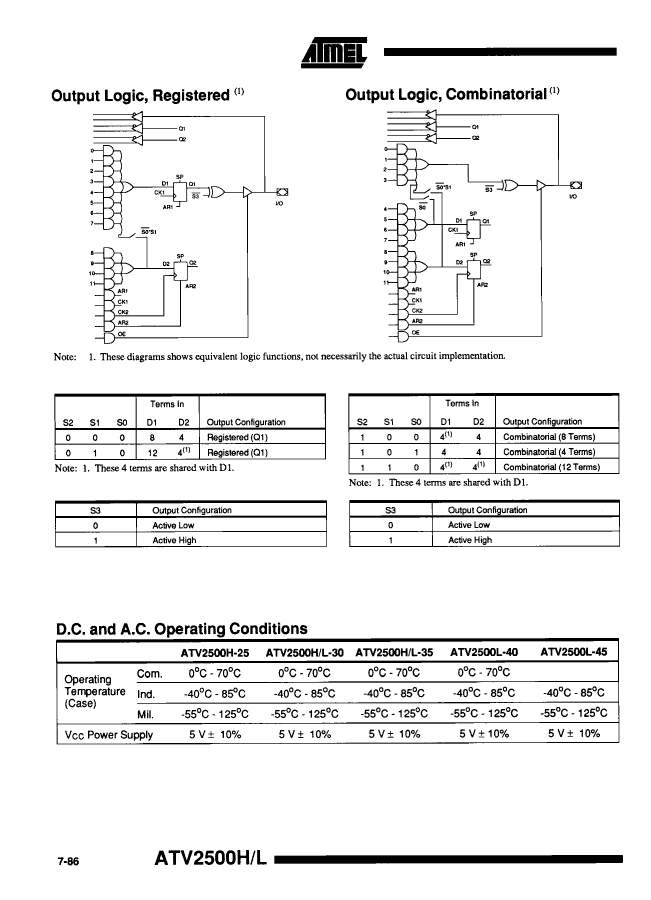

Output function	MACROCELL
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	QCCJ
Package shape	SQUARE
Package form	CHIP CARRIER
Programmable logic type	UV PLD
propagation delay	30 ns
Certification status	Not Qualified

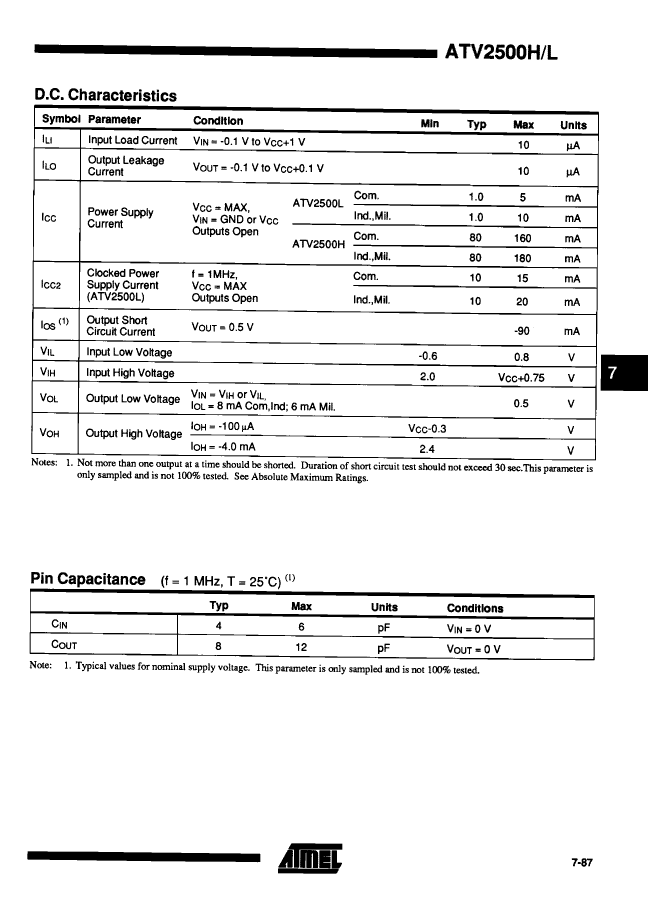

Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	MILITARY
Terminal form	J BEND
Terminal location	QUAD
Base Number Matches	1
