1-1437556-5

Description
TOGGLE SWITCH, SPDT, LATCHED, 0.02A, 20VDC, THROUGH HOLE-STRAIGHT
File Size129KB，2 Pages
ManufacturerTE Connectivity
Websitehttp://www.te.com
Download Datasheet Parametric View All

1-1437556-5 Overview

TOGGLE SWITCH, SPDT, LATCHED, 0.02A, 20VDC, THROUGH HOLE-STRAIGHT

1-1437556-5 Parametric

Parameter NameAttribute value
Brand NameAlcoswitch
Is it Rohs certified?incompatible
Objectid2091872438
Reach Compliance Codeunknown
ECCN codeEAR99
YTEOL0
Actuator typeBATON SHORT TYPE
body width6.6 mm
body height8.9 mm
Body length or diameter12.8 mm
Contact (AC) maximum rated R load.02A@20VAC
Maximum contact current (AC)0.02 A
Maximum contact current (DC)0.02 A
Contact (DC) maximum rated R load.02A@20VDC
Maximum contact voltage (AC)20 V
Maximum contact voltage (DC)20 V
JESD-609 codee4
Installation featuresTHROUGH HOLE-STRAIGHT
sealEPOXY TERMINAL SEALED
surface mountNO
Switch actionLATCHED
switch functionSPDT
Switch typeTOGGLE SWITCH
Terminal surfaceGold (Au)
Termination typeSOLDER

Preview

Download Datasheet
This browser does not have Java enabled.
TE Connectivity
 My Cart |
 My Part Lists | Sign In/Register
English
(Change)
Have a Question?
Chat with a Product
Information Specialist
What can we help you find?
Products
Industries
Resources
About TE
My Account
Innovation
Support Center
Home > Products > Switches & Knobs > Product Feature Selector > Product Details

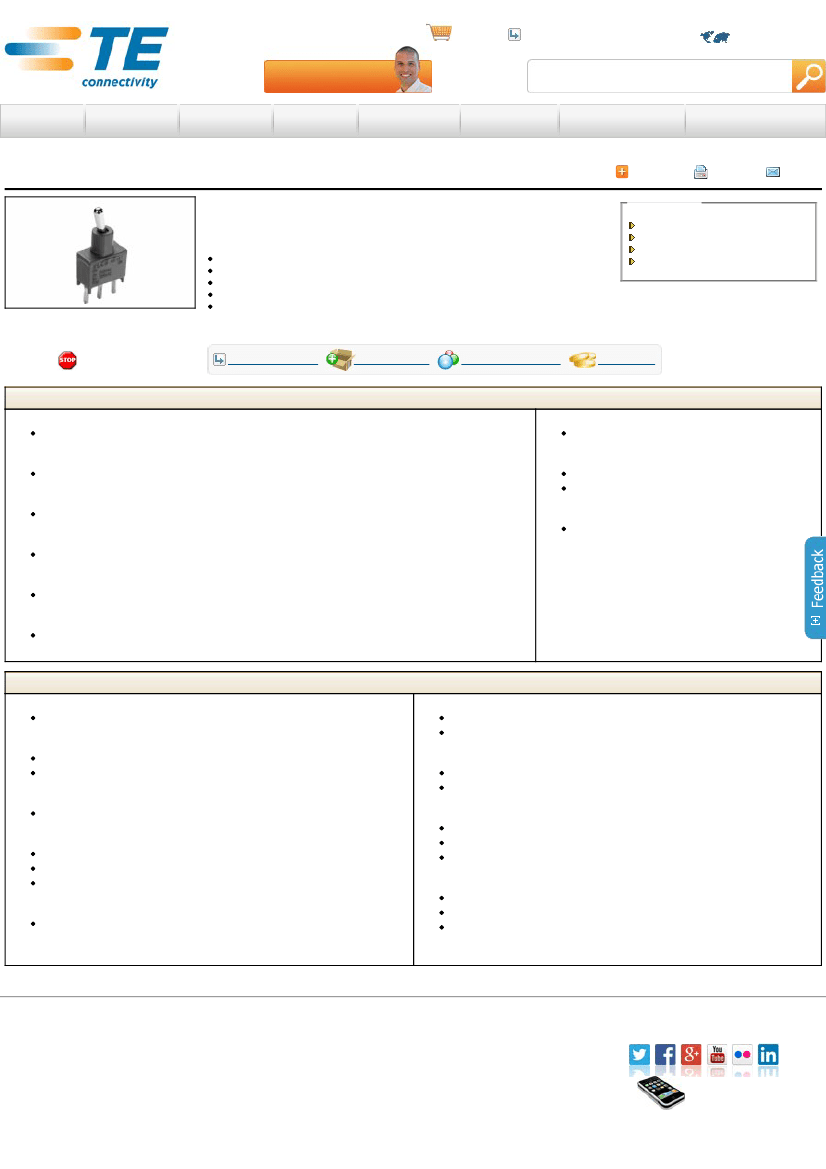

AE101MD1CB Product Details
Toggle Switches
Not EU RoHS or ELV Compliant
 (
Find RoHS Compliant Alternates
)
 Share
 Print
 Email
Quick Links
Pricing & Availability
Search for Tooling
Product Feature Selector
Contact Us About This Product
Product Highlights:
AE Series
Single Pole ­ Double Throw Configuration (Pole­Throw)
Current Rating = 0.4 VA A
Mount Style = Through­Hole
Termination Type = Printed Circuit, Vertical
AE101MD1CB
(1­1437556­5)
TE Internal Number: 1­1437556­5
View all Features
 Superseded
Search for Replacement Parts
Add to My Part List
Request Sample
Find Similar Products
Buy Product
Documentation & Additional Information
Product Drawings:
None Available
Catalog Pages/Data Sheets:
None Available
Product Specifications:
None Available
Application Specifications:
None Available
Instruction Sheets:
None Available
CAD Files:
None Available
Additional Information:
Product Line Information
Additional Product Images:
Product Photo
Dimensional Drawing
Related Products:
Tooling
Product Features
(Please use the Product Drawing for all design activity)
Electrical Characteristics:
Current Rating (A) = 0.4 VA
Termination Features:
Termination Type = Printed Circuit, Vertical
Seal Type = Terminal Seal (epoxy)
Dimensions:
Toggle Length (mm [in]) = 7.15 [0.282]
Body Features:
Mount Style = Through­Hole
Bushing Style = Unthreaded
Bushing Type = Plain
Contact Features:
Contact Plating = Gold
Housing Features:
Toggle Style = Baton Short
Process Sealed = Yes
Configuration Features:
Configuration (Pole­Throw) = Single Pole ­ Double Throw
Operating Function = On None On
Industry Standards:
RoHS/ELV Compliance = Not ELV/RoHS compliant
Lead Free Solder Processes = Wave solder capable to 240°C
UL Flammability Rating = UL 94V­0
Other:
Series = AE
Brand = Alcoswitch
Comment = Process seal meets MIL­STD­202, Method 112 test cond.
A & D at 85°C.
