5962-8753906LA datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Programmable logic devices> Programmable logic> 5962-8753906LA

5962-8753906LA: DescriptionUV PLD, 10ns, PAL-Type, CMOS, CDIP24, 0.300 INCH, WINDOWED, CERDIP-24; CategoryProgrammable logic devices Programmable logic; File Size259KB，9 Pages; ManufacturerAtmel (Microchip)

Download Datasheet Parametric Compare View All

5962-8753906LA Overview

UV PLD, 10ns, PAL-Type, CMOS, CDIP24, 0.300 INCH, WINDOWED, CERDIP-24

5962-8753906LA Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Atmel (Microchip)
Parts packaging code	DIP
package instruction	WDIP, DIP24,.3
Contacts	24
Reach Compliance Code	unknown
ECCN code	3A001.A.2.C
Other features	10 MACROCELLS; 1 EXTERNAL CLOCK; SHARED INPUT/CLOCK; VARIABLE PRODUCT TERMS
Architecture	PAL-TYPE
maximum clock frequency	83 MHz
JESD-30 code	R-GDIP-T24
JESD-609 code	e0
length	32 mm
Dedicated input times	11
Number of I/O lines	10
Number of entries	22
Output times	10
Number of product terms	132
Number of terminals	24
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
organize	11 DEDICATED INPUTS, 10 I/O
Output function	MACROCELL
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	WDIP
Encapsulate equivalent code	DIP24,.3
Package shape	RECTANGULAR
Package form	IN-LINE, WINDOW
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
Programmable logic type	UV PLD
propagation delay	10 ns
Certification status	Not Qualified
Filter level	38535Q/M;38534H;883B
Maximum seat height	5.08 mm
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	NO
technology	CMOS
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb) - hot dipped
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	7.62 mm
Base Number Matches	1

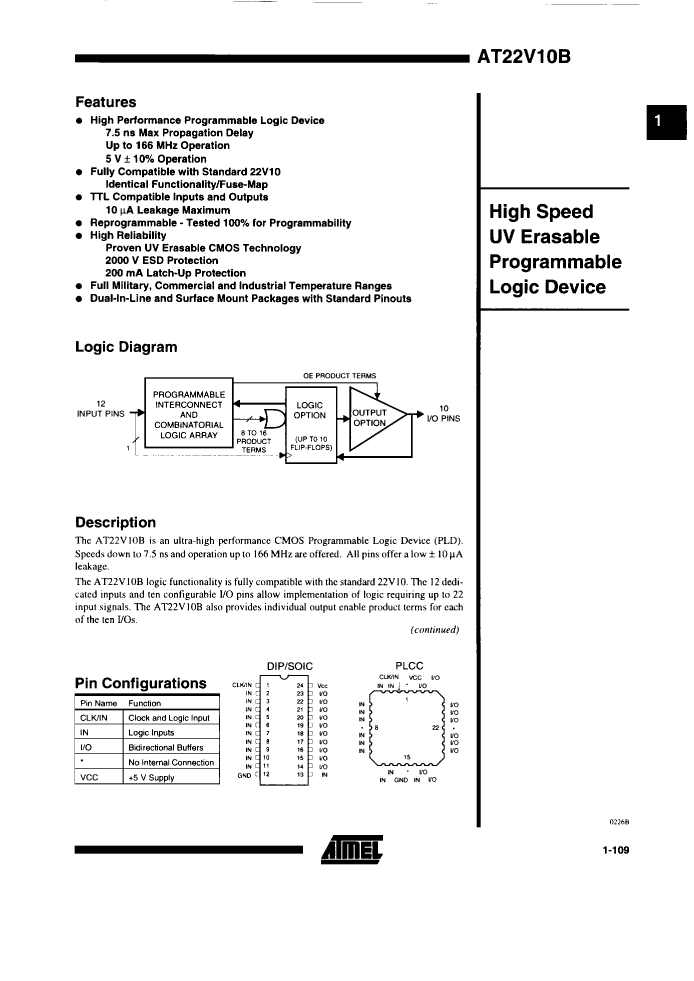

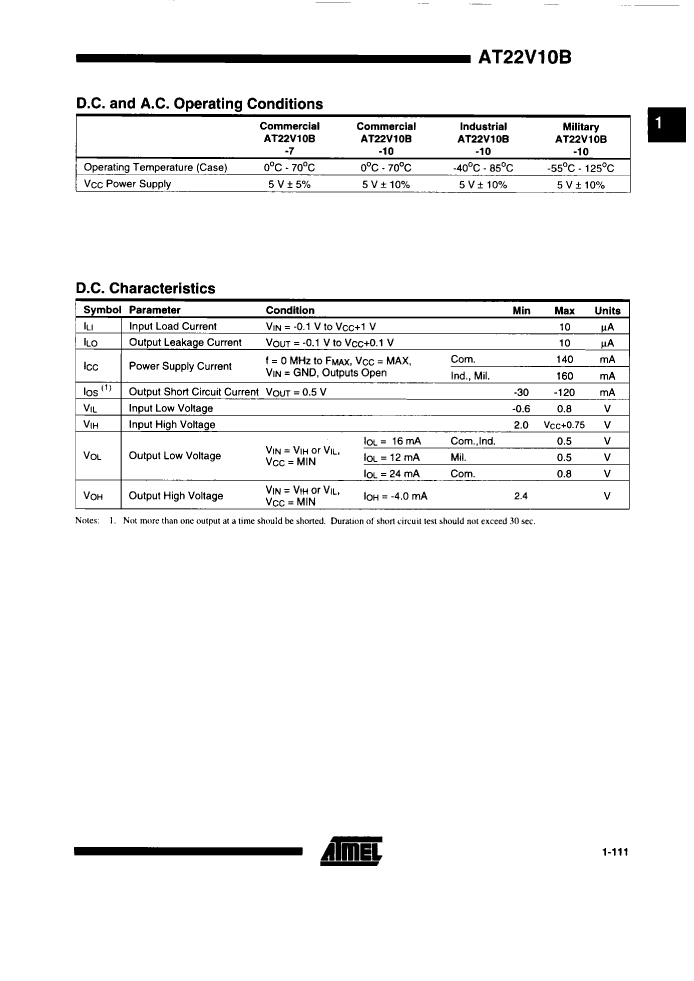

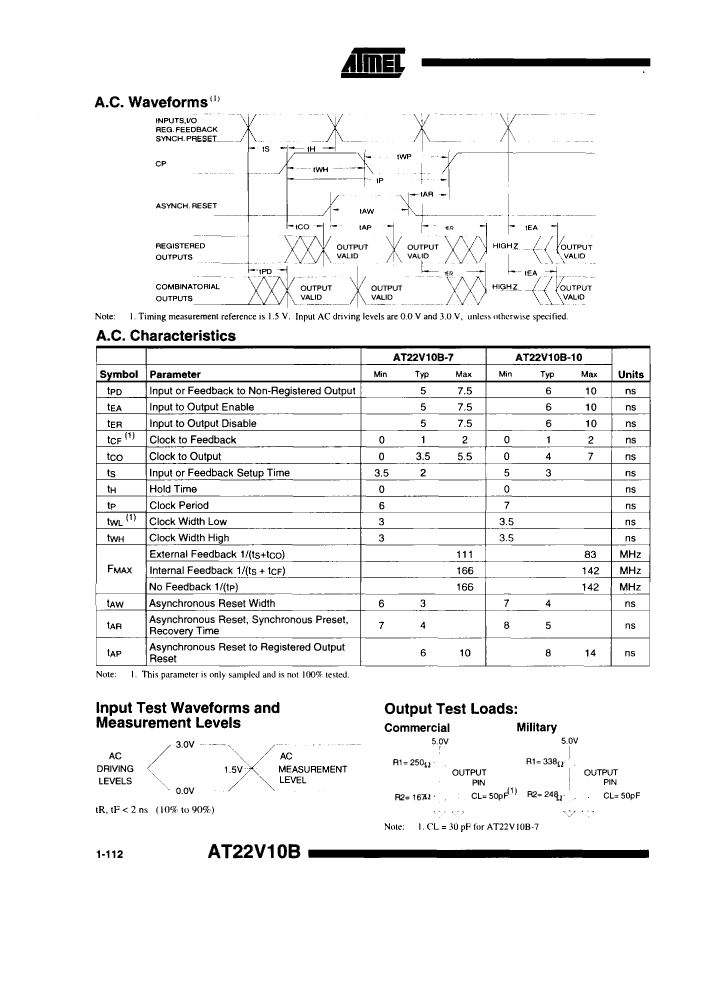

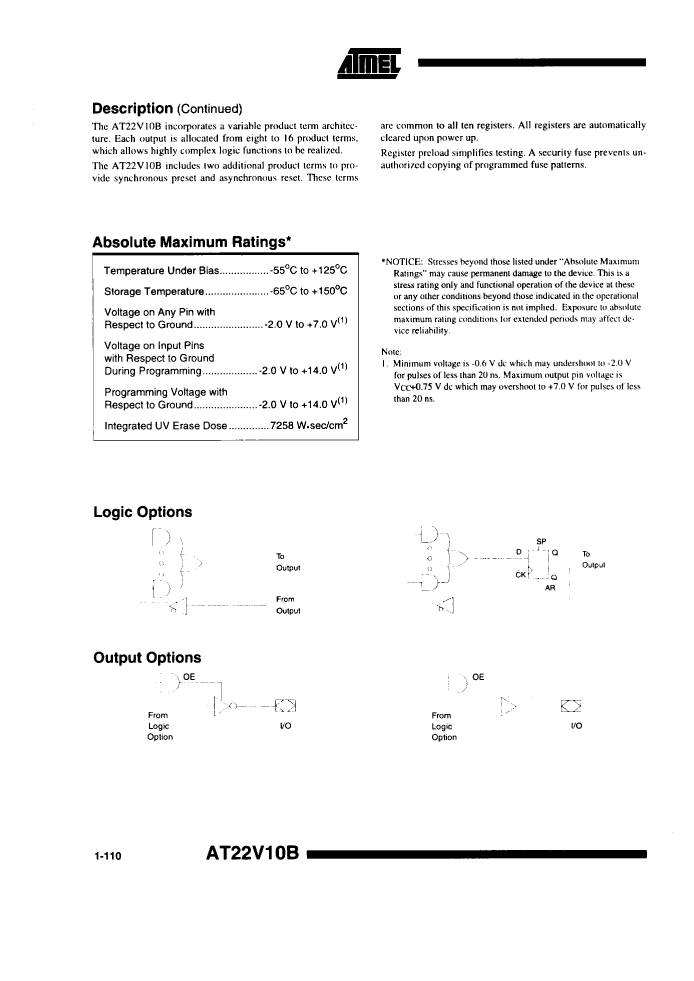

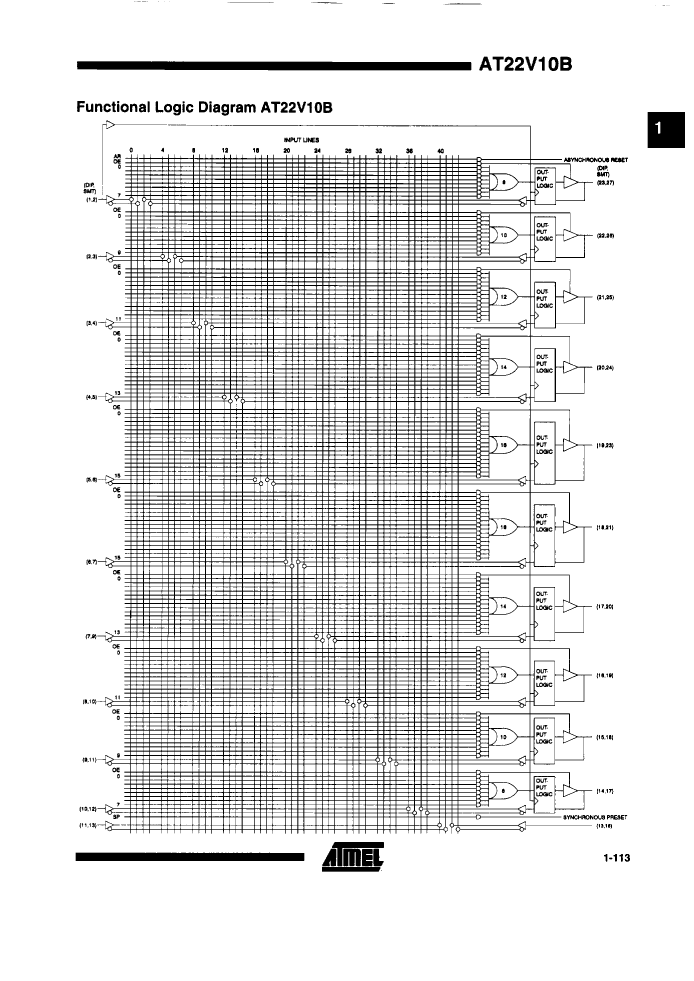

Preview

Download Datasheet

View All

5962-8753906LA Related Products

	5962-8753906LA	5962-87539063A	5962-89841053A
Description	UV PLD, 10ns, PAL-Type, CMOS, CDIP24, 0.300 INCH, WINDOWED, CERDIP-24	UV PLD, 10ns, CMOS, CQCC28, CERAMIC, LCC-28	OT PLD, 10ns, PAL-Type, CMOS, CQCC28, CERAMIC, LCC-28
Maker	Atmel (Microchip)	Atmel (Microchip)	Atmel (Microchip)
Parts packaging code	DIP	QLCC	QLCC
package instruction	WDIP, DIP24,.3	QCCN,	QCCN, LCC28,.45SQ
Contacts	24	28	28
Reach Compliance Code	unknown	unknown	compliant
ECCN code	3A001.A.2.C	3A001.A.2.C	3A001.A.2.C
Other features	10 MACROCELLS; 1 EXTERNAL CLOCK; SHARED INPUT/CLOCK; VARIABLE PRODUCT TERMS	10 MACROCELLS; 1 EXTERNAL CLOCK; SHARED INPUT/CLOCK; VARIABLE PRODUCT TERMS	10 MACROCELLS; 1 EXTERNAL CLOCK; SHARED INPUT/CLOCK; VARIABLE PRODUCT TERMS
maximum clock frequency	83 MHz	83 MHz	83 MHz
JESD-30 code	R-GDIP-T24	S-CQCC-N28	S-CQCC-N28
JESD-609 code	e0	e0	e0
length	32 mm	11.45 mm	11.45 mm
Dedicated input times	11	11	11
Number of I/O lines	10	10	10
Number of terminals	24	28	28
Maximum operating temperature	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C
organize	11 DEDICATED INPUTS, 10 I/O	11 DEDICATED INPUTS, 10 I/O	11 DEDICATED INPUTS, 10 I/O
Output function	MACROCELL	MACROCELL	MACROCELL
Package body material	CERAMIC, GLASS-SEALED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	WDIP	QCCN	QCCN
Package shape	RECTANGULAR	SQUARE	SQUARE
Package form	IN-LINE, WINDOW	CHIP CARRIER	CHIP CARRIER
Programmable logic type	UV PLD	UV PLD	OT PLD
propagation delay	10 ns	10 ns	10 ns
Certification status	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	5.08 mm	2.54 mm	2.54 mm
Maximum supply voltage	5.5 V	5.5 V	5.5 V
Minimum supply voltage	4.5 V	4.5 V	4.5 V
Nominal supply voltage	5 V	5 V	5 V
surface mount	NO	YES	YES
technology	CMOS	CMOS	CMOS
Temperature level	MILITARY	MILITARY	MILITARY
Terminal surface	Tin/Lead (Sn/Pb) - hot dipped	TIN LEAD	Tin/Lead (Sn/Pb) - hot dipped
Terminal form	THROUGH-HOLE	NO LEAD	NO LEAD
Terminal pitch	2.54 mm	1.27 mm	1.27 mm
Terminal location	DUAL	QUAD	QUAD
width	7.62 mm	11.45 mm	11.45 mm
Base Number Matches	1	1	1
Is it Rohs certified?	incompatible	-	incompatible
Architecture	PAL-TYPE	-	PAL-TYPE
Number of entries	22	-	22
Output times	10	-	10
Number of product terms	132	-	132
Encapsulate equivalent code	DIP24,.3	-	LCC28,.45SQ
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	-	NOT SPECIFIED
power supply	5 V	-	5 V
Filter level	38535Q/M;38534H;883B	-	38535Q/M;38534H;883B
Maximum time at peak reflow temperature	NOT SPECIFIED	-	NOT SPECIFIED
