3-1571550-3 datasheet, PDF - EEWORLD Datasheet

3-1571550-3: DescriptionDIP SOCKET,24 CONTACTS,0.1 TERM PITCH,0.4 ROW SPACING,PC TAIL TERMINAL; CategoryThe connector socket; File Size168KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric View All

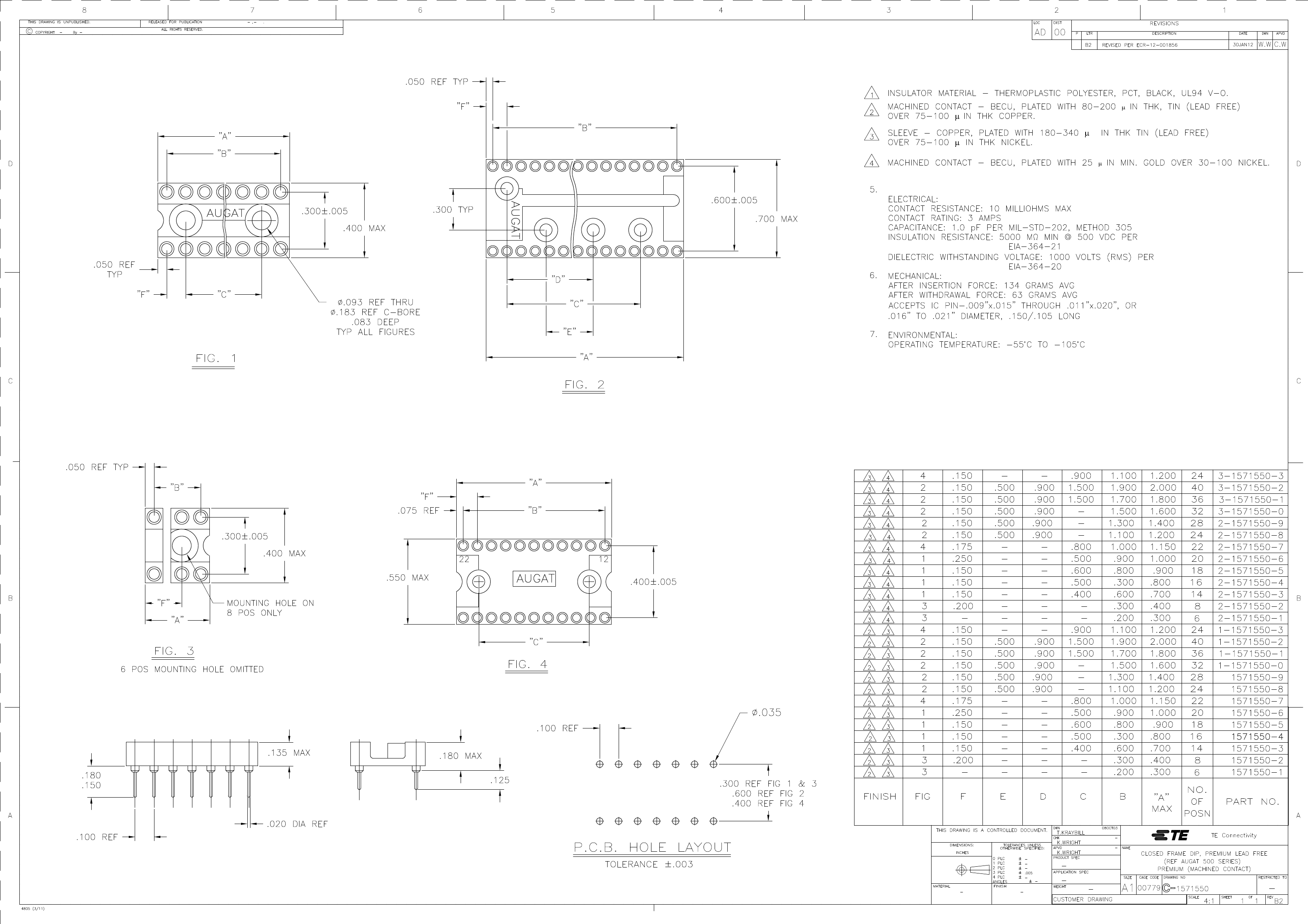

3-1571550-3 Overview

DIP SOCKET,24 CONTACTS,0.1 TERM PITCH,0.4 ROW SPACING,PC TAIL TERMINAL

Parameter Name	Attribute value
Is it lead-free?	Lead free
Maker	TE Connectivity
Reach Compliance Code	unknown
body width	0.55 inch
subject depth	0.18 inch
body length	1.2 inch
Contact to complete cooperation	AU ON NI
Contact completed and terminated	TIN OVER NICKEL
Contact material	BE-CU
Contact style	MACHINE SCREW
current rating	3 A
Device slot type	IC SOCKET
Type of equipment used	DIP24
Dielectric withstand voltage	1400VAC V
Insulation resistance	5000 Ω
Manufacturer's serial number	1571550
Plug contact pitch	0.1 inch
Installation method	STRAIGHT
Number of contacts	24
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	0.4 mm
Terminal pitch	2.54 mm
Termination type	SOLDER
Base Number Matches	1
