3.0mmx1.5mm SMD CHIP LED LAMP
APL3015SF4C-F01
Features
z
LOW
Description
SMT LED, 1.4mm THICKNESS.
SF4 Made with Gallium Aluminum Arsenide Infrared
Emitting diodes.
z
3.0mmx1.5mm
z
WIDE
POWER CONSUMPTION.
VIEWING ANGLE.
FOR BACKLIGHT AND INDICATOR.
COLORS AND LENS TYPES AVAILABLE.
: 2000PCS / REEL.
z
IDEAL
z
VARIOUS
z
RoHS
z
PACKAGE
COMPLIANT.
Package Dimensions
Notes:
1. All dimensions are in millimeters (inches).
2. Tolerance is
±0.2(0.0079")
unless otherwise noted.
3. Specifications are subject to change without notice.
SPEC NO: DSAF1076
APPROVED: J. Lu
REV NO: V.1
CHECKED: Allen Liu
DATE: MAR/15/2005
DRAWN: S.H.CHEN
PAGE: 1 OF 4
ERP:1203001613-01
Selection Guide
Part No.
Dice
Lens Type
Po (mW/sr)
@ 20mA
Min.
APL3015SF4C-F01
SF4 (GaAlAs)
WATER CLEAR
0.4
Typ.
1
Viewing
Angle
2θ1/2
70
°
Note:
1.
θ1/2
is the angle from optical centerline where the luminous intensity is 1/2 the optical centerline value.
Electrical / Optical Characteristics at T
A
=25°C
Parameter
Forward Voltage
Reverse Current
Capacitance
Peak Spectral Wavelength
Spectral Bandwidth
SF4
SF4
SF4
SF4
SF4
P/N
Symbol
V
F
I
R
C
λP
∆λ1/2
Typ.
1.3
-
90
880
50
Max.
1.6
10
-
-
-
Units
V
uA
pF
nm
nm
Test Conditions
I
F
=20mA
V
R
=5V
V
F
=0V;f=1MHz
I
F
=20mA
I
F
=20mA
Absolute Maximum Ratings at T
A
=25°C
Parameter
Power Dissipation
DC Forward Current
Peak Forward Current[1]
Reverse Voltage
Operating Temperature
Storage Temperature
Note:
1. 1/100 Duty Cycle, 10us Pulse Width.
Symbol
P
T
I
F
i
FS
V
R
T
A
T
STG
SF4
100
50
1.2
5
-40 To +85
-40 To +85
Units
mW
mA
A
V
°C
°C
SPEC NO: DSAF1076
APPROVED: J. Lu
REV NO: V.1
CHECKED: Allen Liu
DATE: MAR/15/2005
DRAWN: S.H.CHEN
PAGE: 2 OF 4
ERP:1203001613-01

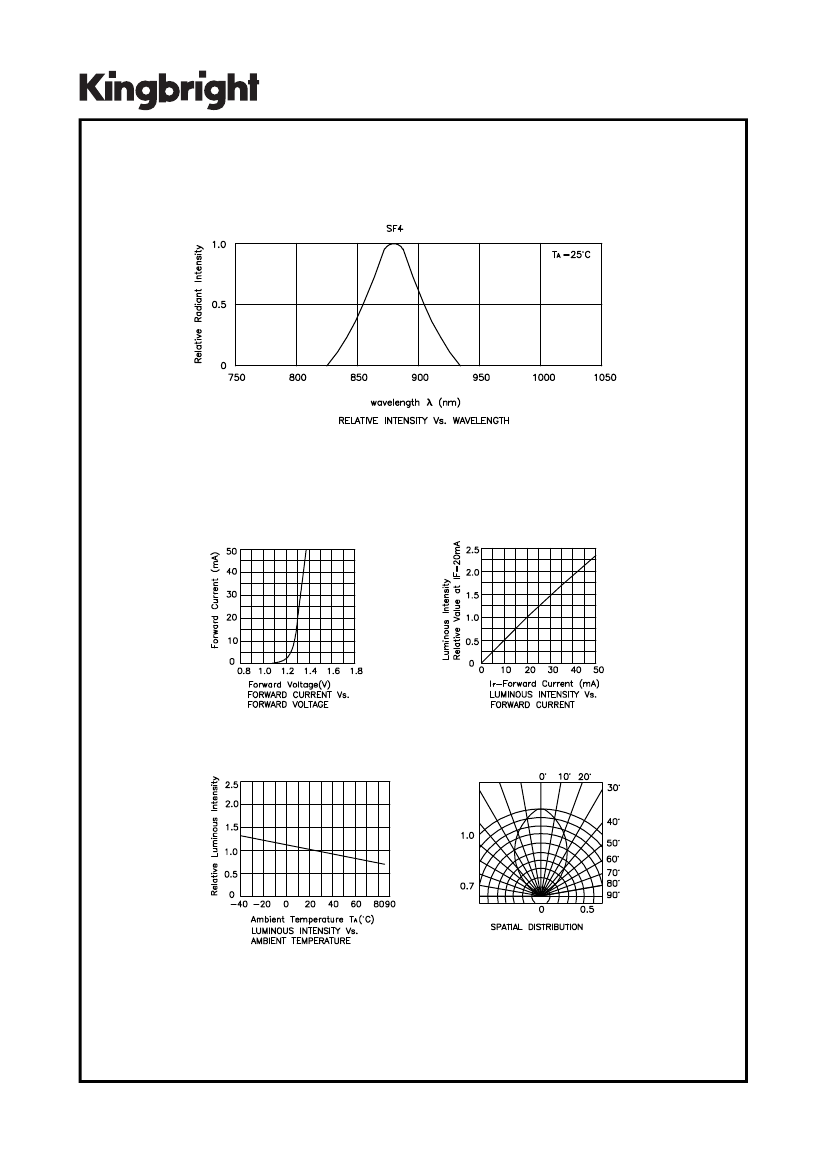

APL3015SF4C-F01
SPEC NO: DSAF1076
APPROVED: J. Lu
REV NO: V.1
CHECKED: Allen Liu
DATE: MAR/15/2005
DRAWN: S.H.CHEN
PAGE: 3 OF 4
ERP:1203001613-01
APL3015SF4C-F01

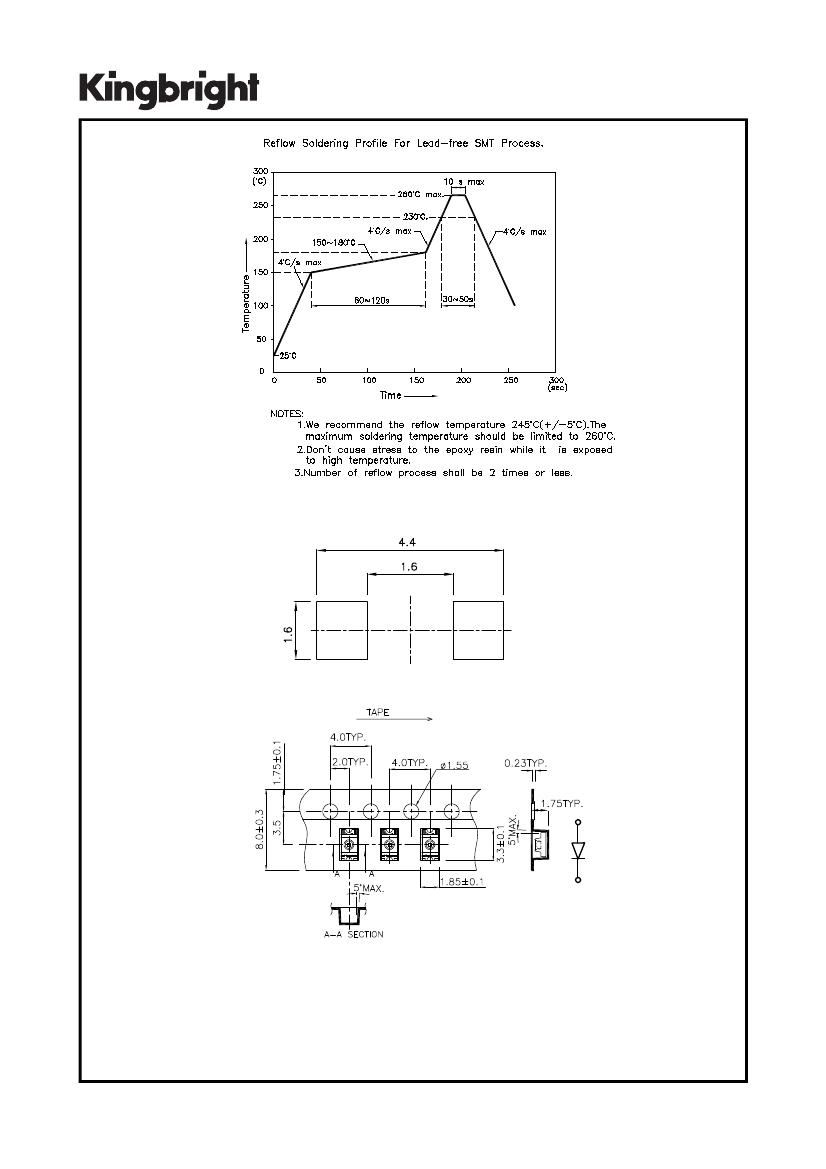

Recommended Soldering Pattern
(Units : mm)
Tape Specifications
(Units : mm)
If special sorting is required (e.g. binning based on forward voltage,
luminous intensity, or wavelength), the typical accuracy of the sorting
process is as follows:
1. Wavelength: +/-1nm
2. Luminous Intensity: +/-15%
3. Forward Voltage: +/-0.1V
Note: Accuracy may depend on the sorting parameters.
SPEC NO: DSAF1076
APPROVED: J. Lu
REV NO: V.1
CHECKED: Allen Liu
DATE: MAR/15/2005
DRAWN: S.H.CHEN
PAGE: 4 OF 4
ERP:1203001613-01
