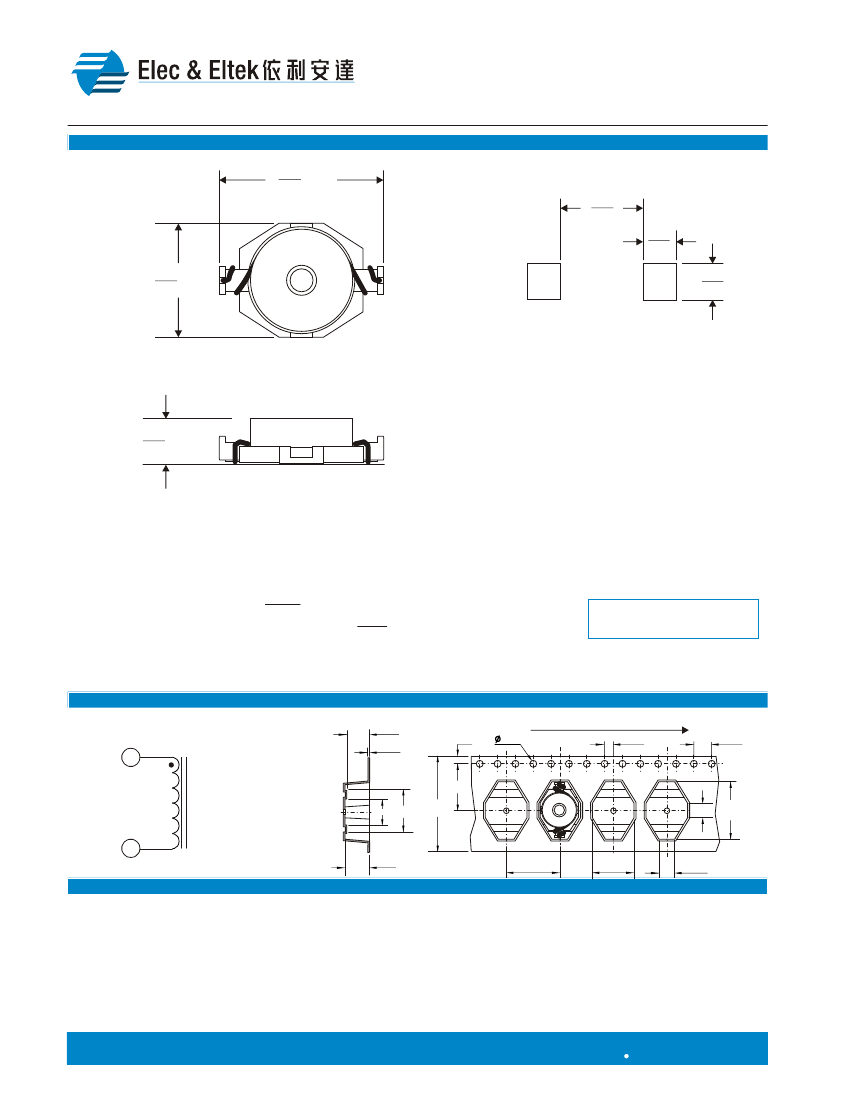

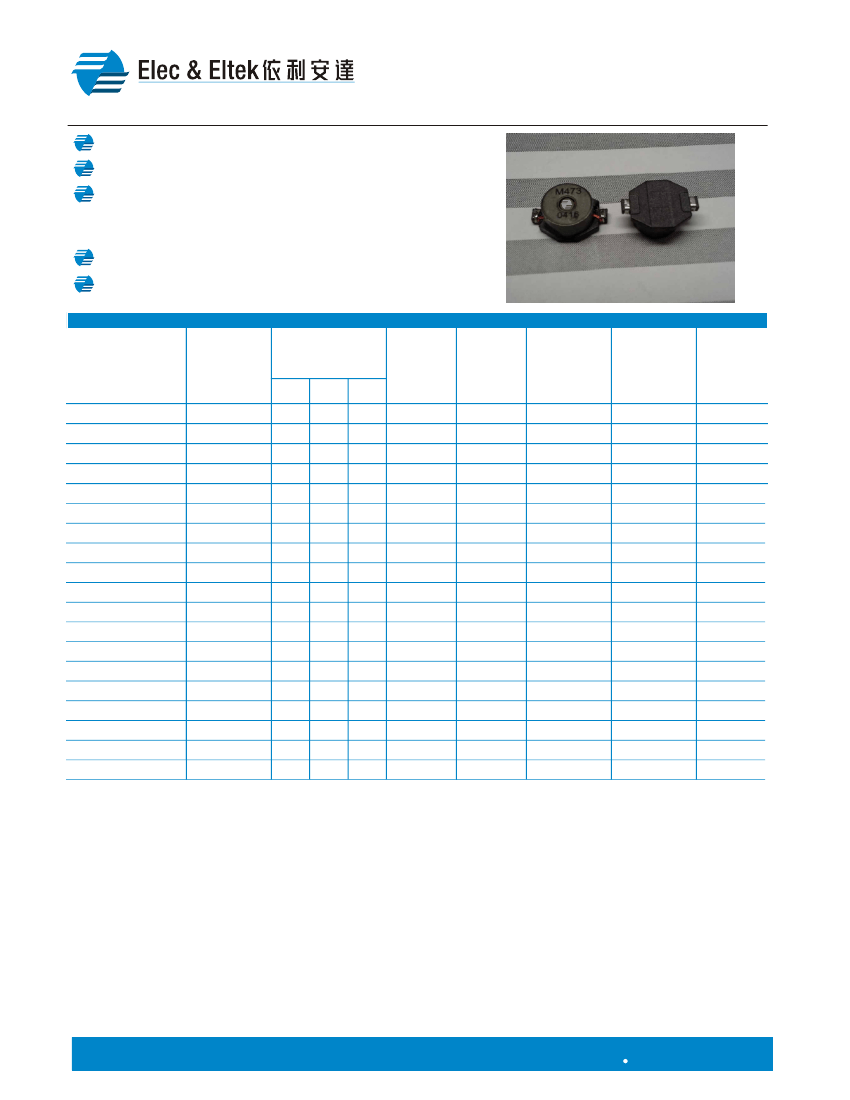

E & E Magnetic Products Limited
SHIELDED SURFACE MOUNT
POWER INDUCTOR
Drum Type, SISDT3316X Series, Self-Leaded
S
CHEMATICS
Magnetically Shielded
Low DCR and High breakdown voltage
Ideal for high current requirements of notebook,
video recorders and other DC-DC conversion
applications
Custom inductance value or tolerance is available
RoHS compliant
E
LECTRICAL
S
PECIFICATION @
25°C
Part
Number
SISDT3316M-102F
SISDT3316M-152F
SISDT3316M-222F
SISDT3316M-332F
SISDT3316M-472F
SISDT3316M-682F
SISDT3316M-103F
SISDT3316M-153F
SISDT3316M-223F
SISDT3316M-333F
SISDT3316M-473F
SISDT3316M-683F
SISDT3316M-104F
SISDT3316M-154F
SISDT3316M-224F
SISDT3316M-334F
SISDT3316M-474F
SISDT3316M-684F
SISDT3316X-105F
Inductance
Ls
(uH)
1.0
1.5
2.2
3.3
4.7
6.8
10
15
22
33
47
68
100
150
220
330
470
680
1000
K
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
±10
2
3
4
Inductance
Tolerance(%)
L
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
±15
M
±20
±20
±20
±20
±20
±20
±20
±20
±20
±20
±20
±20
±20
±20
±20
±20
±20
±20
±20
DCR
(mW)
Max
25
30
35
40
45
50
55
60
84
90
110
150
290
360
390
730
880
1150
1450
SRF
(MHz)
Typ
60
55
55
50
45
40
35
25
22
18
16
12
9
8
6
5
4
3
2.5
Inductance
Rating
(mH) Typ
0.50
0.70
1.00
1.50
2.00
4.00
5.00
6.00
10.0
12.0
27.0
40.0
50.0
80.0
90.0
150.0
200.0
300.0
420.0
Current
Rating
(A)
5.0
5.0
5.0
5.0
3.0
2.5
2.0
1.8
1.5
1.3
1.0
0.90
0.80
0.60
0.50
0.40
0.35
0.30
0.25
Marking
(YYY)
M102
M152
M222
M332
M472
M682
M103
M153
M223
M333
M473
M683
M104
M154
M224
M334
M474
M684
M105
Notes:
1. Ordering Information: SISDT3316a - bbbFc.
= Product Type.
SISDT3316
= Tolerance of Inductance (M =
±20%).
a
= Inductance value in uH (i.e. 152 = 1.5uH; 153 = 15uH; 154 = 150uH; 105 = 1000uH).
bbb
= Internal Control Code.
F
= Packaging Code (T = Tape & Reel Packaging in 13 inch Reel).
c
2. Inductance is tested at 100kHz.
3. Measured at the rated current.
4. Average maximum allowable current.
5. Operating temperature range: -40°C to +125°C.
6. The part temperature (ambient temperature + temperature rise) should not exceed the upper limit of the operating
temperature under worst case operating conditions. Circuit design, component placement, PWB trace size and
thickness, airflow and other cooling provisions all affect the part temperature. Part temperature should be verified
in the end application.
1/F., Harbour View 1, No.12 Science Park East Avenue, Phase II, Hong Kong Science Park, Shatin, N.T. Hong Kong
Tel: (852) 2954 3333
Fax: (852) 2954 3304
1
PI034(01)
Revised in 09/12
E & E Magnetic Products Limited
SHIELDED SURFACE MOUNT
POWER INDUCTOR
Drum Type, SISDT3316X Series, Self-Leaded
S
CHEMATICS
M
ECHANICAL
D
IMENSIONS
.510 Max
12.95
.290
7.37
1
.370 Max
9.40
XYYYF
(DATE)
2
.115
2.92
.110
2.79
Recommended
PAD Layout
.200 Max
5.08
Notes:
inches
7. All dimensions are specified in mm with higher precedence in mm.
8. U
nless otherwise specified, all tolerances are
±
.010
.
0.25
Weight (in gram)
Tape & Reel
:
:
1.0 typ.
800 / reel
S
CHEMATIC
5.30
0.50
P
ACKAGING
USER DIRECTION OF UNREELING
1.75
1.55
2.00
4.00
1
11.50
XYYYF
(DATE)
6.00 9.60
24.00
3.80
13.20
2
6.00
12.00
9.30
3.50
FOR MORE INFORMATION, PLEASE CONTACT
HEADQUARTER
1/F., Harbour View 1, No.12 Science Park East Avenue,
Phase II, Hong Kong Science Park, Shatin, N.T.
Hong Kong
Tel: (852) 2954 3333 Fax: (852) 2954 3304
Email: eempl@eleceltek.com
Website: http://www.eleceltek.com / www.eemagnetic.com
Information herein is for reference only and subject to change without notice. It does not constitute any representation, warranty or commitment of the company in respect
of the products in any aspect. All logos, brands and product names mentioned herein are trademarks or registered trademarks of their respective owners. The company
does not assume any liability arising out of the application or use of any product or circuit described herein. Copyrights 2009, E & E Magnetic Products Limited.
1/F., Harbour View 1, No.12 Science Park East Avenue, Phase II, Hong Kong Science Park, Shatin, N.T. Hong Kong
Tel: (852) 2954 3333
Fax: (852) 2954 3304
2
PI034(01)
Revised in 09/12
