E-Series Surface Mount Mixer
10 – 2000 MHz
Features
•
•
•
•
•
LO Power +10 dBm
Up to +5 dBm RF
Low Profile
Surface Mount
Tape and reel packaging available
ESMD-C15
V1

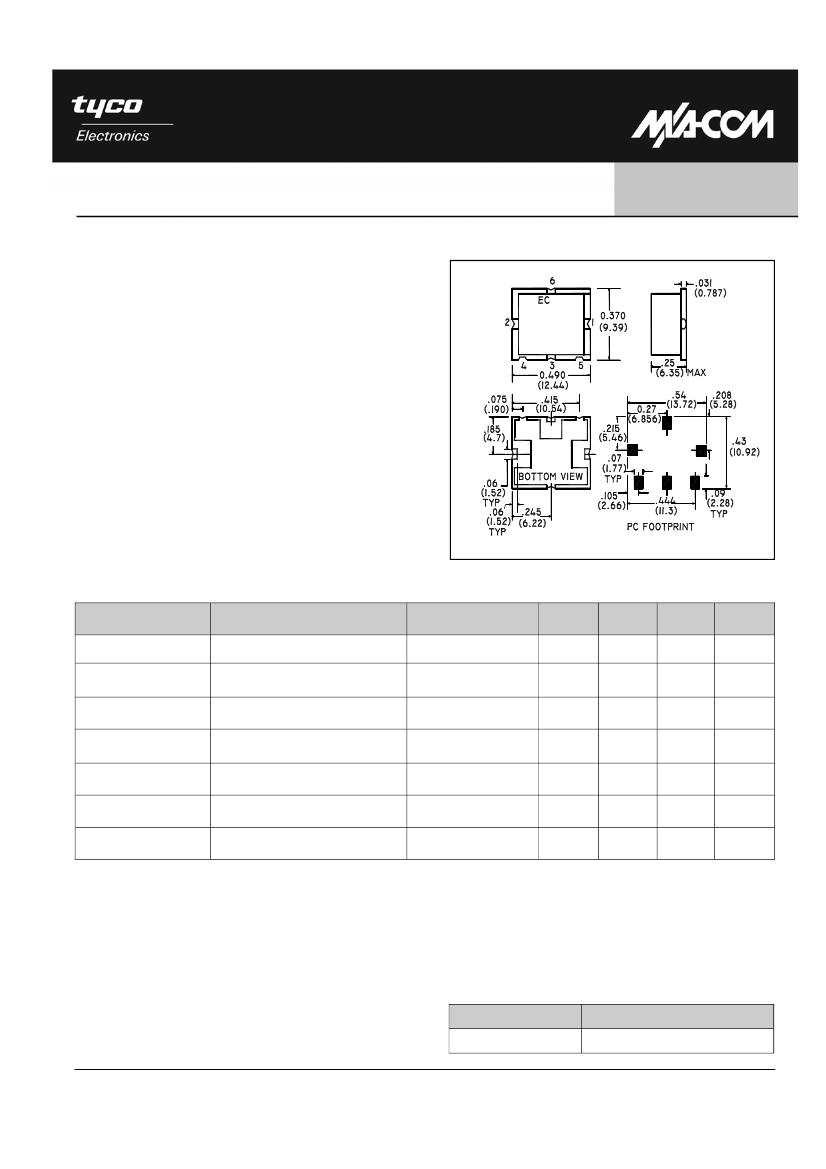

SM - 2 Package
Description
M/A-COM’s ESMD-C15 is a Low Cost, Broadband,
high performance Mixer designed for use in high
volume wireless applications. The device has been
optimised by careful selection of the Schottky Diode
and Balun Transformer for excellent performance.
ESMD-C15 is available in an SM-2 surface mount
package and reflows using standard soldering reflow
profiles. Parts are packaged in tape & reel.
Electrical Specifications: T
A
= 25°C, Z
0
= 50Ω
1,
LO = +10 dBm
Parameter
RF Frequency
LO Frequency
IF Frequency
Conversion Loss
Isolation
Isolation
Input 1 dB Compression
Test Conditions
—
—
—
—
LO to RF
LO to IF
—
Frequency
10 - 2000
10 - 2000
10 - 800
20 - 1000
10 - 2000
10 - 2000
10 - 2000
1 - 1000
Units
MHz
MHz
MHz
dB
dB
dB
dB
dBm
Min
—
—
—
—
—
20
15
—
Typ
—
—
—
6.5
7.5
35
30
—
Max
—
—
—
7.5
9.5
—
—
5
Ordering Information
Part Number
ESMD-C15TR
1
M/A-COM Inc. and its affiliates reserve the right to make changes to the
product(s) or information contained herein without notice. M/A-COM makes
no warranty, representation or guarantee regarding the suitability of its
products for any particular purpose, nor does M/A-COM assume any liability
whatsoever arising out of the use or application of any product(s) or
information.
Package
Tape and Reel (500 piece Reel)
•
North America
Tel: 800.366.2266 / Fax: 978.366.2266
•
Europe
Tel: 44.1908.574.200 / Fax: 44.1908.574.300
•
Asia/Pacific
Tel: 81.44.844.8296 / Fax: 81.44.844.8298
Visit www.macom.com for additional data sheets and product information.
E-Series Surface Mount Mixer
10 – 2000 MHz
Pin Configuration
Pin No.
1
2
3
4
5
6
ESMD-C15
V1
Absolute Maximum Ratings
1
Function
RF
LO
IF
Ground
Ground
Ground
Parameter
RF Power
Peak IF Current
Operating Temperature
Storage Temperature
Pin Temperature (10 seconds)
Absolute Maximum
50 mW
40 mA
-55°C to +100°C
-55°C to +125°C
+260°C
1. Operation of this device above any one of these parameters
may cause permanent damage.
2
