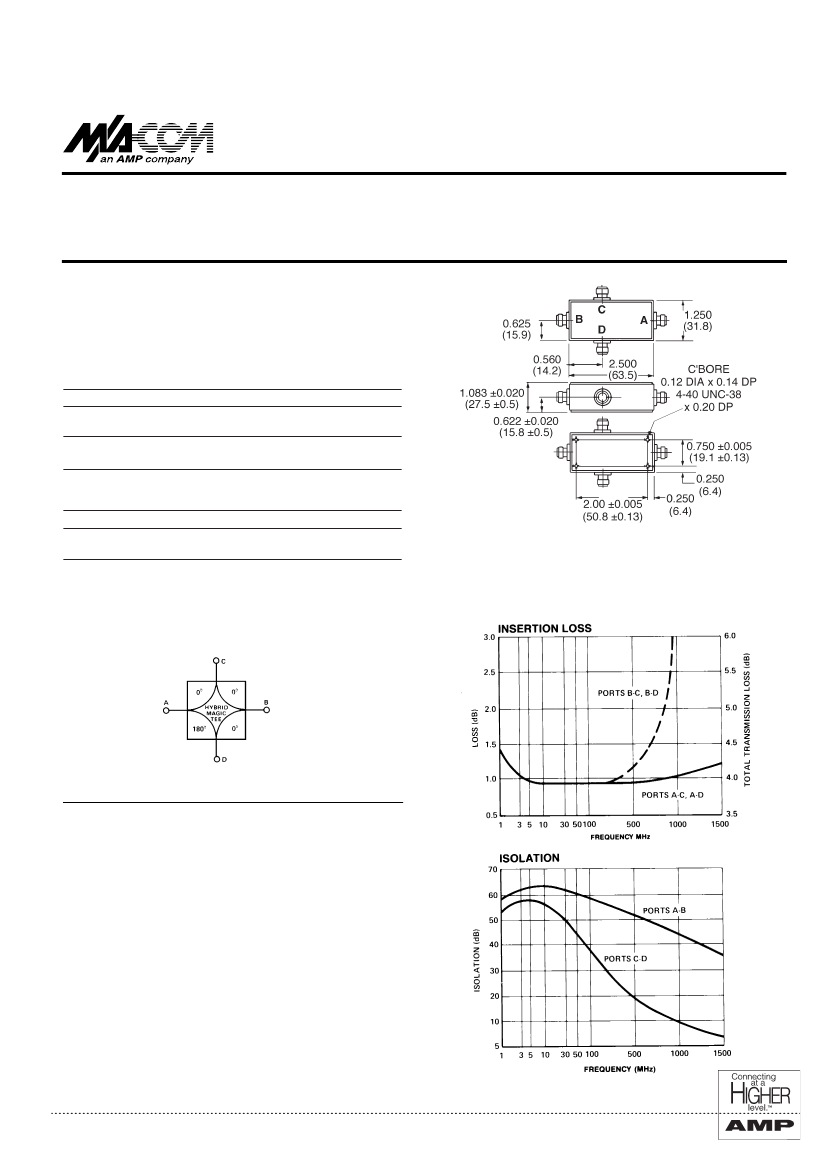

UHF Hybrid Junction
5 MHz - 1 GHz
Features
q
q
q
H-1-4
V2.00
C-33
Broad Frequency Range
0° - 180° Hybrid with High Isolation
MIL-STD-202 Screening Available
Guaranteed Specifications*
(From - 55°C to + 85°C)
Frequency Range
Isolation (A - B Ports)
5 - 300 MHz
300 MHz - 1 GHz
5 MHz - 1 GHz
50 dB Min.
40 dB Min.
Operating Characteristics
Impedance
A & B Ports
C & D Ports
Input Power
Phase Shift ( A to C or D )
50 Ohms Nom.
100 Ohms Nom.
7 W. Max.
Linear with Frequency
(~ 45° @ 300 MHz)
Dimensions in ( ) are in mm.
Unless Otherwise Noted: .xxx = ±0.015 (.x = ±0.4)
WEIGHT (APPROX): 5.47 OUNCES 155 GRAMS
*All specifications apply with 50 ohm source and load impedance.
This product contains elements protected by United States Patent
Number 3,311,850.
Typical Performance
Functional Diagram
Ordering Information
Part Number
H-1-4 BNC
H-1-4
N
H-1-4 SMA
H-1-4 TNC
Connectorized
Connectorized
Connectorized
Connectorized
M/A-COM Division of AMP Incorporated
s
North America: Tel. (800) 366-2266, Fax (800) 618-8883
s
Asia/Pacific: Tel. +85 2 2111 8088, Fax +85 2 2111 8087
s
Europe: Tel. +44 (1344) 869 595, Fax +44 (1344) 300 020
www.macom.com
AMP and Connecting at a Higher Level are trademarks.
Specifications subject to change without notice.
7-5
