EVERLIGHTELECTRONICS CO.,LTD.
Technical Data Sheet
Top View LED With Lens
67-21BSYGC/S530-XX/TR8
Features
․
P-LCC-2 package.
․
High flux output.
․
High current capability.
․
White package.
․
Optical indicator.
․
Colorless clear window.
․
Ideal for backlight and light pipe application.
․
Inter reflector.
․
Suitable for automatic placement equipment.
․
Suitable for reflow and wave solder processes.
․
Available on tape and reel (12mm Tape).
․
Pb-free.
Descriptions
The 67-21B series is available in soft orange,
red and yellow. Due to the package design, the LED
has optimized light coupling by inter reflector.
This feature makes the 67-21B series LED
ideal for light pipe application. The low current
requirement makes this device ideal for portable
equipment or any other application where power is
at a premium.
Applications
․
Indicator and backlight for audio and video equipment.
․
Indicator and backlight in office and family equipment.
․
Flat backlight for LCD’s, switches and symbols.
․
Light pipe application.
․
General use.
Device Selection Guide
Chip
Emitted Color
Material
AlGaInP
Brilliant Yellow Green
Water Clear
Resin Color
Everlight Electronics Co., Ltd.
Device No. :DSE-67B-013
http://www.everlight.com
prepared date:29-June-2007
Rev. 2
Page: 1 of 9
Prepared by: Ray Yuan
EVERLIGHTELECTRONICS CO.,LTD.
Technical Data Sheet
Top View LED With Lens
67-21BSYGC/S530-XX/TR8

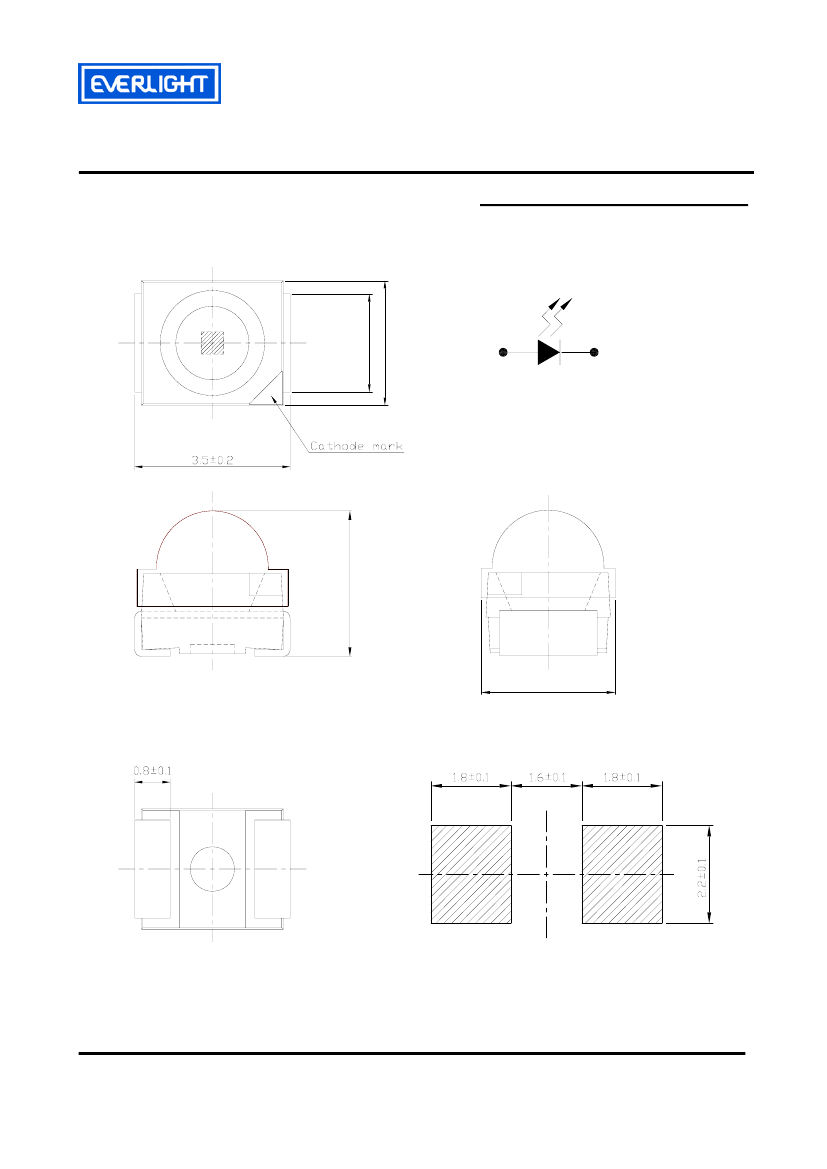

Package Dimensions
C
L
2.2
±
0.1
2.9
±
0.2
+
Polarity
-
C
L
3.25±0.2
2.9±0.2
For reflow soldering (propose)
Note:
The tolerances unless mentioned is ±0.1mm ;Unit = mm
Everlight Electronics Co., Ltd.
Device No. :DSE-67B-013
http://www.everlight.com
prepared date:29-June-2007
Rev. 2
Page: 2 of 9
Prepared by: Ray Yuan
EVERLIGHTELECTRONICS CO.,LTD.
Technical Data Sheet
Top View LED With Lens
67-21BSYGC/S530-XX/TR8
Absolute Maximum Ratings (T
a
=25℃)
Parameter
Reverse Voltage
Forward Current
Peak Forward Current(Duty 1/10 @ 1KHz)
Power Dissipation
Electrostatic Discharge
Operating Temperature
Storage Temperature
Soldering Temperature
Symbol
V
R
I
F
I
FP
Pd
ESD
Topr
Tstg
Tsol
Rating
5
25
60
60
2000
-40 ~ +85
-40~ +90
Unit
V
mA
mA
mW
V
℃
℃
Reflow Soldering : 260
℃
for 10 sec.
Hand Soldering : 350
℃
for 3 sec.
Electronic Optical Characteristics (T
a
=25℃) :
Parameter
Symbol
Rank
E3
Luminous Intensity
I
v
E4
E5
Viewing Angle
Peak Wavelength
Dominant Wavelength
Spectrum Radiation
Bandwidth
Forward Voltage
Reverse Current
Min.
105
140
175
-----
-----
567.5
-----
1.7
-----
Typ.
-----
-----
-----
60
575
-----
20
2.0
-----
Max.
285
450
565
-----
-----
577.5
-----
2.4
10
Unit
Condition
mcd
I
F
=20mA
2θ1/2
λp
λd
△λ
V
F
I
R
-----
-----
-----
-----
-----
-----
deg
nm
nm
nm
V
μA
I
F
=20mA
I
F
=20mA
I
F
=20mA
I
F
=20mA
I
F
=20mA
V
R
=5V
Everlight Electronics Co., Ltd.
Device No. :DSE-67B-013
http://www.everlight.com
prepared date:29-June-2007
Rev. 2
Page: 3 of 9
Prepared by: Ray Yuan
EVERLIGHTELECTRONICS CO.,LTD.
Technical Data Sheet
Top View LED With Lens
67-21BSYGC/S530-XX/TR8

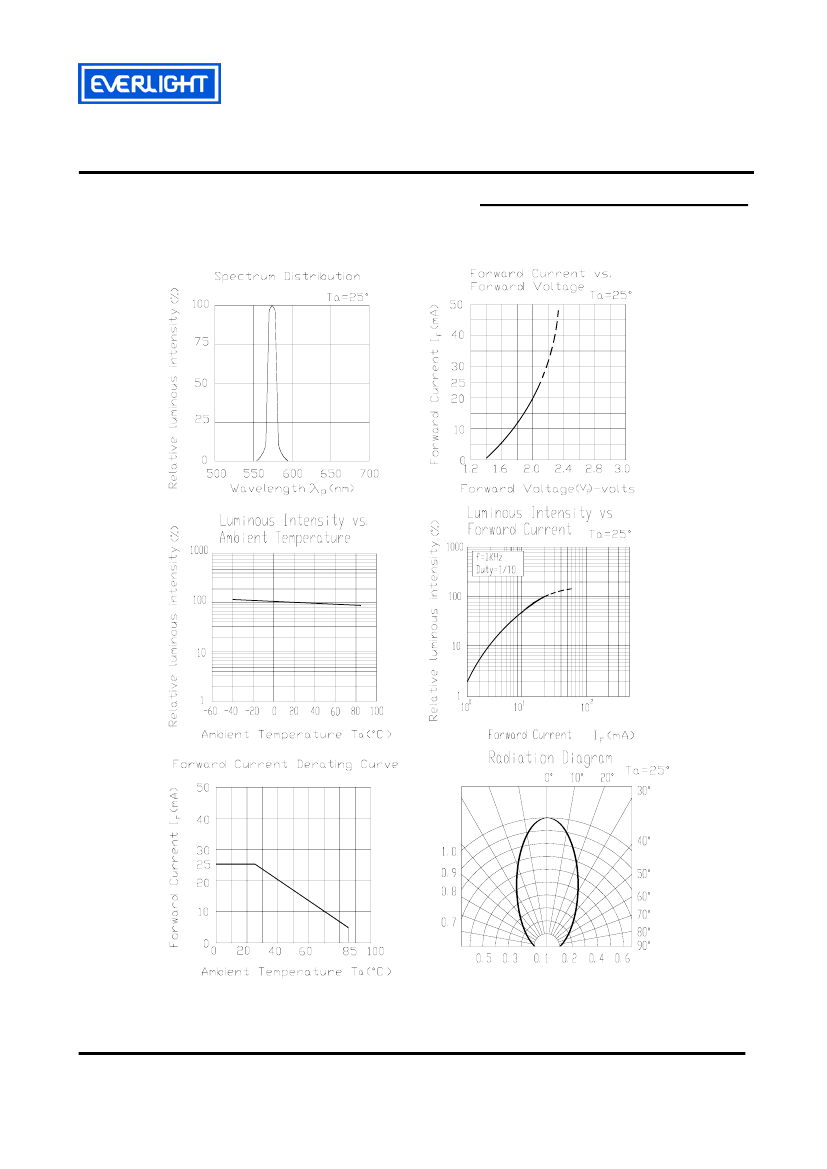

Typical Electro-Optical Characteristics Curves
Everlight Electronics Co., Ltd.
Device No. :DSE-67B-013
http://www.everlight.com
prepared date:29-June-2007
Rev. 2
Page: 4 of 9
Prepared by: Ray Yuan
EVERLIGHTELECTRONICS CO.,LTD.
Technical Data Sheet
Top View LED With Lens
67-21BSYGC/S530-XX/TR8

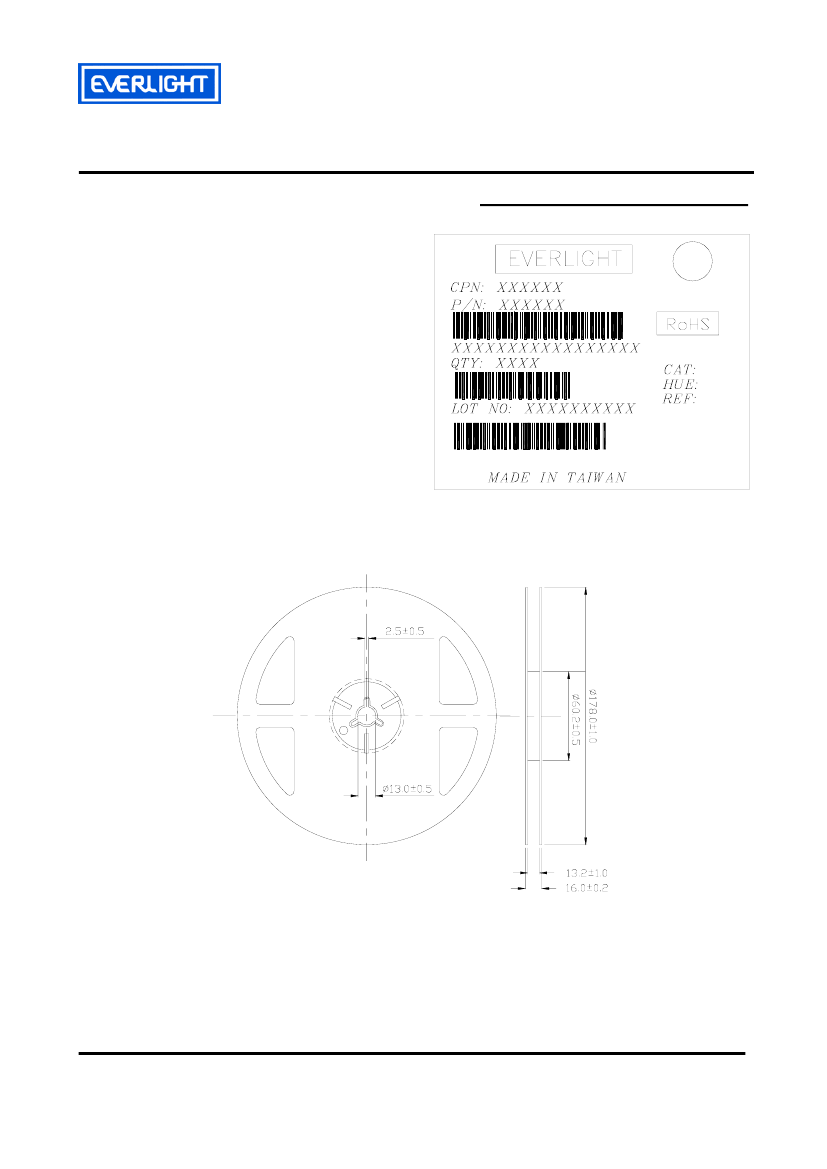

Label explanation
CAT: Luminous Intensity Rank
HUE: Dom. Wavelength Rank
REF: Forward Voltage Rank
Reel Dimensions
Note:
The tolerances unless mentioned is ±0.1mm ,Unit = mm
Everlight Electronics Co., Ltd.
Device No. :DSE-67B-013
http://www.everlight.com
prepared date:29-June-2007
Rev. 2
Page: 5 of 9
Prepared by: Ray Yuan
