6mm FLANGE BASED LED LAMP
BLFA064SURCK-6V
HYPER RED
Features
!
BUILT-IN
Description
The Hyper Red source color devices are made with DH
InGaAlP on GaAs substrate Light Emitting Diode.
CURRENT LIMITING RESISTOR FOR
DIRECT APPLICATION OF DIFFERENT ACROSS
CURRENT.
!
LONG
!
LOW
!
LOW
LIFE.
CURRENT, POWER SAVINGS.
MAINTENANCE.
COLOR AVAILABLE.
!
DIFFERENT
!
SOLID
STATE, HIGH VIBRATION RESISTANT.
!
6V INTERNAL RESISTOR.

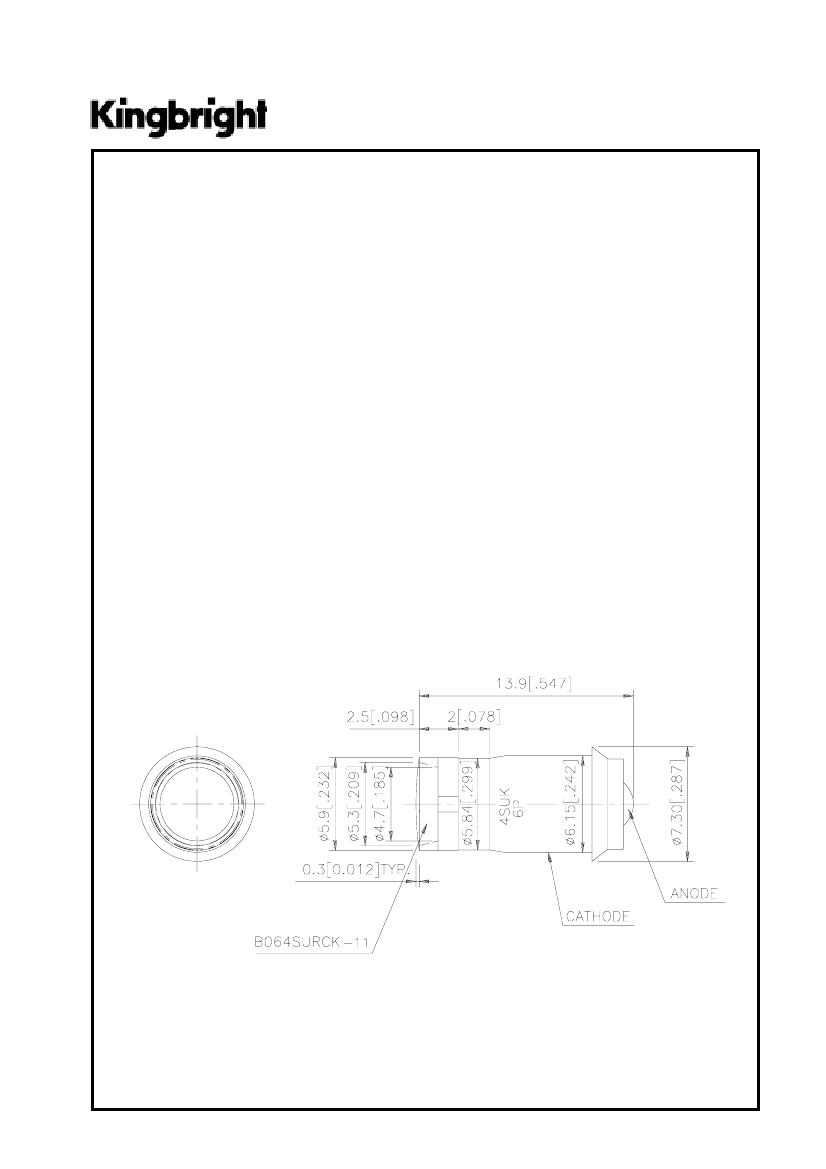

Package Dimensions
Notes:
1. All dimensions are in millimeters (inches).
2. Tolerance is
±0.25(0.01")
unless otherwise noted.
3. Specifications are subject to change without notice.
SPEC NO: DSAD1600
APPROVED : J. Lu
REV NO: V.1
CHECKED : Allen Liu
DATE: APR/08/2003
DRAWN: F.Y.YUAN
PAGE: 1 OF 3
Selection Guide
Iv (m c d )
V=6V
Min .
BLFA064SURCK-6V
HYPER RED ( InGaAlP )
WATER CLEAR
650
Ty p .
1100
V i ew i n g
An g l e
2
θ 1 / 2
110
°
P ar t N o .
Dic e
L en s Ty p e
Note:
1.
θ1/2
is the angle from optical centerline where the luminous intensity is 1/2 the optical centerline value.
Electrical / Optical Characteristics at T
A
=25°C
°
Sy m b o l
λ
peak
λ
D
∆λ
1/2
C
I
F
I
R
P ar am et er
Peak Wavelength
Dominate Wavelength
Spectral Line Half-width
Capacitance
Forward Current
Reverse Current
D ev i c e
Hyper Red
Hyper Red
Hyper Red
Hyper Red
Hyper Red
Hyper Red
Ty p .
650
635
28
35
20
10
Max .
Un its
nm
nm
nm
pF
mA
uA
Tes t Co n d it io n s
V
F
=6 V
V
F
=6 V
V
F
=6 V
V
F
= 0 V;f= 1 M Hz
V
F
=6 V
V
R
= 5V
Absolute Maximum Ratings at T
A
=25°C
°
P ar am et er
Power dissipation
Forward Voltage
Reverse Voltage
Operating Temperature
Storage Temperature
H y p er R ed
140
7
5
-40
°
C To +70
°C
-40
°
C To + 85
°C
Un its
mW
V
V
SPEC NO: DSAD1600
APPROVED : J. Lu
REV NO: V.1
CHECKED : Allen Liu
DATE: APR/08/2003
DRAWN: F.Y.YUAN
PAGE: 2 OF 3
